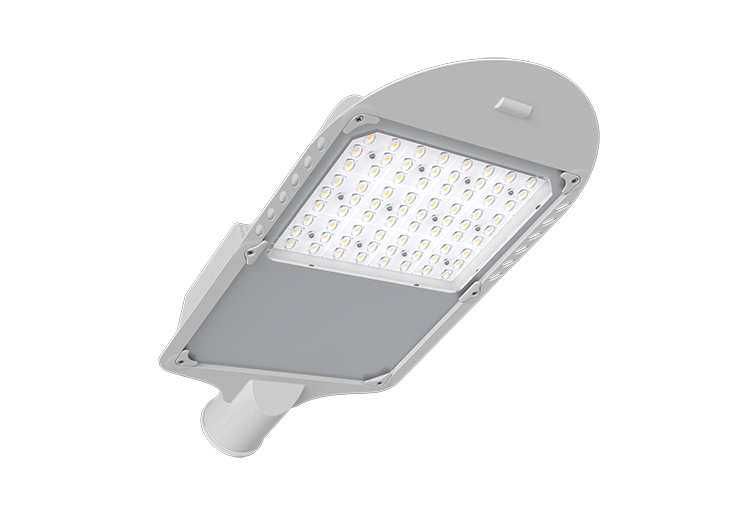

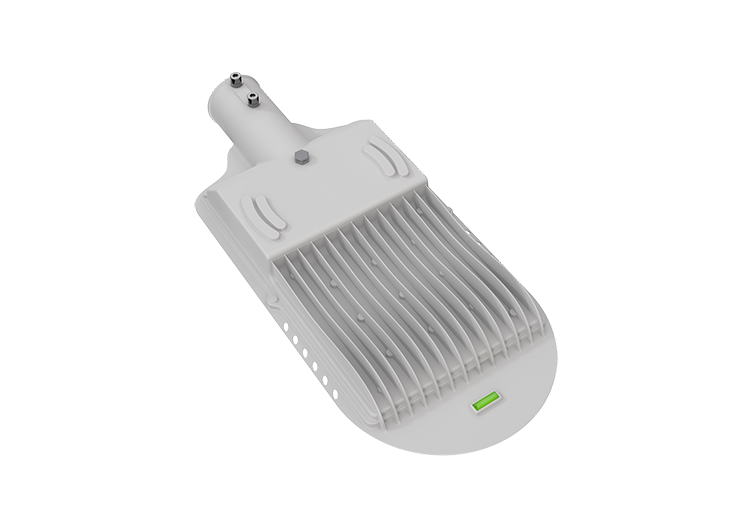

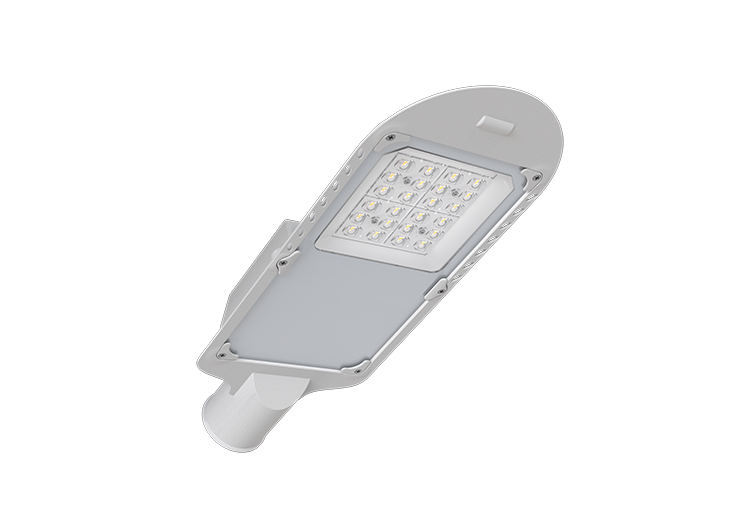

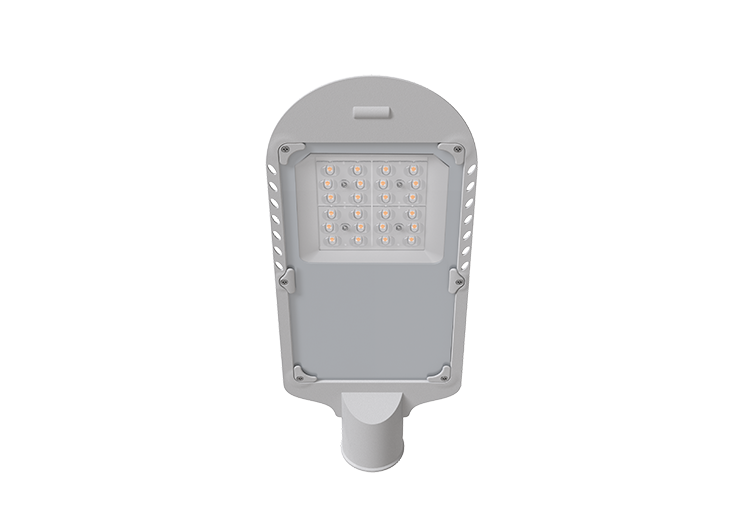

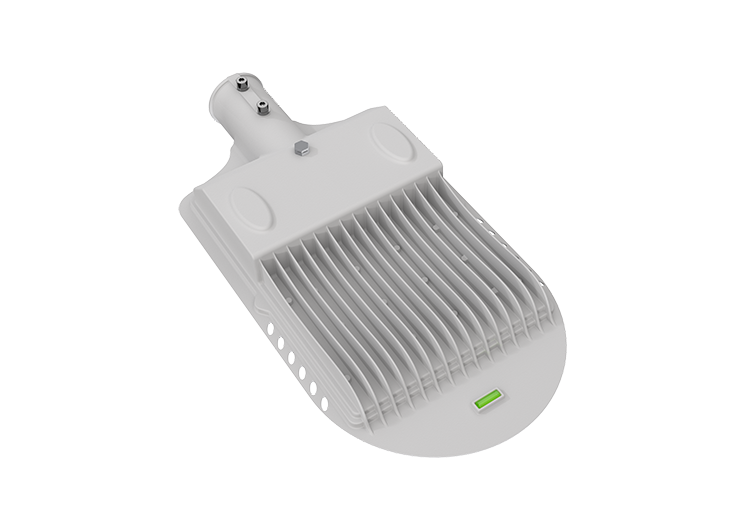

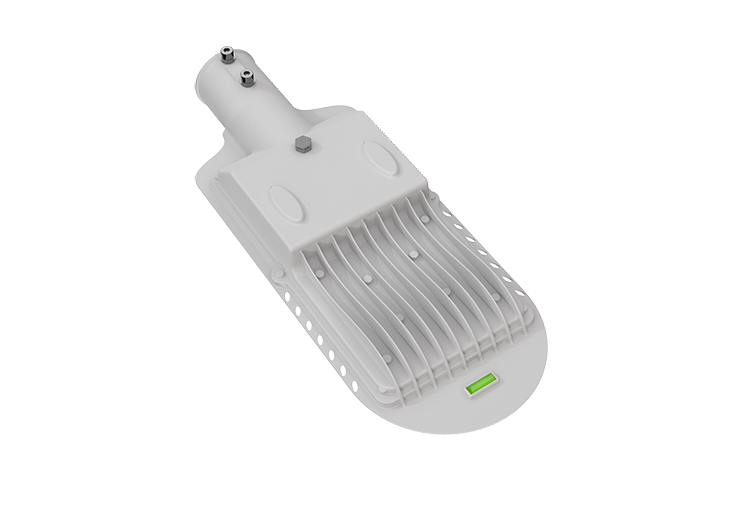

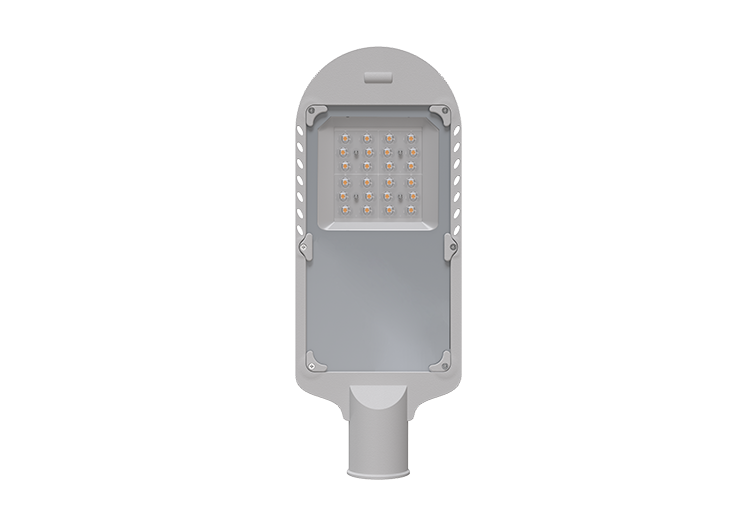

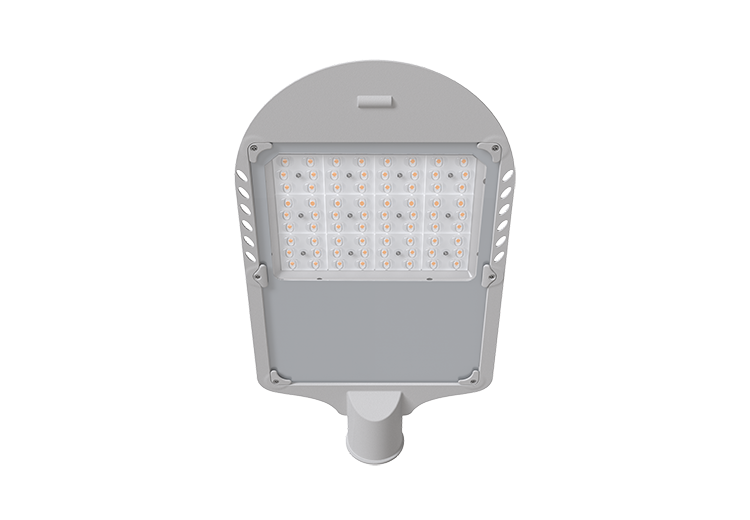

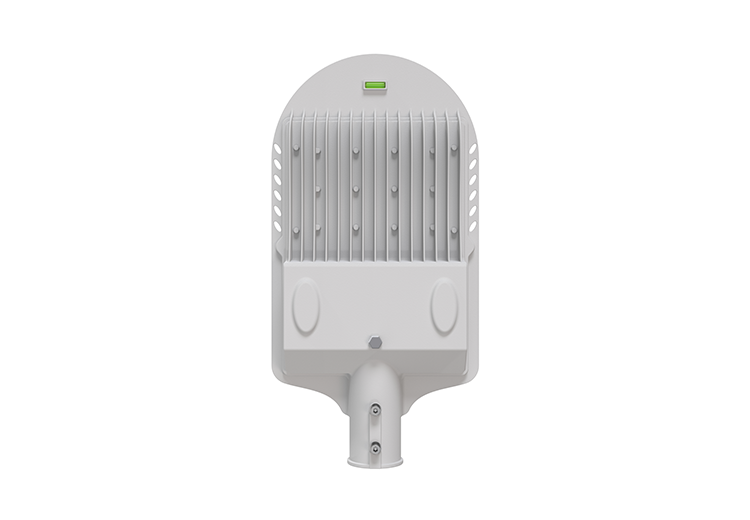

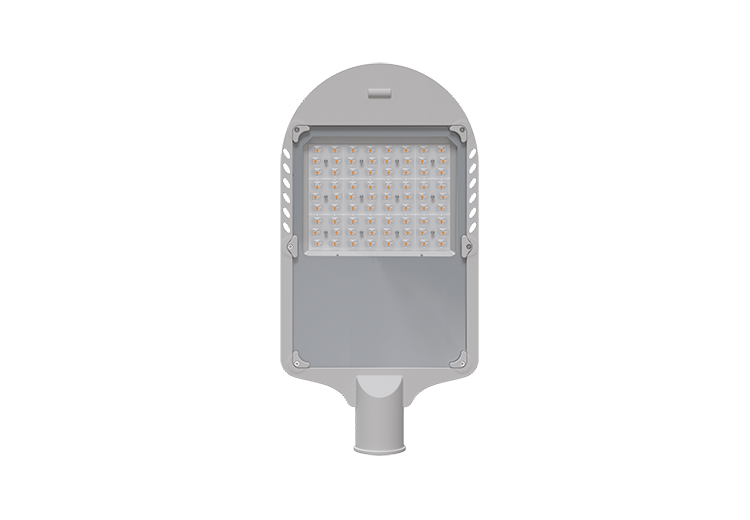

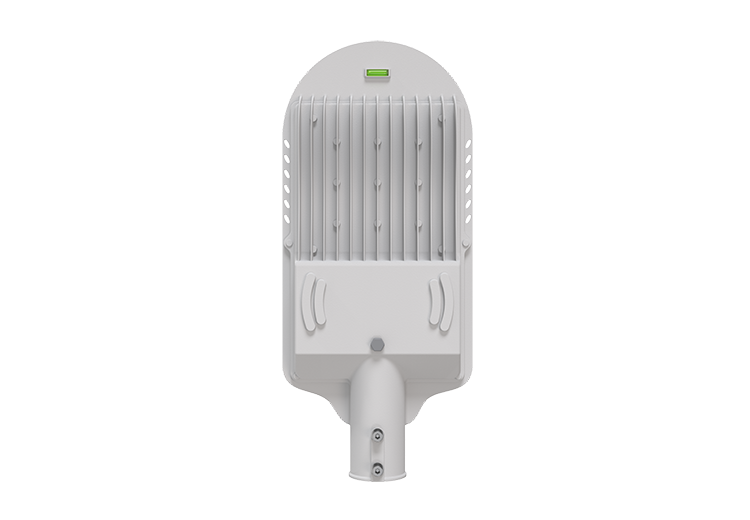

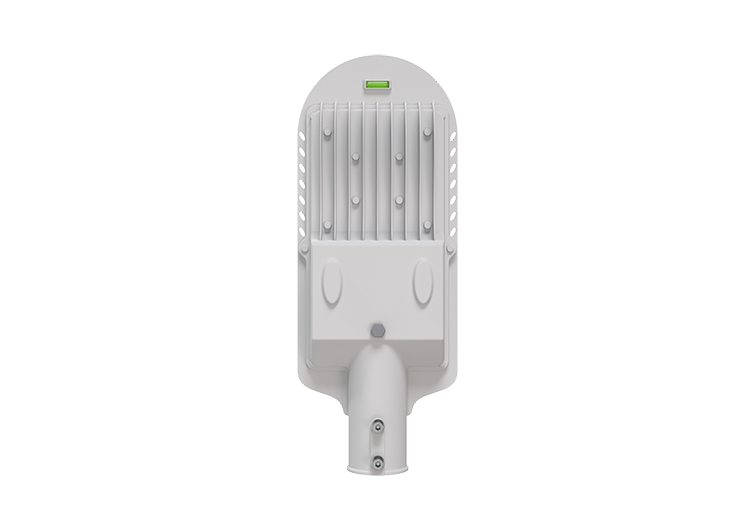

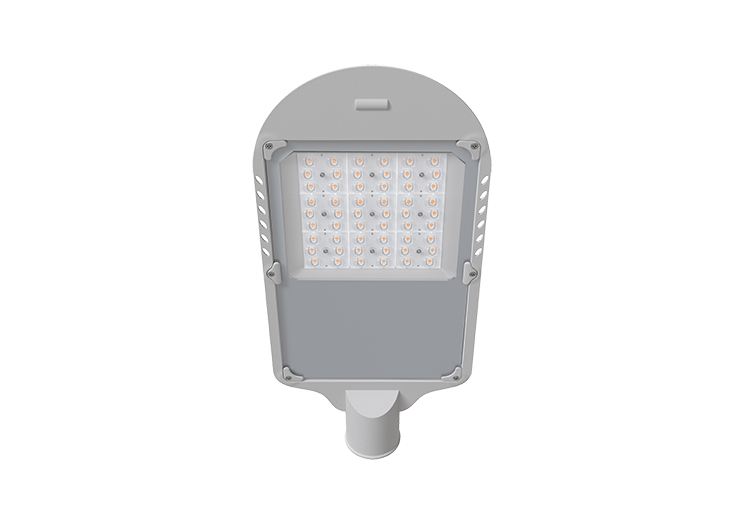

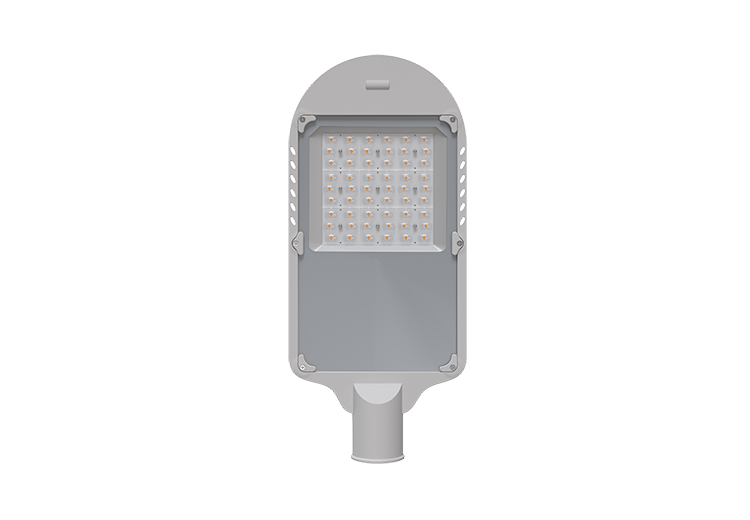

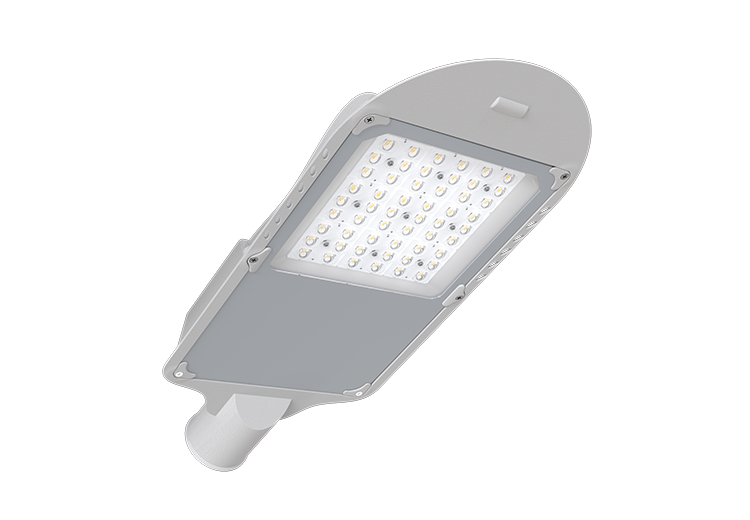

STL-S SERIES
STL-S series street light designed for main roads, secondary roads, rural roads, parks and other places, Simplified lamp body structure, low cost and high light efficiency. Products using lumileds light source and SOSEN Constant Current Power Driver, L80B20 can reach more than 50,000 hours. Tempered Glass and Polycarbonate Optical Lens, Protection level up to IK08 and IP66 rating.
- Parameter
- Dimension
- Accessories
- Installation
- Video
- Download
Parameter
| Model NO. | Power (W) | Luminous Flux 150lm/W |
|---|---|---|
| XJ-STL60W-S | 60 | 9000 |
| XJ-STL120W-S | 120 | 18000 |
| XJ-STL200W-S | 200 | 30000 |
Above lumens based on 4000K Ra:80

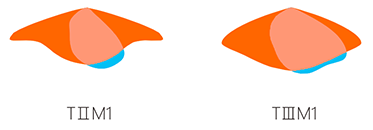

Light distribution curve
AC Input：100-277V 50/60Hz
Brand of LED Driver：SOSEN
Light Source：3030
CRI Range：Ra>80
CCT Range：NW(4000K) CW(5700K)
Light Efficieng：150±5% Lm/W
Beam Angle：TPⅡ, TPⅢ, TPIV
Housing：Aluminum Alloy
Waterproof：IP66 & IK08
L80B20@25℃：>100000H
PF：≥0.95 THD<15% Power Efficiency：≥0.9
Certifications：TUV, CE, CB, SAA

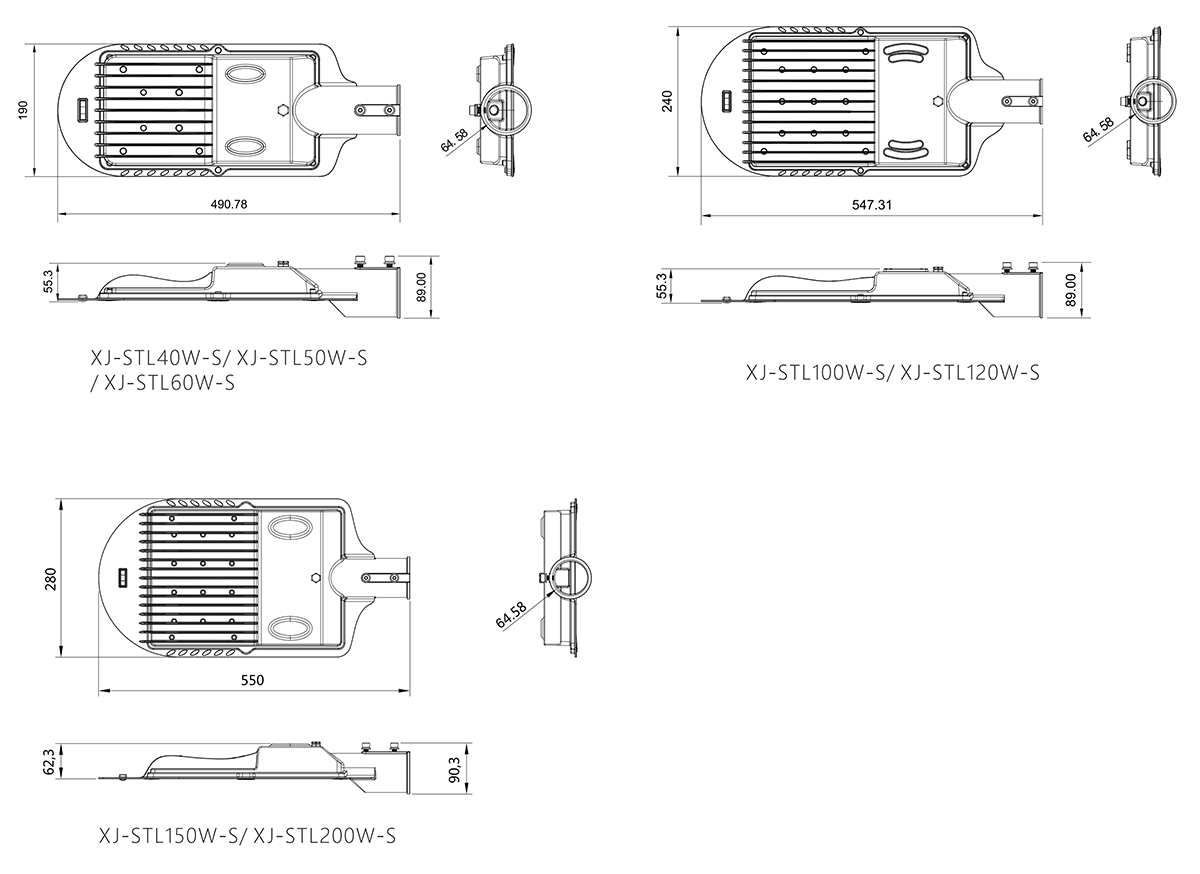

Dimension
Accessories

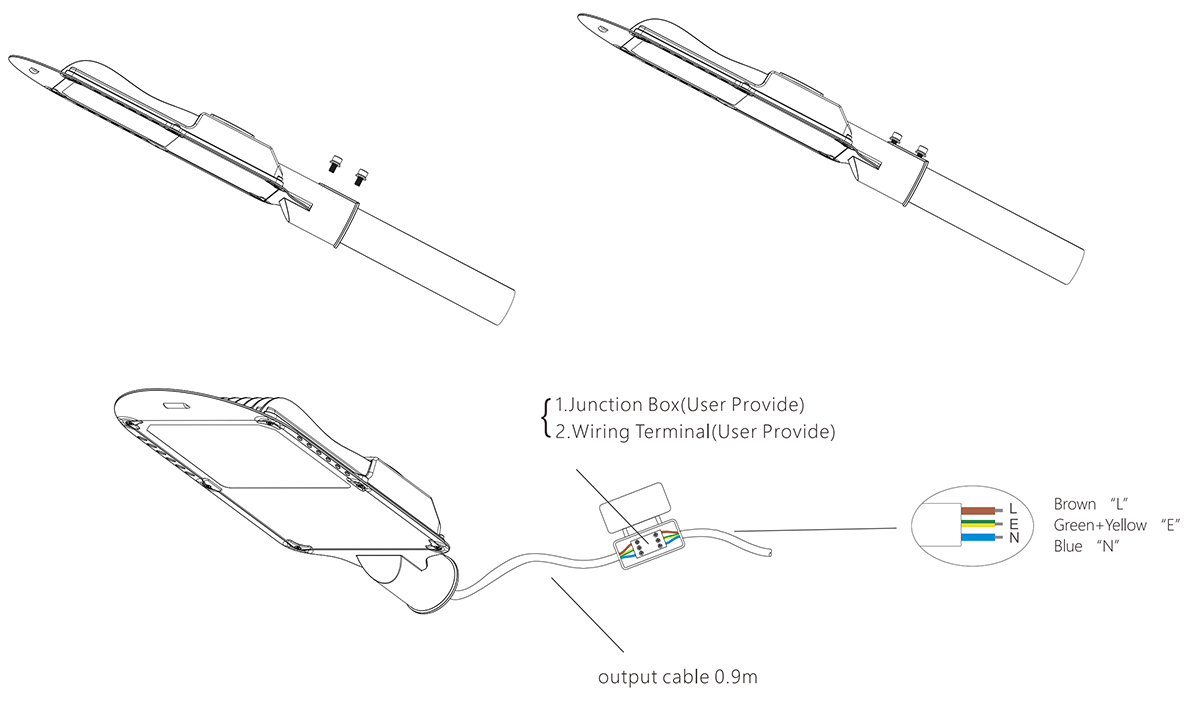

Installation
Video

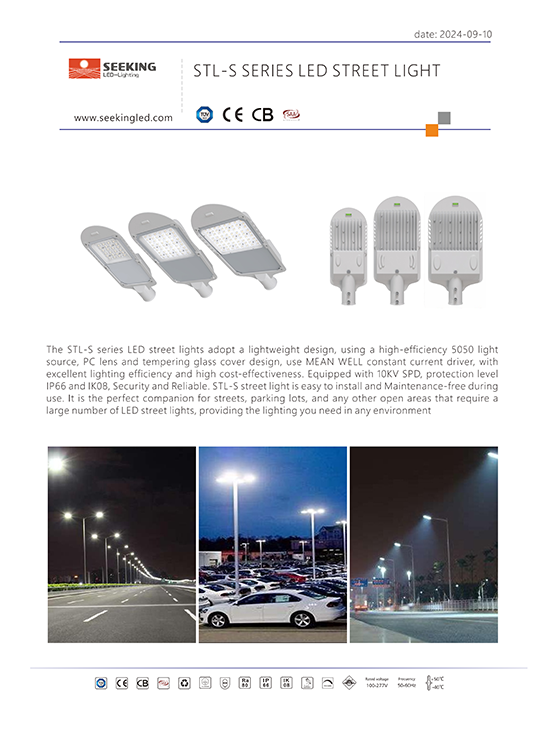

Download
