GSL SERIES

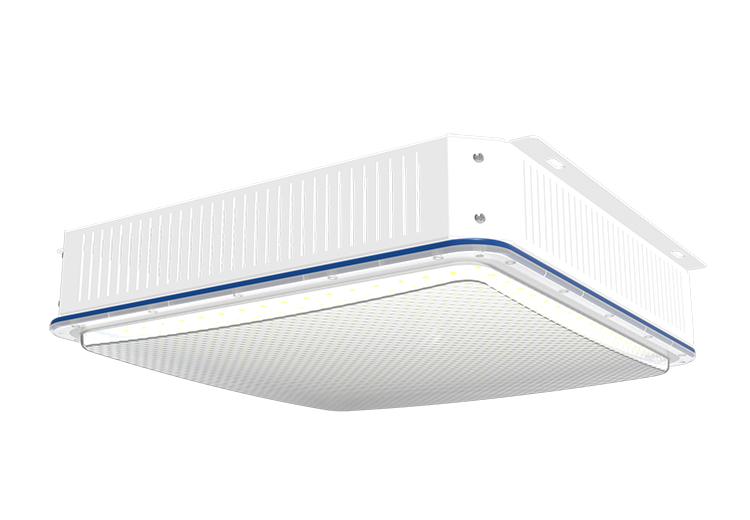

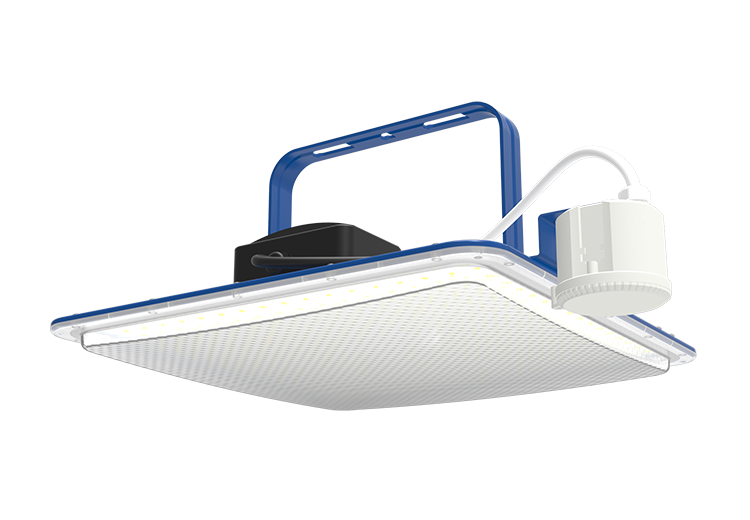

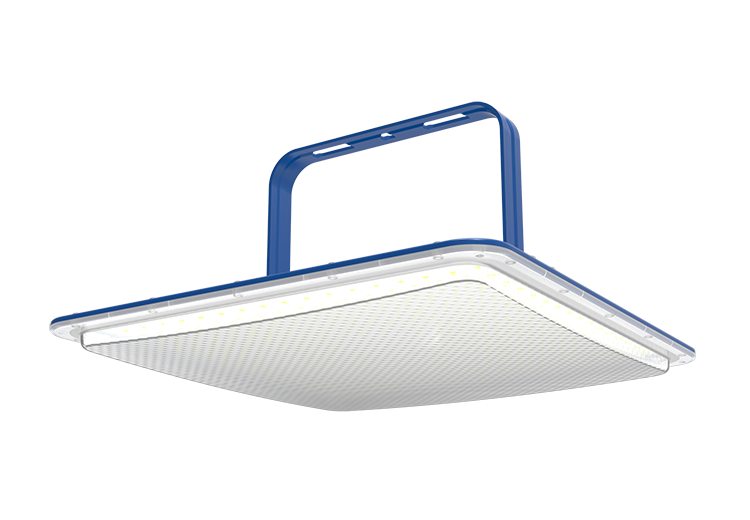

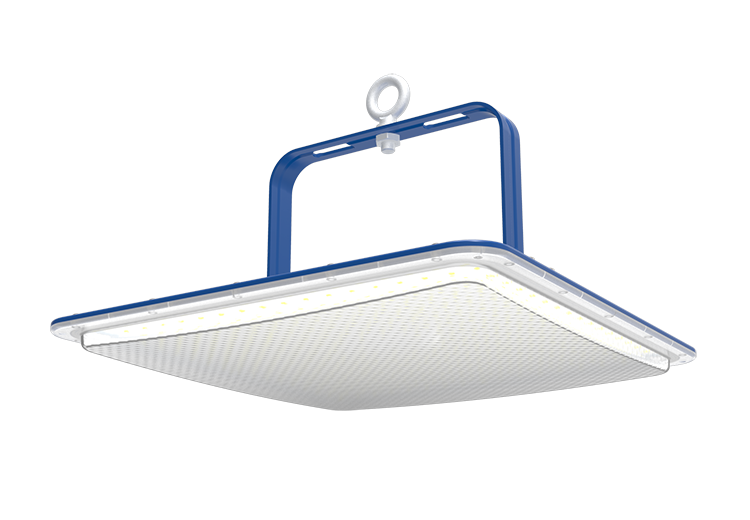

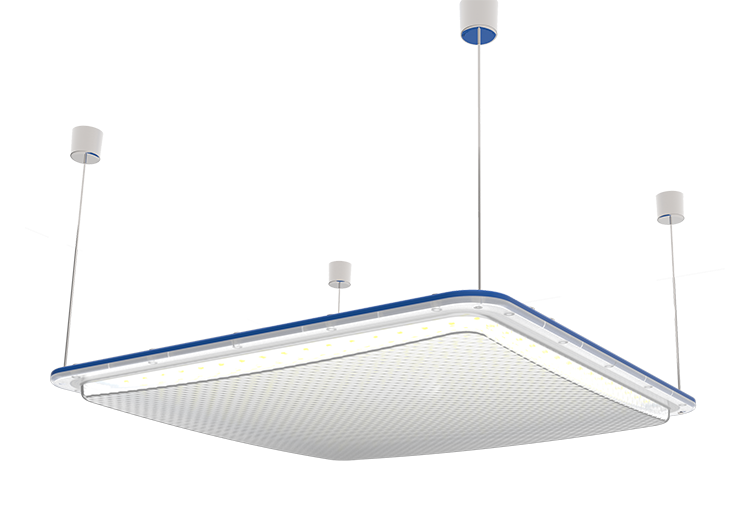

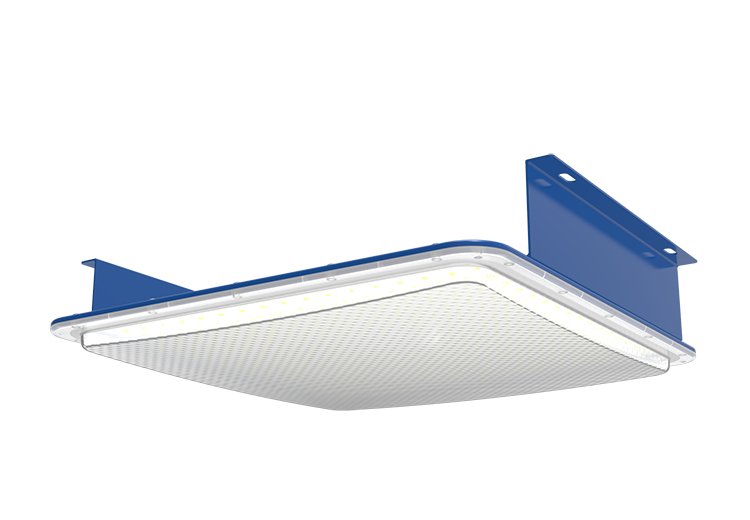

GSL is ideally suited to many industrial and commercial applications thanks to a diverse mounting system; surface, recessed and pendant methods are all covered. Add in a high-efficacy LED system and a high power factor and the GSL range becomes a serious contender in the low bay arena.
- Parameter
- Dimension
- Accessories
- Installation
- Video

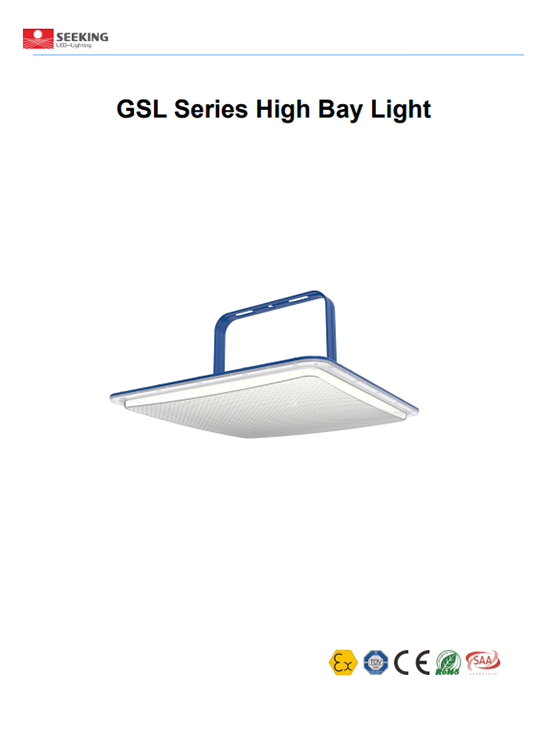

- Download
Parameter
| Model NO. | Power (W) | Luminous Flux 140lm/W |
|---|---|---|
| XJ-GSL100W | 100 | 14000 |
| XJ-GSL150W | 150 | 21000 |
| XJ-GSL200W | 200 | 28000 |
Above lumens based on 4000K Ra:80
Light distribution curve
AC Input：100-277V 50/60Hz
Brand of LED Driver：MEANWELL
Light Source：2835
CRI Range：Ra>80
CCT Range：NW(4000K) CW(5700K)
Light Efficieng：140±5% Lm/W
Beam Angle：110°
Housing：Aluminum Alloy
Waterproof：IP65 & IK08
L80B20@25℃：>100000H
PF：≥0.95 THD<15% Power Efficiency：≥0.9
Certifications：EX, TUV, CE, RoHS, SAA

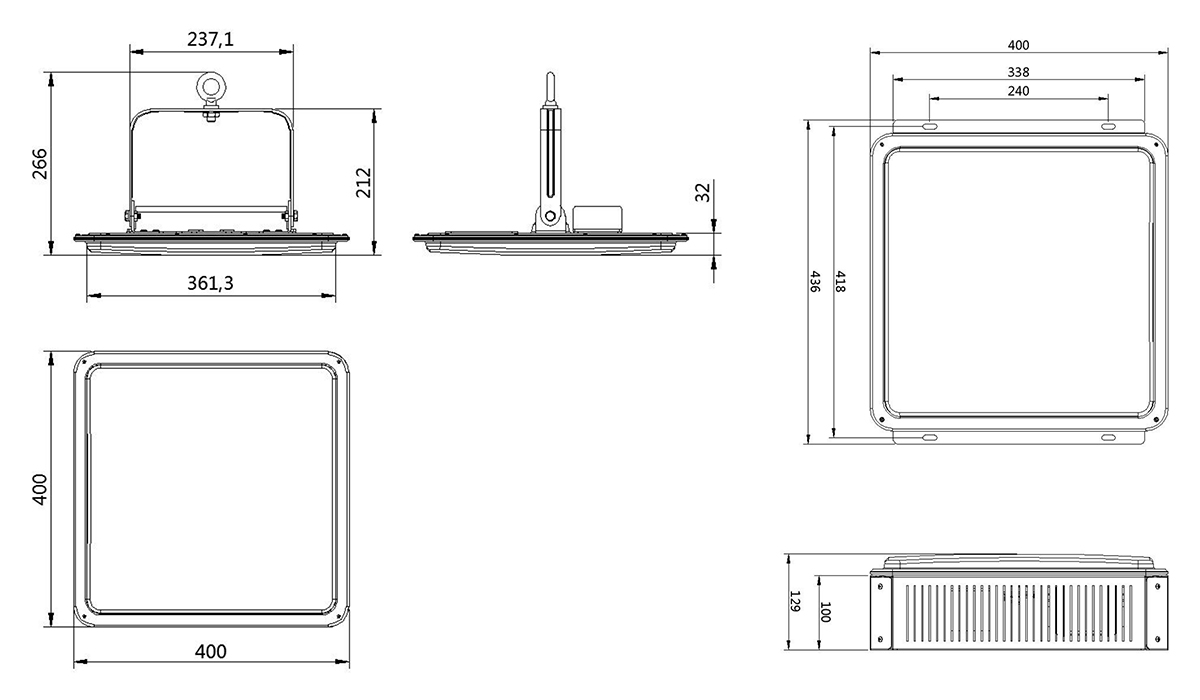

Dimension
Accessories
Installation
Video
