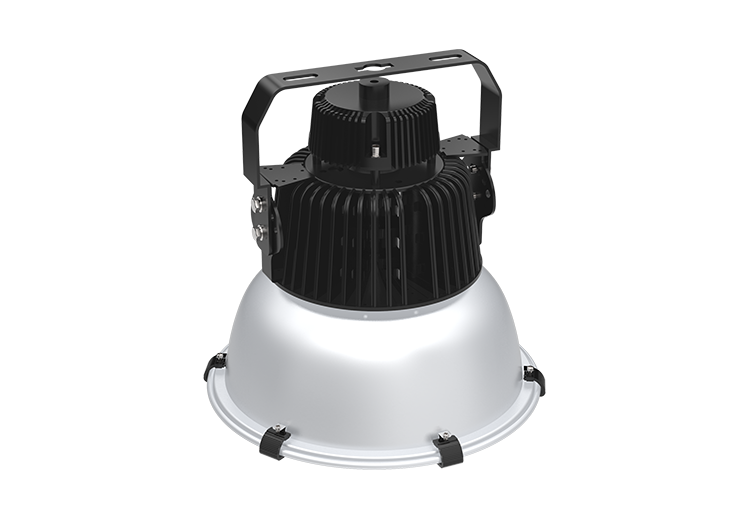

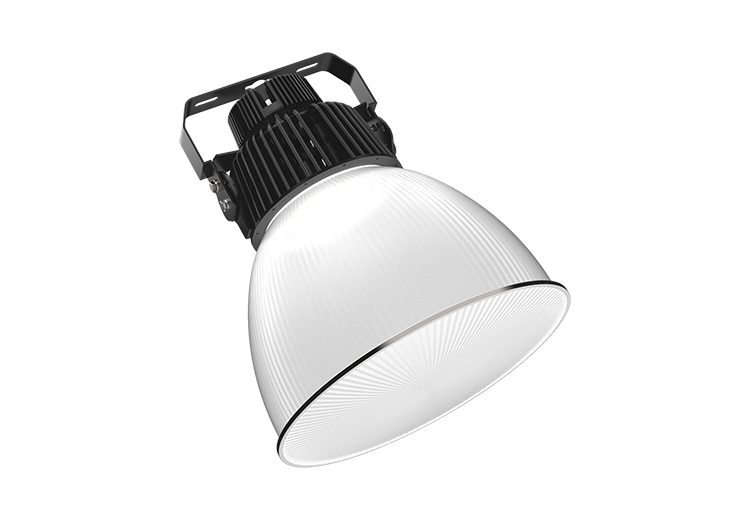

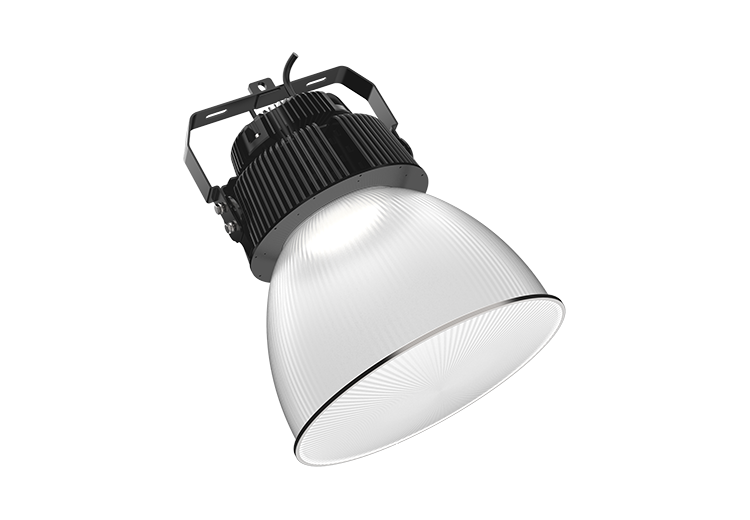

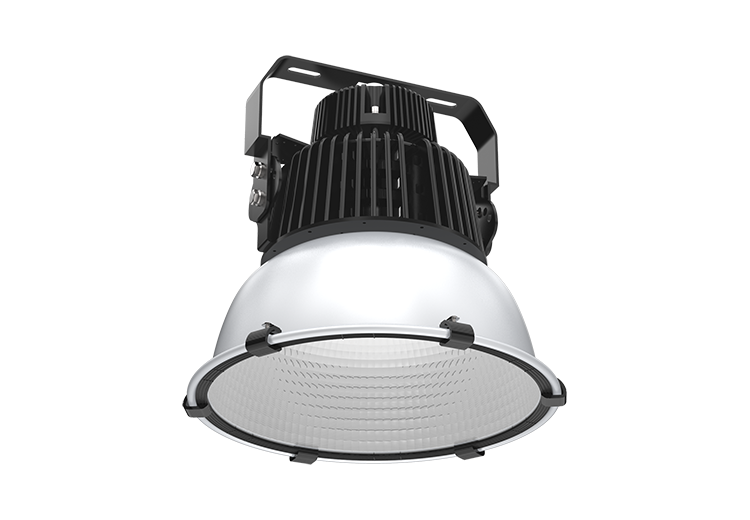

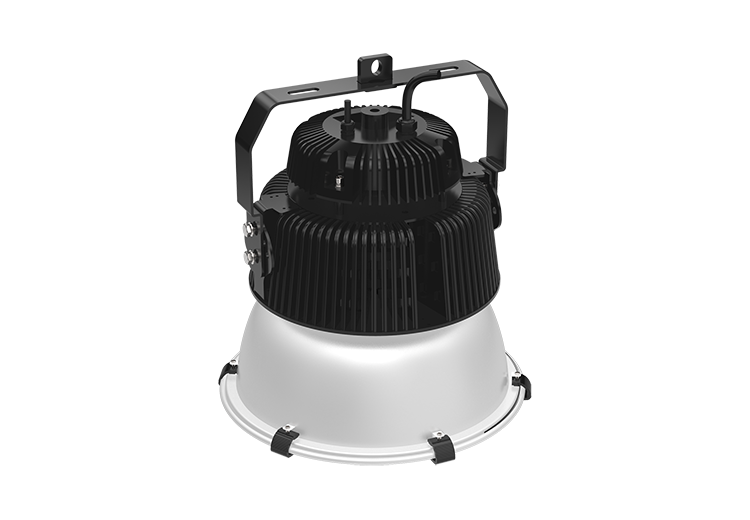

HBS SERIES

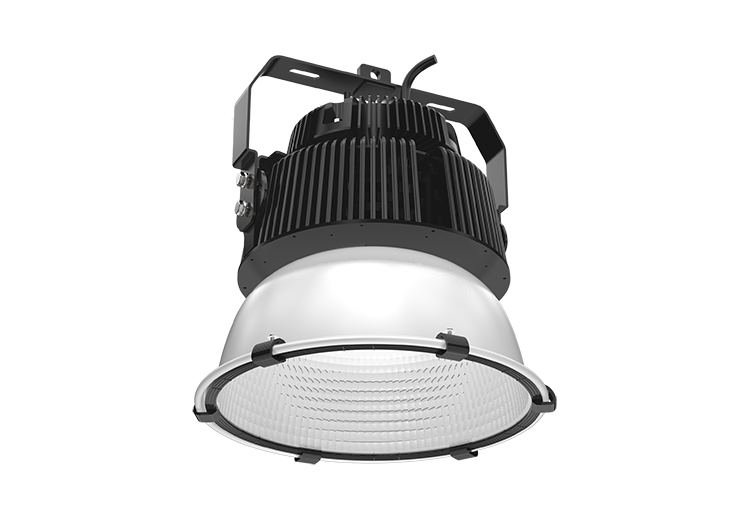

HBS series is a LED lamp specially designed for high-rise lighting, Fin-type heat dissipation technology, Light weight, good heat dissipation effect.Products using SMD 3030 light source and MEAN WELL constant current power driver, Light efficiency can reach 140lm/W and lifetime can reach more than 50,000 hours.The lamp has toughened glass cover, IP65 waterproof grade, with a variety of angles of aluminium reflector, Satisfy the application in different occasions.
- Parameter
- Dimension
- Accessories
- Installation
- Video

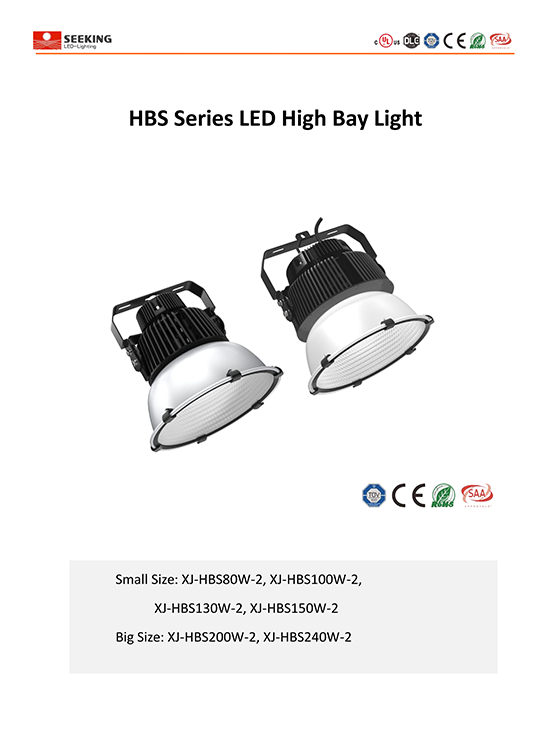

- Download
Parameter
| Model NO. | Power (W) | Luminous Flux 140lm/W @ NW |
|---|---|---|
| XJ-HBS100W | 100 | 14000 |
| XJ-HBS150W | 150 | 21000 |
| XJ-HBS200W | 200 | 28000 |
| XJ-HBS240W | 240 | 33600 |
Above lumens based on 4000K Ra:80
Light distribution curve
AC Input：100-277V 50/60Hz
Brand of LED Driver：MEANWELL
Light Source：3030
CRI Range：Ra>80
CCT Range：NW(4000K) CW(5700K)
Light Efficieng：140±5% Lm/W
Beam Angle：90°
Housing：Aluminum Alloy
Waterproof：IP65 & IK08
L80B20@25℃：>100000H
PF：≥0.95 THD<15% Power Efficiency：≥0.9
Certifications：TUV, CE, CB, RoHS, SAA

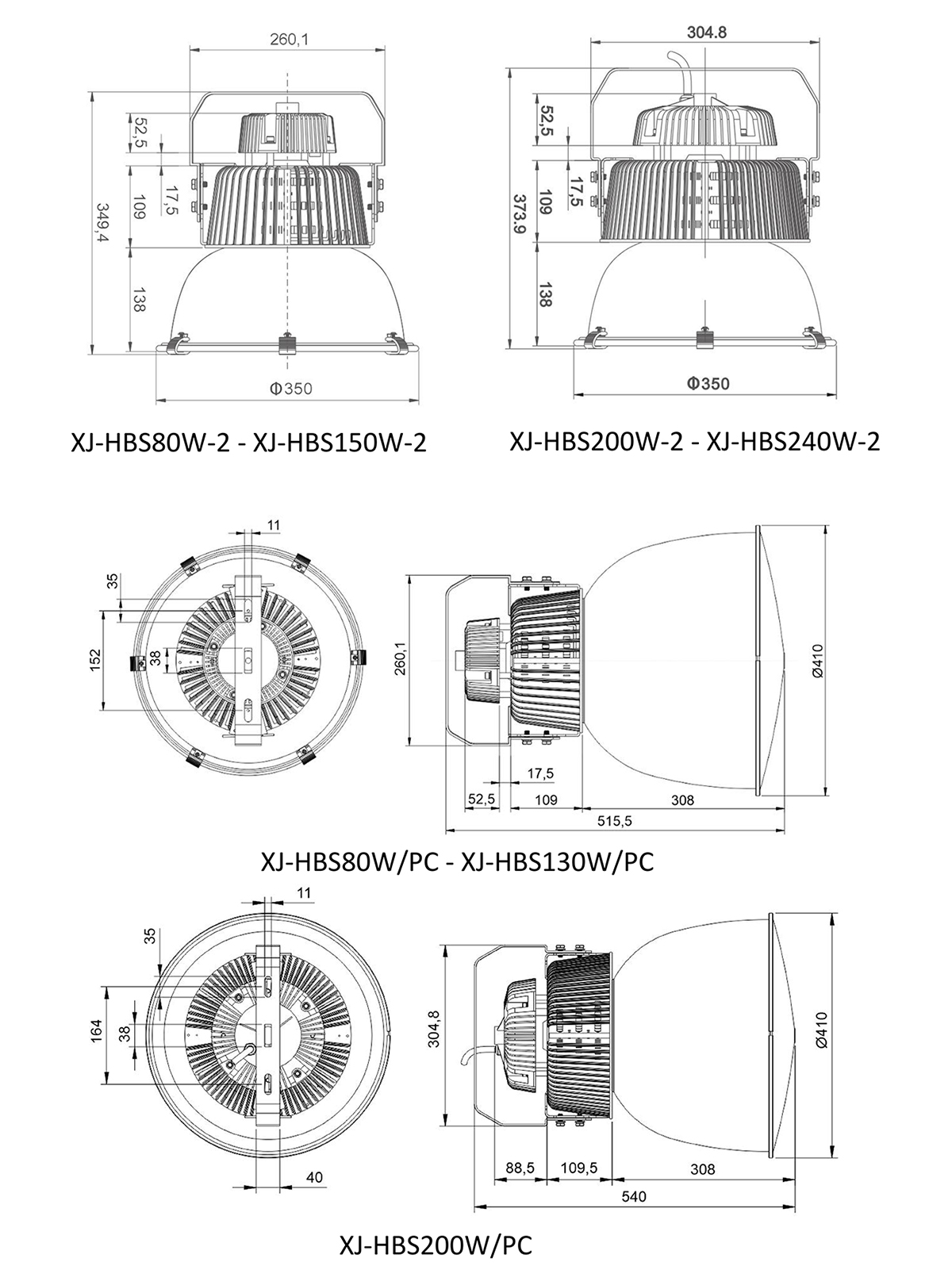

Dimension
Accessories
Installation
Video
