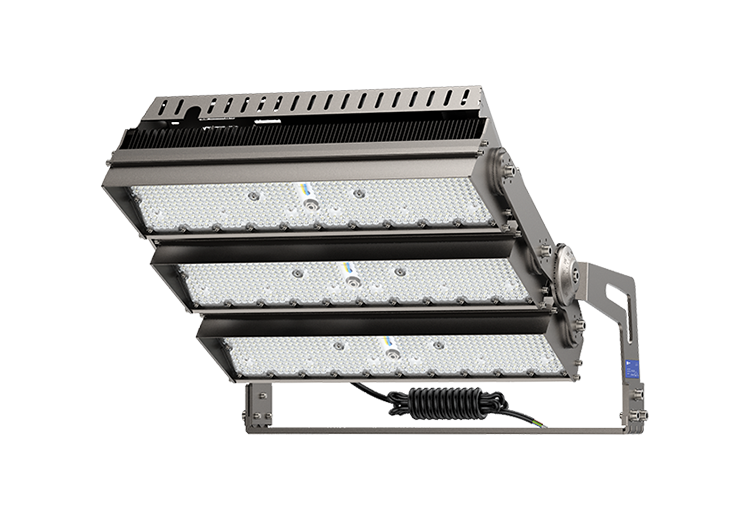

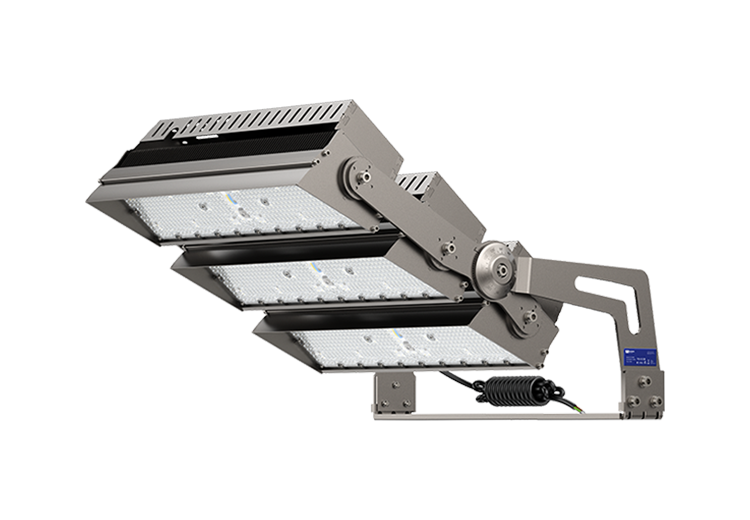

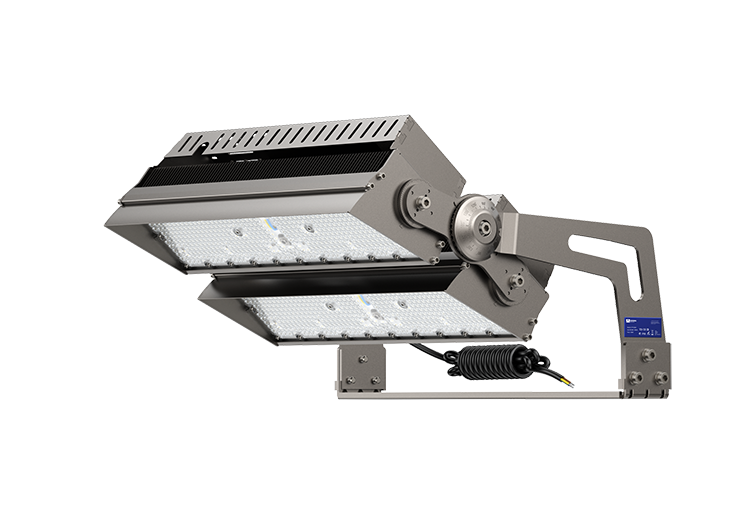

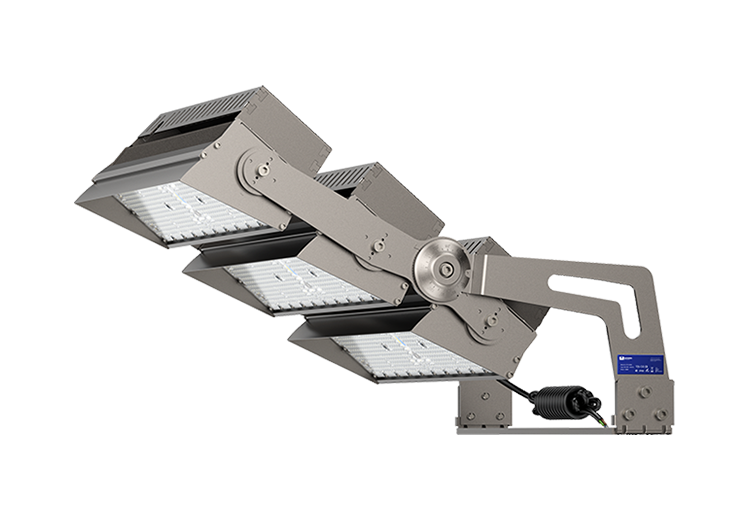

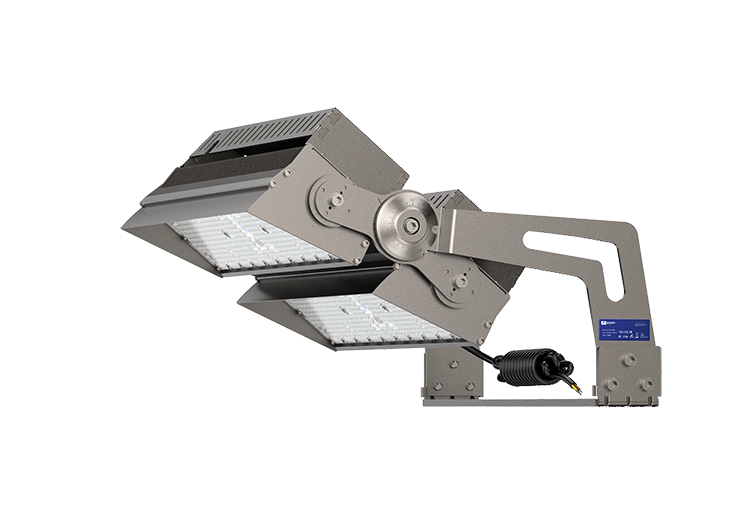

TFV SERIES (VIRGO)
2023 NEW

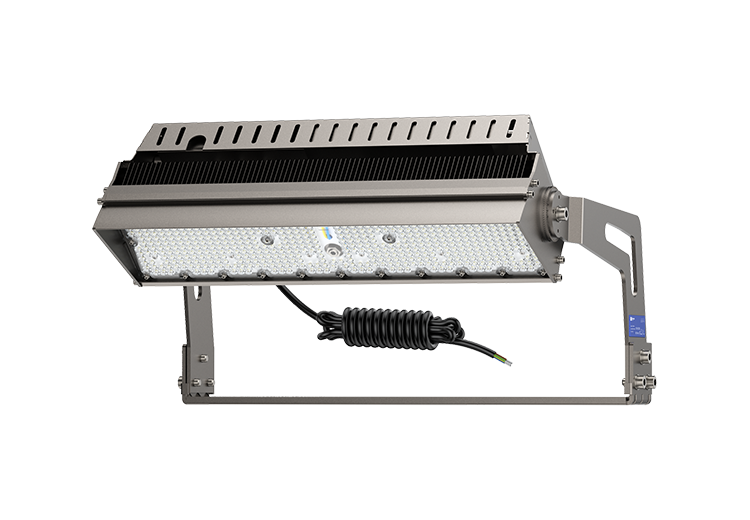

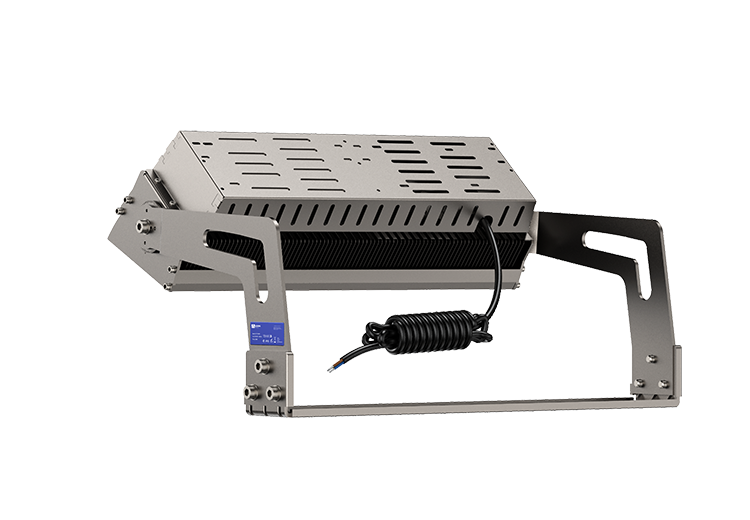

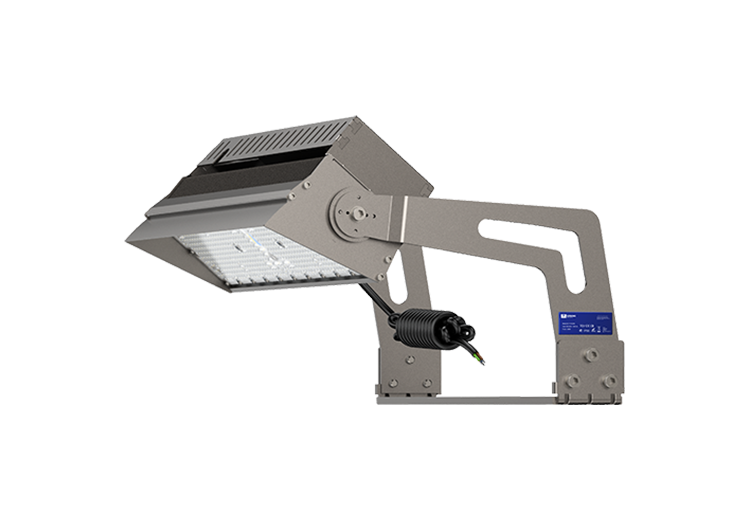

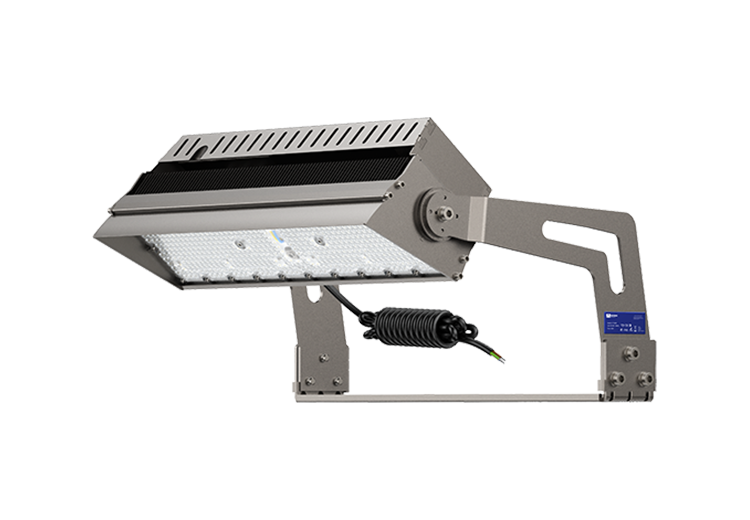

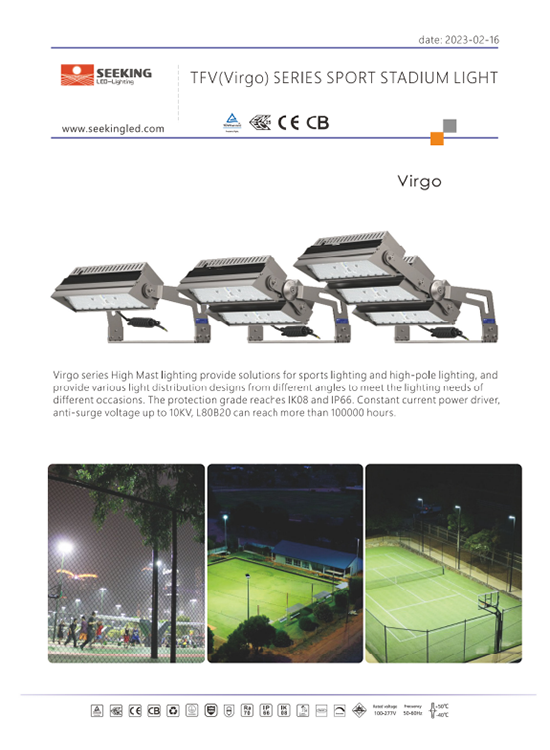

Virgo series High Mast lighting provide solutions for sports lighting and high-pole lighting, and provide various light distribution designs from different angles to meet the lighting needs of different occasions. The protection grade reaches IK08 and IP66. Constant current power driver, anti-surge voltage up to 10KV, L80B20 can reach more than 100000 hours.
- Parameter
- Dimension
- Accessories
- Installation
- Video
- Download
Parameter
| Model NO. | Power (W) | Luminous Flux 155lm/W |
|---|---|---|
| XJ-TFV450W-* | 450 | 69750 |

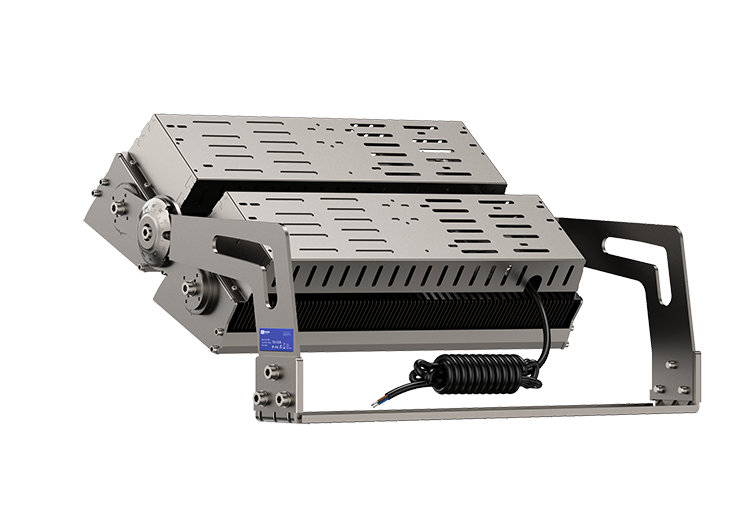

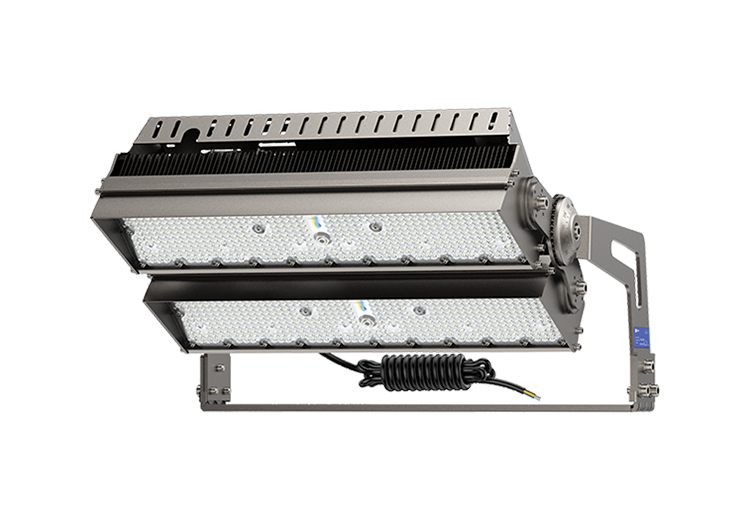

| XJ-TFV900W-* | 900 | 139500 |

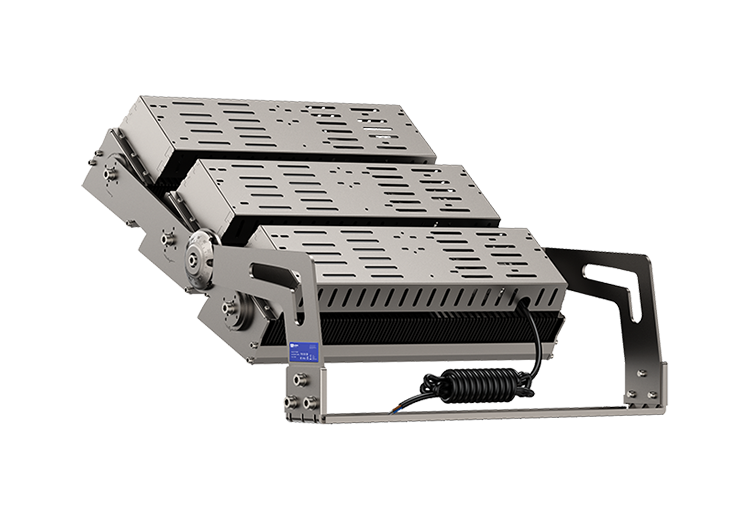

| XJ-TFV1350W-* | 1350 | 209250 |
Above lumens based on 4000K Ra:70
Light distribution curve
AC Input：100-277V 50/60Hz
Brand of LED Driver：INVENTRONICS
Light Source：3030
CRI Range：Ra>70
CCT Range：NW(4000K) CW(5700K)
Light Efficieng：155±5% Lm/W
Beam Angle：25° / 40°
Housing：Aluminum Alloy
Surge protection: 10kV
Waterproof：IP66 & IK08
L80B20@25℃：>100000H
PF：≥0.95 THD<15% Power Efficiency：≥0.9
Certifications：TUV, ENEC, CE, CB

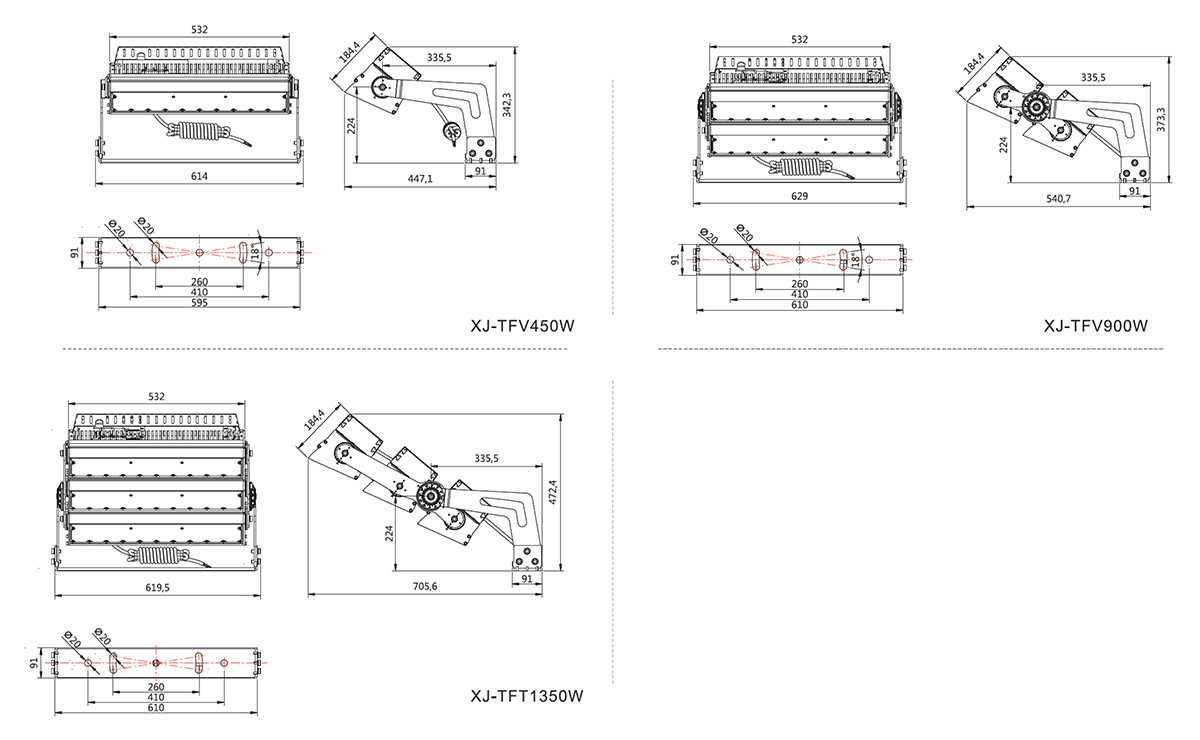

Dimension
Accessories
| accessories | image | material | dimensions | weight | accessory use |
|---|---|---|---|---|---|
| Optional | A06 | Aluminium | ∅ 30x120mm | 200g | Lamp angle positioning |
| Optional | A07 | SUS304 | ∅ 5x1000mm | 0.6kg | Increase the safety performance |
Installation

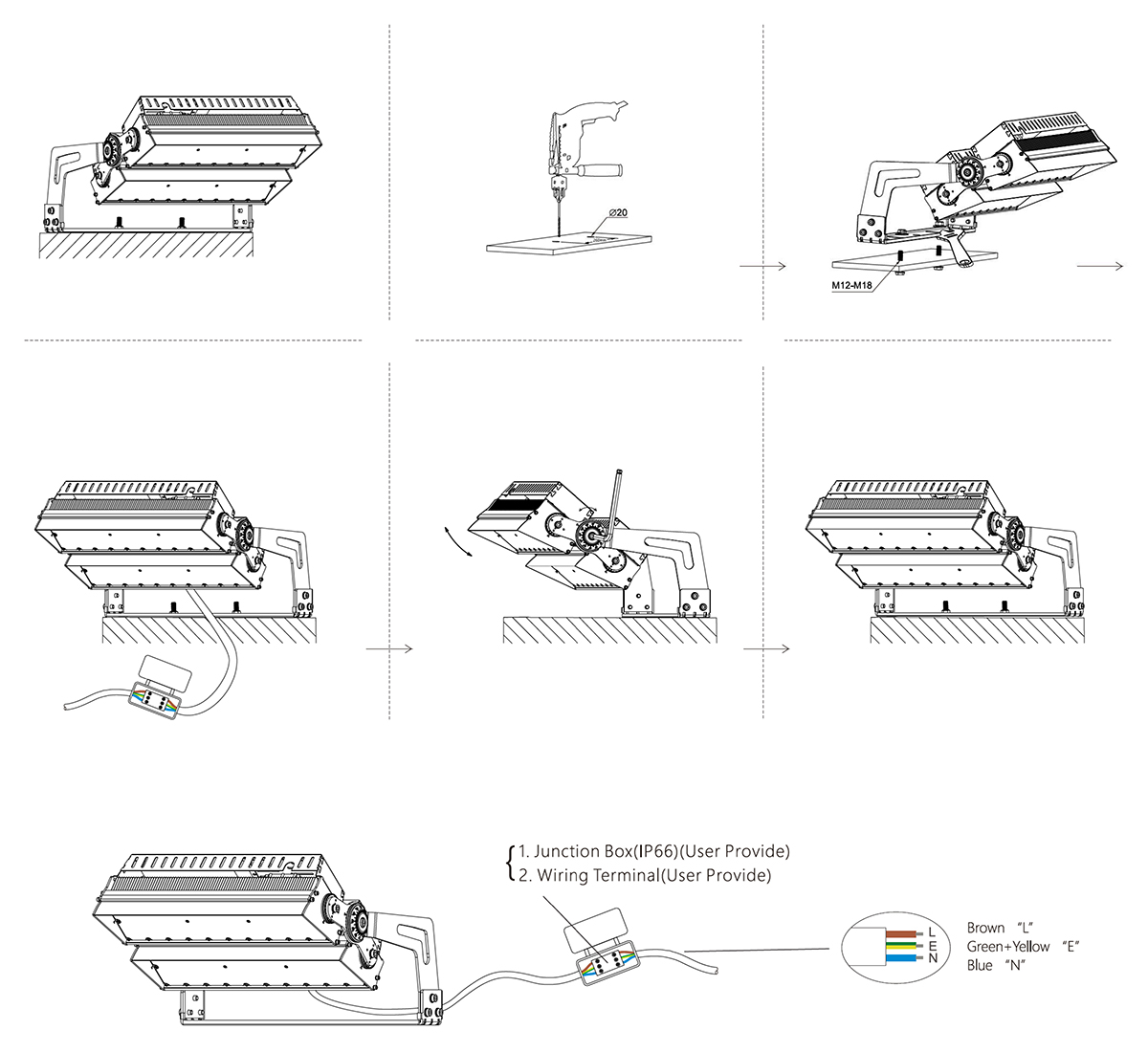

Installation steps
A: Punch two holes with a spacing of 260mm
B: The hole of the lamp bracket aligned with the installation position.
C: Fix the lamp with screws and nuts.
D. Connect the power cable.
E: Adjust the lamp angle and clean it.
Note: Please make sure the power off before opertion, Installation must be performed by skilled electrician who are familiar with the requirements and proper installation methods of LED luminaire, In order to avoid damage or hazard; The external TFVxible cable or cord of this luminaire can not be replaced, if the cord is damaged, the luminaire must be destroyed;
The light source contained in this luminaire shall only be replaced by a qualified person;
