S SERIES
2024 NEW

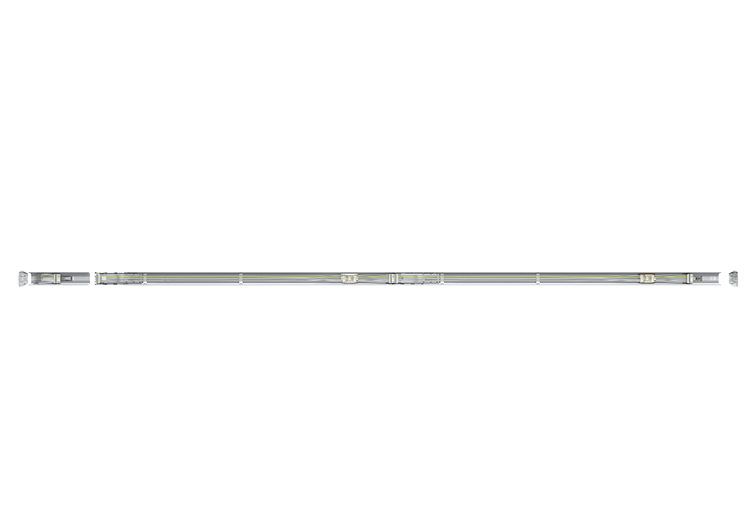

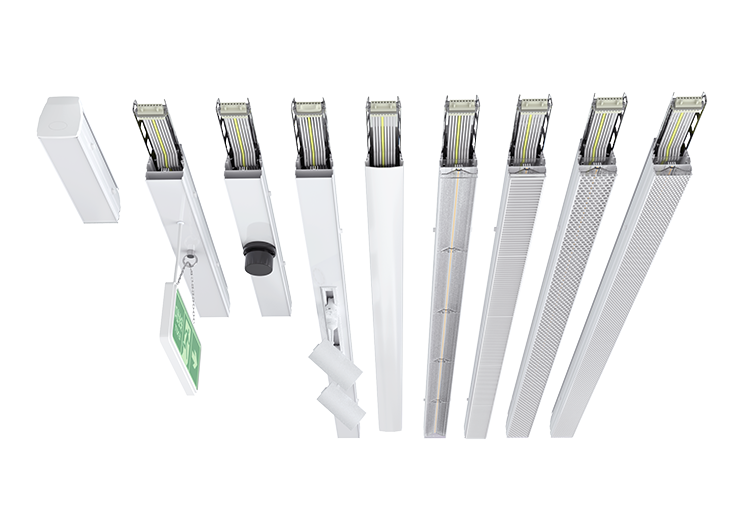

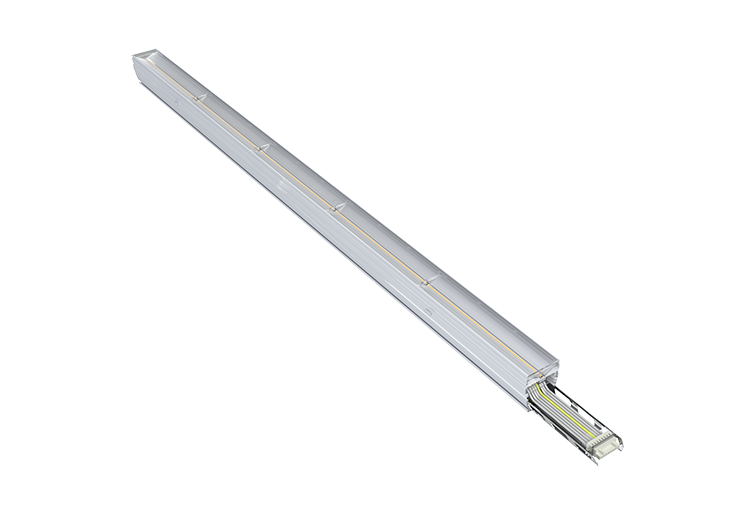

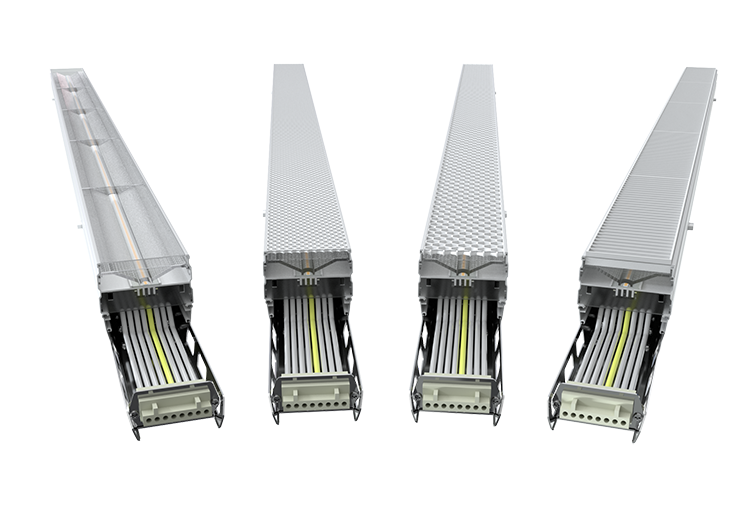

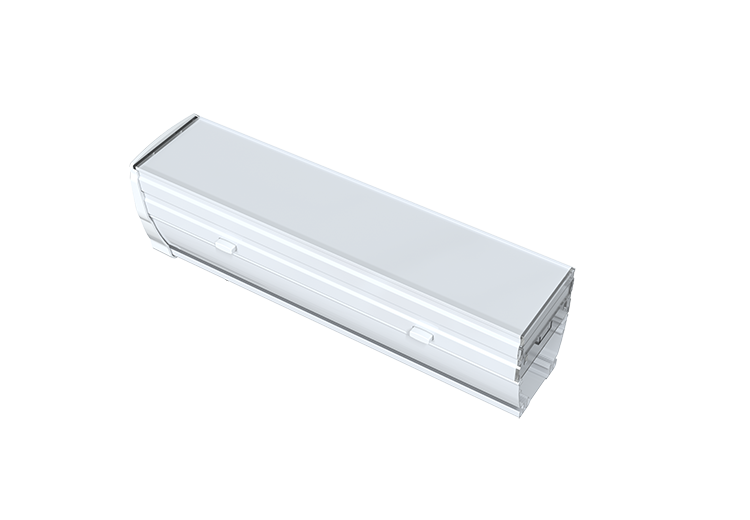

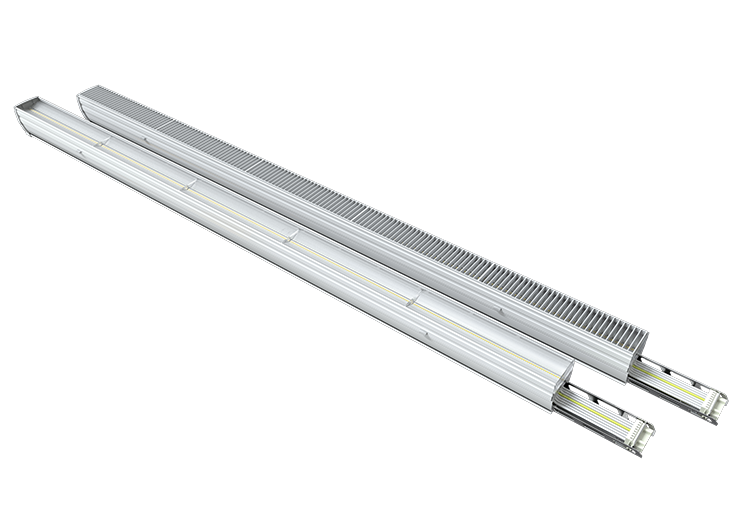

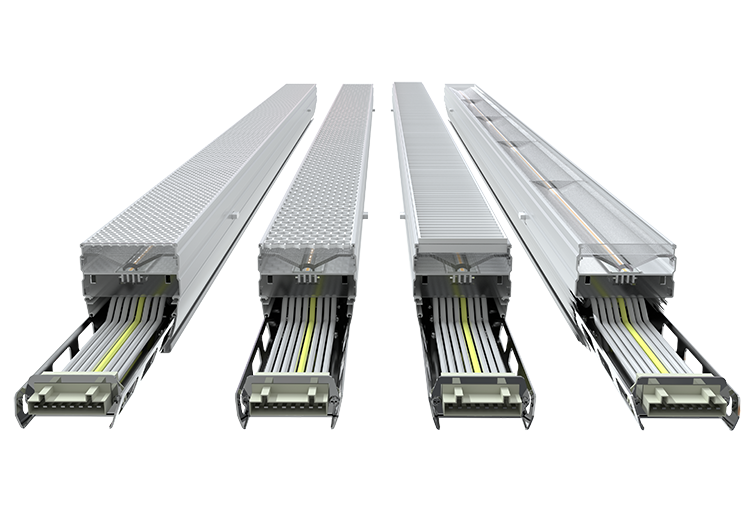

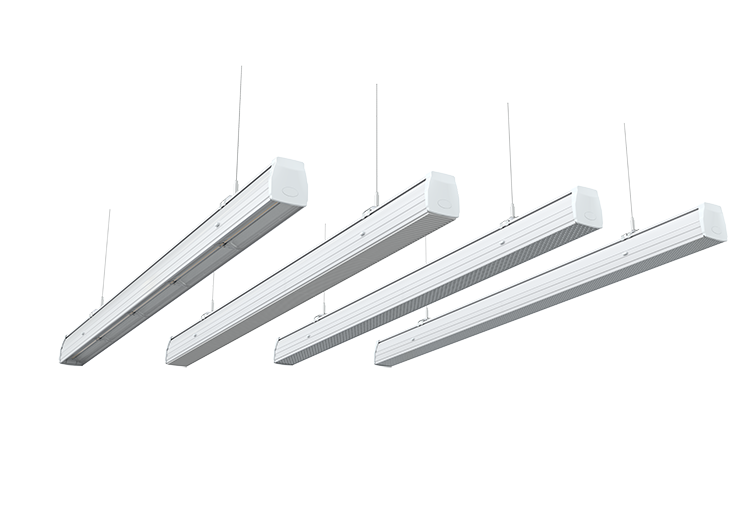

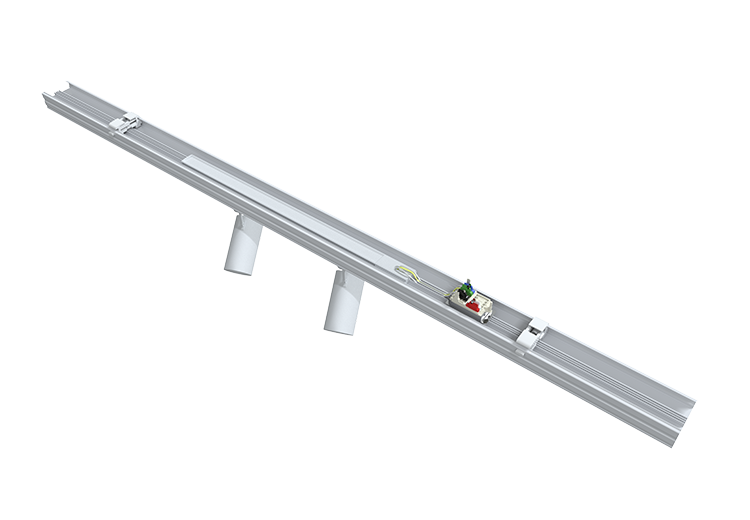

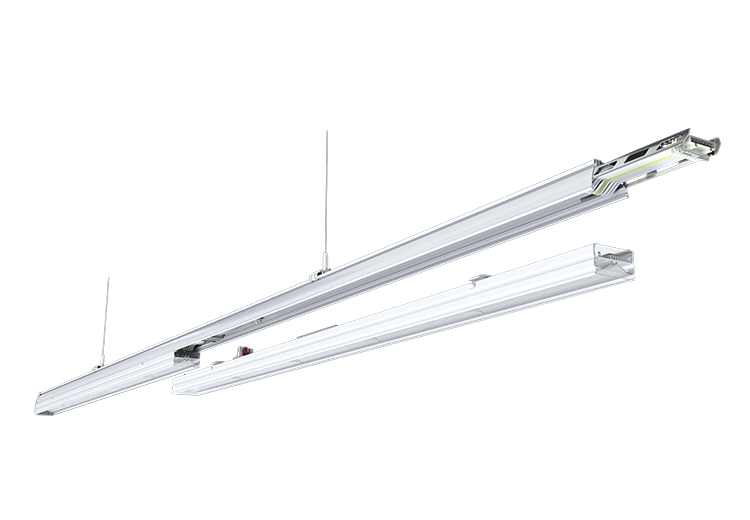

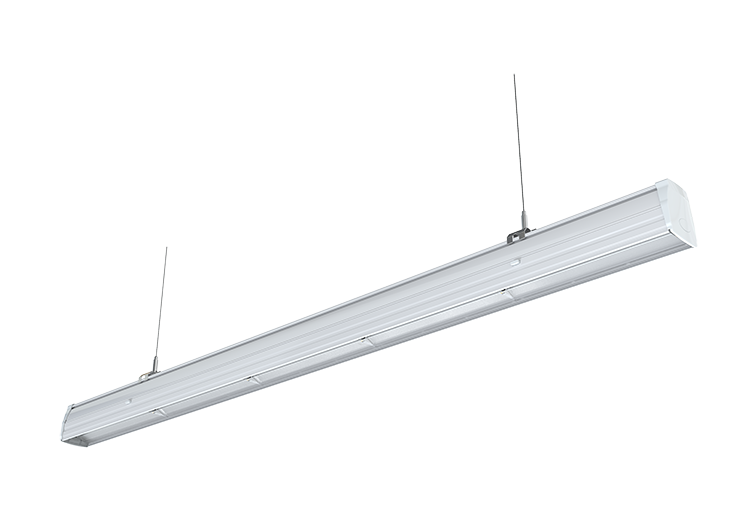

H-Line series LED linear trunking system provides a solution for recreational Indoor high ceiling application, Industrial facility, Chemical Facilities, Exhibition centers, Shopping malls, Warehouse, Supermarket, Retail Store, Factory, Stadiums, Toll stations and so on
- Parameter
- Dimension
- Accessories
- Installation
- Video
- Download
Parameter
| Model NO. | Power (W) | Luminous Flux 180lm/W |
|---|---|---|
| XJ-HLSXX-30W | 30 | 5400 |
| XJ-HLSXX-35W | 35 | 6300 |
| XJ-HLSXX-40W | 40 | 7200 |
| XJ-HLSXX-45W | 45 | 8100 |
| XJ-HLSXX-50W | 50 | 9000 |
| XJ-HLSXX-55W | 55 | 9900 |
| XJ-HLSXX-60W | 60 | 10800 |
| XJ-HLSXX-75W | 75 | 13500 |
Above lumens based on 4000K Ra:80
Light distribution curve
AC Input：100-277V 50/60Hz
Brand of LED Driver：TRIDONIC
Light Source：2835
CRI Range：Ra>80
CCT Range：NW(4000K) CW(5700K)
Light Efficieng：180±5% Lm/W
Beam Angle：30°, 60°, 90°, 120°, P25, LR25
Housing：Aluminum Alloy
Waterproof：IP40 & IK08
L80B20@25℃：>100000H
PF：≥0.95 THD<15% Power Efficiency：≥0.9
Certifications：TUV, ENEC, CE, CB, SAA

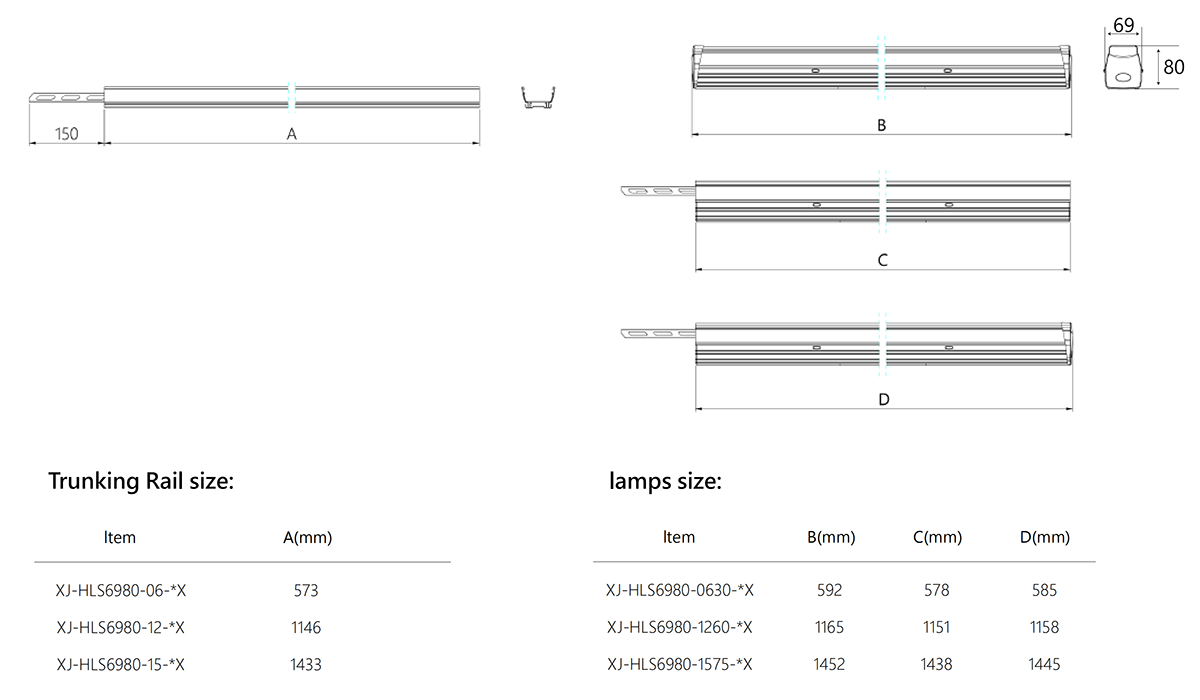

Dimension

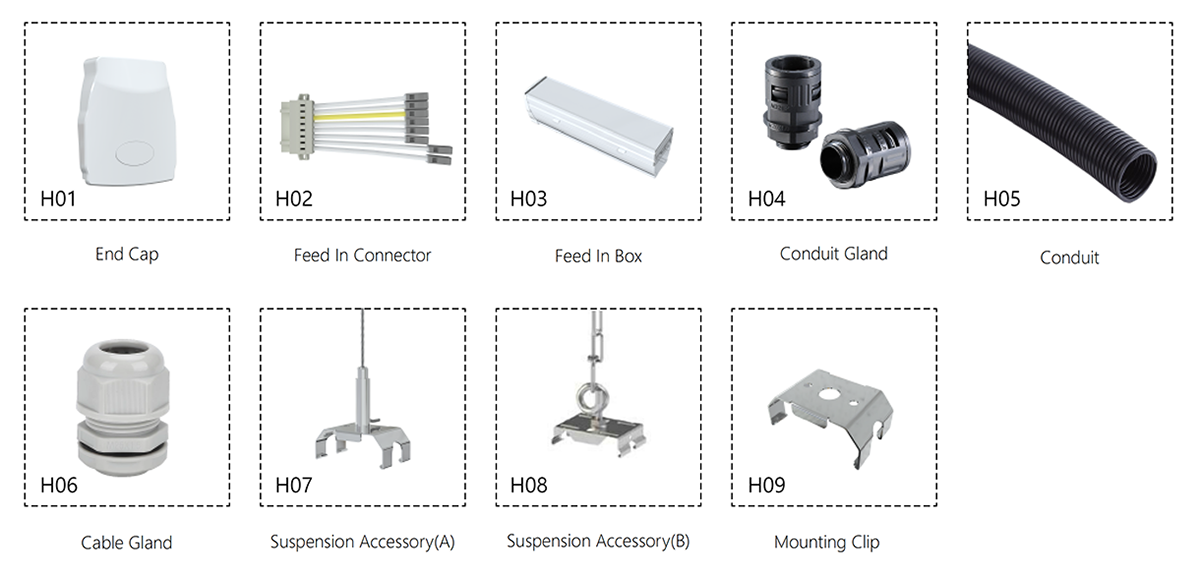

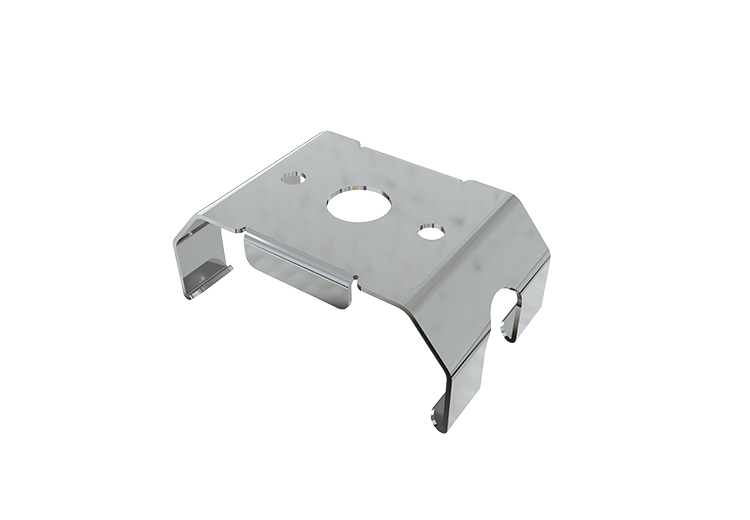

Accessories
| accessories | image | material | dimensions | weight | accessory use |
|---|---|---|---|---|---|

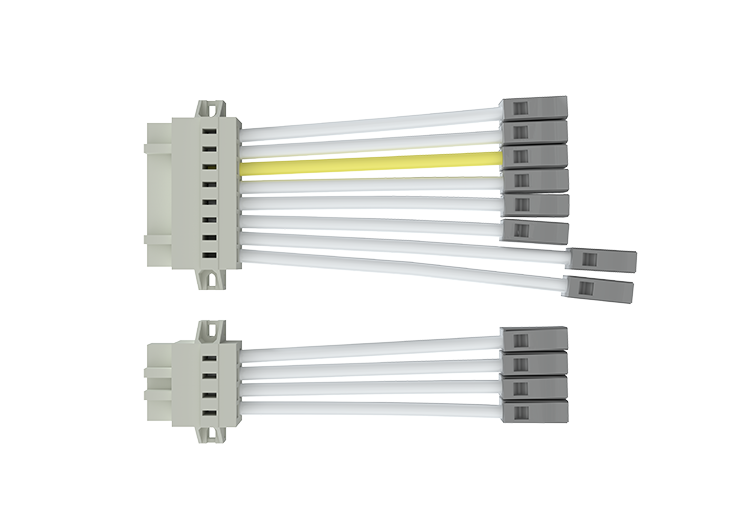

| Standard | T01 | / | 150×50×15mm | 0.1kg | Power input |

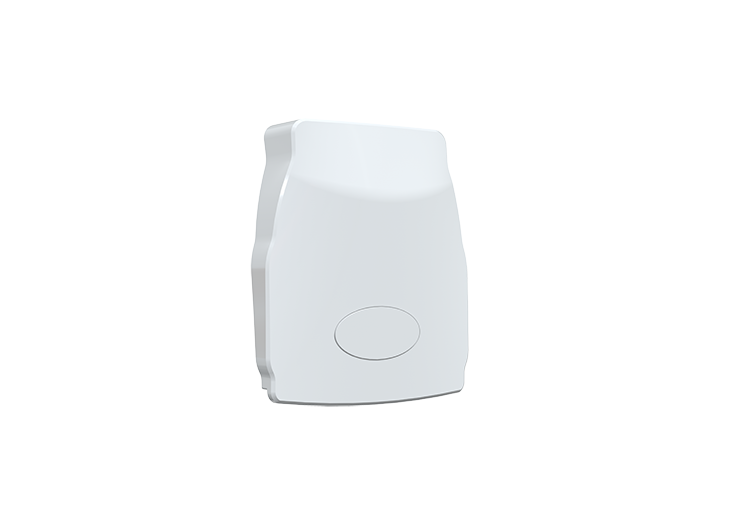

| Optional | T02 | PC | 84×70×24mm | 0.05kg | system End colsed |
| Optional | T03 | carbon steel | 300×300×75mm | 2.5kg | L-shaped connection |
| Optional | T04 | carbon steel | 600×300×75mm | 3.0kg | T-shaped connection |
| Optional | T05 | carbon steel | 600×450×75mm | 4.0kg | X-shaped connection |

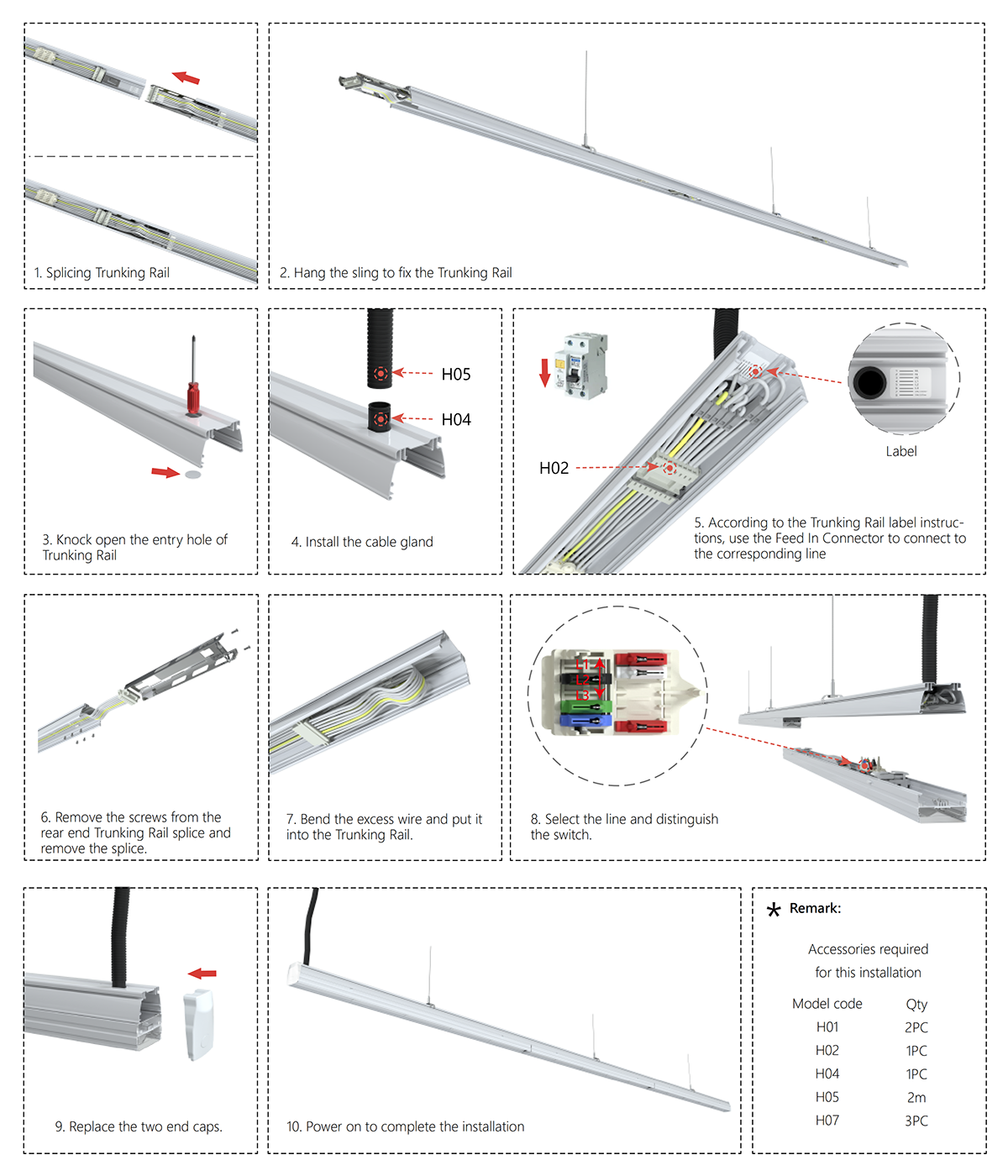

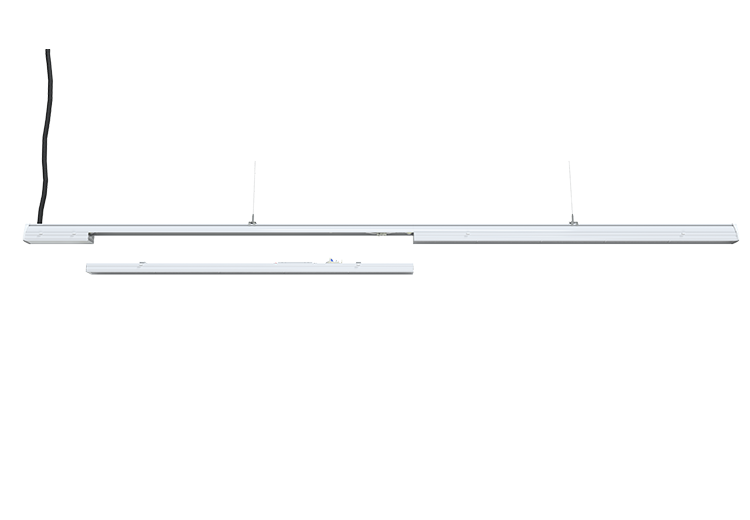

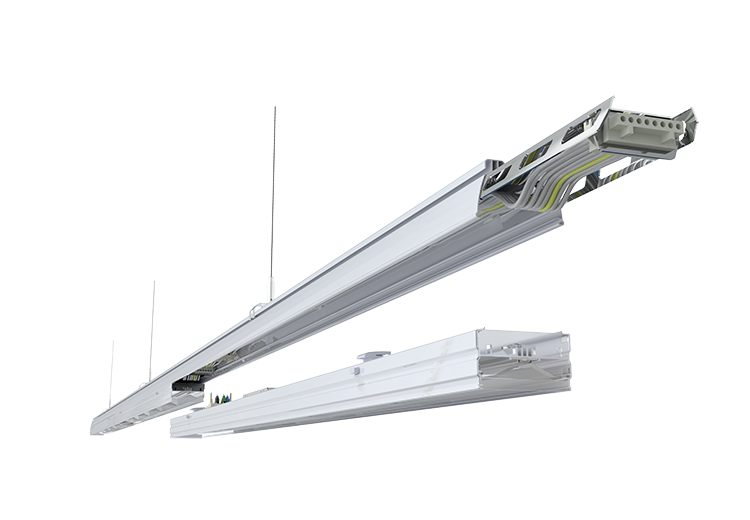

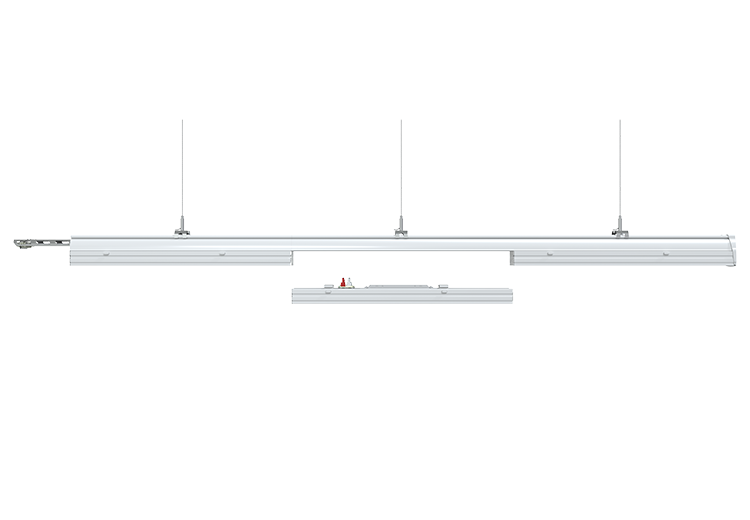

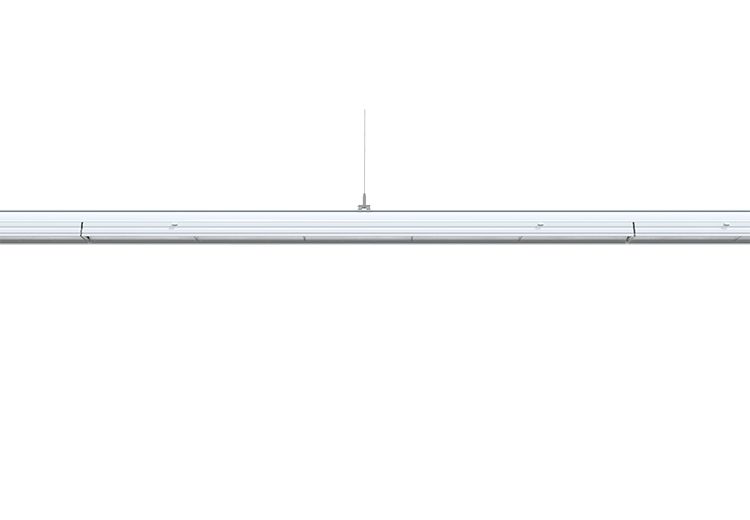

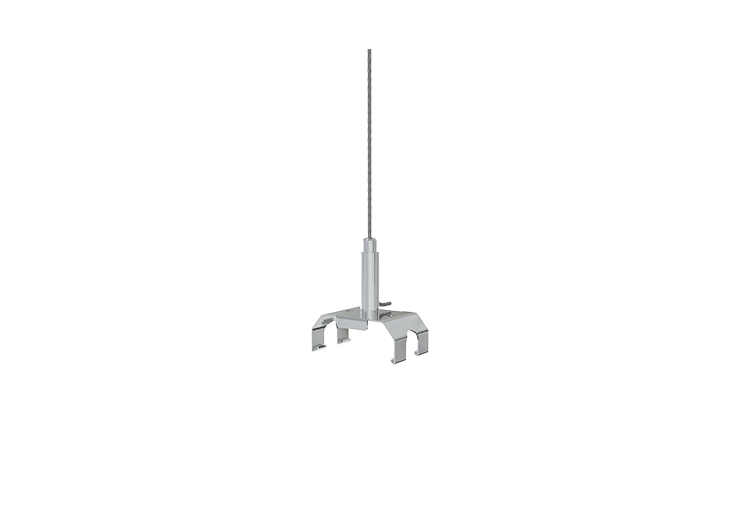

Installation
