STA SERIES
2023 NEW

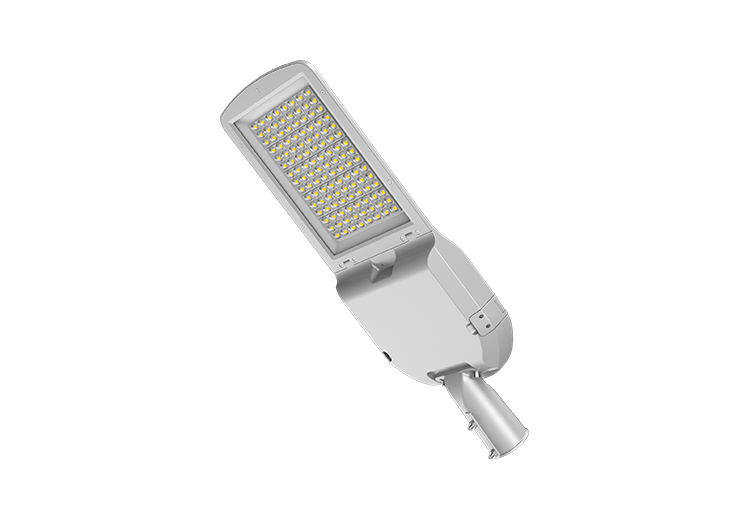

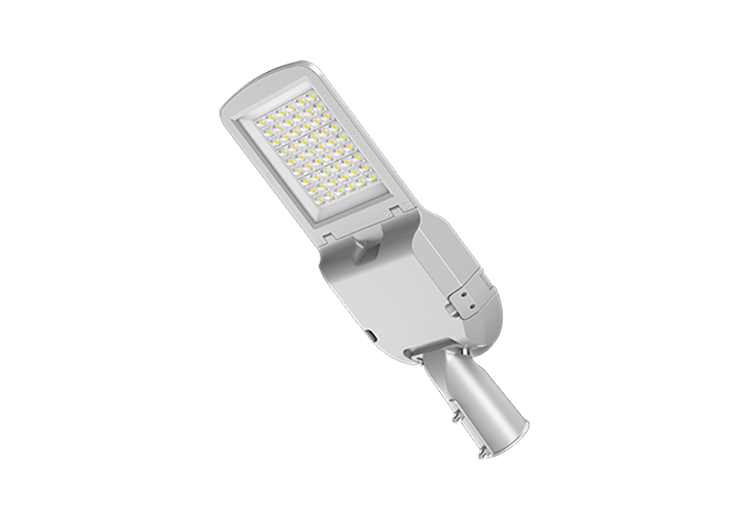

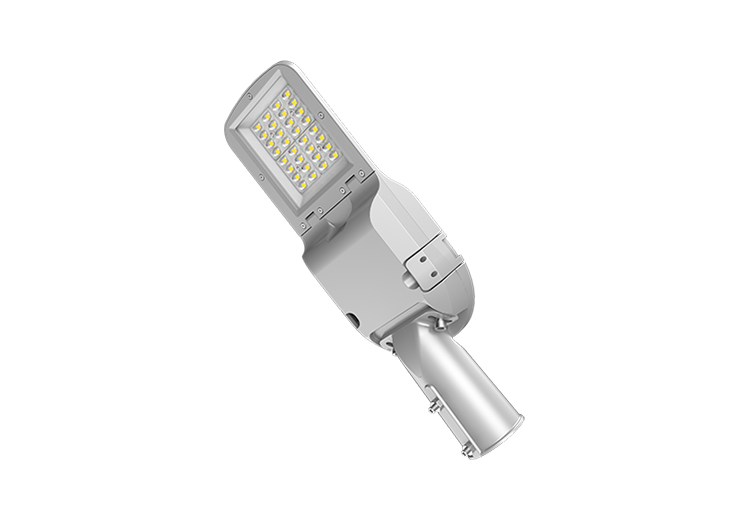

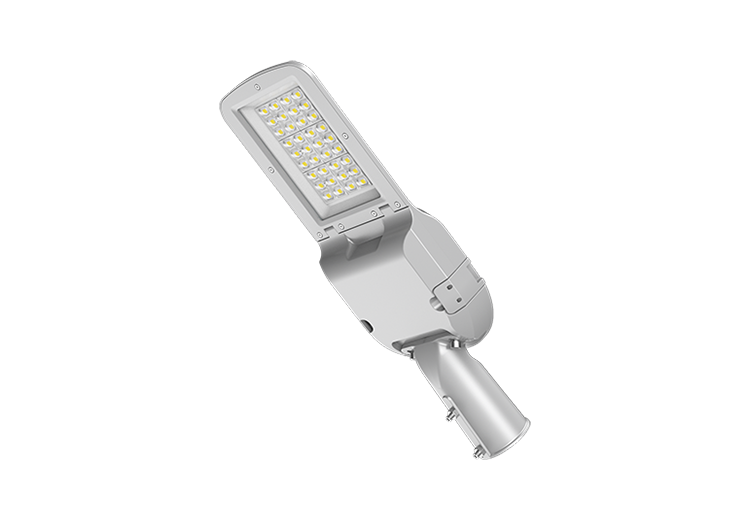

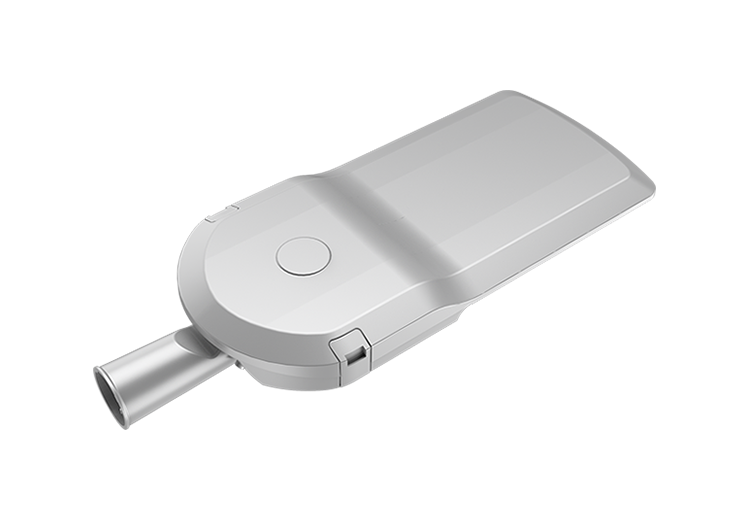

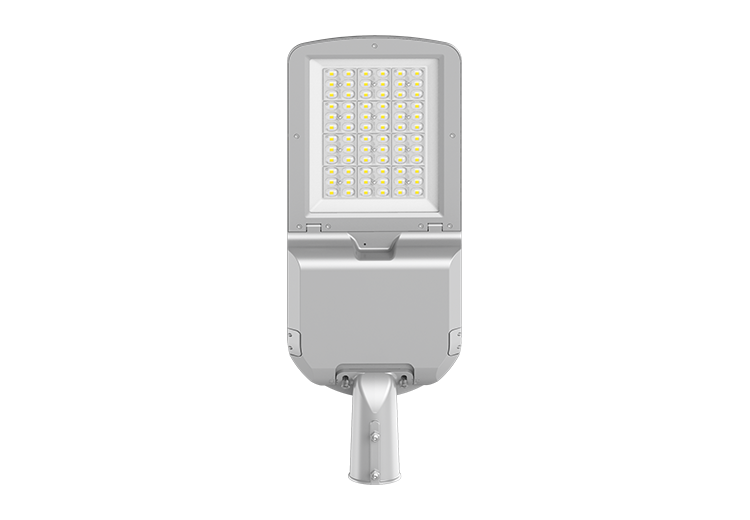

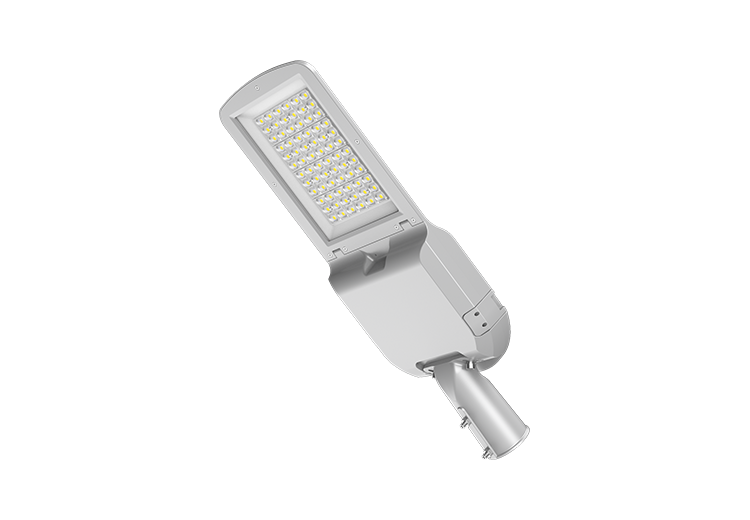

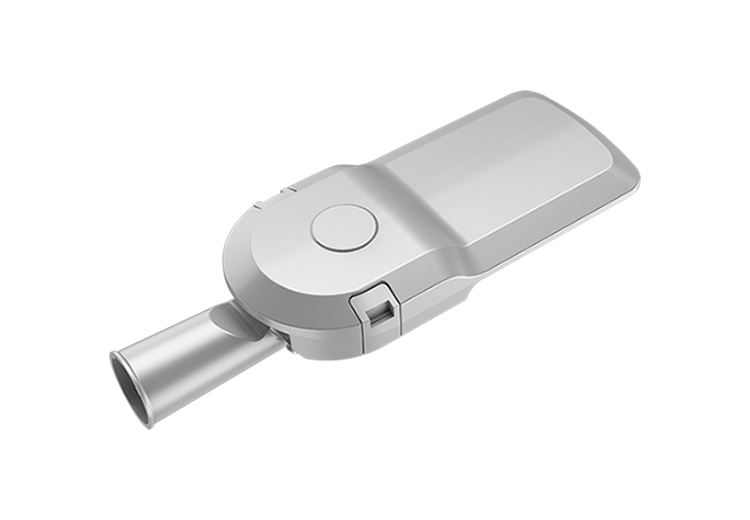

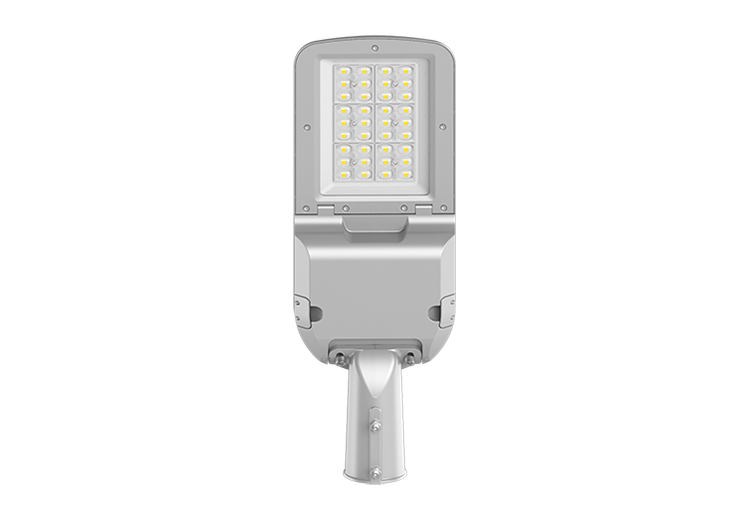

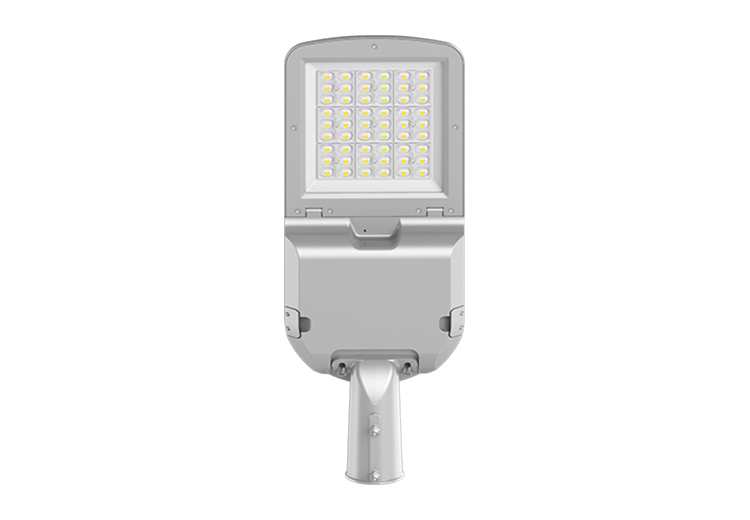

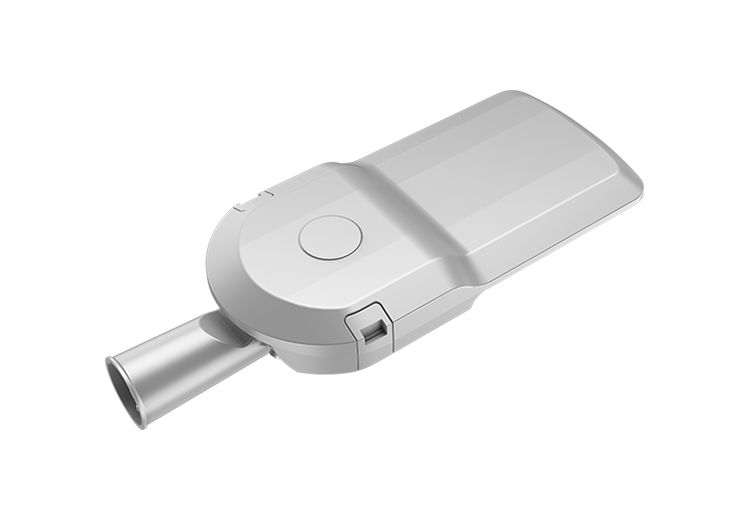

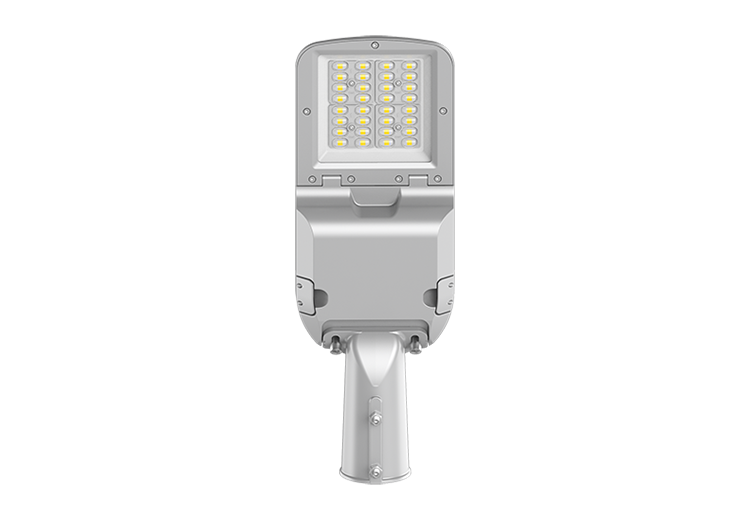

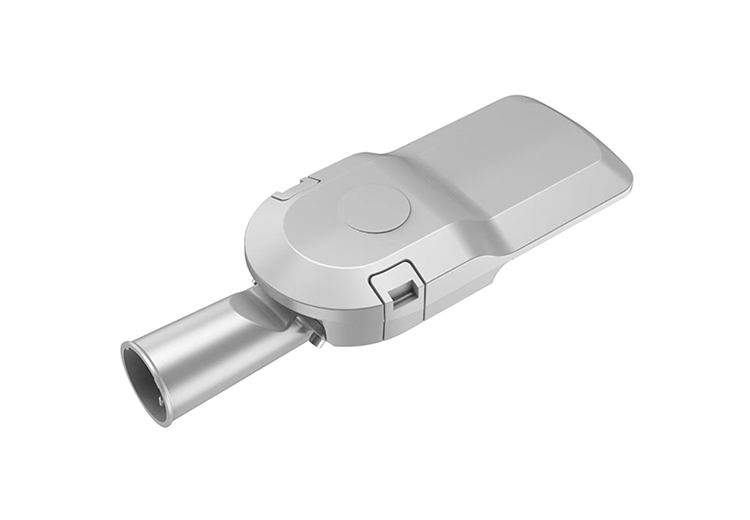

The STA series LED street light features 24 LEDs in a single lens with a glass cover design, ensuring superior light efficiency with excellent cost performance. Its smooth body design includes self-cleaning capabilities to prevent dust and dirt accumulation, making it suitable for harsh environments. The fixture offers horizontal and vertical adjustable tilt angles for convenient and quick installation. Equipped with an isolated driver featuring 10KV surge protection, IP66 waterproof rating, and IK08 impact resistance, it is ideal for illuminating streets, parking lots, and other expansive areas requiring high-volume LED lighting solutions, providing reliable illumination in any environment.
- Parameter
- Dimension
- Accessories
- Installation
- Video
- Download
Parameter
| Model NO. | Power (W) | Luminous Flux 150lm/W |
|---|---|---|
| XJ-STA50W | 50 | 7500 |
| XJ-STA75W | 75 | 11250 |
| XJ-STA100W | 100 | 15000 |
| XJ-STA150W | 150 | 22500 |
| XJ-STA200W | 200 | 30000 |
| XJ-STA240W | 240 | 36000 |
Above lumens based on 4000K Ra:80
Light distribution curve
AC Input：200-277V 50/60Hz
LED Driver Brand: SOSEN
Light Source：2835
CRI Range：Ra>80
CCT Range：NW(4000K)，CW(5700K)
Light Efficiency: 150 ± 5% Lumens per Watt (lm/W)

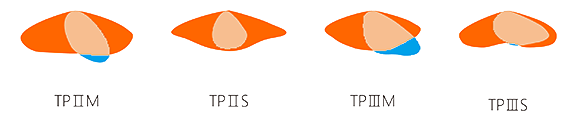

Beam Angle Options: TPⅡM, TPⅡS, TPⅢM, TPⅢS
Housing：Aluminum Alloy
Surge Protection: 10kV
Waterproof Rating: IP66 & IK08 (impact resistance)
L80B20@25℃：>100000H
PF：≥0.95
THD: < 15%
Power Efficiency: ≥ 0.9
Certifications：CE, CB

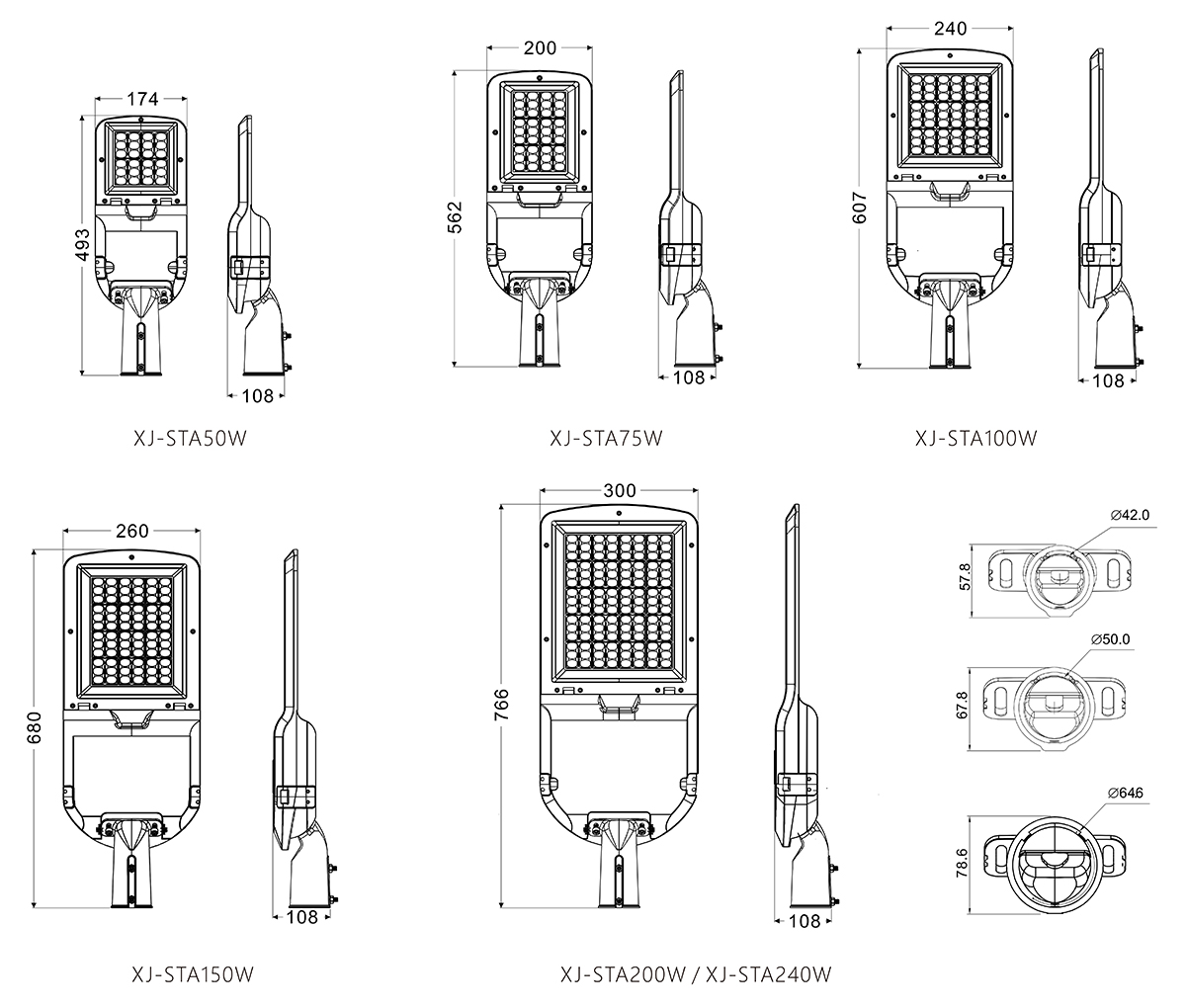

Dimension
Accessories

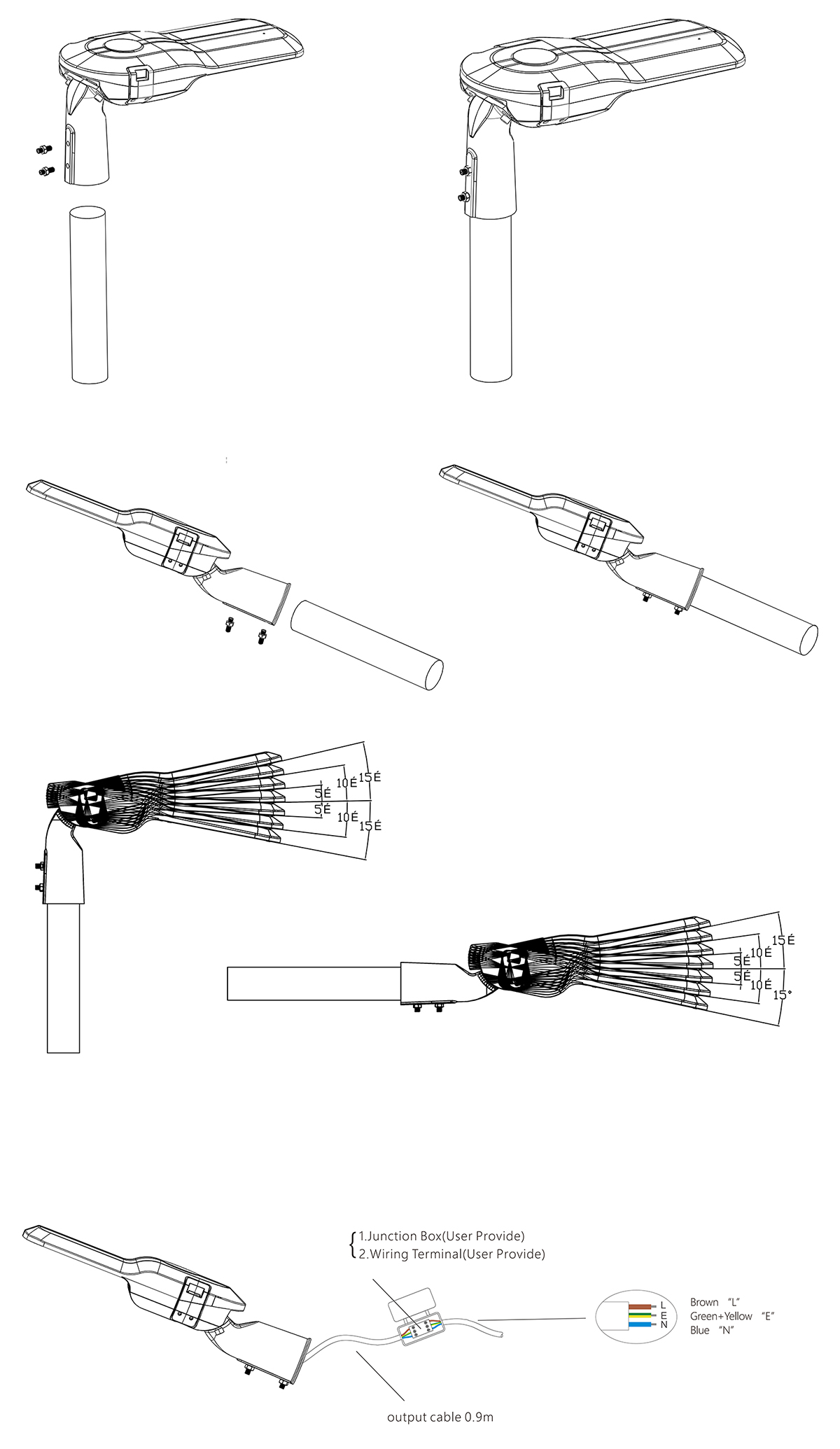

Installation
Note: Ensure the power is turned off before any operation. Installation must be performed by a skilled electrician familiar with the requirements and proper installation methods of LED luminaires to avoid damage or hazards.The external flexible cable or cord of this luminaire cannot be replaced. If the cord is damaged, the luminaire must be disposed of.
The light source within this luminaire should only be replaced by a qualified person.
