TPA SERIES
2025

150-170lm/w    32W/60W/72W    60°/ 90°/ 120°

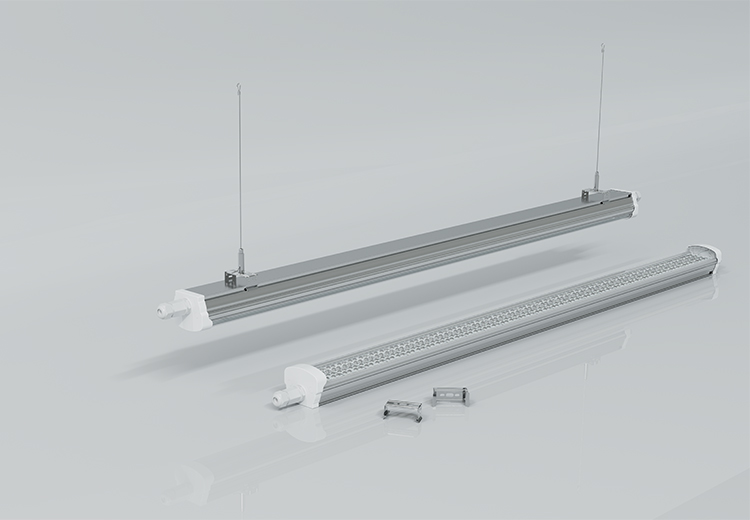

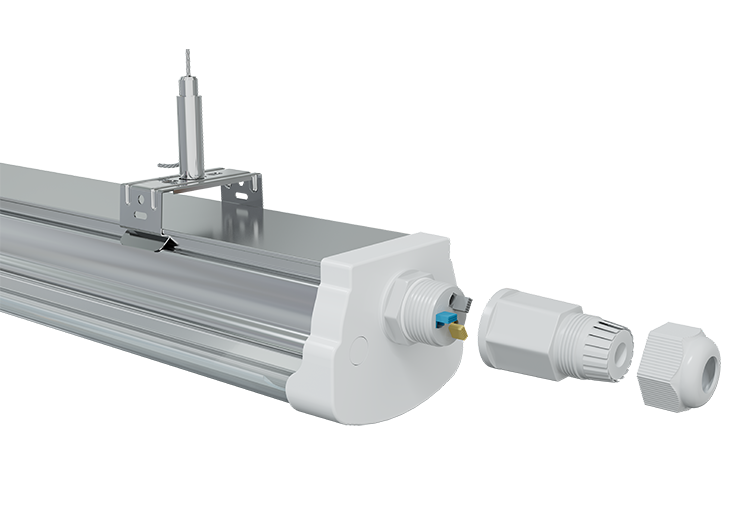

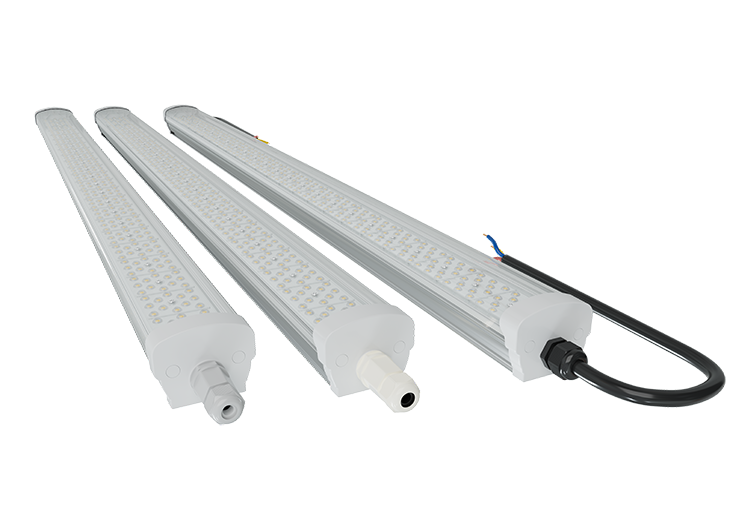

TPA SERIES LED Tri-proof lamp is equipped with an optical lens, the light effect is much higher than the traditional tri-proof lamp, and the hole-free sealing design prevents corrosion, dust, dirt, insects, moisture and bacteria. The tool-free terminal design makes installation more convenient, and with the induction function and emergency lighting, it is better suitable for lighting in various places, such as factory workshops, underground parking lots, subways, cold storages, shopping malls, supermarkets, textile factories, anti-corrosion and other places.

  • Parameter
  • Dimension
  • Accessories
  • Installation
  • Video
  • Short Video
  • Download

Parameter

Model NO.Power (W)Luminous flux
150lm/w (120° )
170lm/w ( 60°/ 90° )
XJ-TPA06-*W18 (Optional values)
22 (Optional values)
28 (Optional values)
32 (Typical values)
2700-3060
3300-3740
4200-4760
4800-5440
XJ-TPA12-*W32 (Optional values)
40 (Optional values)
50 (Optional values)
60 (Typical values)
4800-5440
6000-6800
7500-8500
9000-10200
XJ-TPA15-*W50 (Optional values)
58 (Optional values)
64 (Optional values)
72 (Typical values)
7500-8500
8700-9860
9600-10880
10800-12240

1. The power is adjustable and pre-set before leaving the factory. It is not recommended for users to adjust it by themselves.
2. Above lumens based on 4000K Ra:80

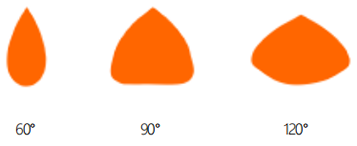

Light distribution curve

TPA-SERIES-LED-Tri-proof-lamp

AC Input:200-240V 50/60Hz

Brand of LED Driver:TRIDONIC

Light Source:2835

CRI Range:Ra>80

CCT Range:WW(3000K) NW(4000K) CW(5700K)

Light Efficiency:150-170±5% Lm/W

Beam Angle:60°/90°/120°

Housing:Aluminum Alloy+PC

Waterproof:IP66 & IK08

L80B20@25℃:>100000H

PF:≥0.95  THD<15%  Power Efficiency:≥0.9

Certifications:CE, CB

Warranty:5 Years

Light body color:White Aluminum ( RAL 9006 )

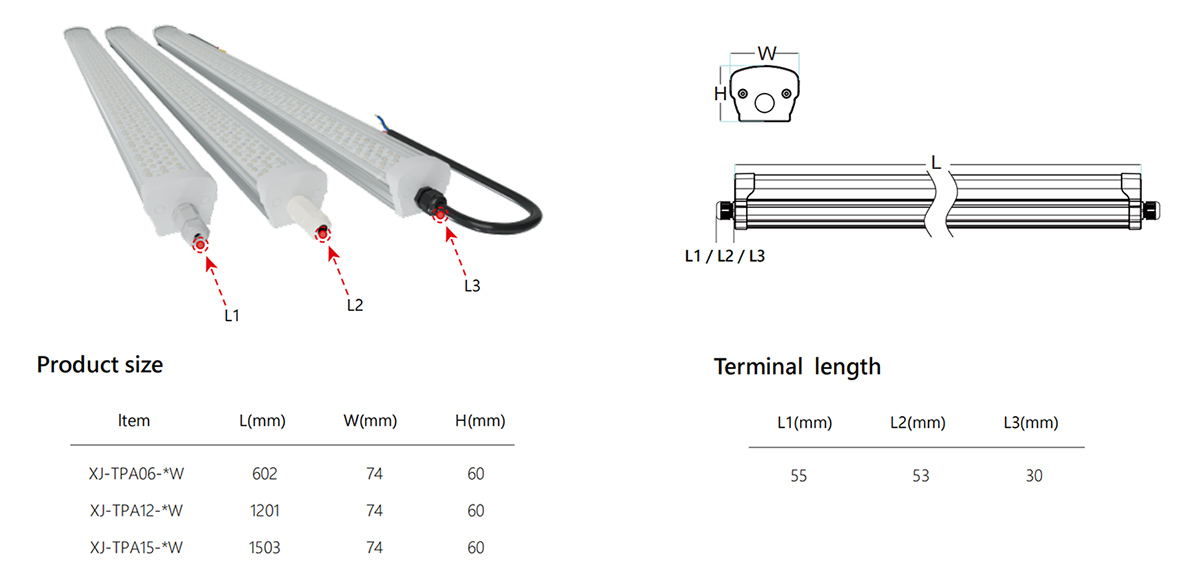

Dimension

TPA SERIES_SEEKING LED-LIGHTING LIMITED Dimension

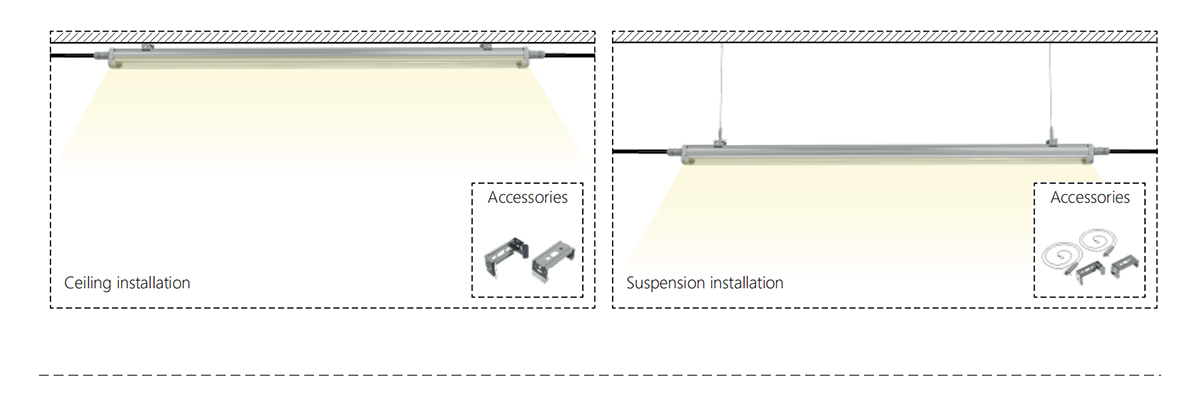

Accessories

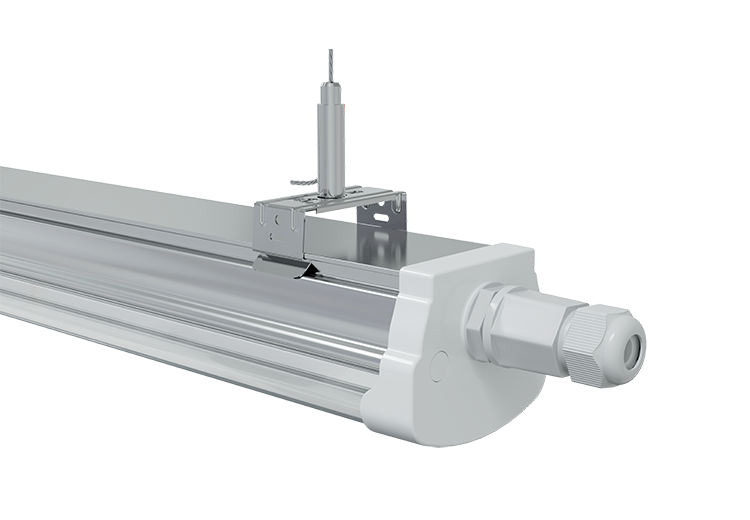

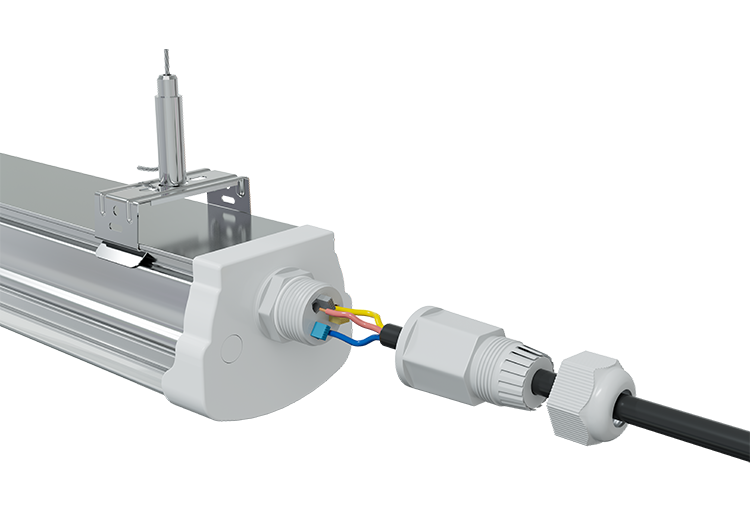

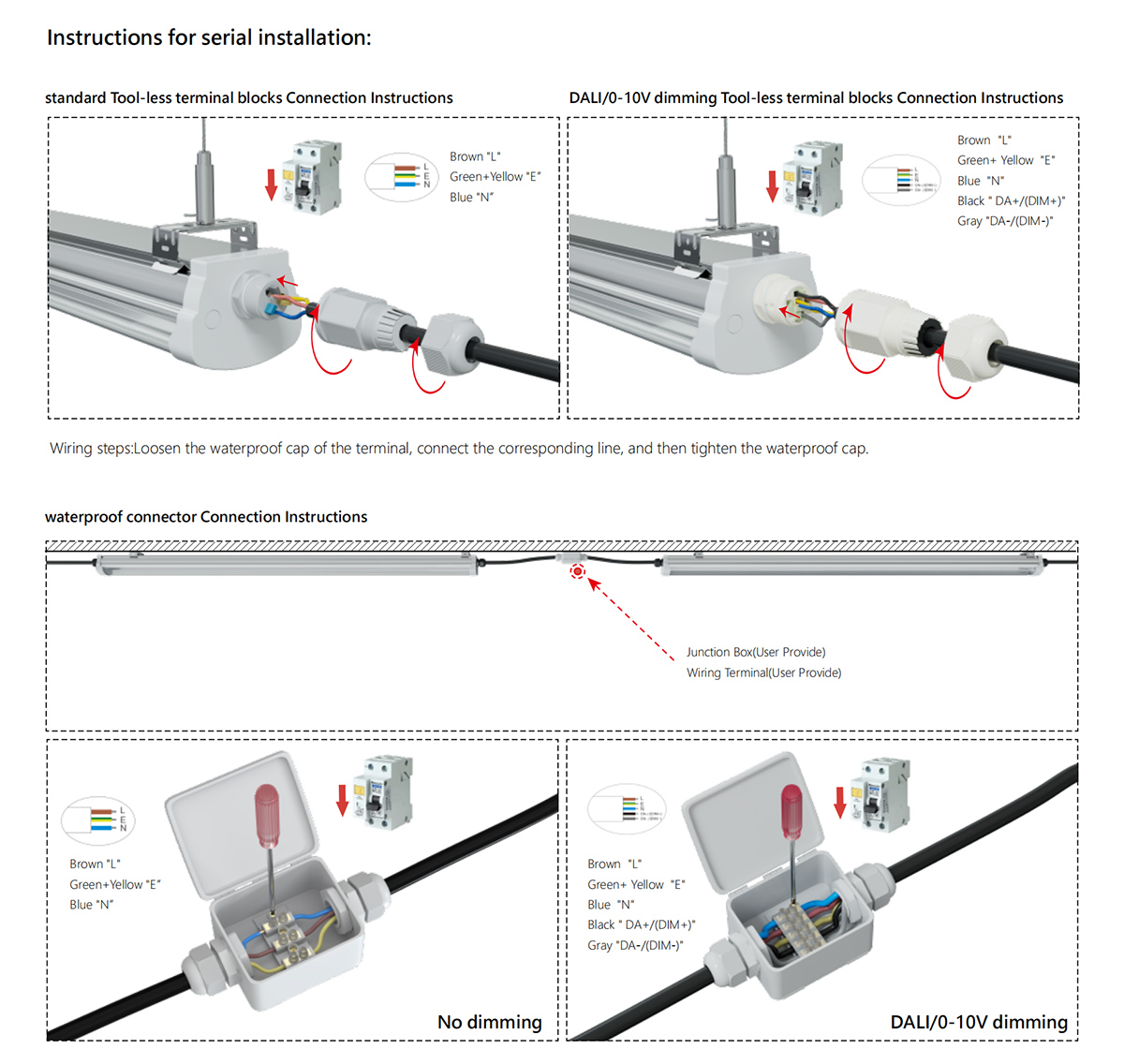

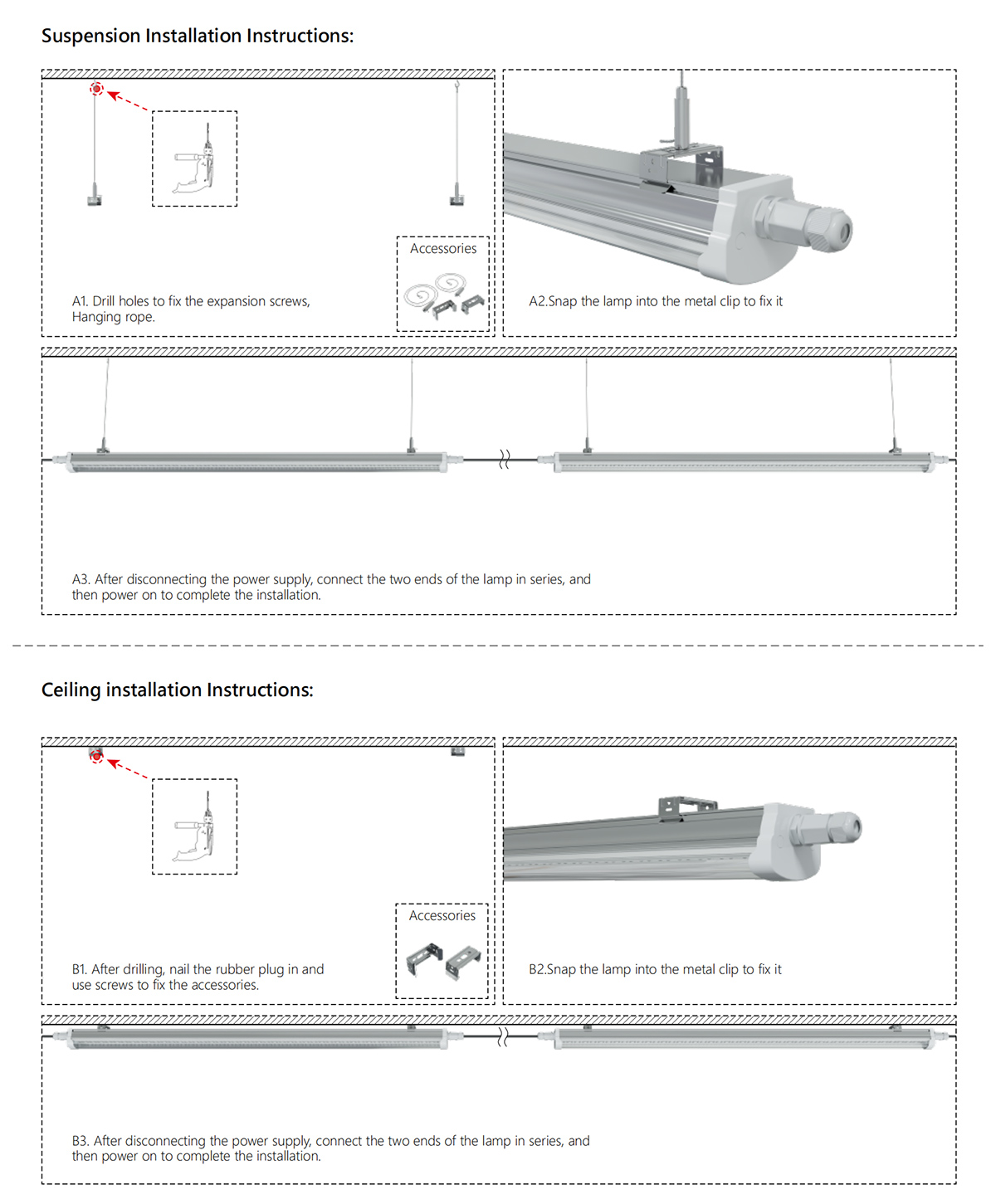

Installation

TPA-SERIES-LED-Tri-proof-lamp

TPA-SERIES-LED-Tri-proof-lamp

TPA-SERIES-LED-Tri-proof-lamp

Note :

1.The diameter of the connecting wire is determined by the size of the built-in cabling of the lamp.

2. Solid cable-end (provided by the user)

3.Please make sure the power off before opertion, lnstallation must be performed by skilled electrician who are familiar with the requirements and proper installation methods of LED luminaire, in order to avoid damage or hazard
