HBC-T SERIES
2023

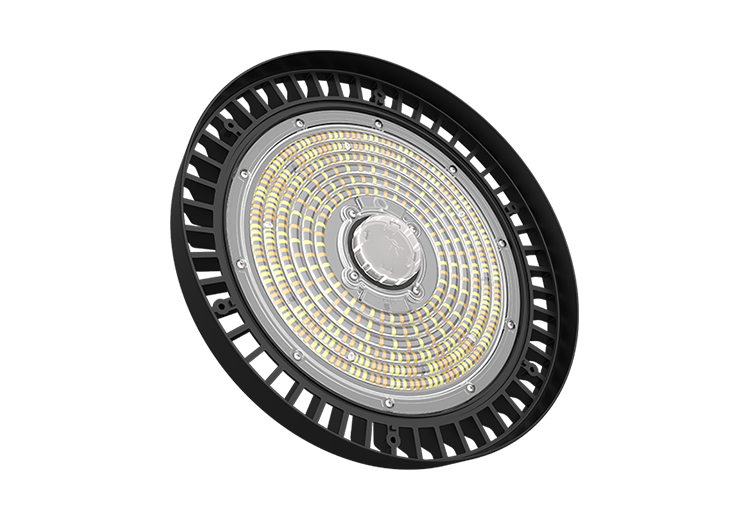

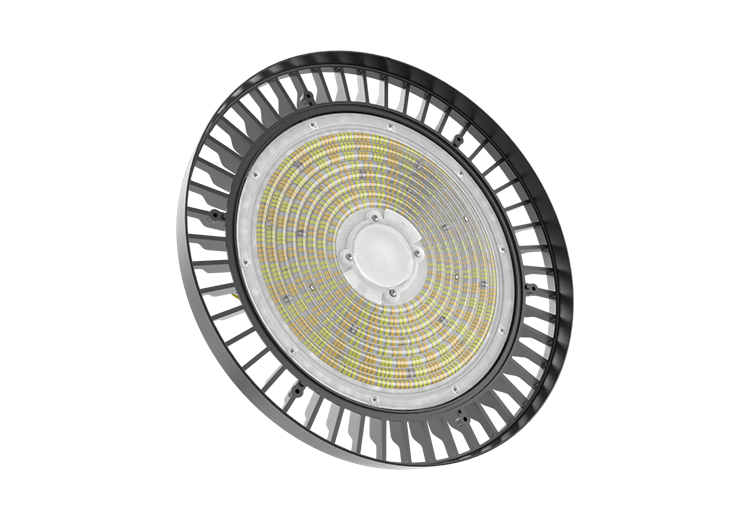

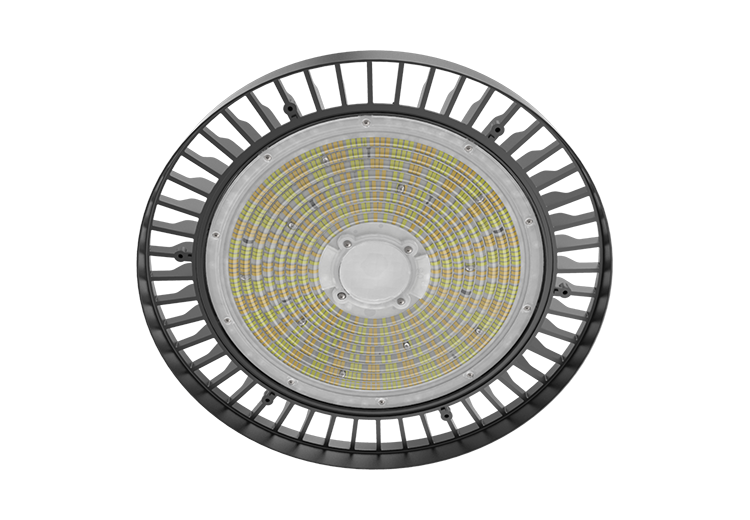

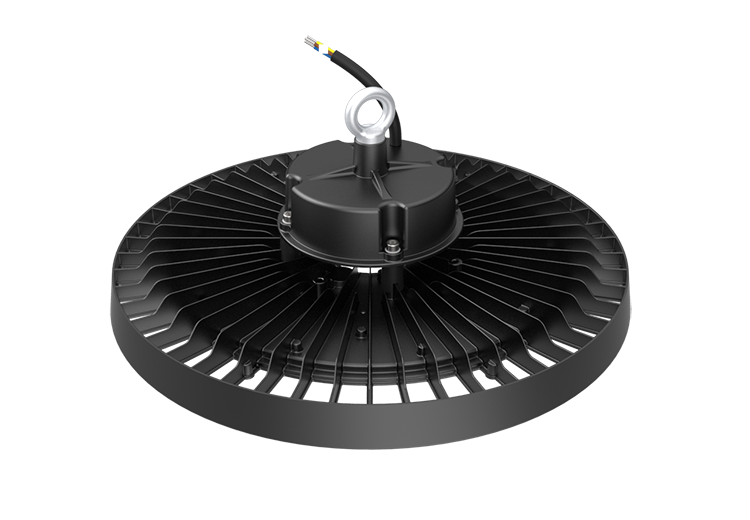

The HBC-T series high bay light is designed for production workshops, large logistics warehouses, construction sites, airport/dock/high-speed rail waiting rooms, and shopping malls. It offers 60 and 90-degree light distribution options to meet various lighting needs. With a protection level of up to IK08 and IP65, it ensures durability and reliability. The constant current power driver and L80B20 rating guarantee a lifespan of over 100,000 hours.
- Parameter
- Dimension
- Accessories
- Installation
- Video
- Short Video
- Download
Parameter
| Model NO. | Power (W) | Luminous Flux 150lm/W @ NW |
|---|---|---|
| XJ-HBC150W-T | 150 | 22500 |
| XJ-HBC200W-T | 200 | 30000 |
Above lumens based on 4000K Ra:80
Light distribution curve
AC Input：100-277V 50/60Hz
Brand of LED Driver：SOSEN
Light Source：2835
CRI Range：Ra>80
CCT Range：WW(3000K) NW(4000K) CW(5700K)
Light Efficiency：130±5% Lm/W @ WW 140±5% Lm/W @ CW 150±5% Lm/W @ NW
Beam Angle：60°, 90°
Housing：Aluminum Alloy
Waterproof：IP65 & IK08
L80B20@25℃：>100000H
PF：≥0.95 THD<15% Power Efficiency：≥0.9
Certifications：CE, CB

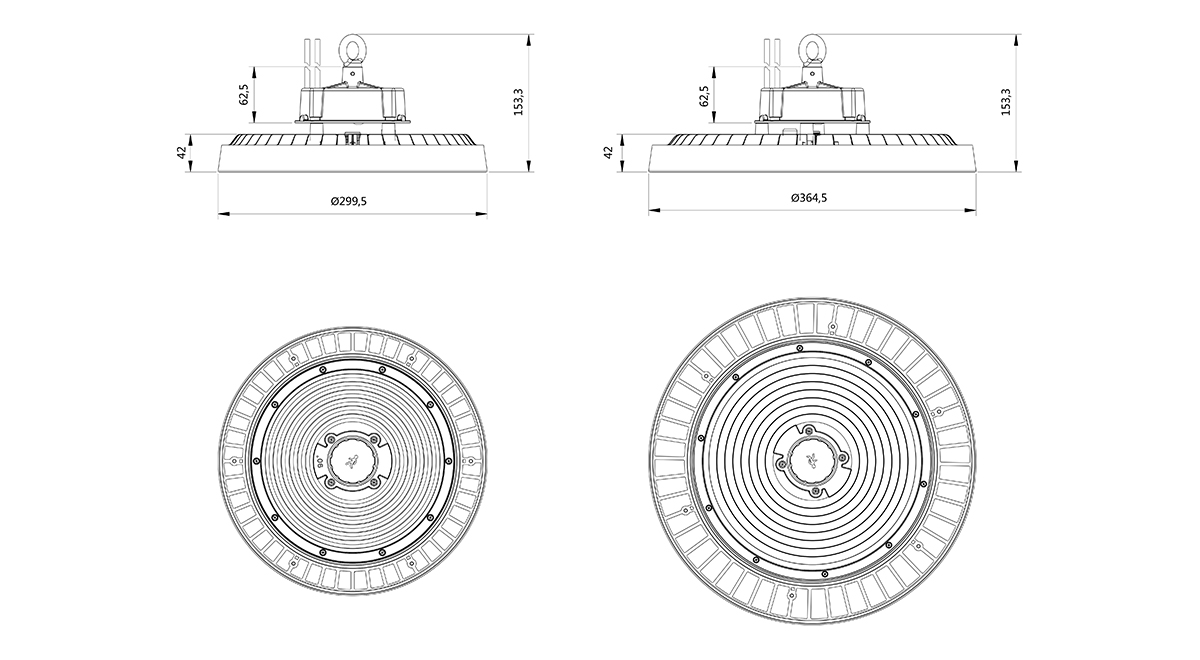

Dimension
Accessories
Installation

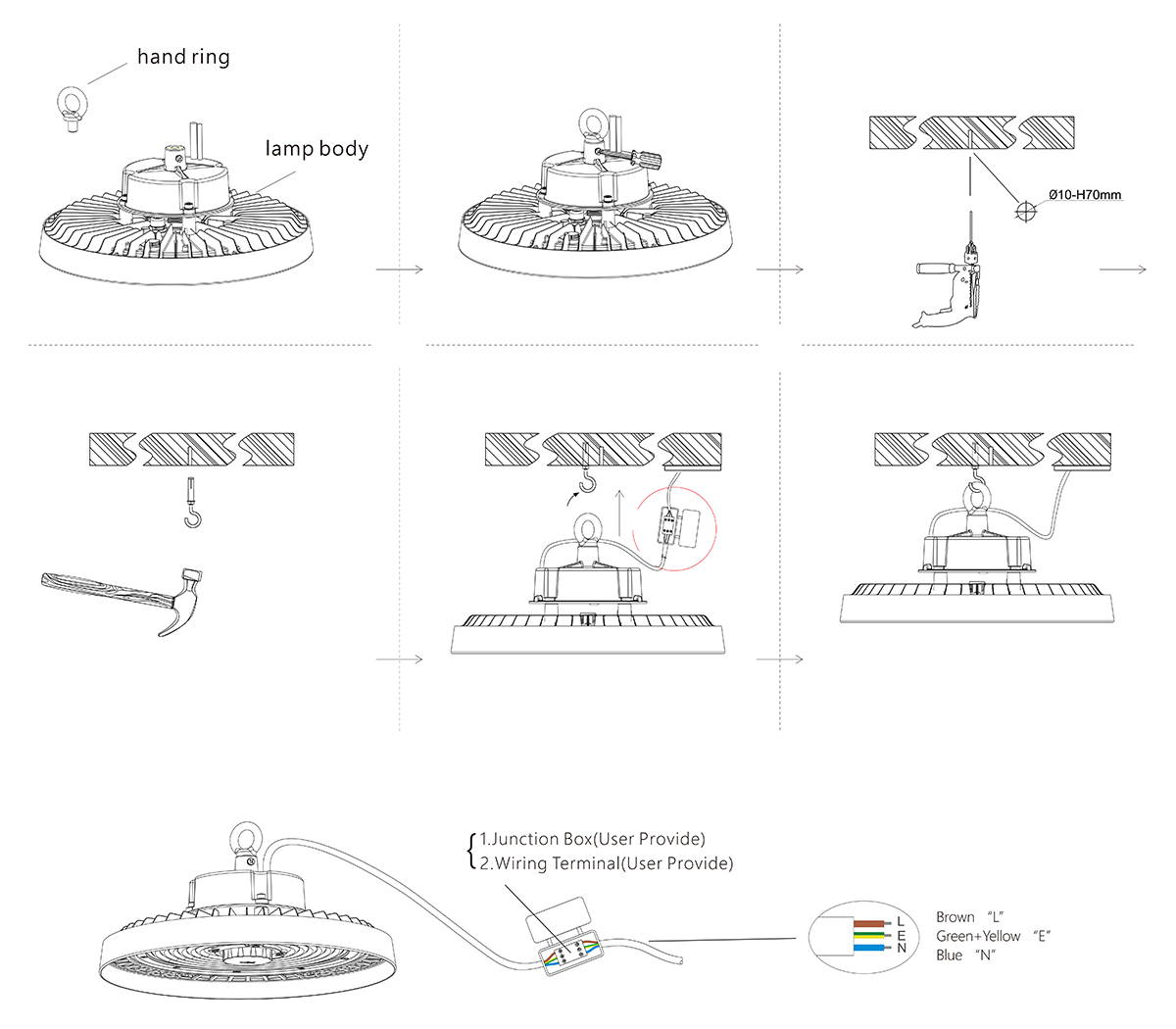

Installation steps
A: Open the packaging take out the lamp body and the hand ring;
B: Install the hand ring,tighten the Screw with a Screwdriver;
C: Drill a hole in ceiling
D: Insert the screw with hook into the hole;
E: Install the luminaire onto the hook,and connect the wires as showing.
E: Clean the lamp and complete the installation.
Note: Please make sure the power off before opertion,Installation must be performed by skilled electrician who arefamiliar with the requirements and proper installation methods of LED luminaire. In order to avoid damage or hazard; The external fxible cable or cord of this luminaire can not be replaced, if the cord is damaged, the luminaire must bedestroyed.
The light source contained in this luminaire shall only be replaced by a qualified person.
Video
Short Video
Download
-
HBC-T Series High Bay light SPEC
-
IES+LDT
Please contact our sales to obtain password
