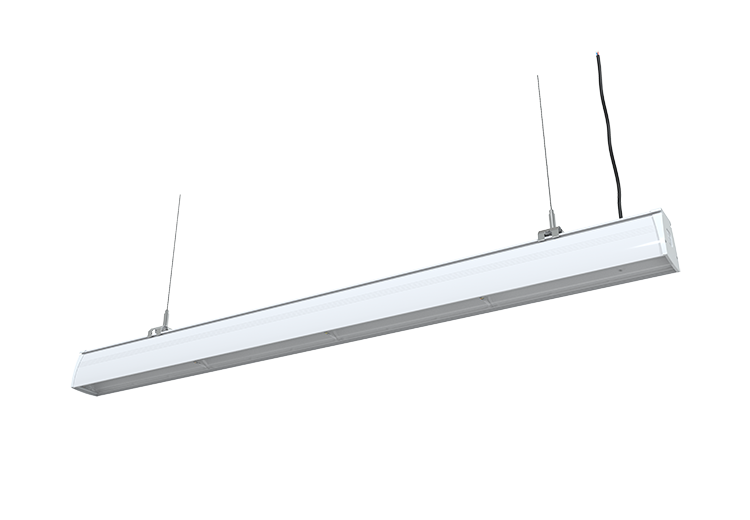

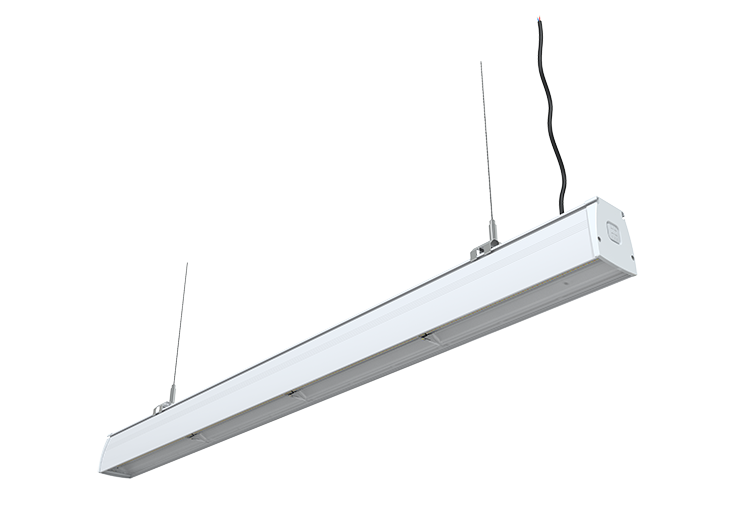

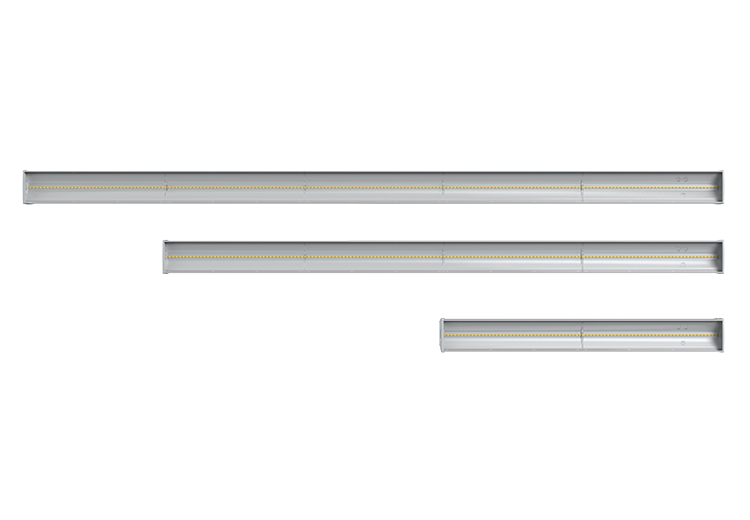

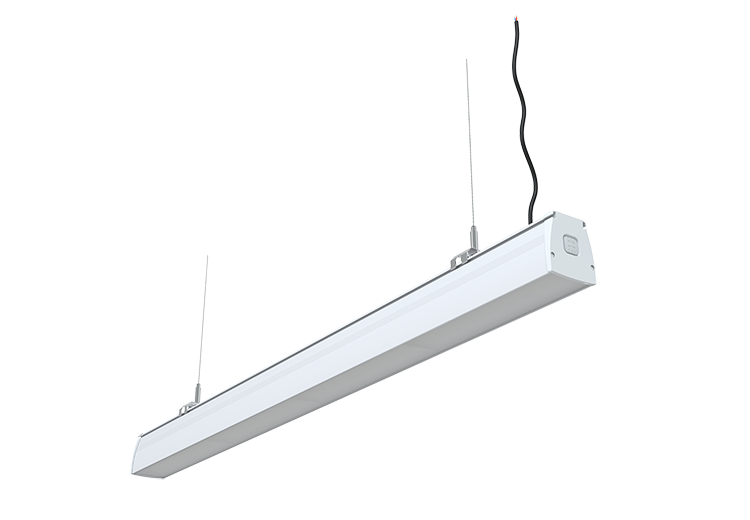

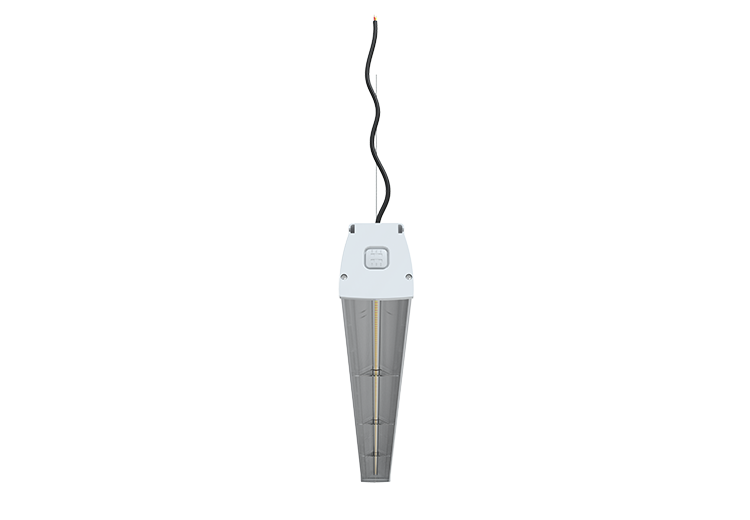

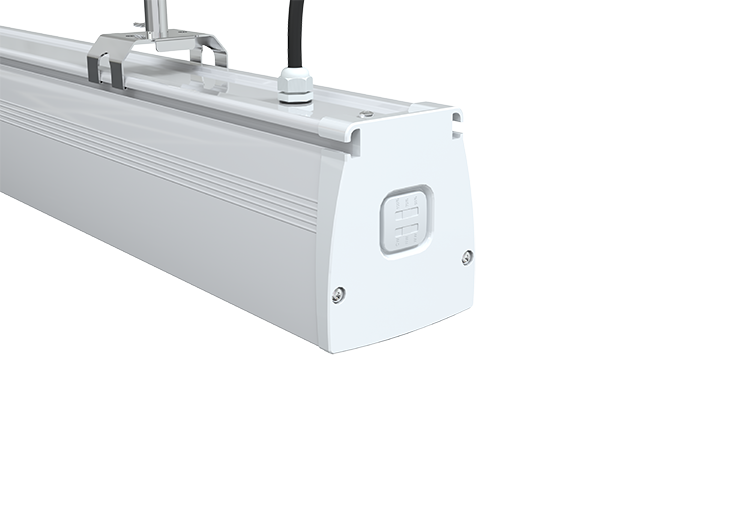

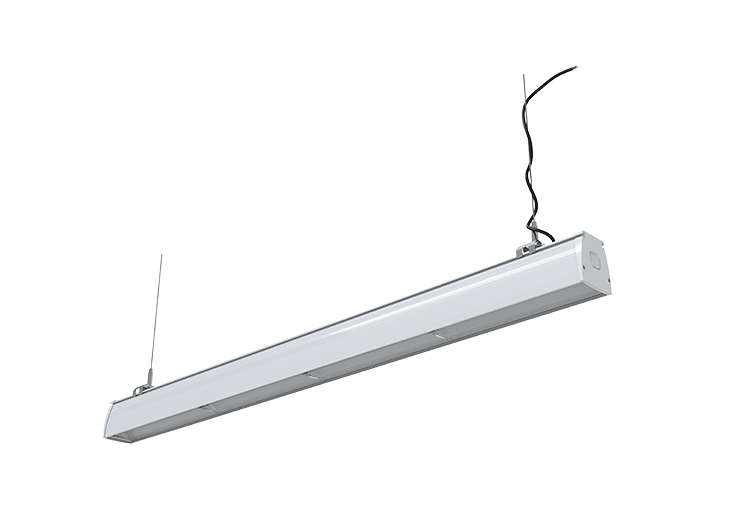

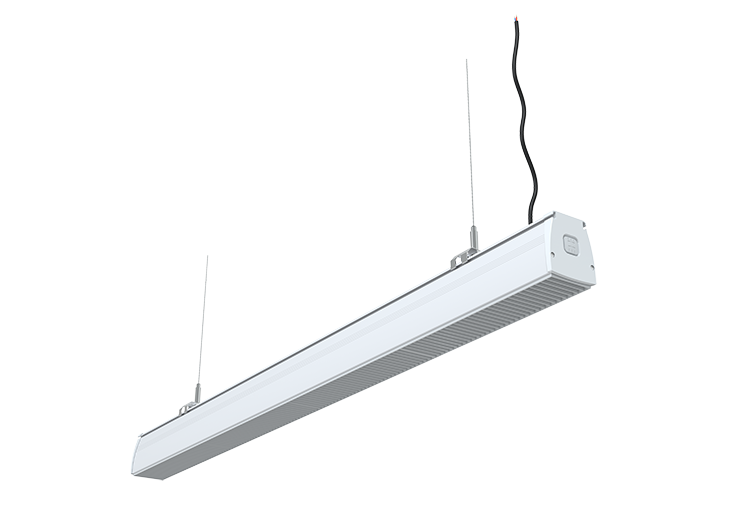

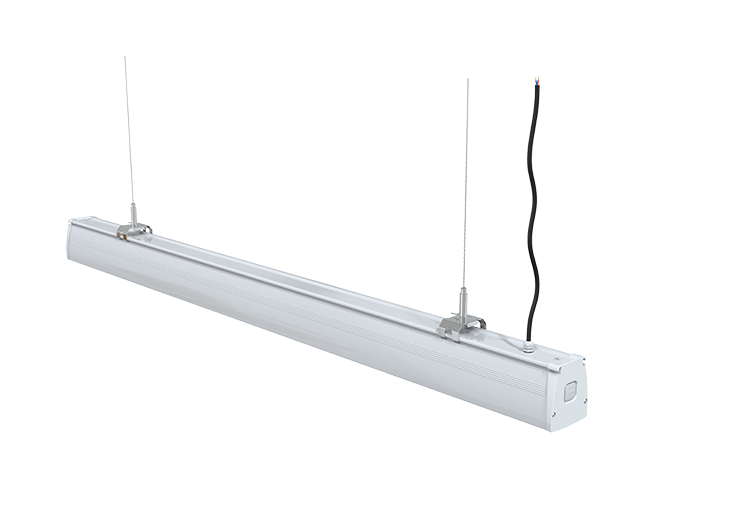

HB17 (HLD) Linear High Bay
2024

170lm/w   200W/150W/100W   30°/60°/90°/120°/P25 /SP25

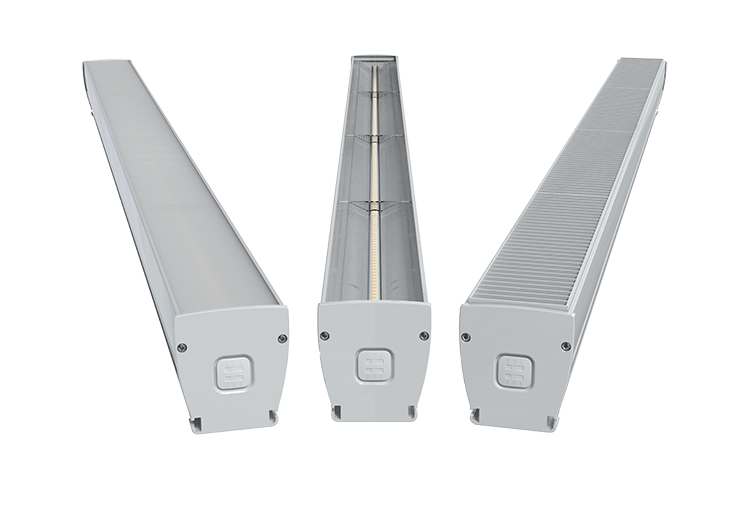

HLD series linear lights, integrated structure, easy to install, 6 optical angle lenses, with dimmable and CCT adjustable functions, multiple features, can meet the application needs of different places, suitable for lighting in warehouses, workshops, corridors, garages, libraries and other places

  • Parameter
  • Dimension
  • Accessories
  • Installation
  • Video
  • Short Video
  • Download

Parameter

Model NO.Power (W)Luminous Flux
170-180lm/W




10017000
TKD-HLD-100W-*7513125

509000




15025500
TKD-HLD-150W-*11319775

7513500




20034000
TKD-HLD-200W-*15026250

10018000

Above lumens based on 4000K Ra:80

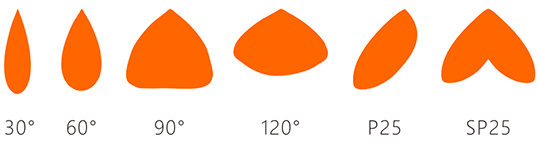

Light distribution curve

HLS_线条灯规格书V2.1_01 拷贝.png

AC Input:100-277V 50/60Hz

Brand of LED Driver:SOSEN

Light Source:2835

CRI Range:Ra>80

CCT Range:WW(3000K)  NW(4000K)  CW(5700K)

Light Efficiency:170±5% Lm/W

Beam Angle:30°, 60°, 90°, 120°, P25, SP25

Housing:Aluminum Alloy

Waterproof:IP54

L80B20@25℃:>100000H

PF:≥0.95  THD<15%  Power Efficiency:≥0.9

Certifications:TUV, CE, CB

Light body color: white(RAL9003)

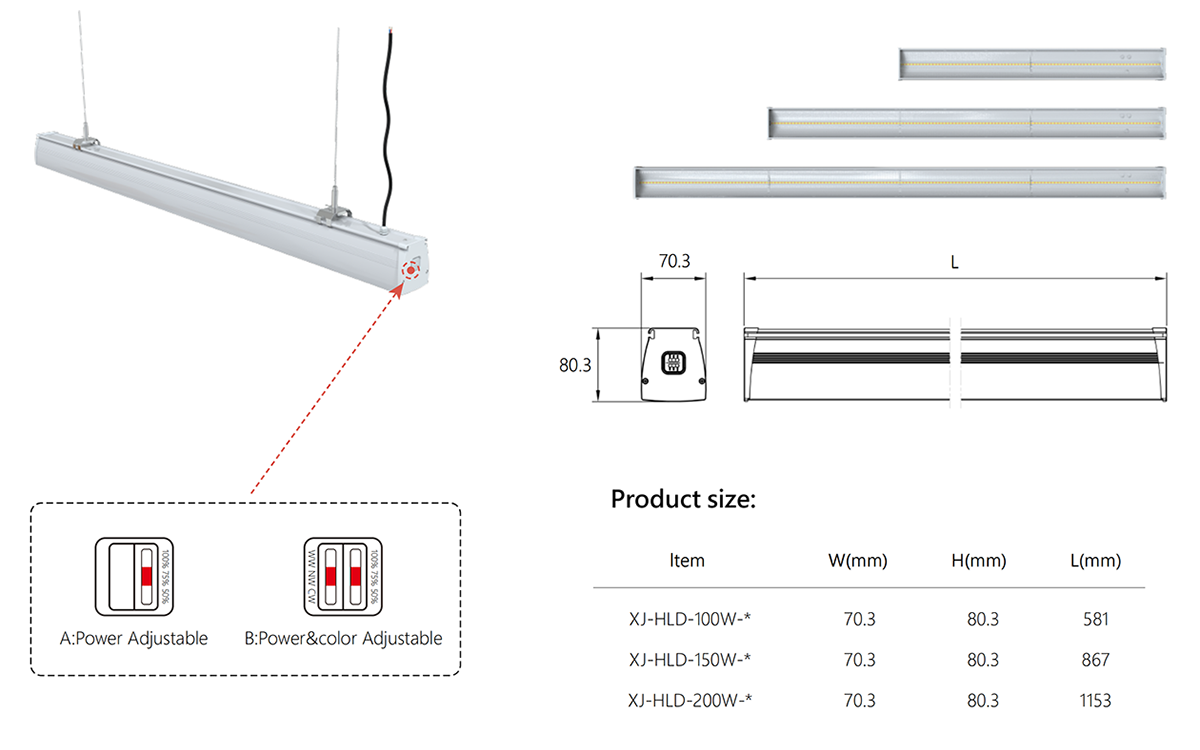

Dimension

HB17 (HLD)  Linear High Bay_SEEKING LED-LIGHTING LIMITED Dimension

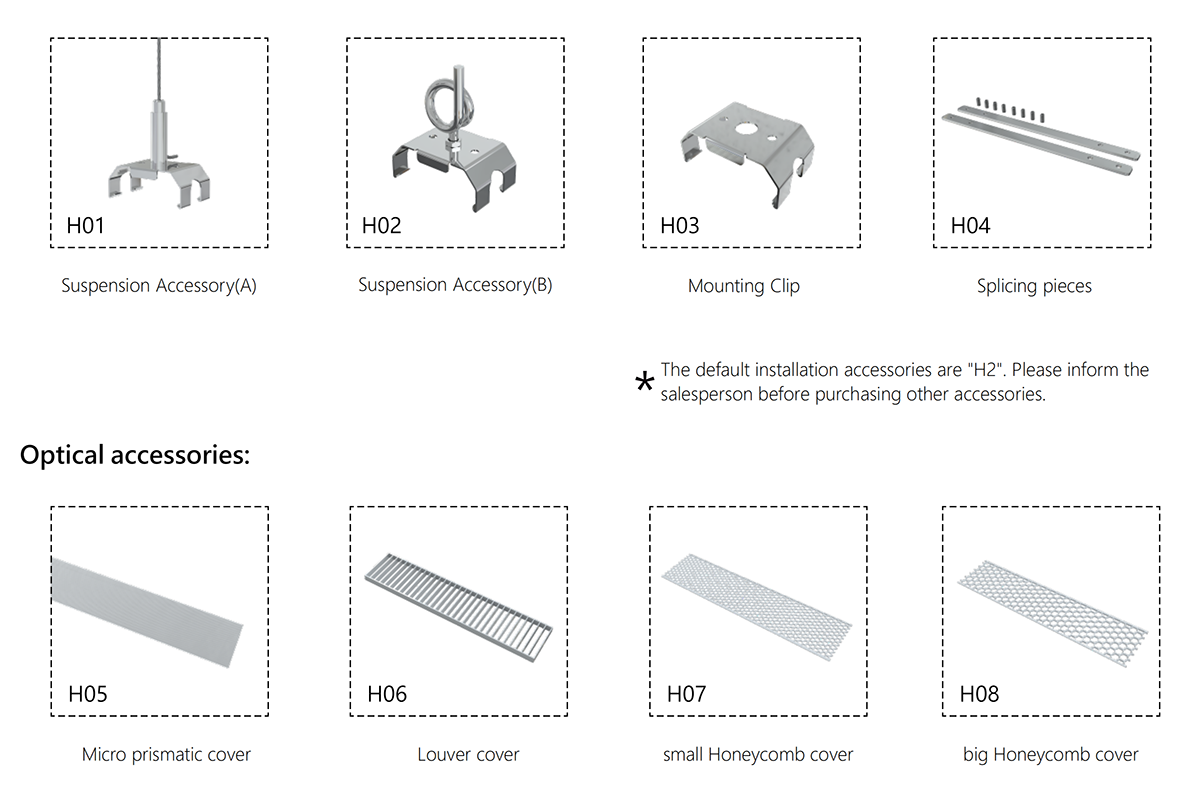

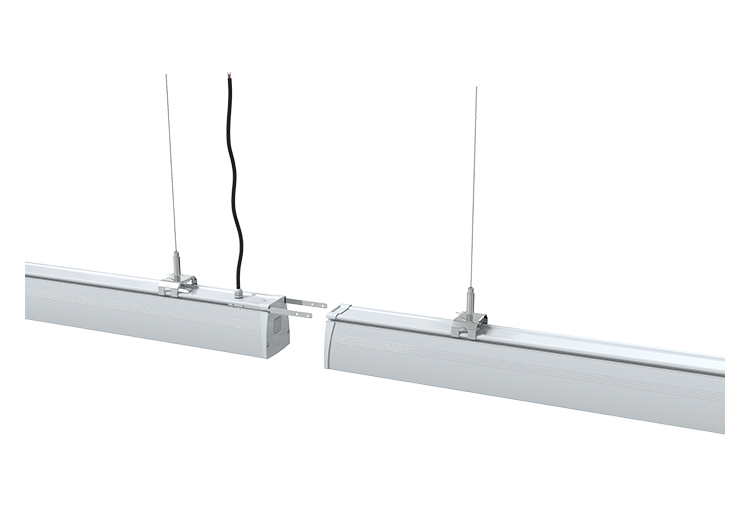

Accessories

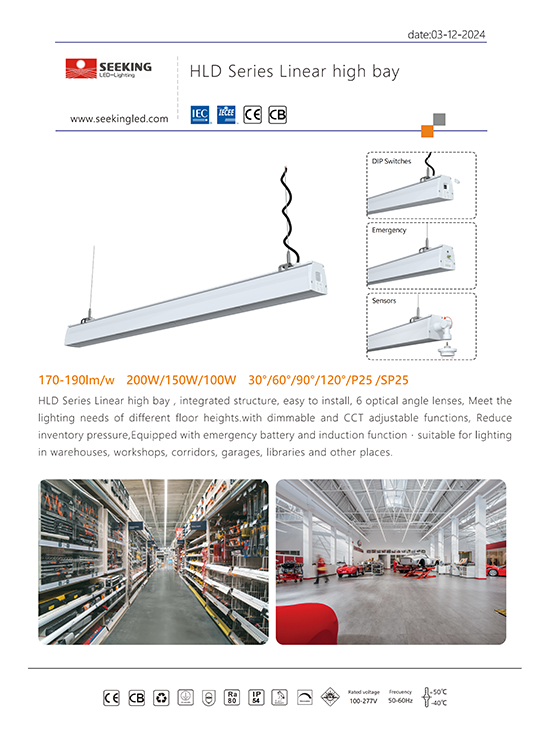

HLD Series Linear High Bay SPEC

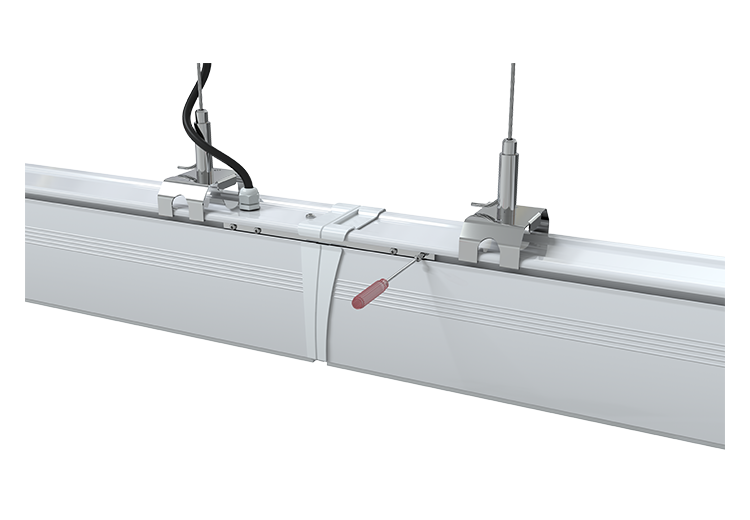

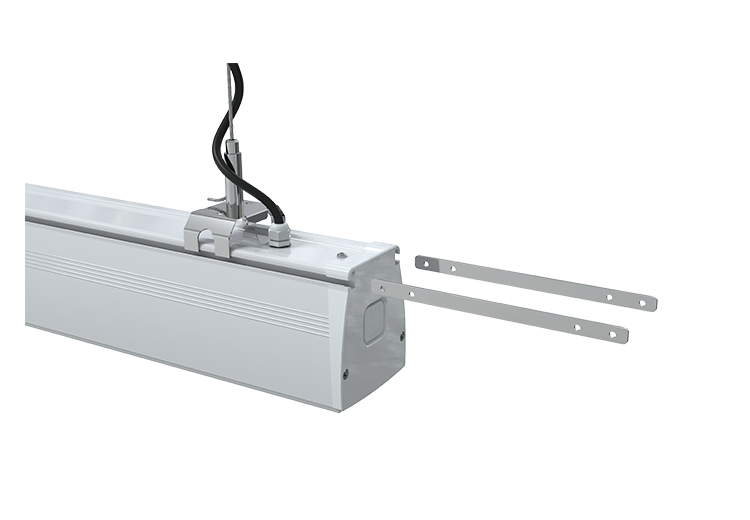

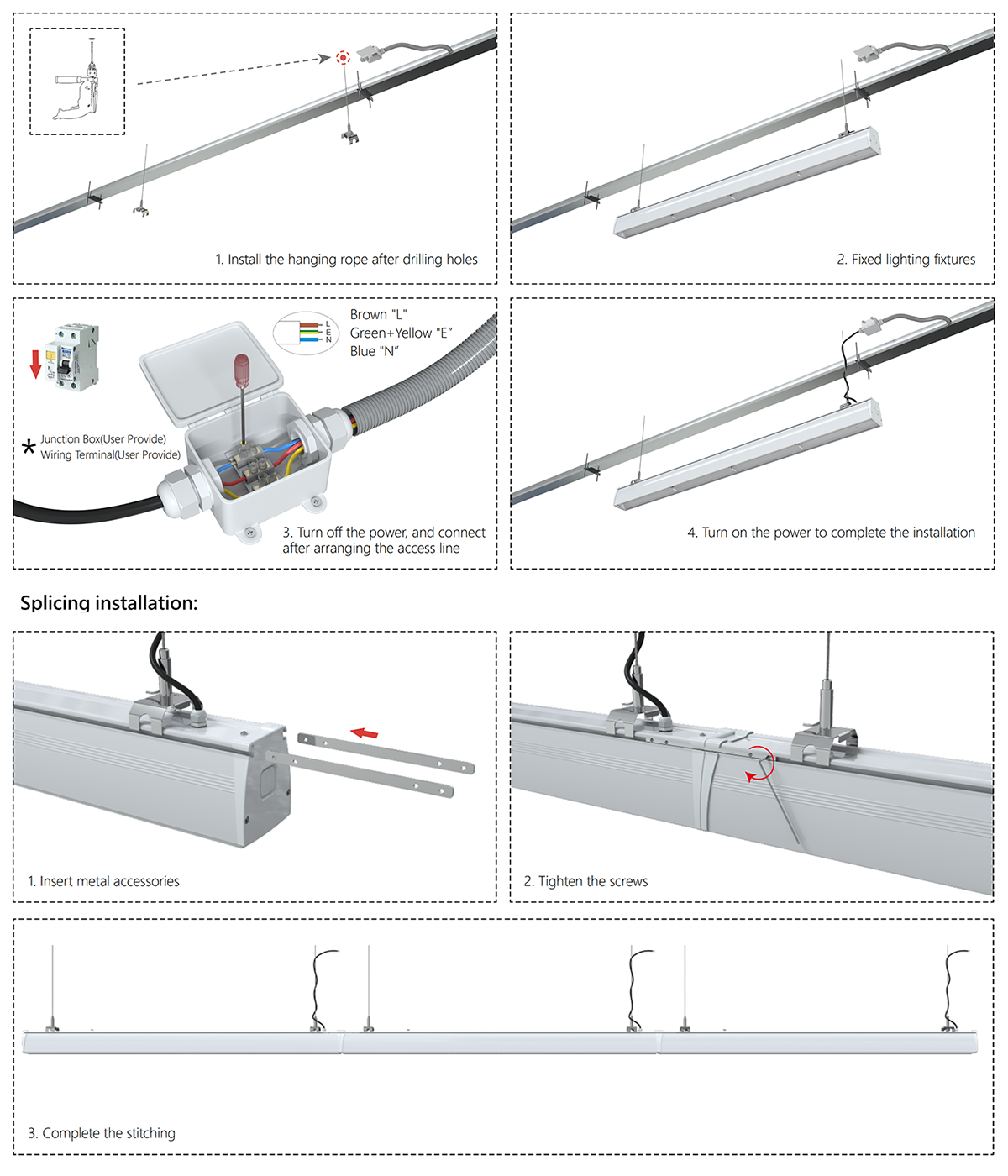

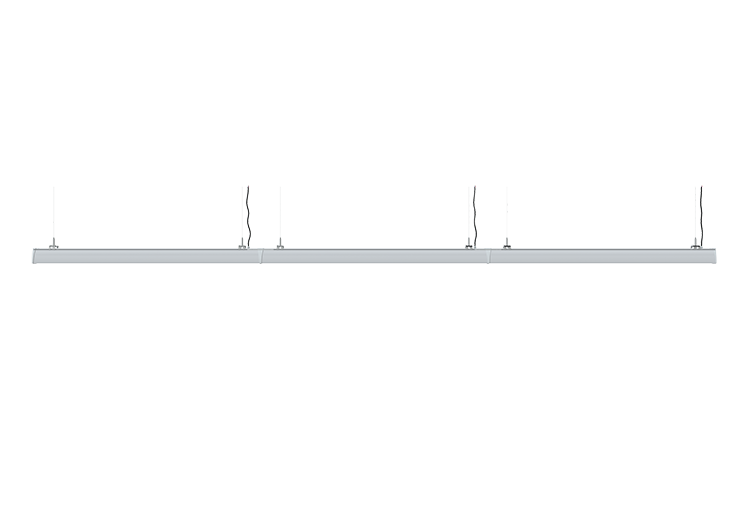

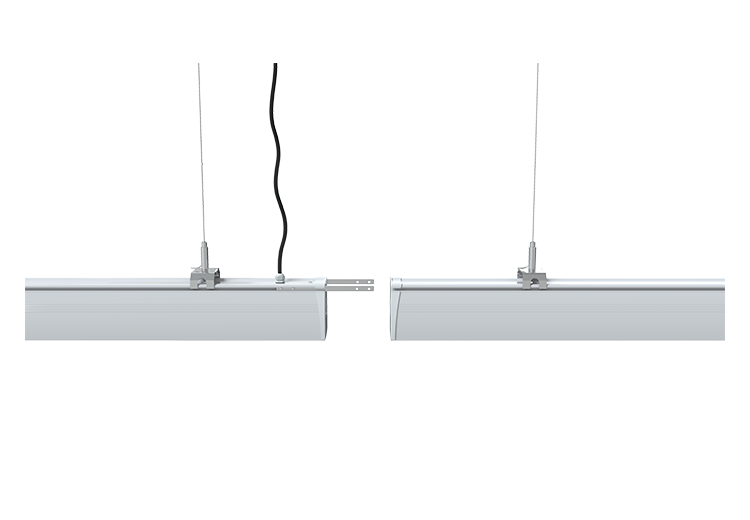

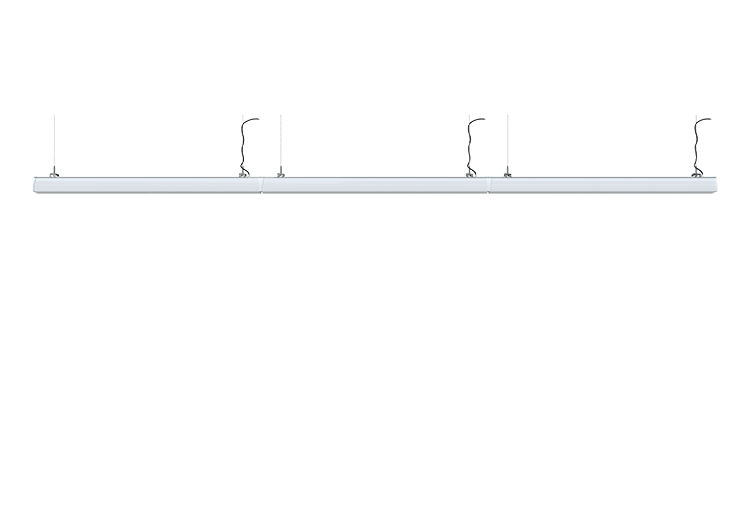

Installation

HLD Installation.png

Points to note:

1. Power off before installation.

2. Do not use cleaners, abrasives or corrosive substances to clean LED lamps.

3. Please check the LED lamps regularly if there is dust or dirt accumulation, Clean if necessary. Contamination can lead to overheating and performance underClean the outside of LED lamps with a dry or wet cloth.

4. Check the cable connection of LED lamps regularly to make sure it is not damaged.



Storage and disposal:

1. The LED lamps should be stored in a dry and clean environ- ment with an ambient temperature of 15-60 degrees Celsius.

2. This LED product should not be used as a standard Waste treatment, lt will be collected or taken to a recy- cling, proper disposal and environmental treatment center.

Video

Short Video

Please contact our sales to obtain password
