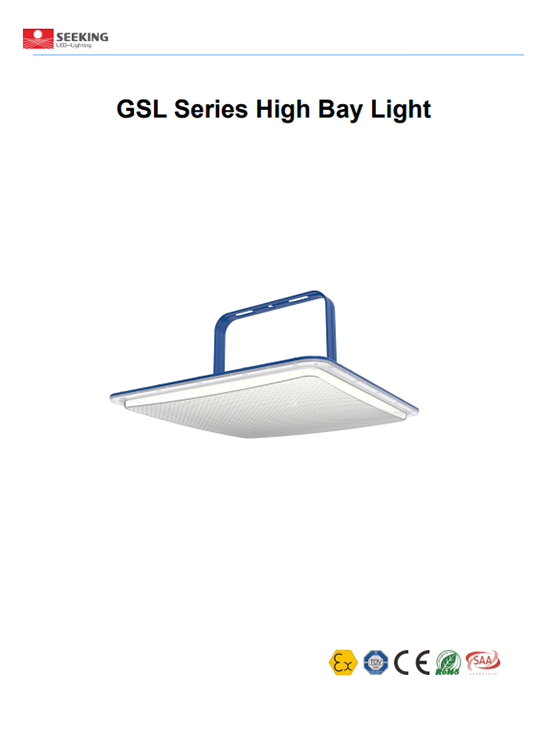

Product Brochure
Home - Product - High Bay Light

GSL SERIES

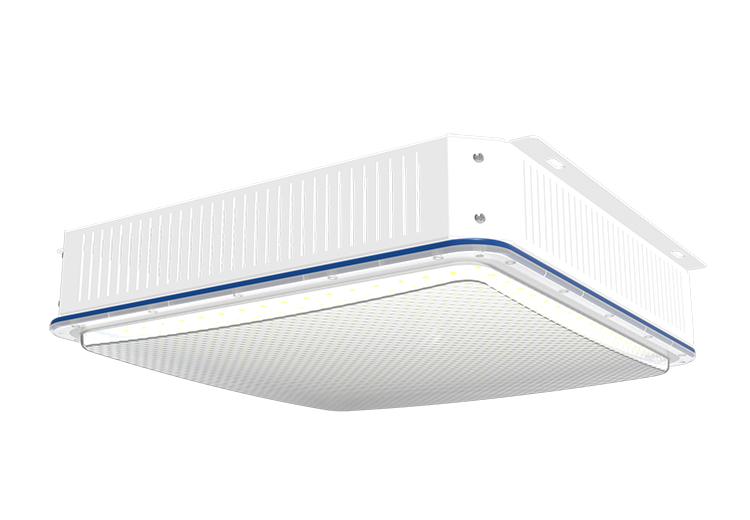

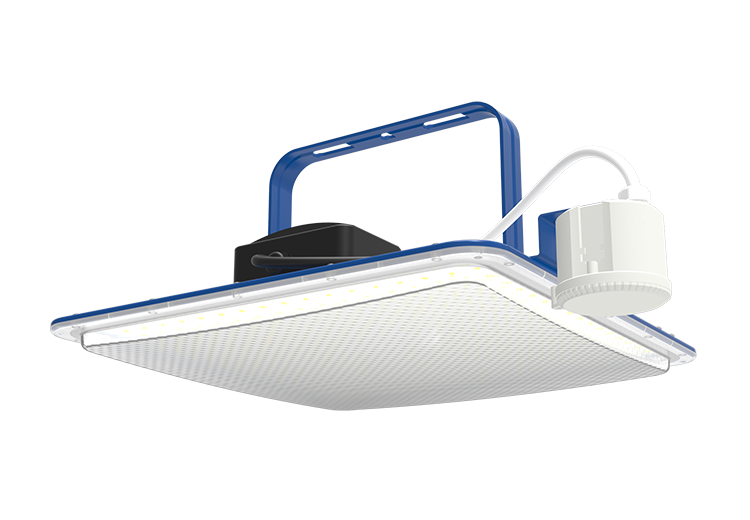

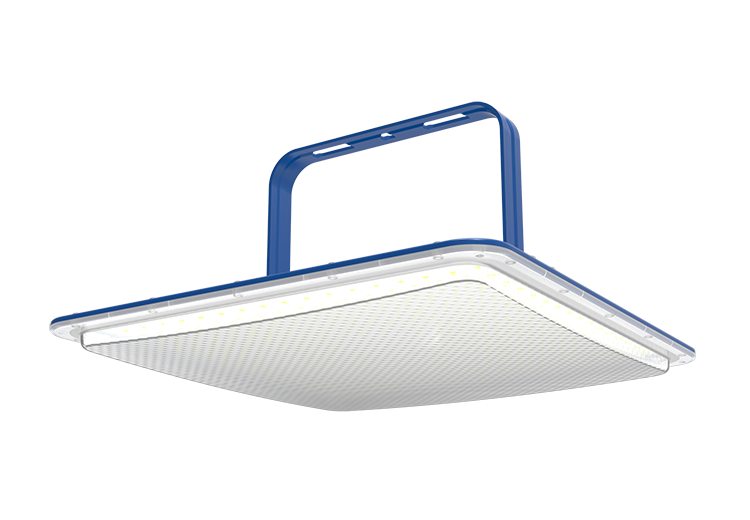

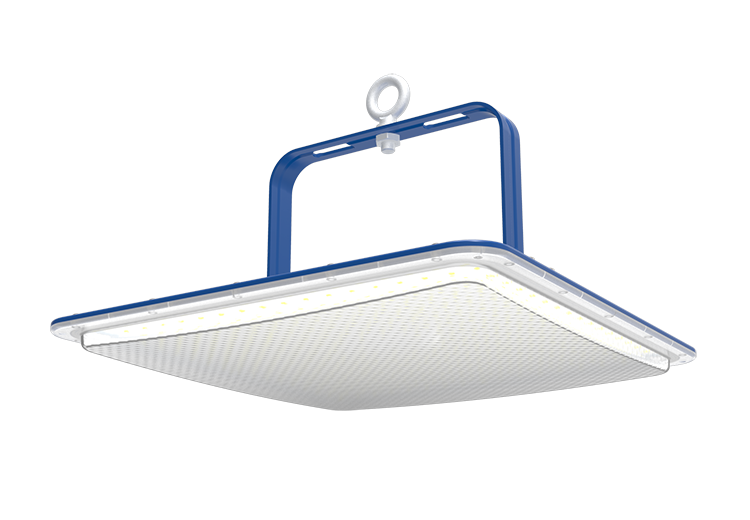

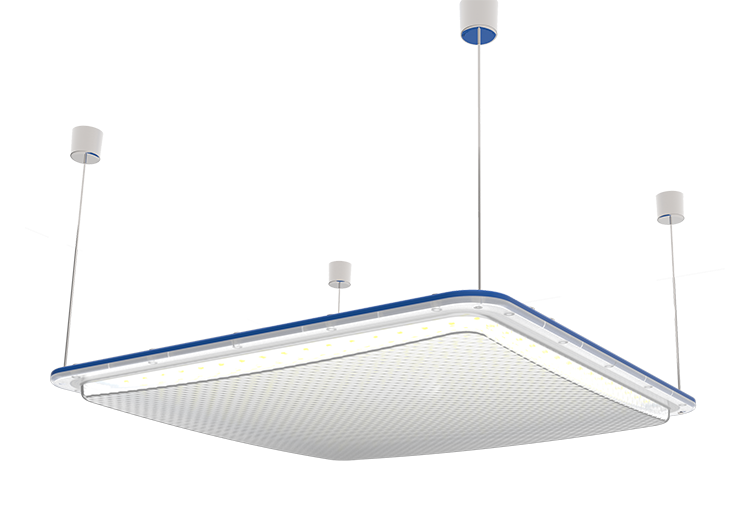

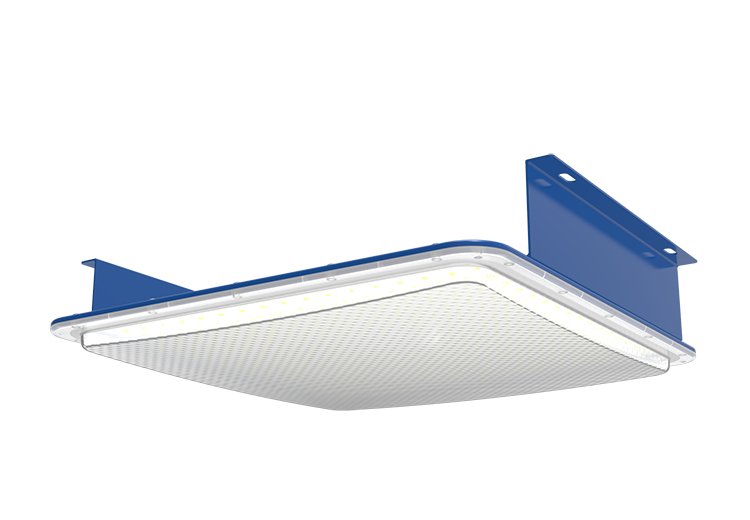

The GSL series is perfect for various industrial and commercial applications, offering flexible mounting options including surface, recessed, and pendant methods. With its high-efficacy LED system and high power factor, the GSL range stands out as a top choice for low bay lighting.

Product Download
  • Parameter
  • Dimension
  • Accessories
  • Installation
  • Video
  • Short Video
  • Download

Parameter

Model NO.Power (W)Luminous Flux 140lm/W
XJ-GSL100W10014000
XJ-GSL150W15021000
XJ-GSL200W20028000

Above lumens based on 4000K Ra:80

Light distribution curve


AC Input：100-277V 50/60Hz

Brand of LED Driver：MEANWELL

Light Source：2835

CRI Range：Ra>80

CCT Range：NW(4000K) CW(5700K)

Light Efficiency：140±5% Lm/W

Beam Angle：110°

Housing：Aluminum Alloy

Waterproof：IP65 & IK08

L80B20@25℃：>100000H

PF：≥0.95  THD<15%  Power Efficiency：≥0.9

Certifications：EX, TUV, CE, RoHS, SAA


Dimension

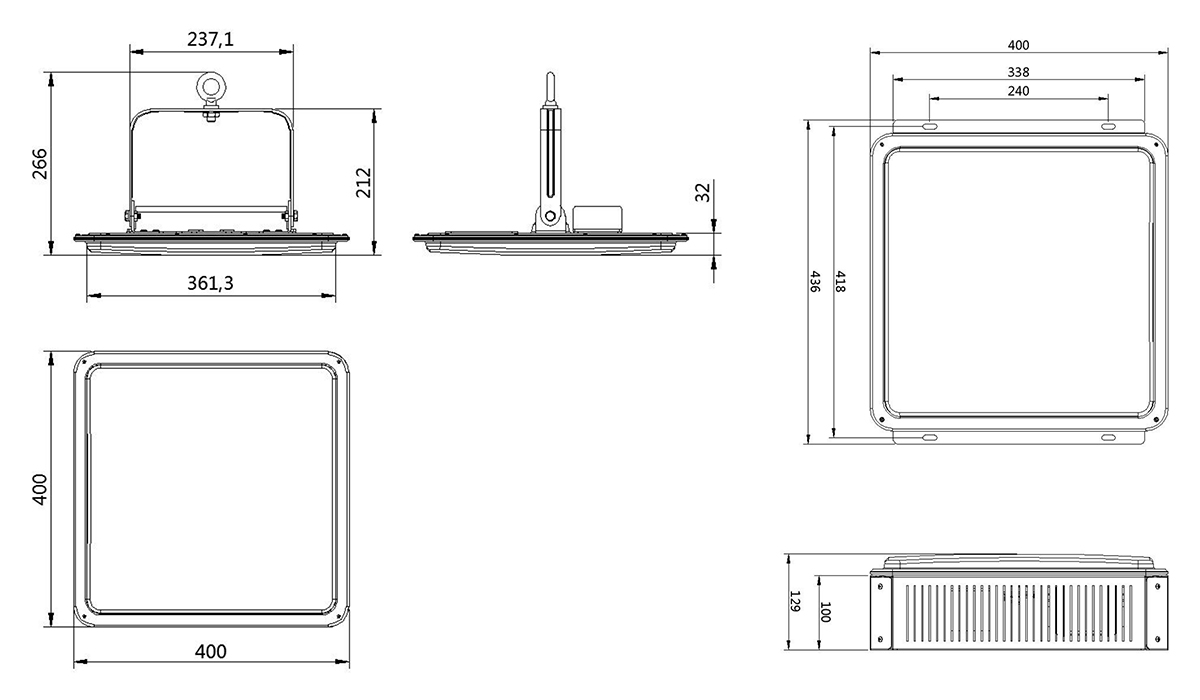

GSL SERIES LED High Bay Light Dimension

Accessories

Installation

Video

Short Video

Download
