TPO SERIES
2025

160lm/w    24W/40W/60W    120°

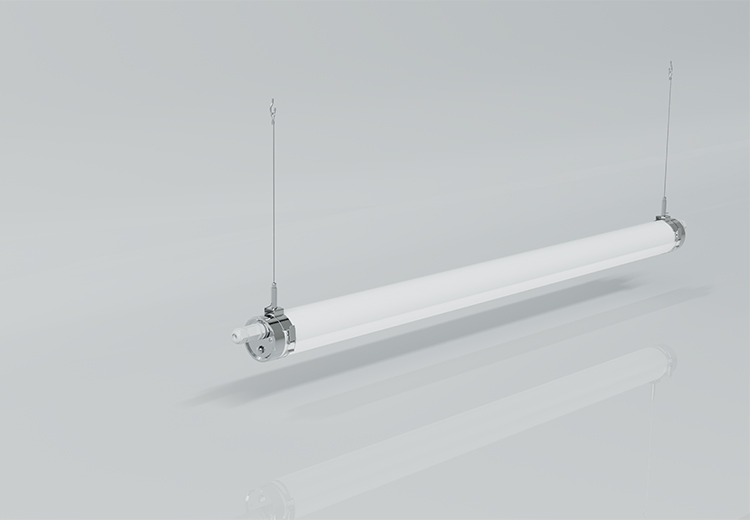

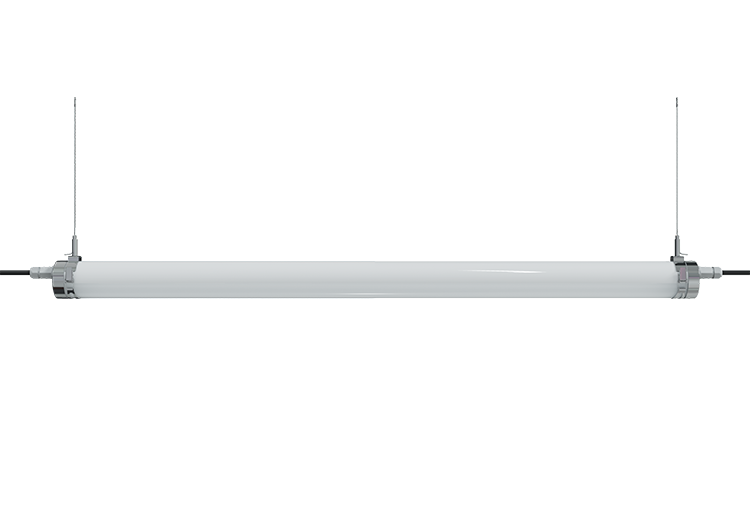

TPO SERIES LED Tri-proof lamp is suitable for harsh environment cylindrical design, IP69K can withstand 1450psi high pressure washing. Clip bracket design makes installation more convenient, non-porous sealing design prevents corrosion, dust, dirt, insects, moisture and bacteria. Suitable for lighting in food factories, breeding factories, workshops, offices, cold storage, shopping malls, supermarkets, textile factories, anti-corrosion and other places.

  • Parameter
  • Dimension
  • Accessories
  • Installation
  • Video
  • Short Video
  • Download

Parameter

Model NO.Power (W)Luminous flux
140-160lm/w
XJ-TPO06-*W14 (Optional values)
16 (Optional values)
20 (Typical values)
1960
2240
2800
XJ-TPO12-*W22 (Optional values)
28 (Optional values)
  34 (Optional values)
40 (Typical values)
3520
4480
5440
6400
XJ-TPO15-*W32 (Optional values)
40 (Optional values)
50 (Typical values)
5120
6400
8000

1. The power is adjustable and pre-set before leaving the factory. It is not recommended for users to adjust it by themselves.
2. Above lumens based on 4000K Ra:80

Light distribution curve

TPB SERIES LED Tri-proof lamp

AC Input:200-240V 50/60Hz

Brand of LED Driver:TRIDONIC

Light Source:2835

CRI Range:Ra>80

CCT Range:WW(3000K) NW(4000K) CW(5700K)

Light Efficiency:140-160±5% Lm/W

Beam Angle:120°

Housing:PC housing(Standard)
                 PMMA housing+304 Stainless (optional)

Waterproof:IP69K & IK08

L80B20@25℃:>100000H

PF:≥0.95  THD<15%  Power Efficiency:≥0.9

Certifications:CE, CB

Warranty:5 Years

Light body color:milky( RAL 9003 )

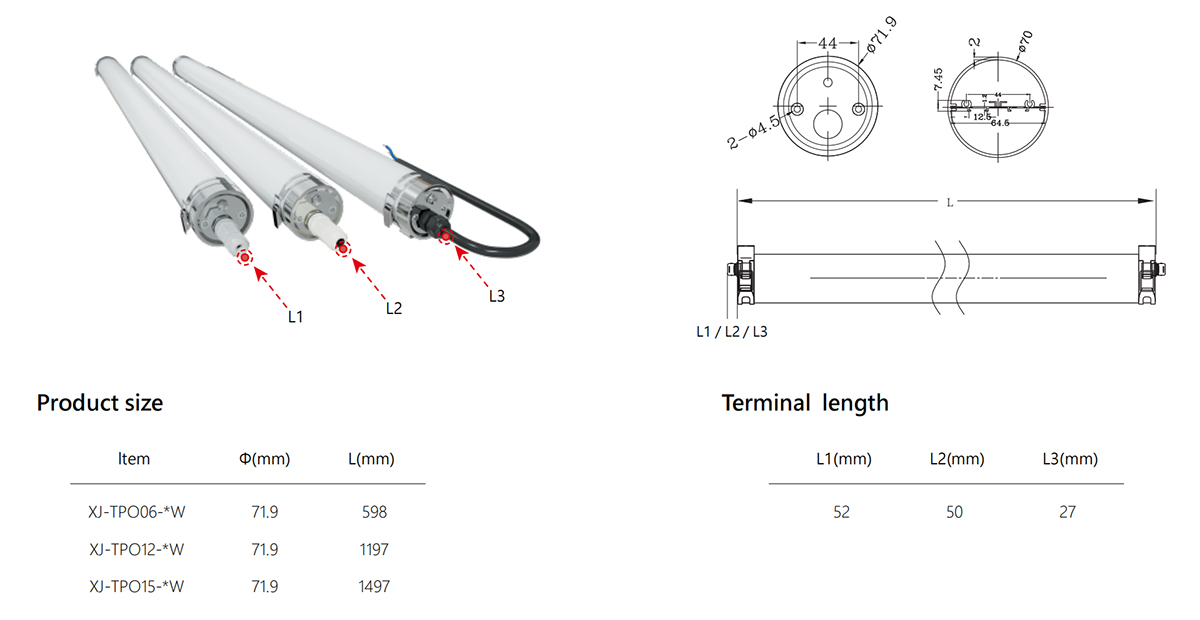

Dimension

TPO SERIES_SEEKING LED-LIGHTING LIMITED Dimension

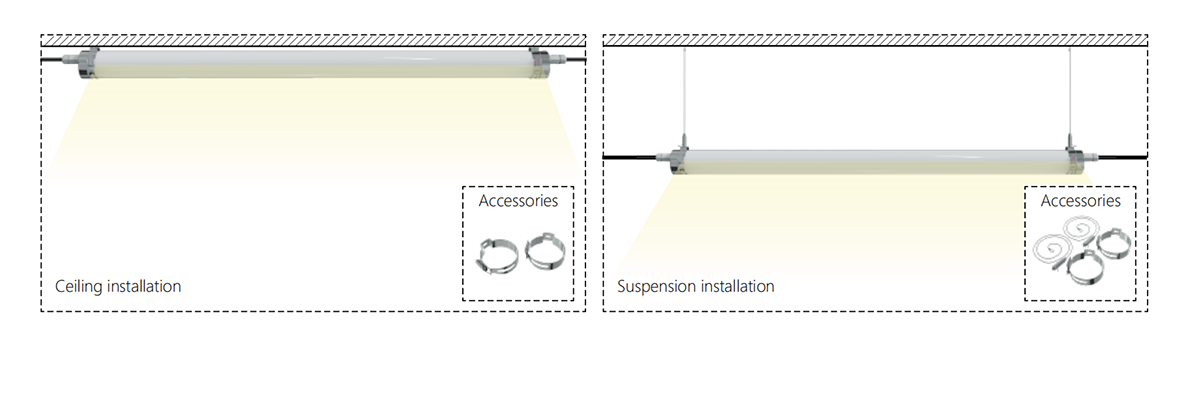

Accessories

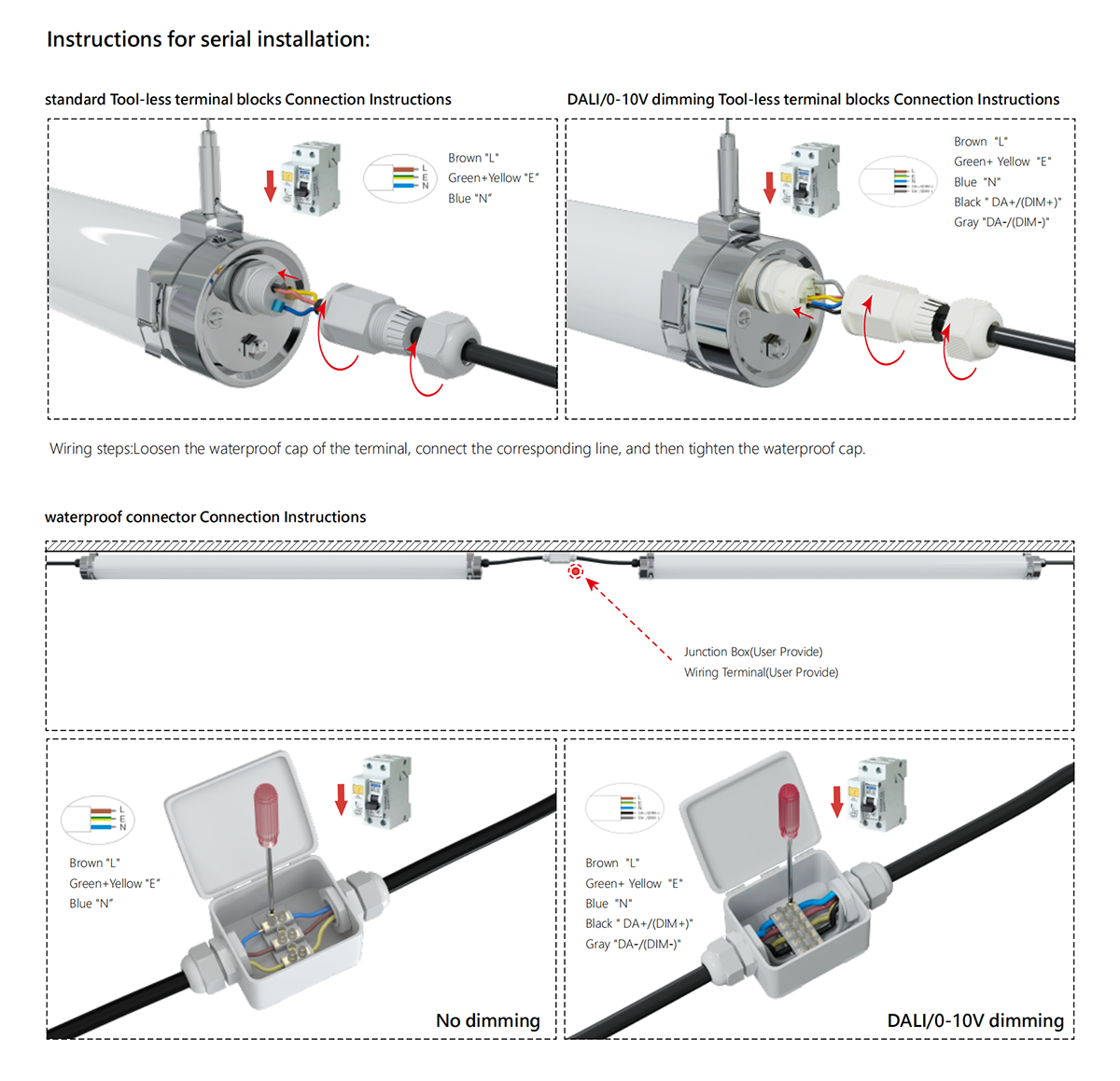

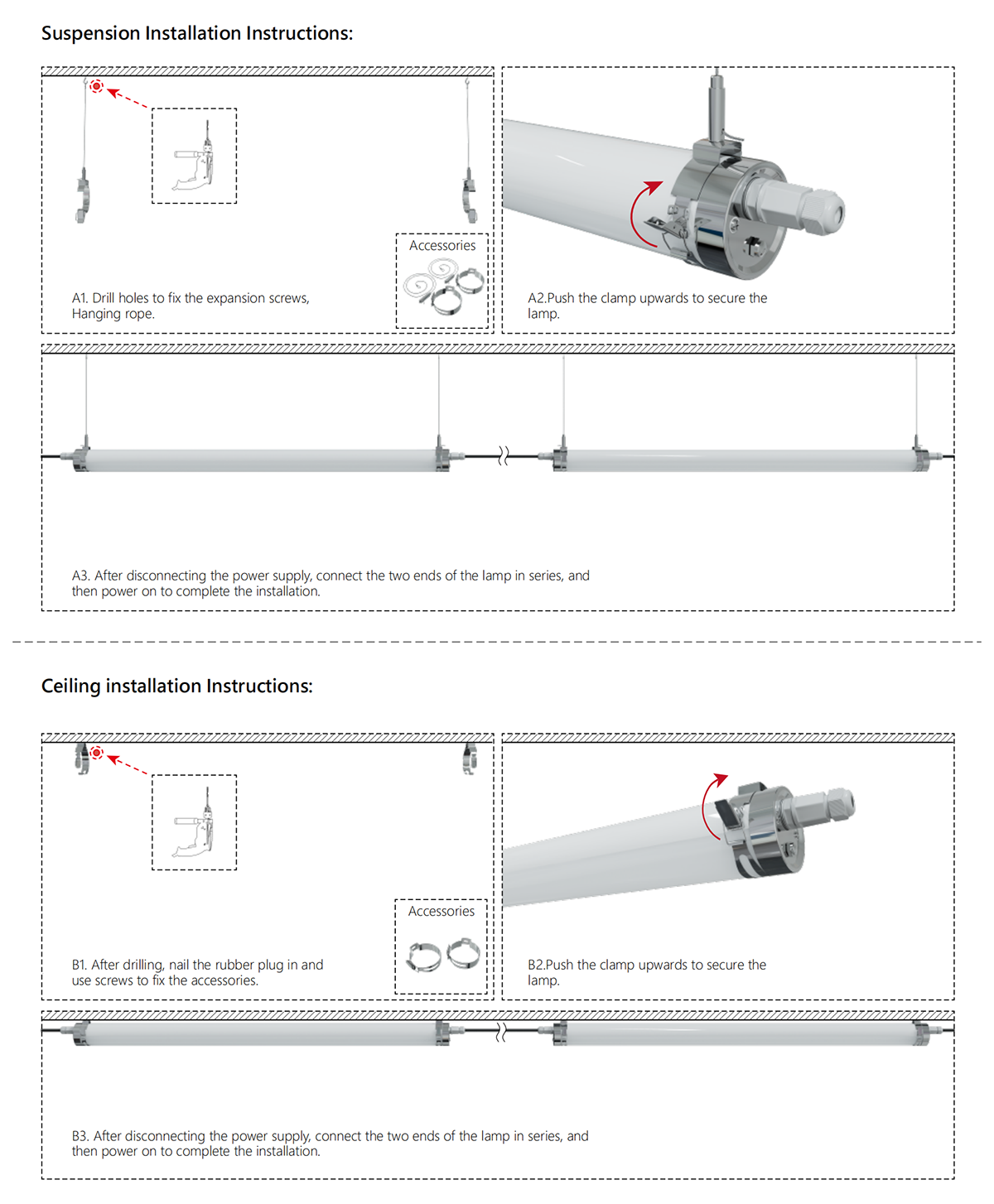

Installation

TPO SERIES LED Tri-proof lamp SPEC

TPO SERIES LED Tri-proof lamp SPEC

TPO SERIES LED Tri-proof lamp SPEC

Note :

1.The diameter of the connecting wire is determined by the size of the built-in cabling of the lamp.

2. Solid cable-end (provided by the user)

3.Please make sure the power off before opertion, lnstallation must be performed by skilled electrician who are familiar with the requirements and proper installation methods of LED luminaire, in order to avoid damage or hazard
