HBD SERIES

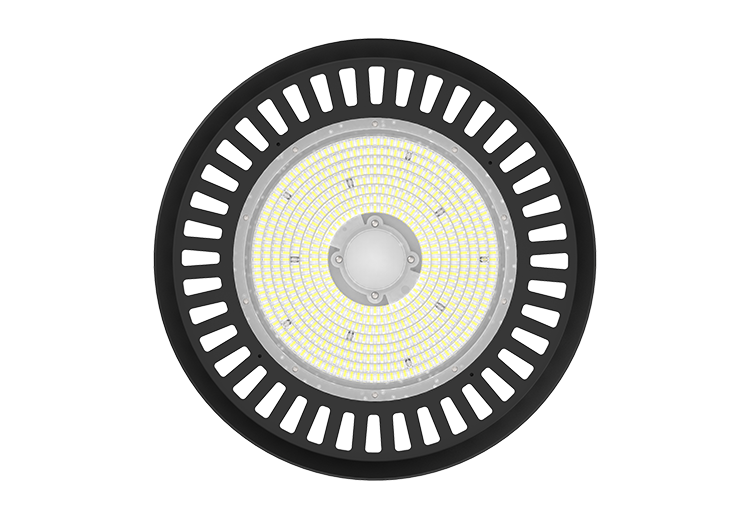

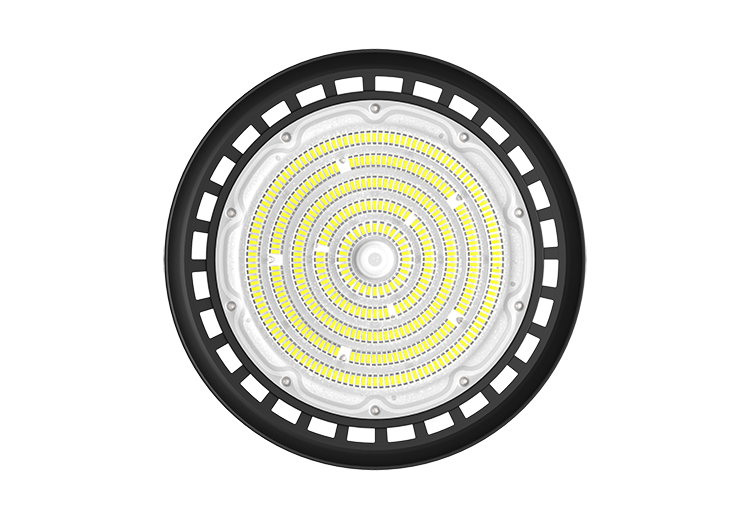

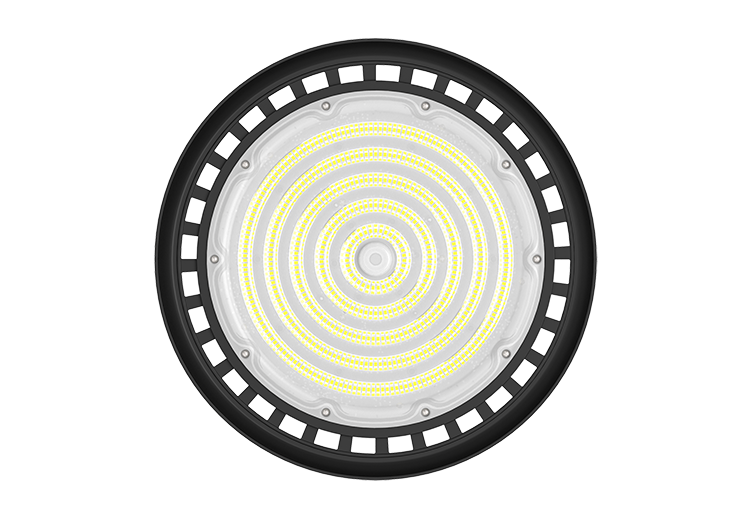

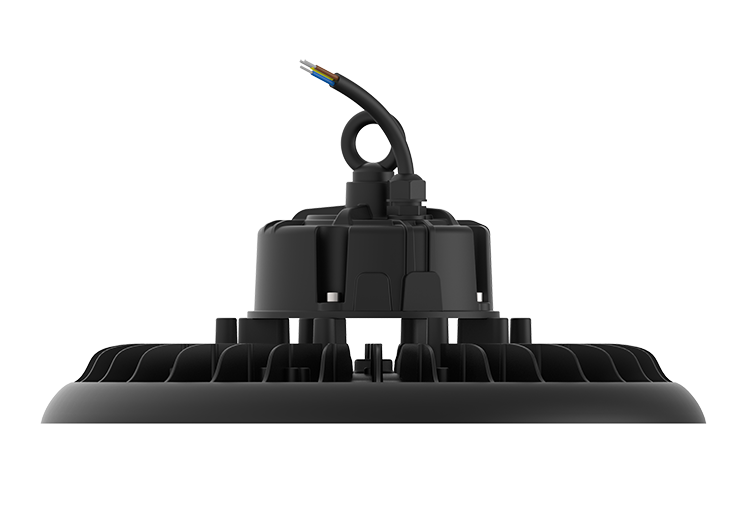

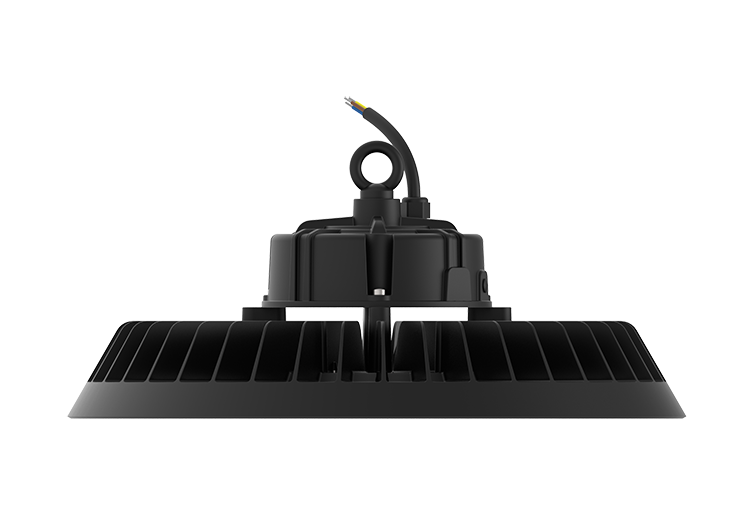

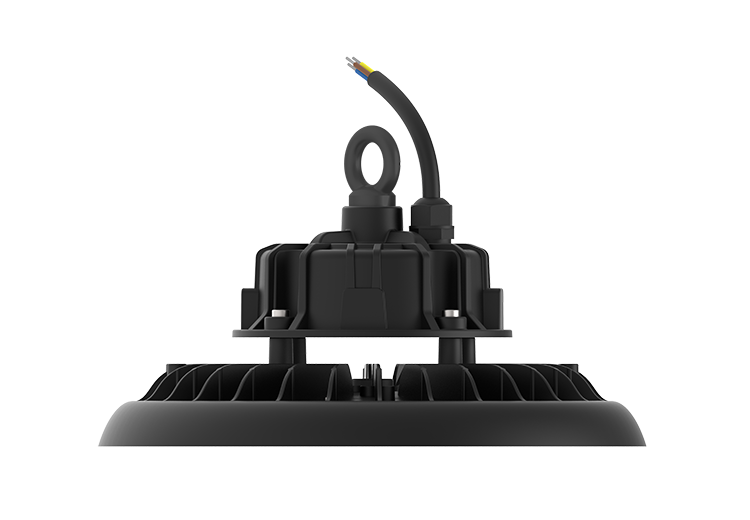

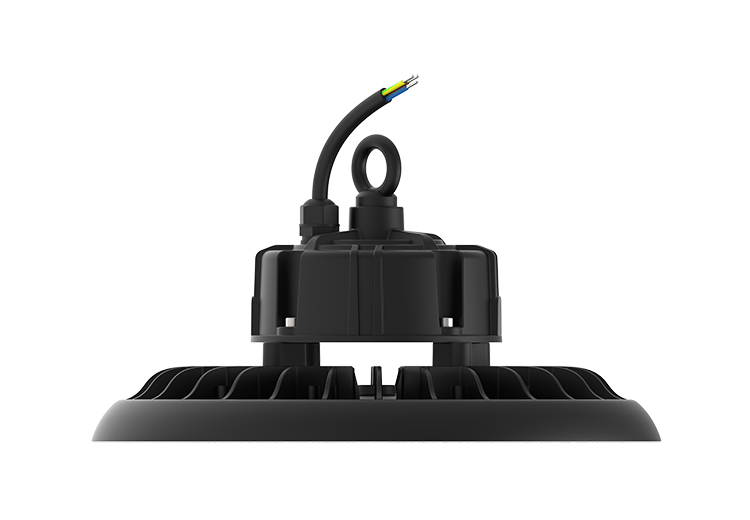

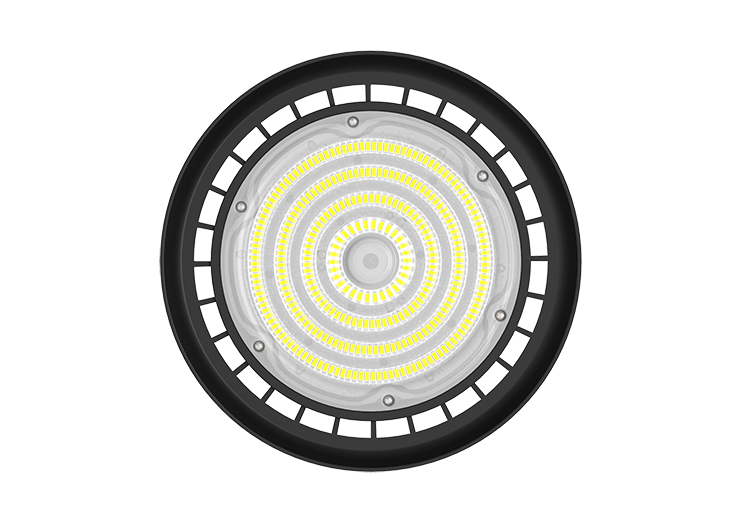

The HBD series UFO high bay light is designed for production workshops, large logistics warehouses, construction sites, airport/dock/high-speed rail waiting rooms, and shopping malls. It offers 60 and 90-degree light distribution options to meet various lighting needs. With a protection level of up to IK08 and IP66, it ensures durability and reliability. The constant current power driver and L80B20 rating guarantee a lifespan of over 100,000 hours.
- Parameter
- Dimension
- Accessories
- Installation
- Video
- Short Video
- Download
Parameter
| Model NO. | Power (W) | Luminous Flux 160lm/W |
|---|---|---|
| XJ-HBD100W-* | 100 | 16000 |
| XJ-HBD150W-* | 150 | 24000 |
| XJ-HBD200W-* | 200 | 32000 |
| XJ-HBD240W-* | 240 | 38400 |
Above lumens based on 4000K Ra:80

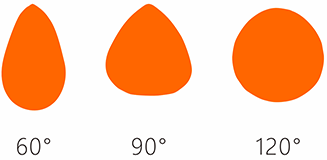

Light distribution curve
AC Input：100-277V 50/60Hz
Brand of LED Driver：SOSEN
Light Source：2835
CRI Range：Ra>80
CCT Range：NW(4000K) CW(5700K)
Light Efficiency：160±5% Lm/W
Beam Angle：60° , 90° , 120°
Housing：Aluminum Alloy
Waterproof：IP65 & IK08
L80B20@25℃：>100000H
PF：≥0.95 THD<15% Power Efficiency：≥0.9
Certifications：TUV, CE, CB

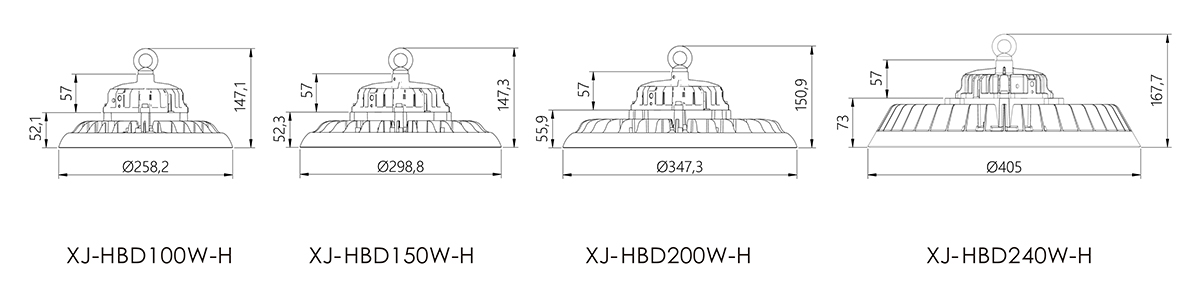

Dimension
Accessories
Installation
Video
Short Video
Download
-
HBD Series High Bay light SPEC
-
IES+LDT
Please contact our sales to obtain password
Sales：sales01@seekingled.com
