STC SERIES
2023 NEW

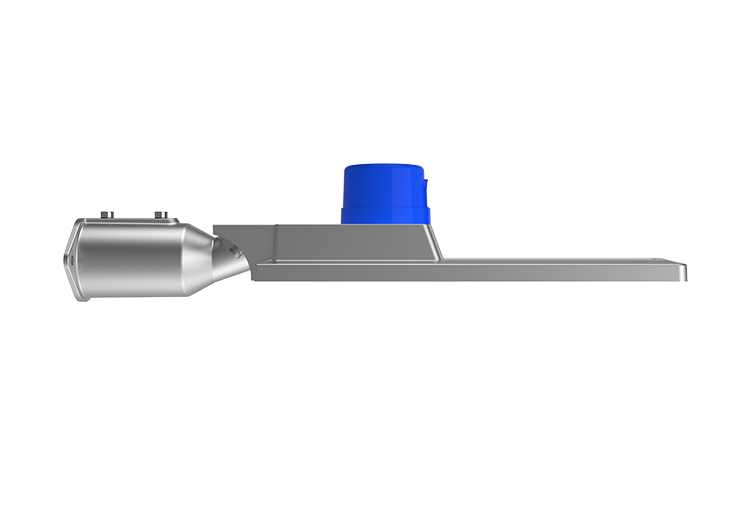

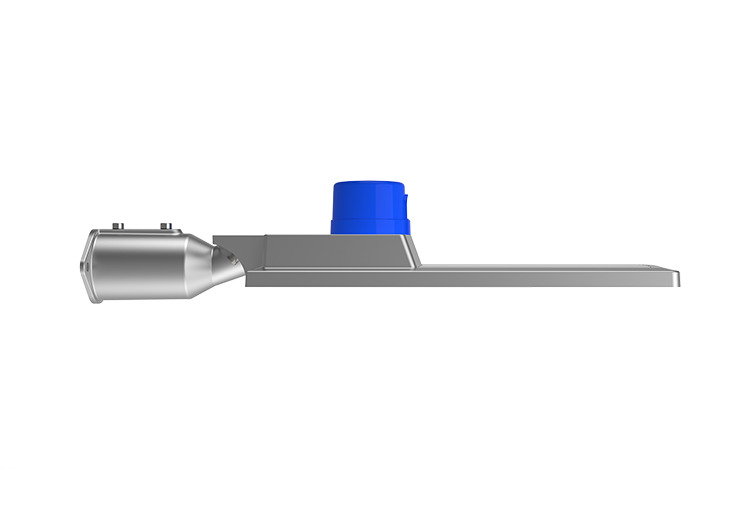

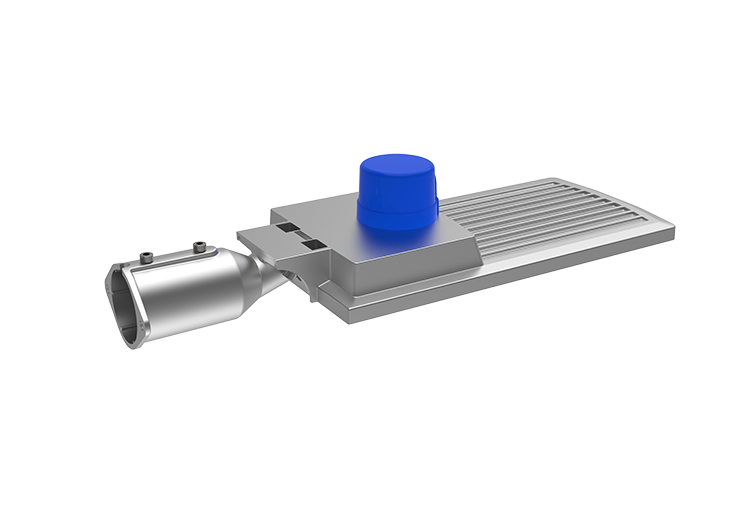

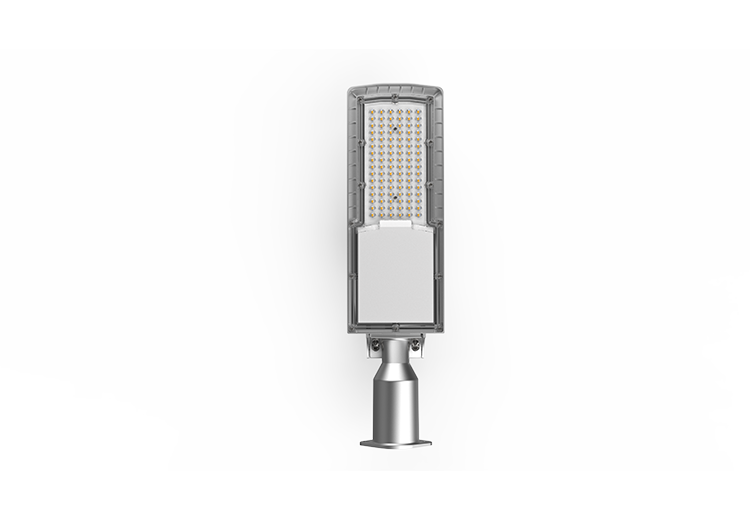

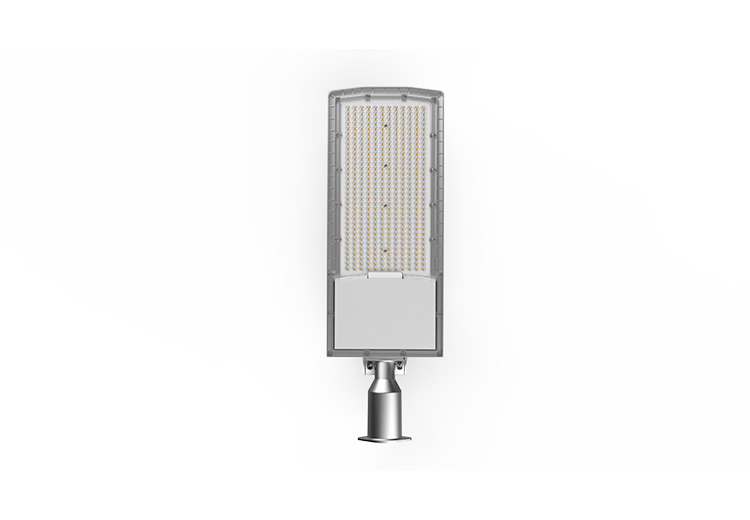

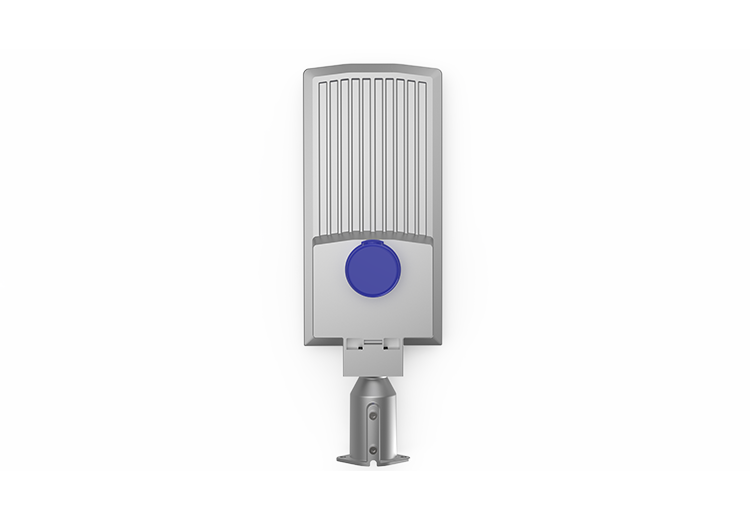

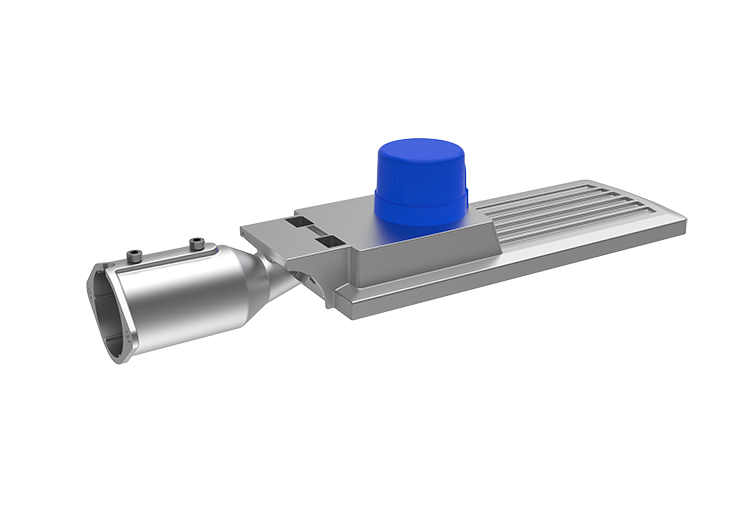

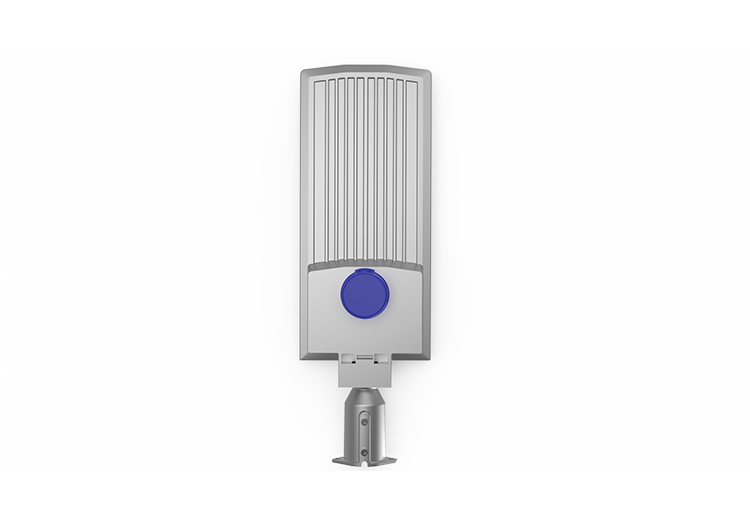

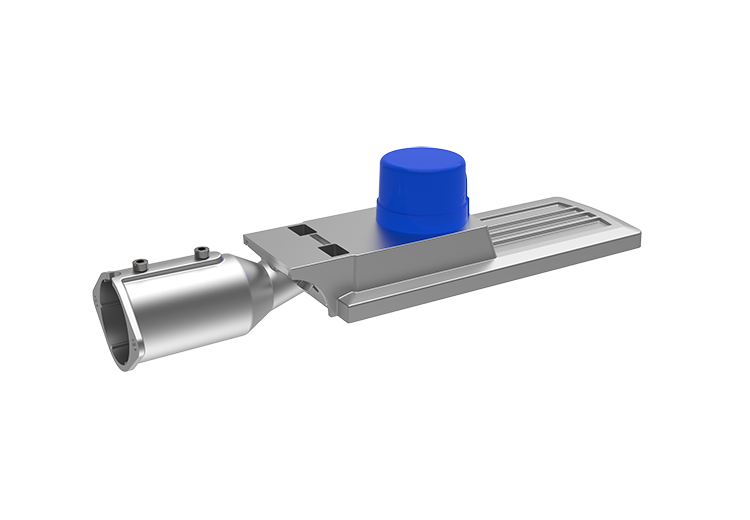

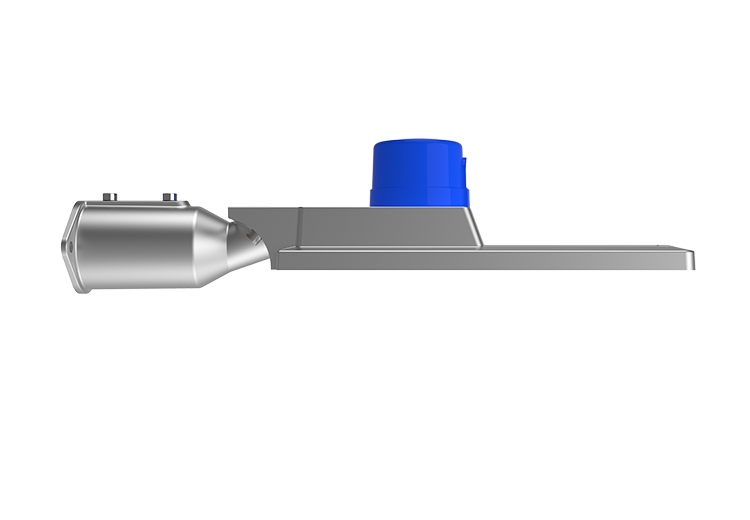

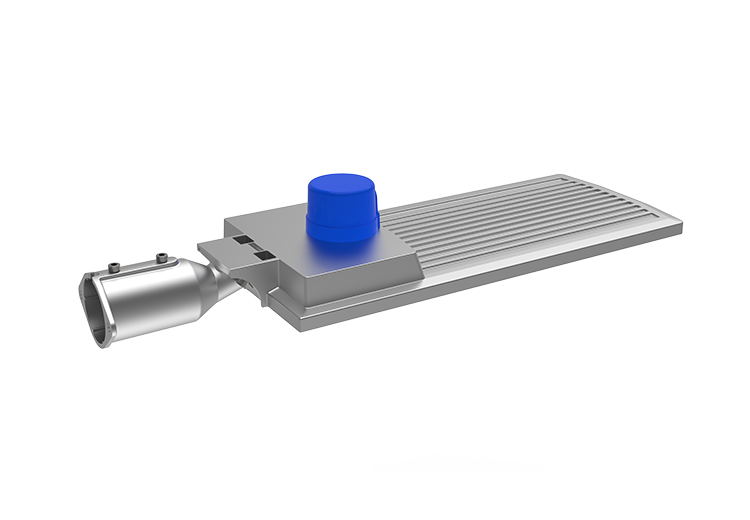

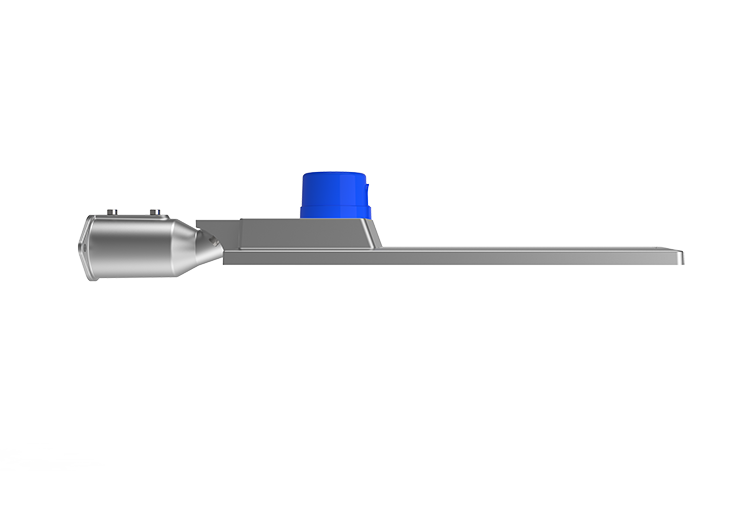

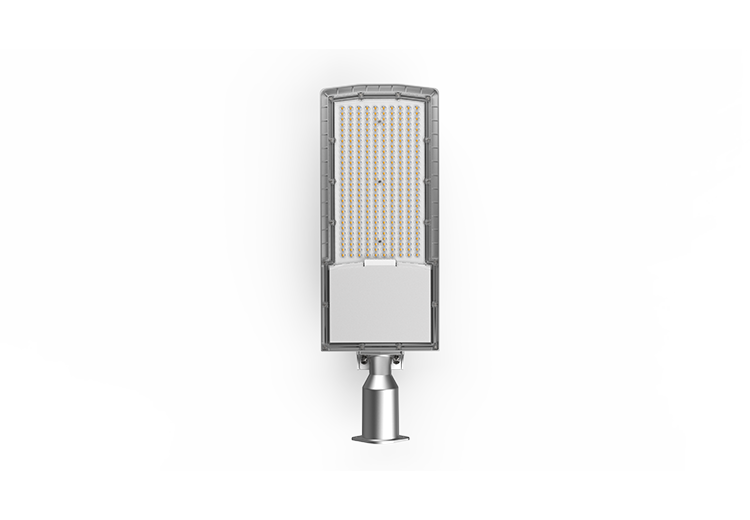

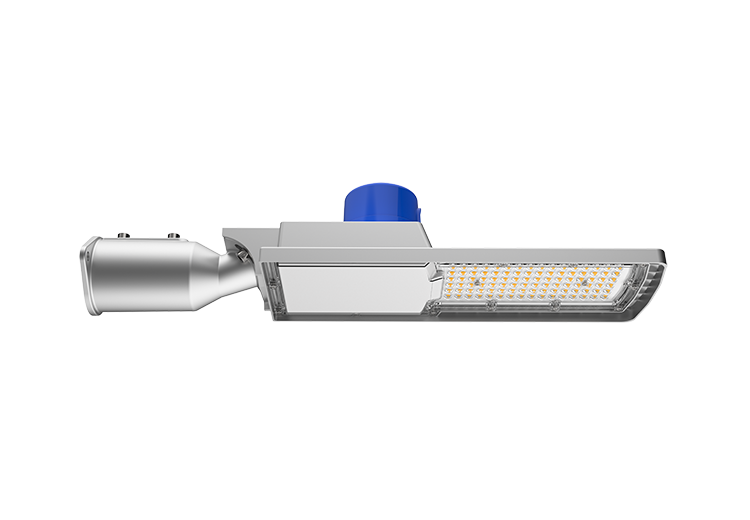

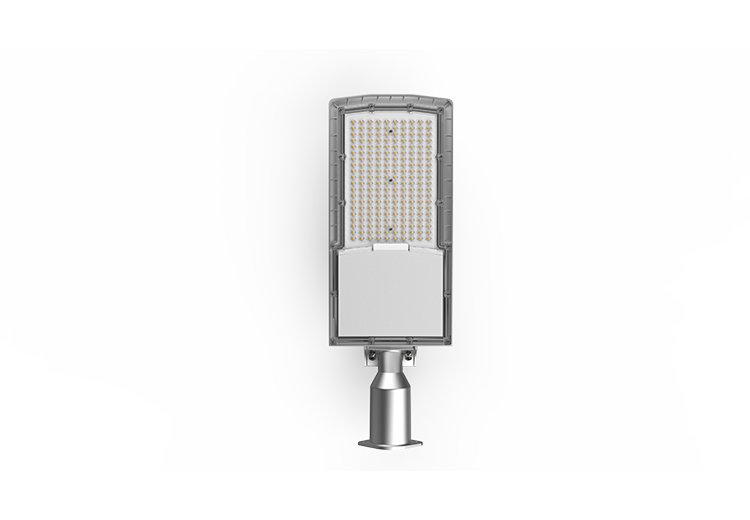

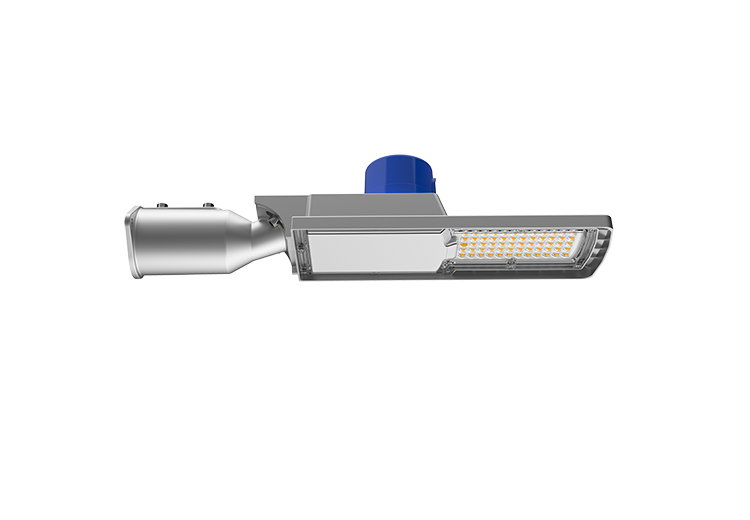

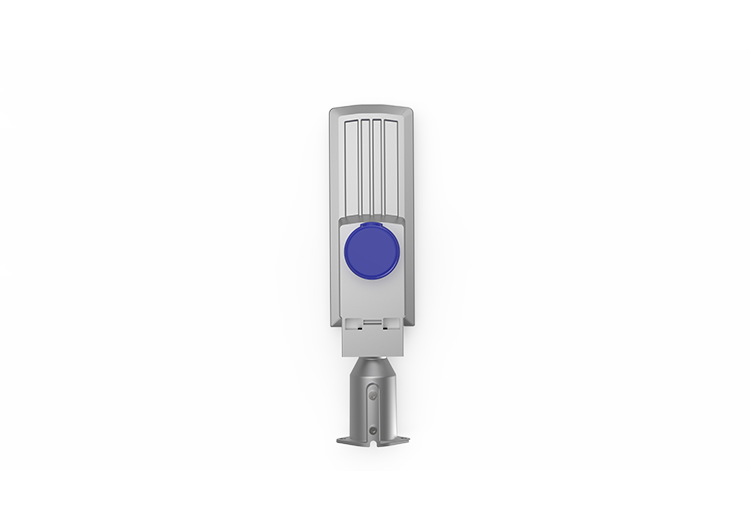

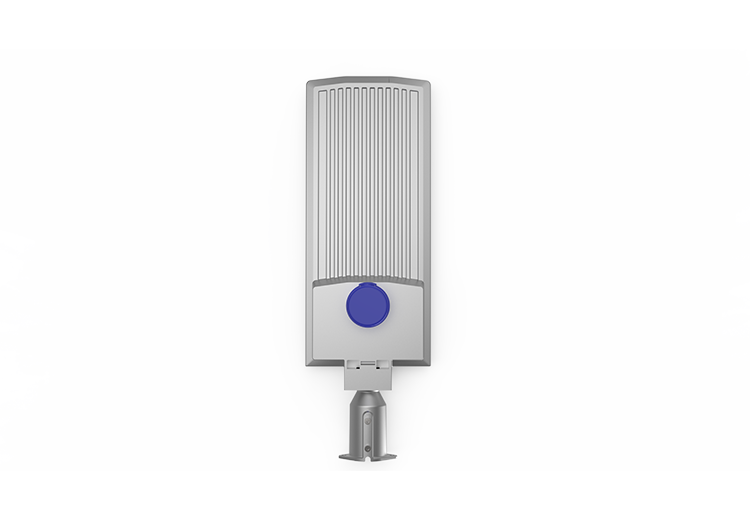

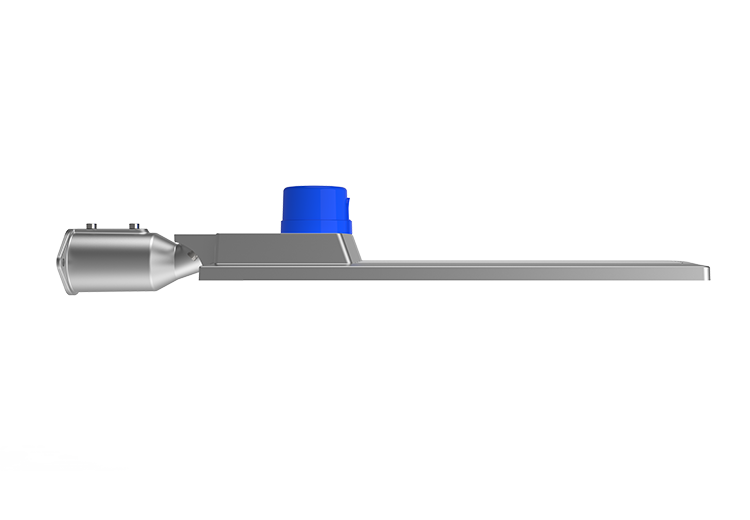

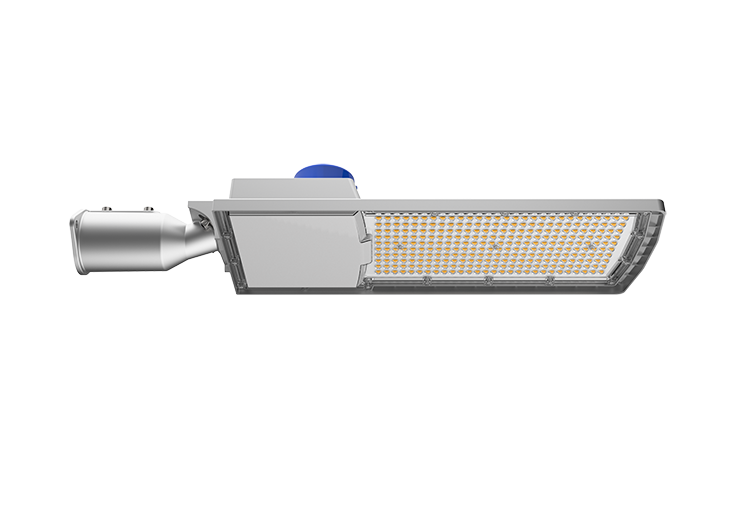

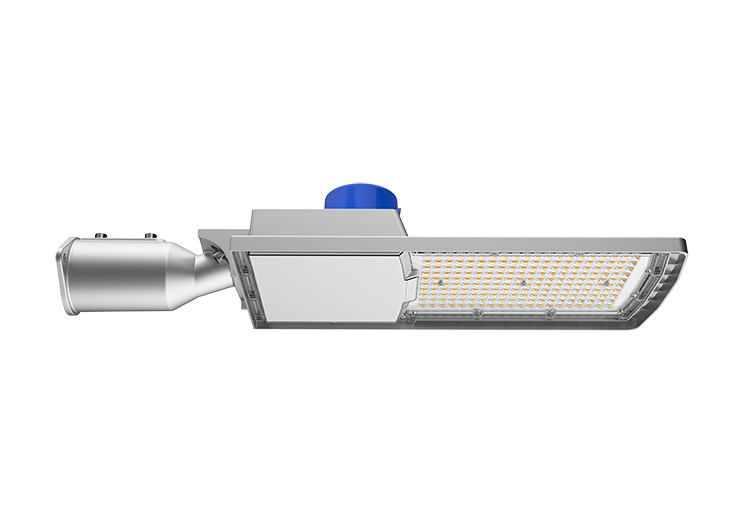

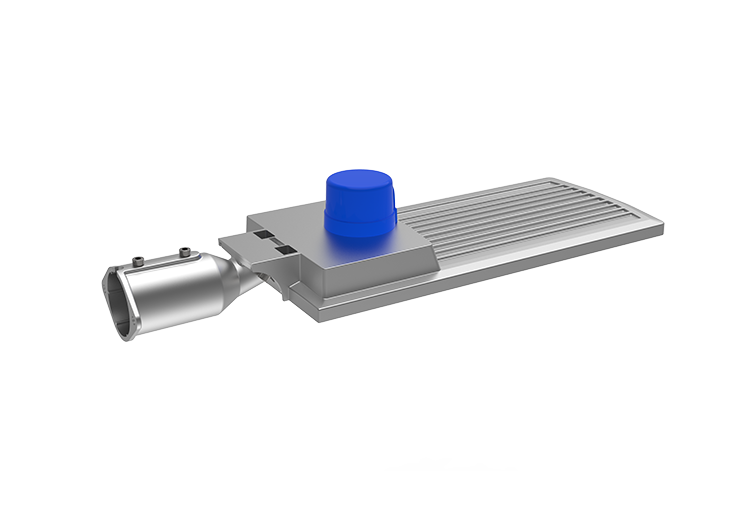

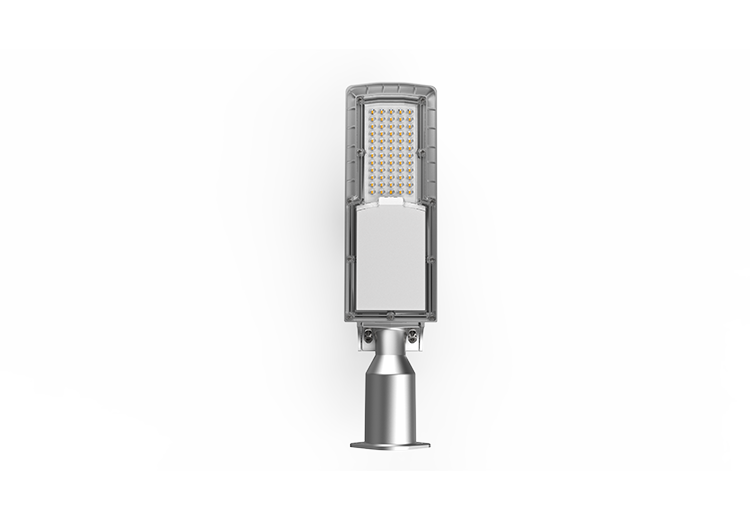

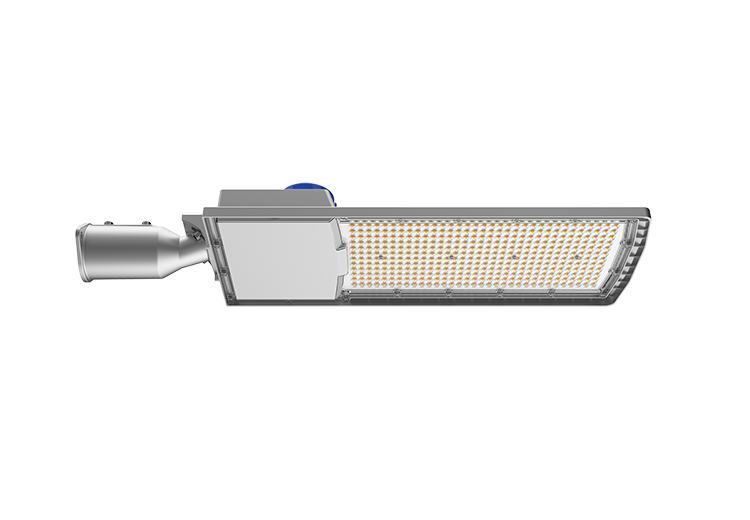

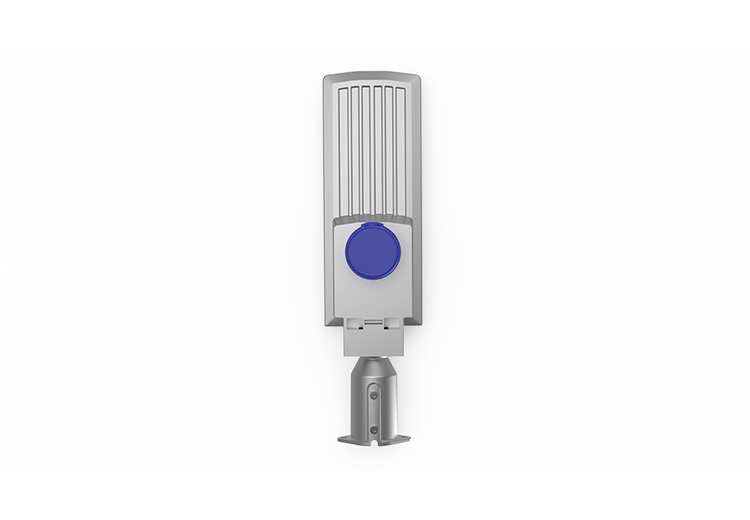

The STC series LED streetlights feature a sleek design and a die-cast aluminum alloy heat sink with an integrated lens, making them highly cost-effective. They come with a ±15° adjustable installation arm that supports both horizontal and vertical installations. With 170lm/w @ RA>80, IP65 rating, and 6-10KV SPD, they offer reliable performance and easy maintenance. These streetlights are an excellent choice for various road lighting requirements, including main roads, branch roads, residential areas, gardens, and more.
- Parameter
- Dimension
- Accessories
- Installation
- Video
- Download
Parameter

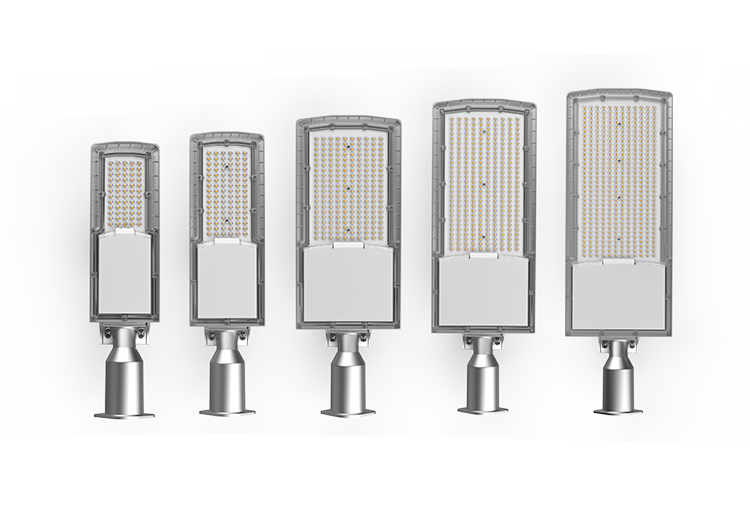

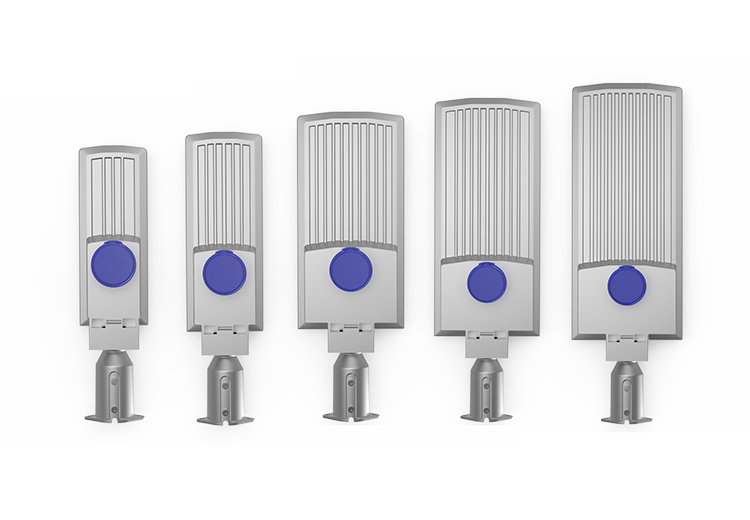

| Model NO. | Power (W) | Luminous Flux 170lm/W |
|---|---|---|
| XJ-STC30W | 30 | 5100 |
| XJ-STC50W | 50 | 8500 |
| XJ-STC100W | 100 | 17000 |
| XJ-STC150W | 150 | 25500 |
| XJ-STC200W | 200 | 34000 |
Above lumens based on 4000K Ra:80
Light distribution curve
AC Input：100-277V 50/60Hz
LED Driver Brand: MOSO
Light Source：2835
CRI Range：Ra>80
CCT Range：NW(4000K) CW(5700K)
Light Efficiency: 170 ± 5% lm/W
Beam Angle: TPⅡM
Housing：Aluminum Alloy
Surge Protection: 10kV
Waterproof：IP66 & IK08
Lifespan (L80B20 @ 25℃): > 100,000 hours
Power Factor (PF): ≥ 0.95
THD<15%
Power Efficiency: ≥ 0.9
Certifications: CE, CB

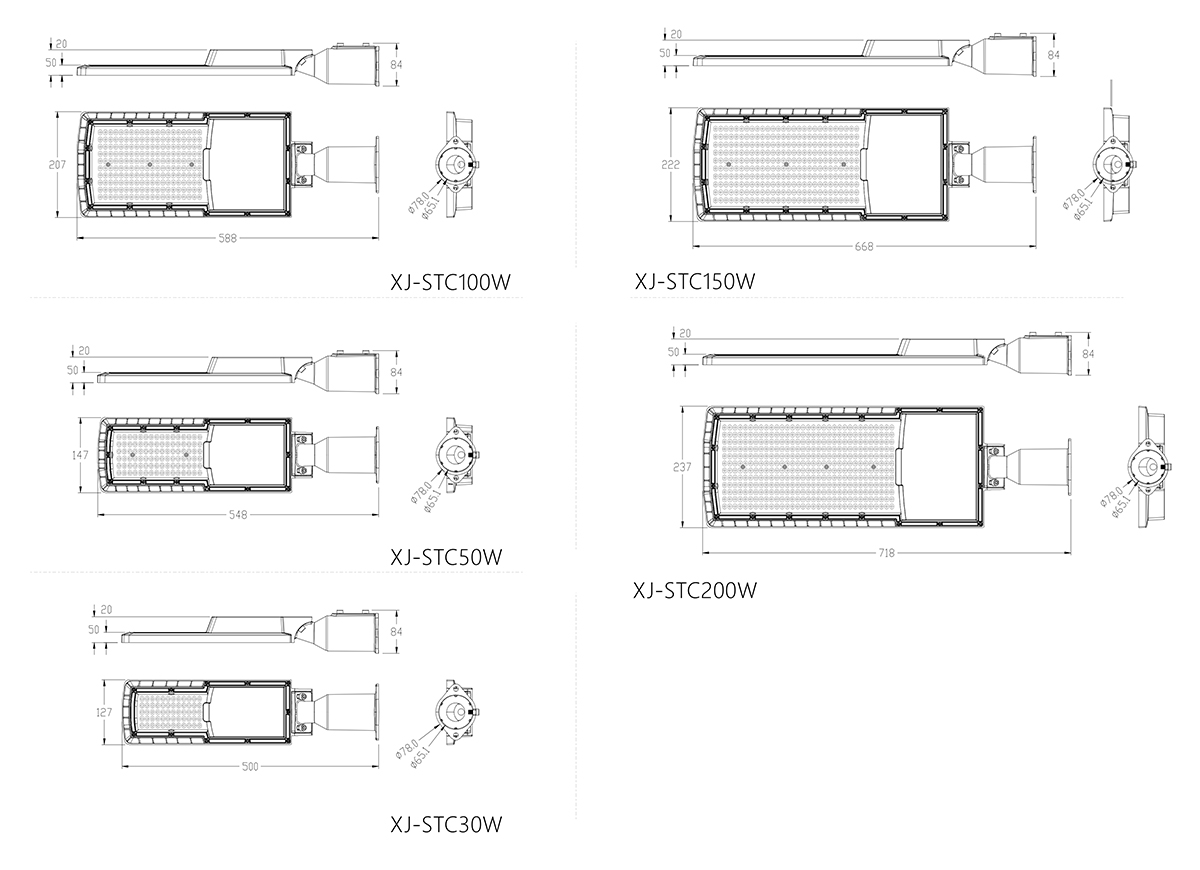

Dimension
Accessories
Installation

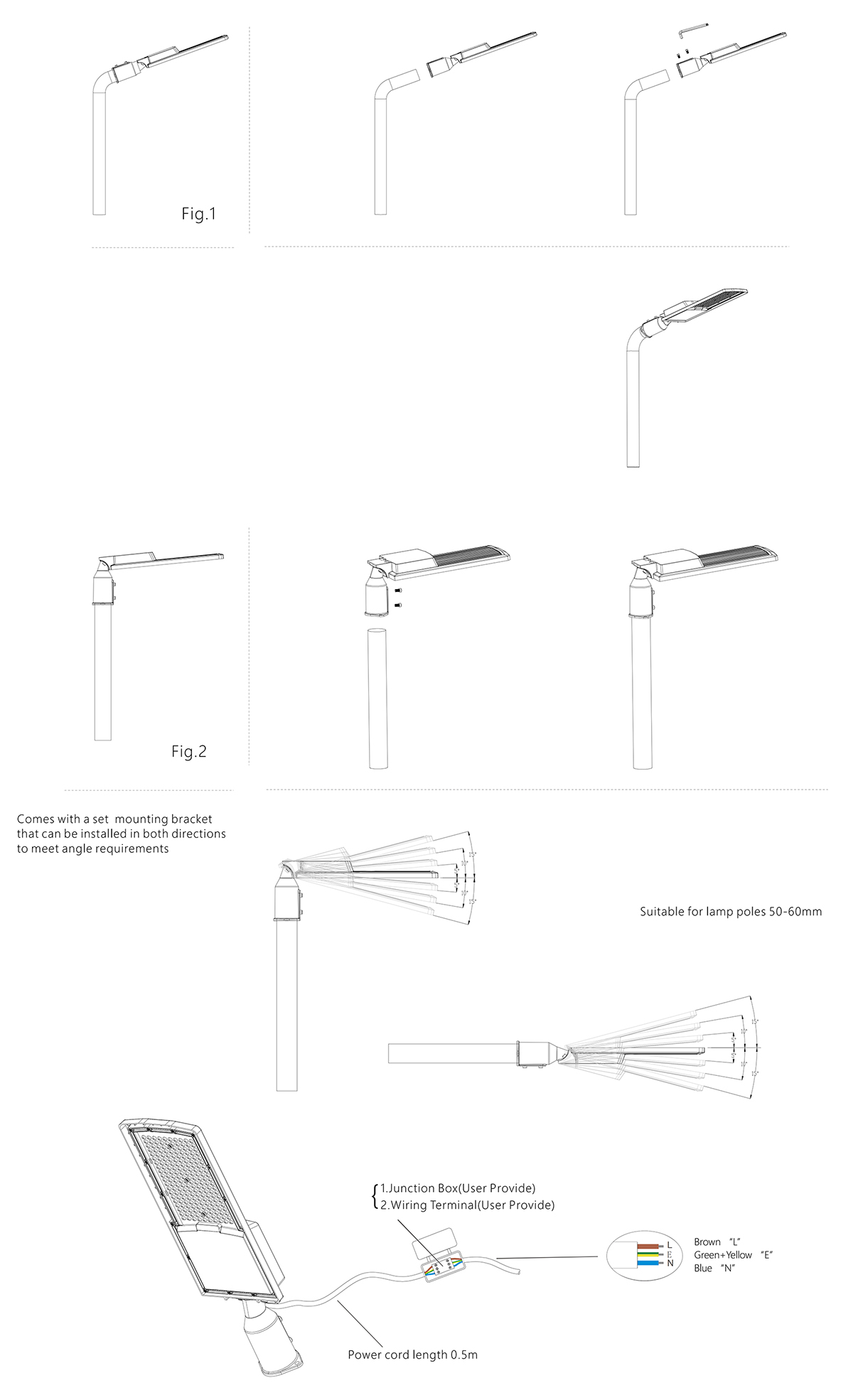

Installation Steps：
1. Open the packaging and take out the lamp body.

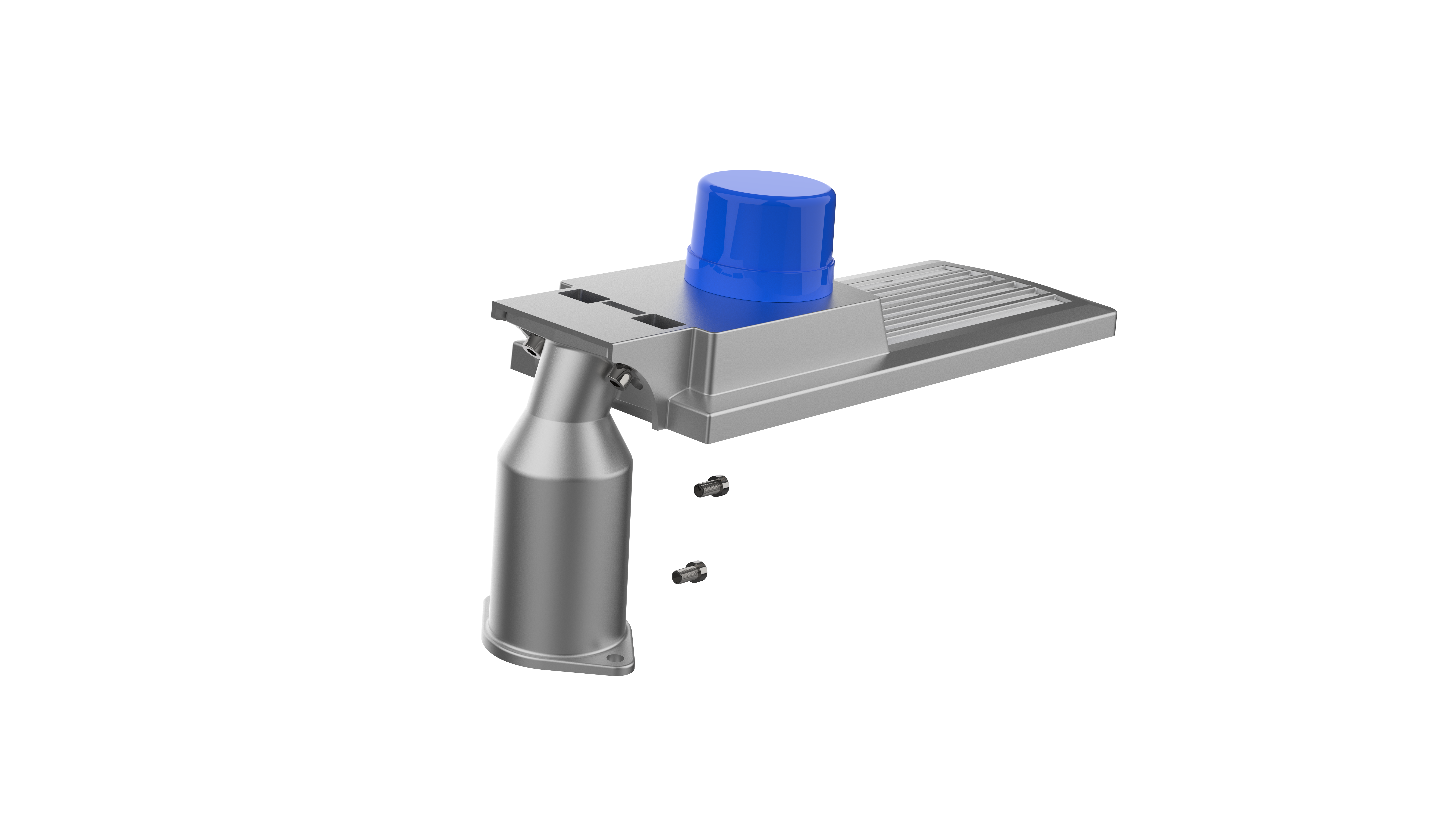

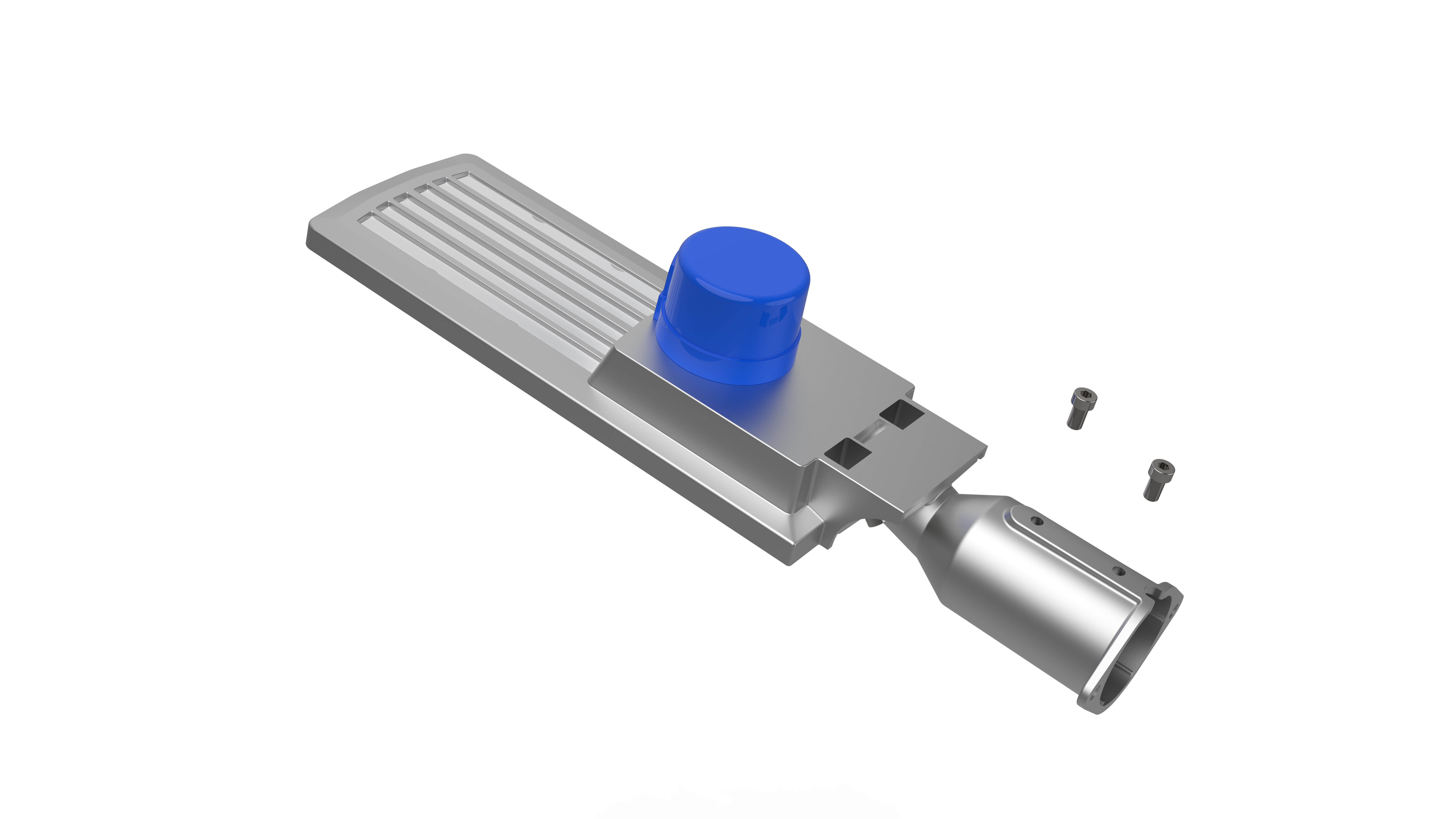

2. Loosen the two Allen screws on the lamp body pivot arm and adjust to the required angle.
3. Insert the bracket hole corresponding to the shaft arm hole and fix it with the two Allen screws on the side. Please refer to the installation instructions.
Note: Ensure the power is off before operation. Installation must be performed by a skilled electrician familiar with the requirements and proper installation methods of LED luminaires. To avoid damage or hazard, the external flexible cable or cord of this luminaire cannot be replaced. If the cord is damaged, the luminaire must be destroyed.
The light source contained in this luminaire should only be replaced by a qualified person.
Video

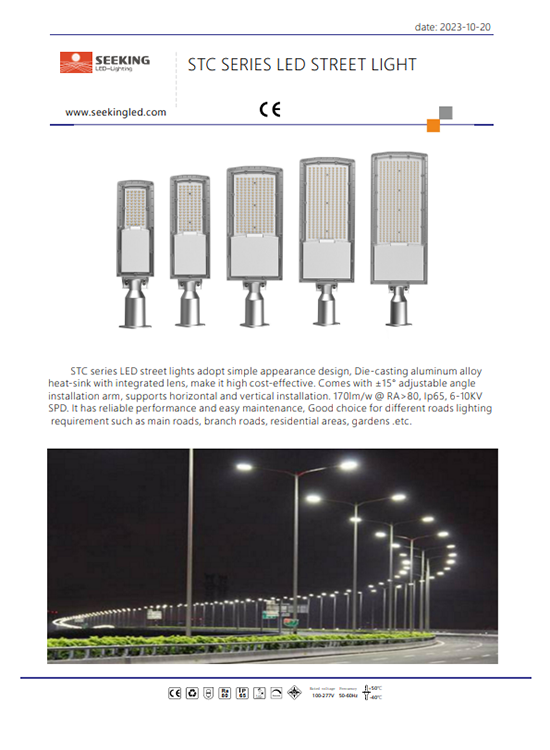

Download
