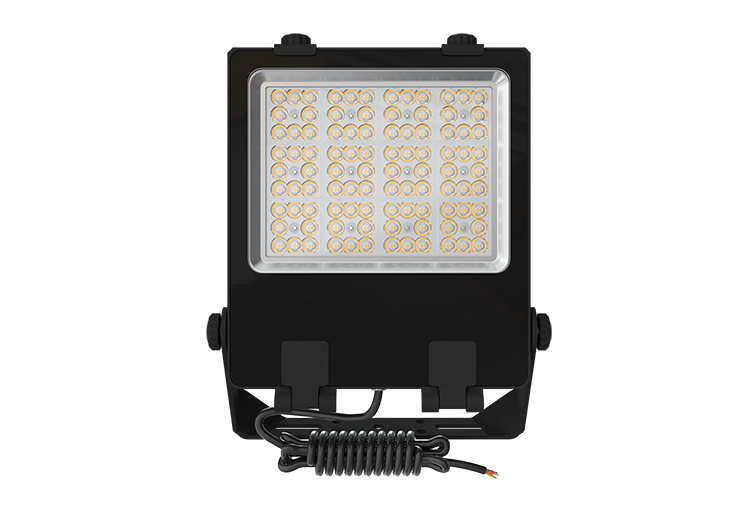

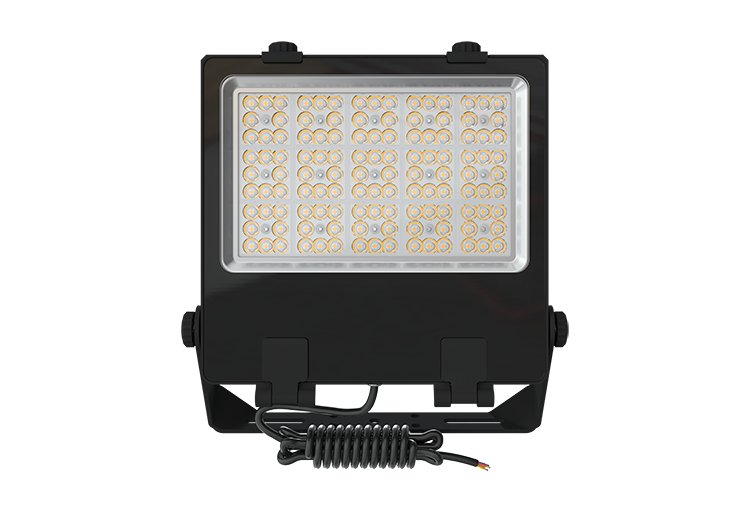

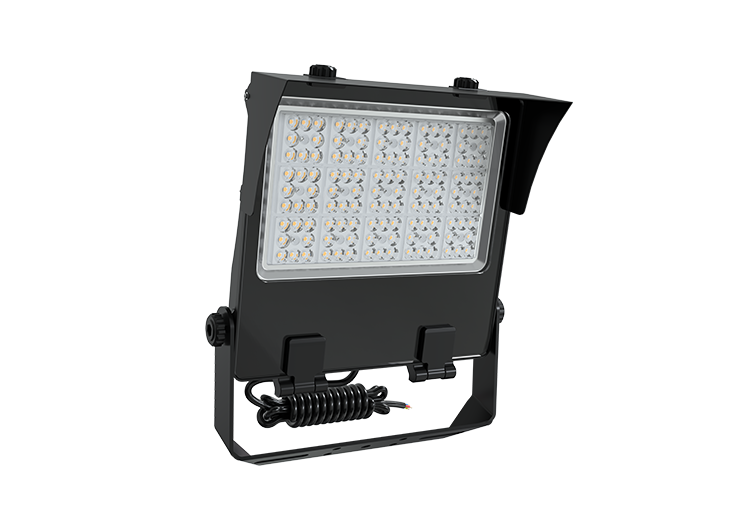

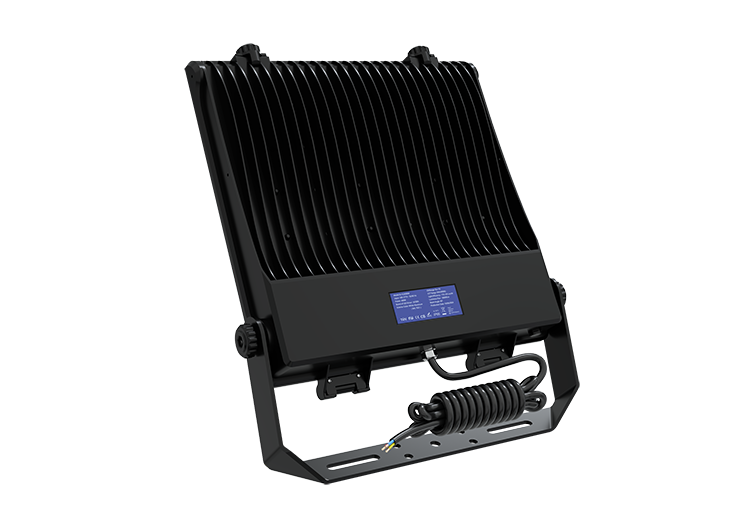

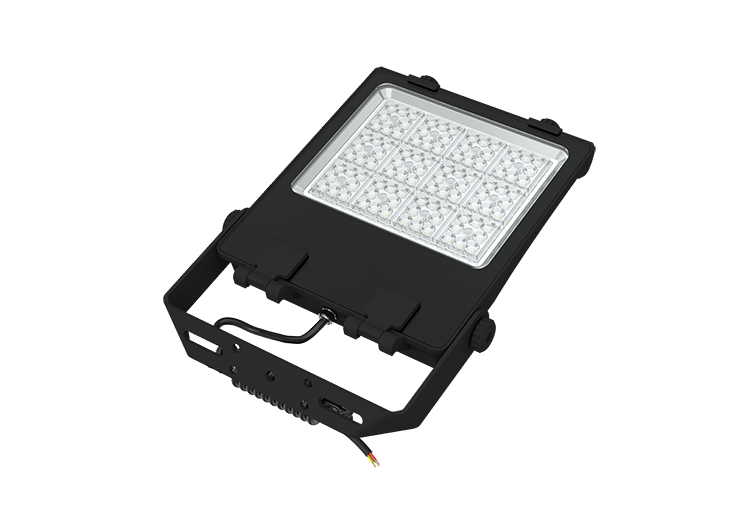

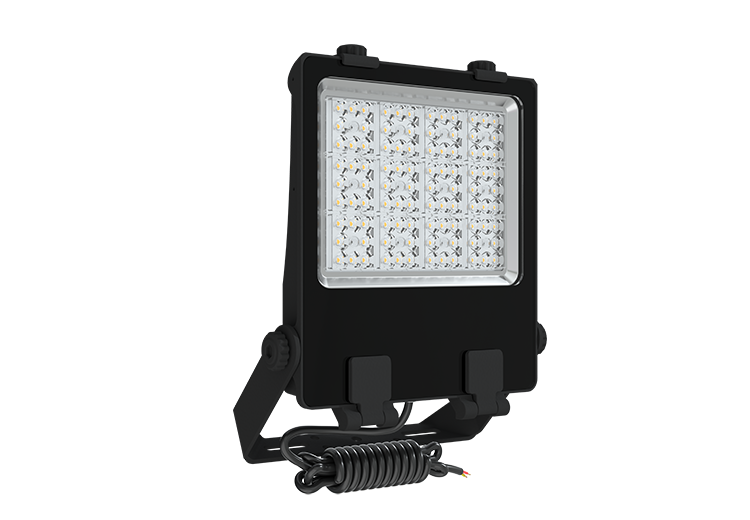

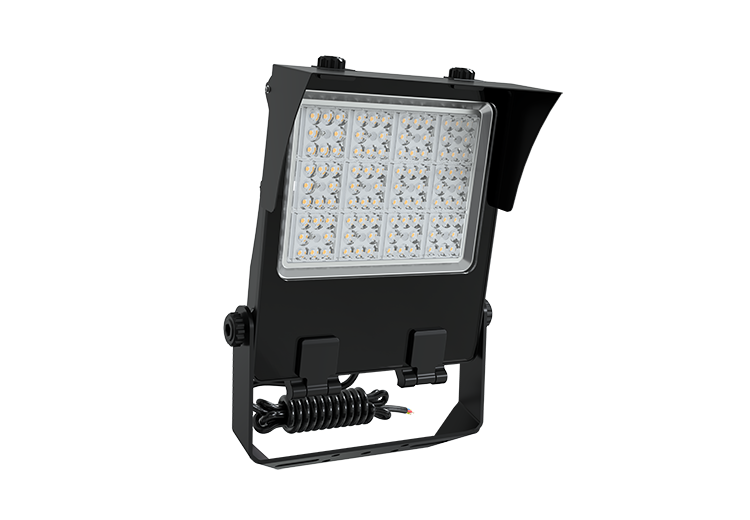

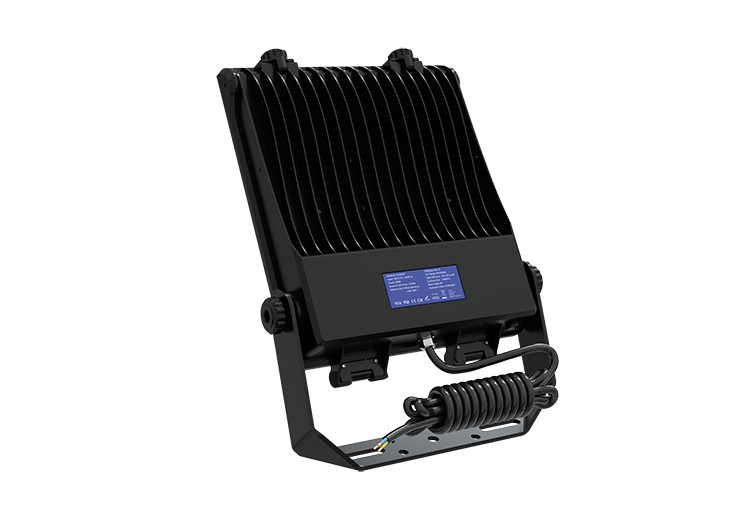

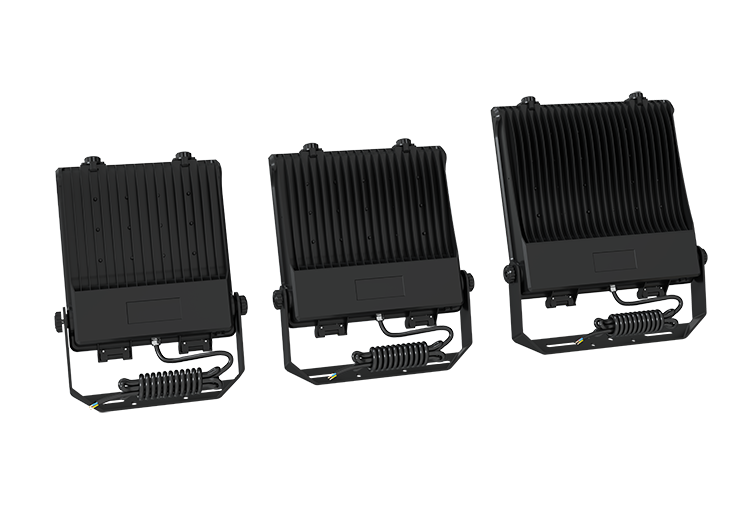

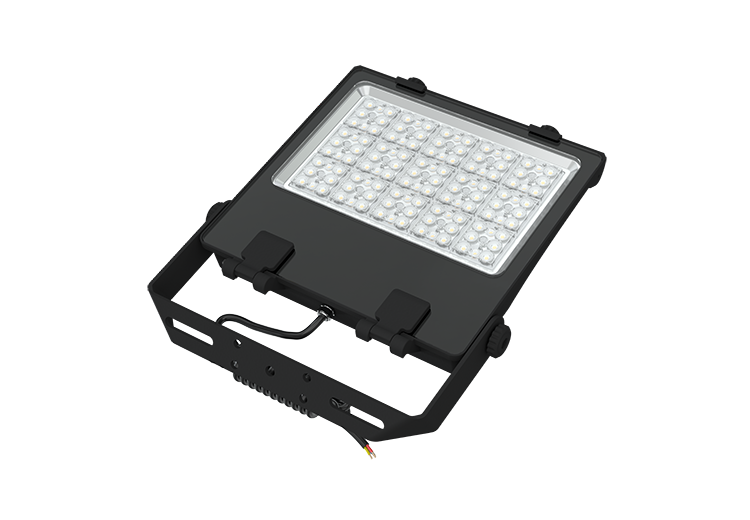

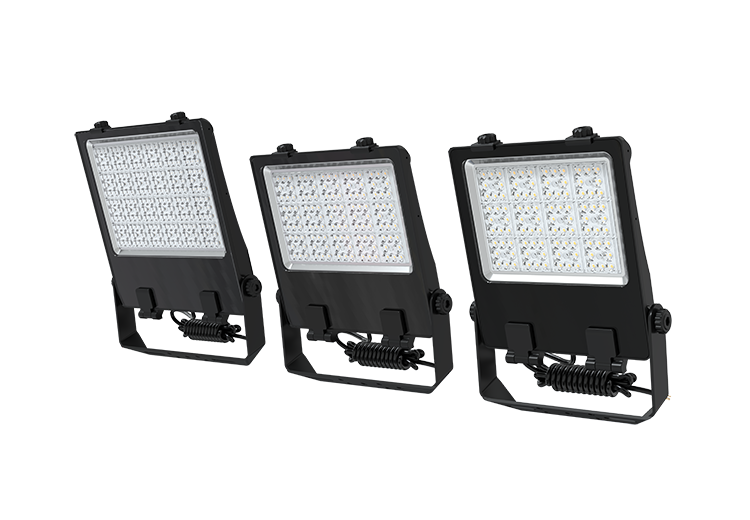

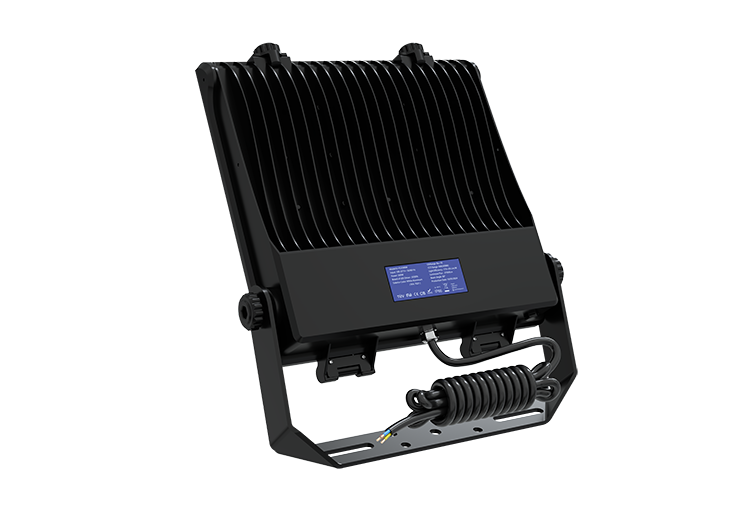

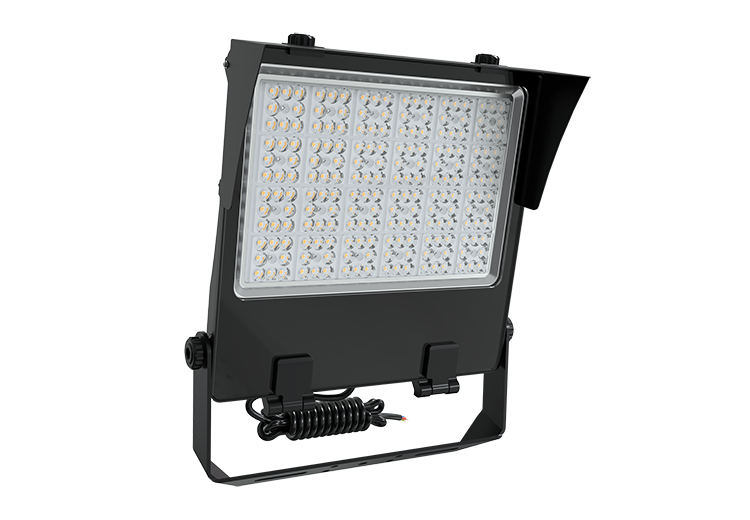

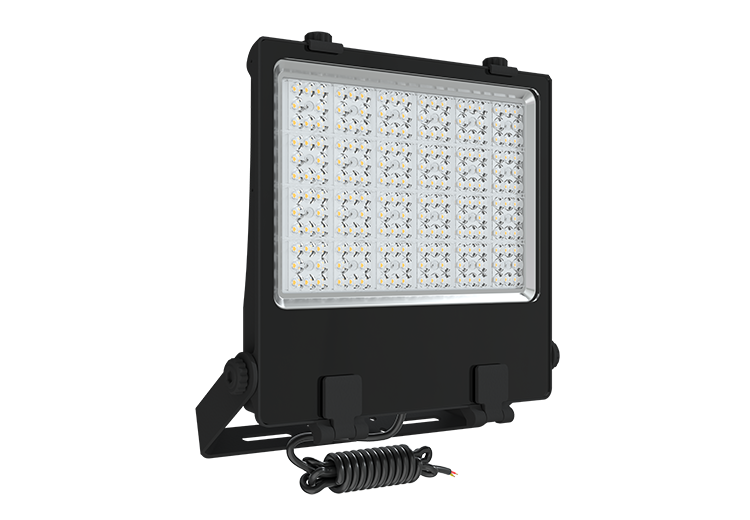

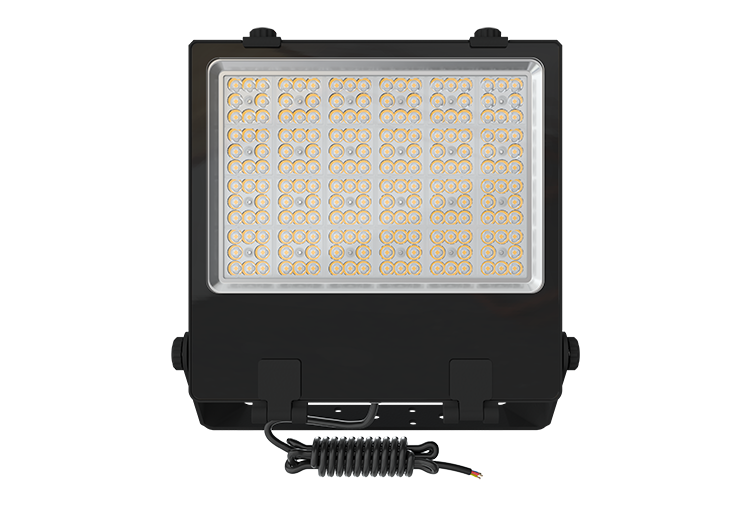

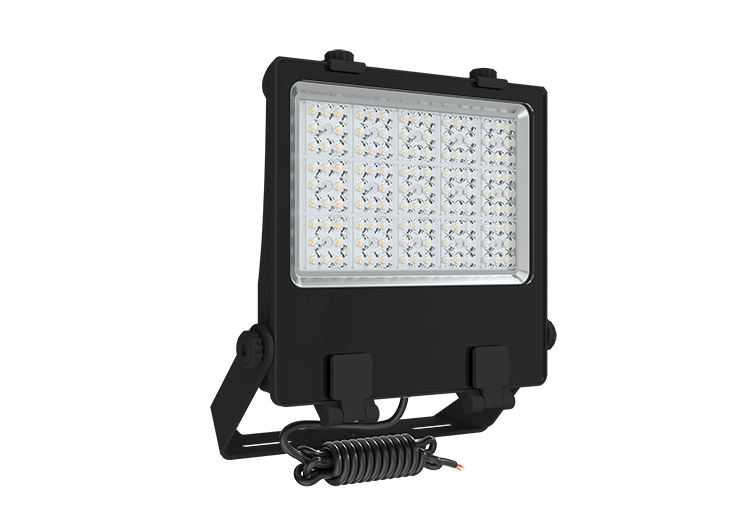

FLX SERIES

FLX series floodlight provides a solution for recreational sports and area lighting, Provides a variety of different angles of light distribution design to meet the lighting needs of different occasions. Tempered Glass and Polycarbonate Optical Lens, Protection level up to IK08 and IP66. Constant Current Power Driver, L80B20 can reach more than 100,000 hours.

  • Parameter
  • Dimension
  • Accessories
  • Installation
  • Video
  • Short Video
  • Download

Parameter

Model NO.Power (W)Luminous Flux 170lm/W
XJ-FLX200W20034000
XJ-FLX300W30051000
XJ-FLX400W40068000

Above lumens based on 4000K Ra:70

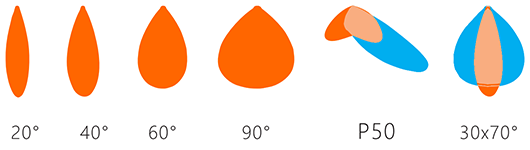

Light distribution curve

FLX SERIES

AC Input:100-277V 50/60Hz

Brand of LED Driver:SOSEN / MEAN WELL

Light Source:5050

CRI Range:Ra>70

CCT Range:NW(4000K) CW(5700K) WW(3000K)(Optional) DW(5000K)(Optional)

Light Efficiency:170±5% Lm/W

Beam Angle:20°/ 40°/ 60° / P50 / P60 / 30x70°

Housing:Aluminum Alloy

Waterproof:IP66 & IK08

L80B20@25℃:>100000H

PF:≥0.95  THD<15%  Power Efficiency:≥0.9

Certifications:TUV, CE, CB, SAA

Warranty:5 Years

FLX SERIES

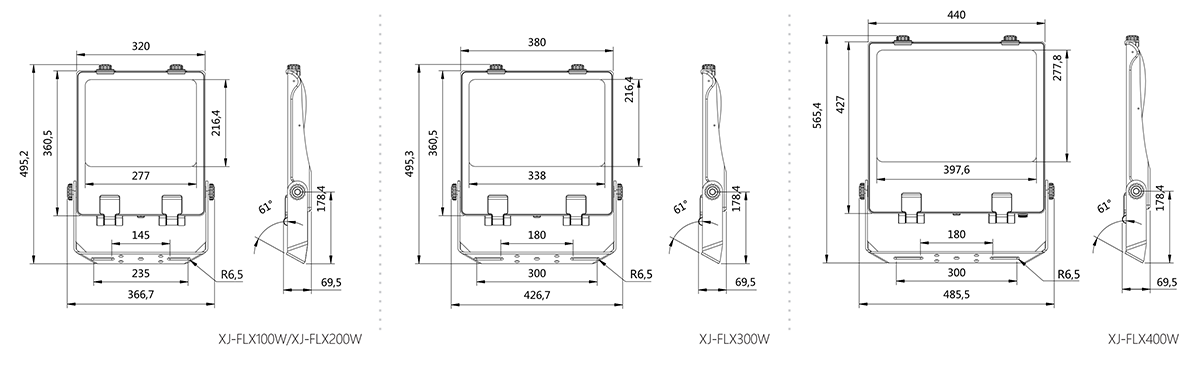

Dimension

FLX SERIES LED Flood Light Dimension

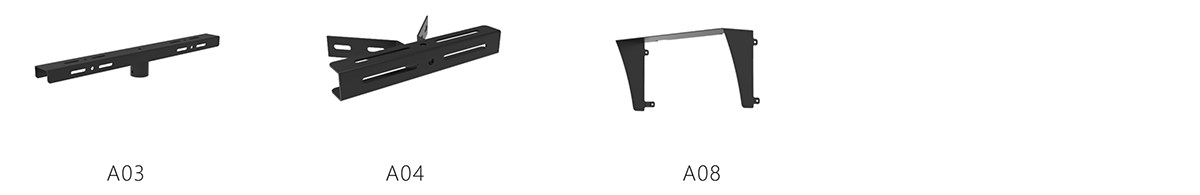

Accessories

FLX SERIES
accessoriesimagematerialdimensionsweightaccessory use

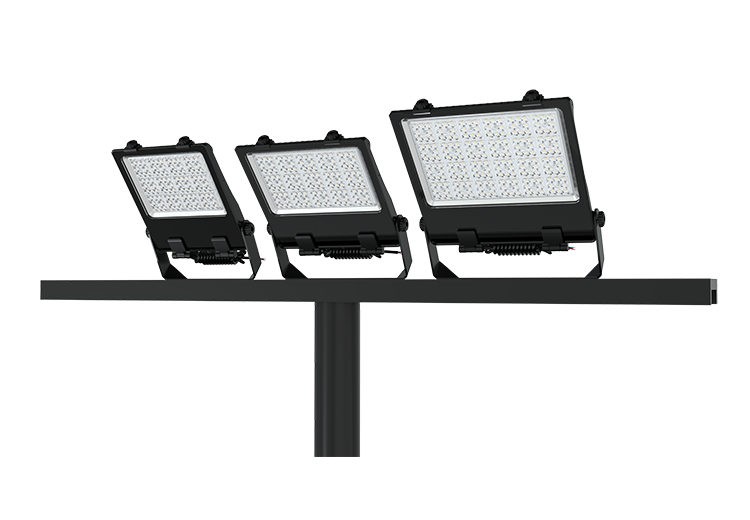

OptionalA03carbon steel850x103x80mm3.7kgInstallation on top of lamp pole
OptionalA04carbon steel350x174x50mm1.0kgWall corner mounted lamp

Installation

FLX SERIES

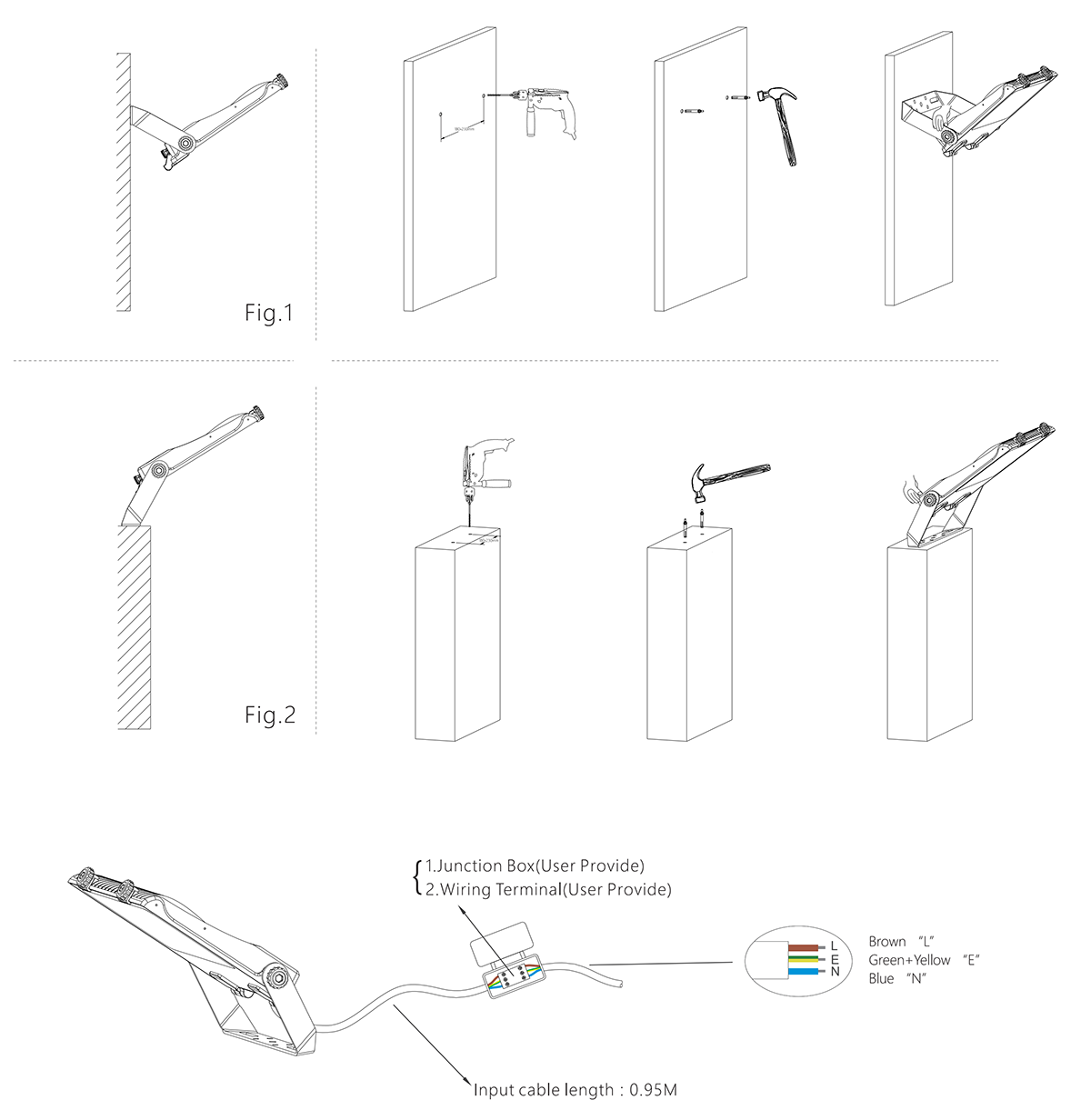

Installation Steps

1. Punch two holes with a spacing of 100-190mm.

2. Install the setscrews.

3. Put the lamp card into the setscrews and lock it  tightly.

4. Connect the power cable.

5. Adjust the lamp angle and clean it.



Note:Plesae make sure the power off before opertion, Installation must be performed by skilled electrician who are familiar with the requirements and proper installation methods of LED luminaire In order to avoid damage or hazard;

If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special cord or cord exclusively available from the manufacturer or his service agent.

The light source contained in this luminaire shallonly be replaced by a qualified person.

Video

Short Video

Please contact our sales to obtain password
