Waterproof Garden lights

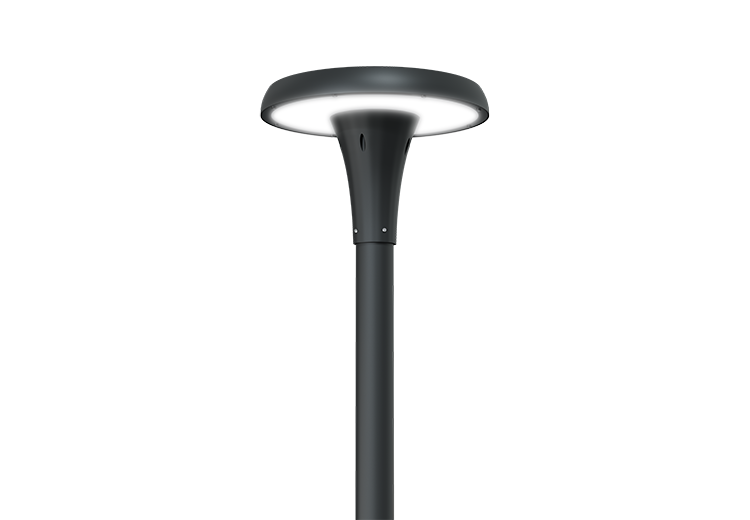

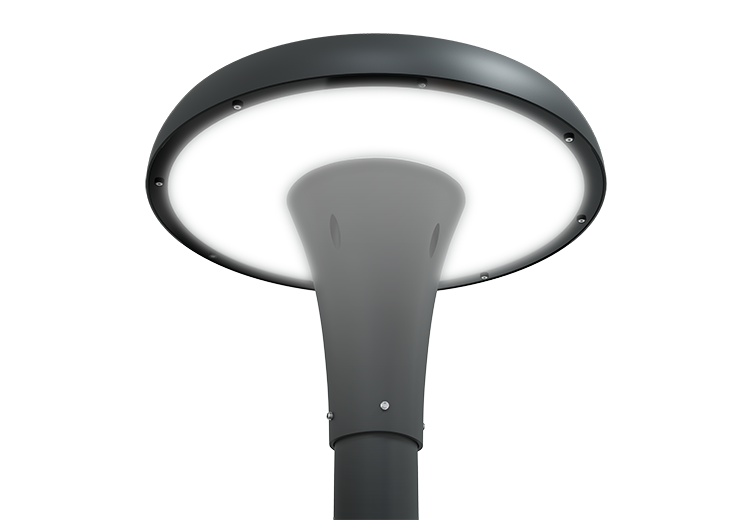

The GDA Series LED Garden Light kit from Seeking is designed for outdoor spaces that need to look good and stay bright for many years, not just one season. Instead of a harsh point light, the fitting creates a wide, soft halo of light that works well in gardens, paths and public areas.

Power options range from 30 W to 60 W, with an efficiency of up to 130 lm/W, so you can match the light level to the pole height and spacing you already have on site. In most projects, one of these four wattages is enough to replace older metal halide or CFL garden fixtures while using much less energy.

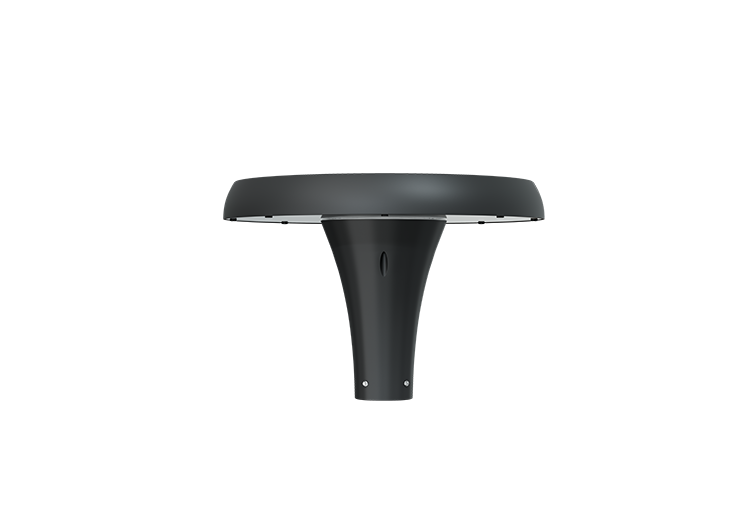

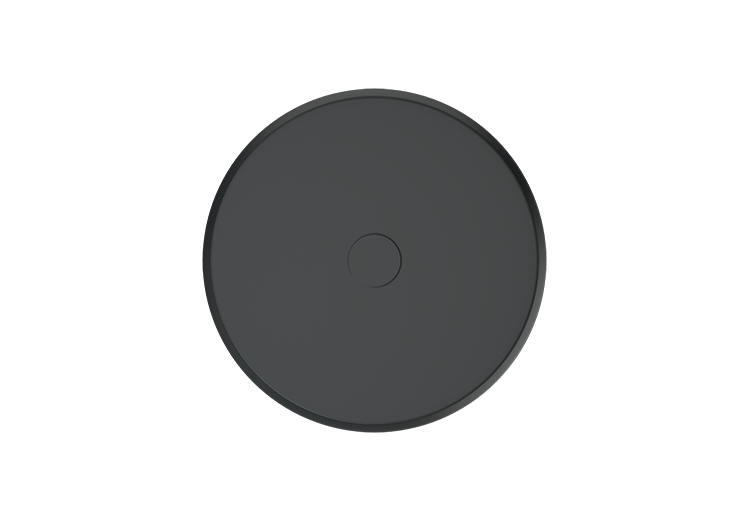

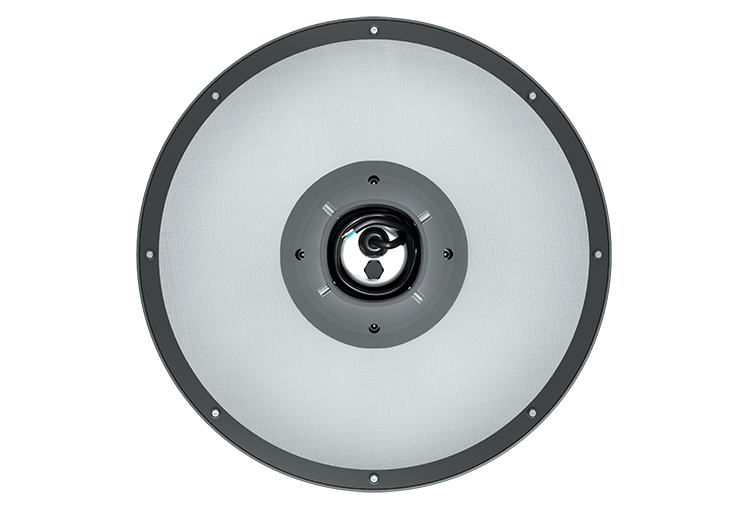

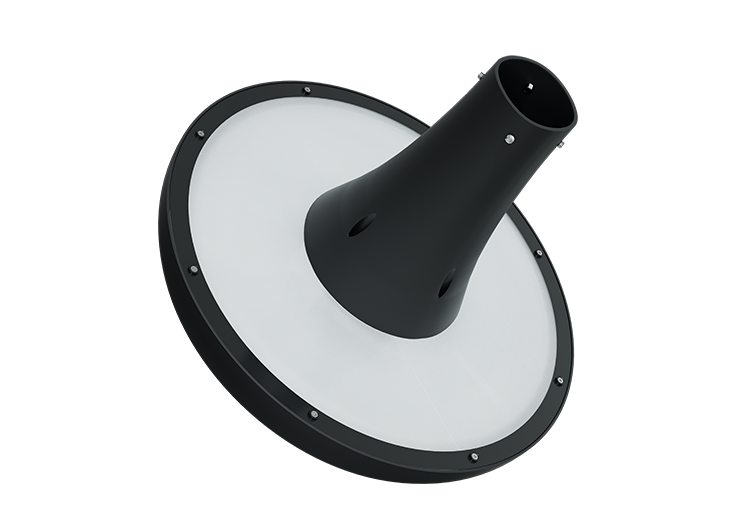

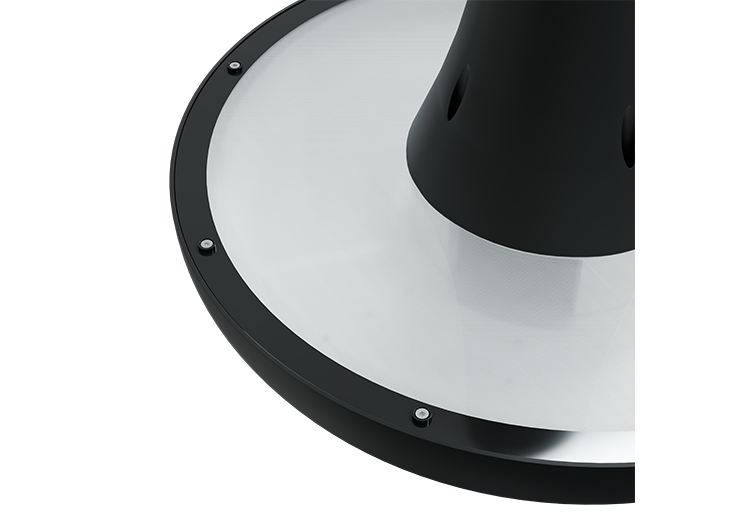

The body is made from die-cast aluminum with a tempered glass front. The glass and optical design help cut down direct glare and spread the light more evenly on the ground. With IP65 protection and IK08 impact rating, the GDA Series LED Garden Light kit can handle rain, dust and the occasional knock from maintenance work.

Typical applications include villa courtyards, residential walkways, park pathways, both sides of internal roads, commercial pedestrian streets, leisure squares and tourist areas. Wherever people walk at night and you still want a clean, modern look, this garden light is a practical option.

  • LED Garden Light kit with anti-glare optical design, creating soft, comfortable night-time lighting instead of a sharp, dazzling spot
  • 30 W / 40 W / 50 W / 60 W power range, up to 130 lm/W, suitable for different pole heights and spacing in garden and public area projects
  • Aluminum alloy housing with IP65 & IK08 ratings, built for outdoor environments with rain, dust and occasional impact
  • CRI > 80 and multiple colour temperatures (3000K / 4000K / 5000K / 5700K) to match residential, park or commercial landscape needs
  • 90° beam angle for controlled, efficient area lighting along roads, paths and open spaces
  • Uses a quality driver with PF ≥ 0.95 and low THD, designed for long lifetime (L80B20 > 100,000 h under standard conditions)

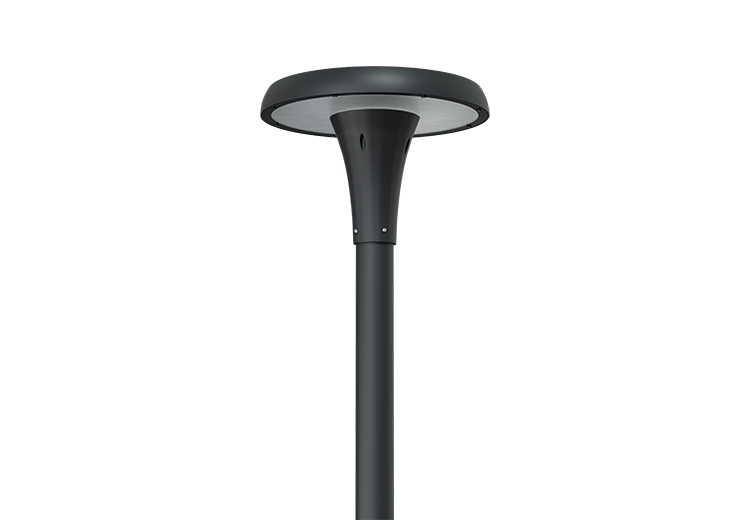

  • Class I, IP65 LED Garden Light kit, supplied ready for pole-top mounting, with a 5-year warranty from Seeking for normal use
Technical Specifications:
  • AC Input100-277V 50/60Hz
  • Brand of LED DriverMEAN WELL
  • Light Source2835
  • CRI RangeRa>80
  • CCT RangeNW(4000K) CW(5700K) WW(3000K)(Optional) Dw(5000k)(Optional)
  • Light Efficiency130±5% Lm/W
  • Beam Angle90°
  • HousingAluminum Alloy
  • Surge Protection4kV line-line 6kV line-earth
  • WaterproofIP65 & IK08
  • L80B20@25℃>100000H
  • PF≥0.95 THD
  • CertificationsCE, CB
  • Warranty5 Years
  • Light body colorTiefschwarz (RAL 9005)
Get Samples

LED Garden Iight kit​ Parameters

  • XJ-GDA*W
  • XJ-GDA*W
  • 30W(Optional values)
  • 40W(Optional values)
  • 50W (Typical values)
  • 60W
  • 6500
  • 5200
  • 3900
  • 7800

Light distribution curve Above

GDA SERIES(images 12)
Need Help? Start Here..
GDA SERIES(images 14)
Get Samples
What exactly is the GDA Series LED Garden Light kit from Seeking?

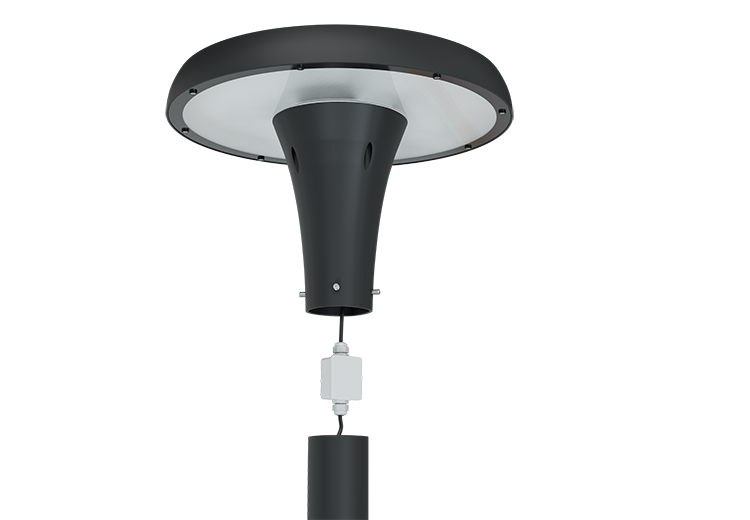

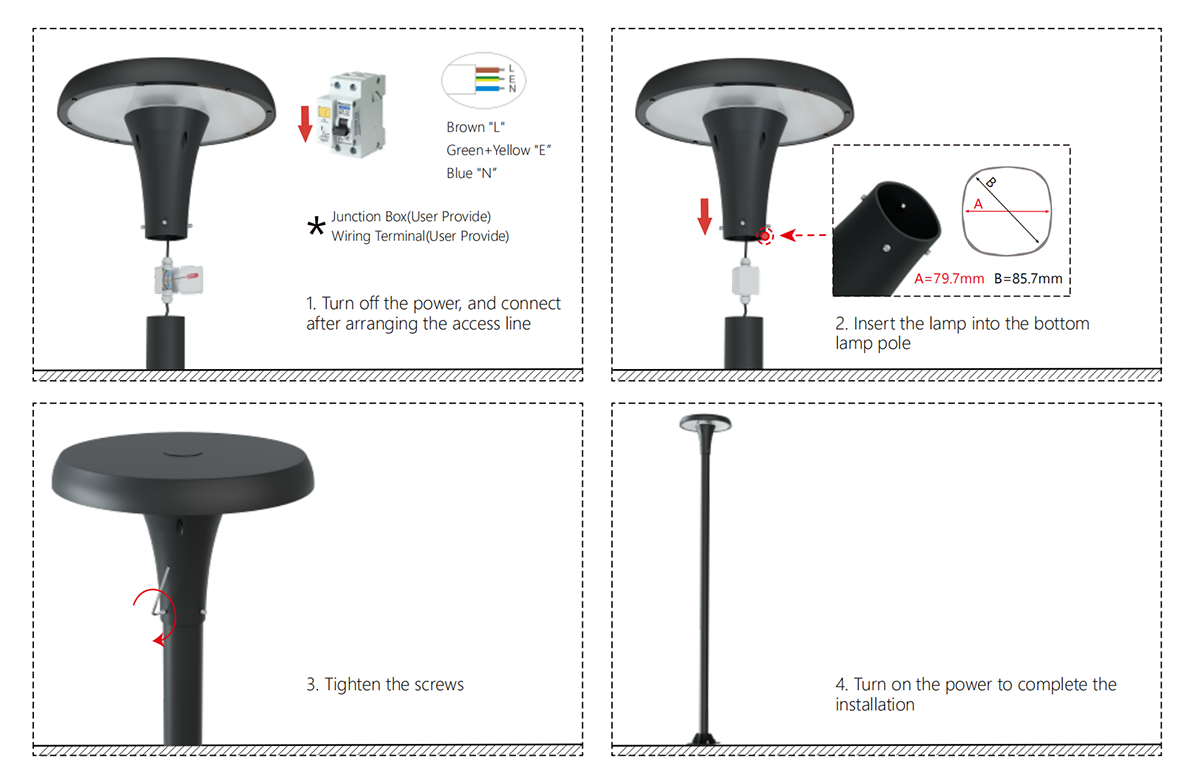

The GDA Series LED Garden Light kit is Seeking’s pole-top garden fixture for outdoor paths, courtyards and public green areas. Each kit includes the complete LED garden light with integrated driver and mounting parts for pole installation, so an electrician can connect it directly to the mains on site.

In which areas can I install this LED Garden Light kit?

You can use this LED Garden Light kit in villa gardens, small community parks, residential walkways, on both sides of internal roads, around commercial squares or in tourist zones. As long as the location is outdoors and the pole is suitable, the IP65 and IK08 ratings make it a good fit.

How do I choose the right wattage for my project?

The GDA Series LED Garden Light kit comes in 30 W, 40 W, 50 W and 60 W versions. Lower wattages are usually enough for short poles and narrow paths, while higher wattages are better for wider roads, larger open areas or higher mounting points. Many customers start by checking the existing pole spacing and target lux level, then select the wattage that matches those conditions.

Does the LED Garden Light kit really save energy compared to old garden lights?

Yes. The GDA Series LED Garden Light kit can reach up to 130 lm/W, so it often replaces older metal halide or CFL garden fixtures with a much lower power input. In long-running park or street projects, this difference in efficiency usually turns into clear savings on the electricity bill.

How does the anti-glare design help in real use?

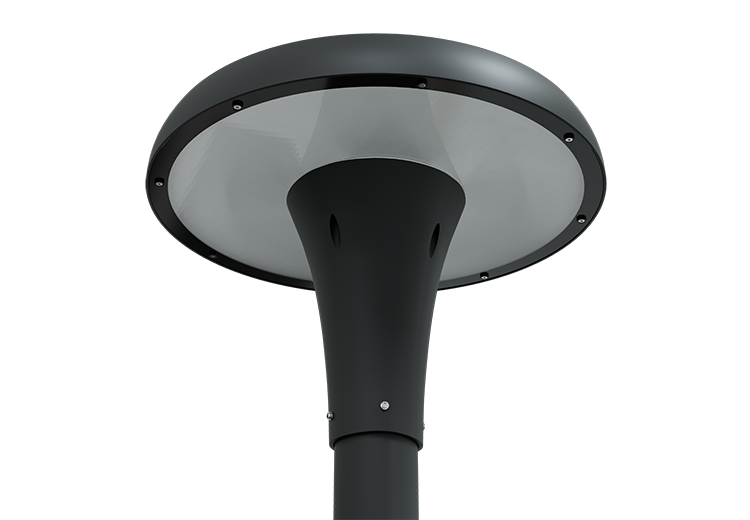

Instead of a bare, harsh LED, the LED Garden Light kit uses a tempered glass front and a wide luminous surface to spread the light more softly. People walking under the light do not feel as if they are looking into a spotlight, which makes paths and squares more comfortable to use at night.

Is the GDA Series LED Garden Light kit strong enough for outdoor weather?

The housing of the LED Garden Light kit is made from die-cast aluminum and comes with IP65 ingress protection and IK08 impact resistance. When installed correctly, it can handle rain, dust and normal outdoor conditions. For special locations such as coastal areas with salt spray, Seeking can give extra advice on maintenance and surface treatment.

Which colour temperatures are available for this LED Garden Light kit?

Seeking offers the GDA Series LED Garden Light kit in several CCT options: 3000K, 4000K, 5000K and 5700K. Many residential projects prefer 3000K warm white for a softer, more relaxed feeling, while public parks and commercial areas often use 4000K or 5000K for a clearer, brighter appearance.

What is the typical lifetime and warranty for the GDA Series LED Garden Light kit?

Under normal use, the GDA Series LED Garden Light kit is designed for a long operating life, with L80B20 > 100,000 hours stated in the data. Seeking supports the product with a 5-year warranty, giving project owners confidence for long-term outdoor garden and path lighting installations.

Can the LED Garden Light kit be used in both new projects and retrofits?

Yes. The GDA Series LED Garden Light kit is often used in new garden and park designs, but it also works well in retrofit projects where old fixtures are replaced on existing poles. As long as the pole size, mounting interface and wiring are suitable, installers can remove the old head and mount the new Seeking LED Garden Light kit in its place to upgrade the site with minimal civil work.

Does the LED Garden Light kit support different control options (timers or sensors)?

The GDA Series LED Garden Light kit can be integrated into projects using external timers, contactors or smart control systems at the panel side. In many sites, customers use time switches or photocell control on the circuit to switch multiple garden lights together. If your project requires motion sensors or more advanced control, you can share the specification with Seeking so the LED Garden Light kit can be matched to the planned control method.
