Parameter
| Model NO. | Power (W) | Luminous Flux (lm)@max. watt |
|---|---|---|
| XJ-HBI100W | 60/80/100 | 14000/16000/18000 |
| XJ-HBI150W | 100/120/150 | 21000/24000/27000 |
| XJ-HBI200W | 120/150/200 | 28000/32000/36000 |
| XJ-HBI240W | 150/200/240 | 33600/38400/43200 |
Above lumens based on 5700K Ra:80

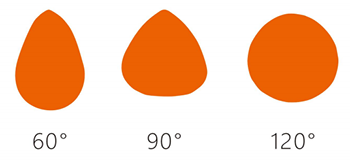

Light distribution curve
Input Voltage：100-277Vac 50/60Hz
Brand of LED Driver：SOSEN
Luminous efficiency: 140/160/180 lm/W
Mounting Type: Suspension mounted
Standards: 60598-2-1, 60598-1
Light Source：SMD 2835
CRI Range：Ra>80
Colour Temperature：4000K / 5700K
Operating Temperature：-40°C / +50°C
Beam Angle：90°(60°/120° optional)
Microwave Sensor：optional
System Lifetime:>100,000h
Power Efficiency:97%
Power Factor:>0.95

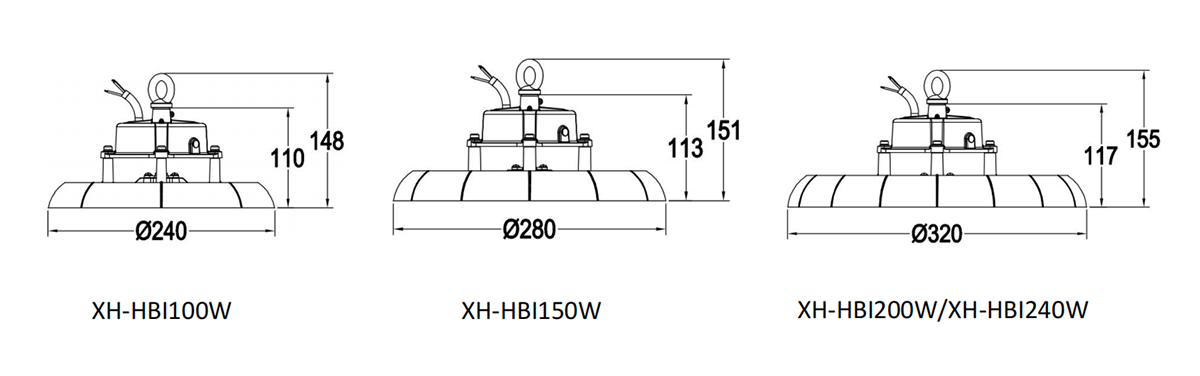

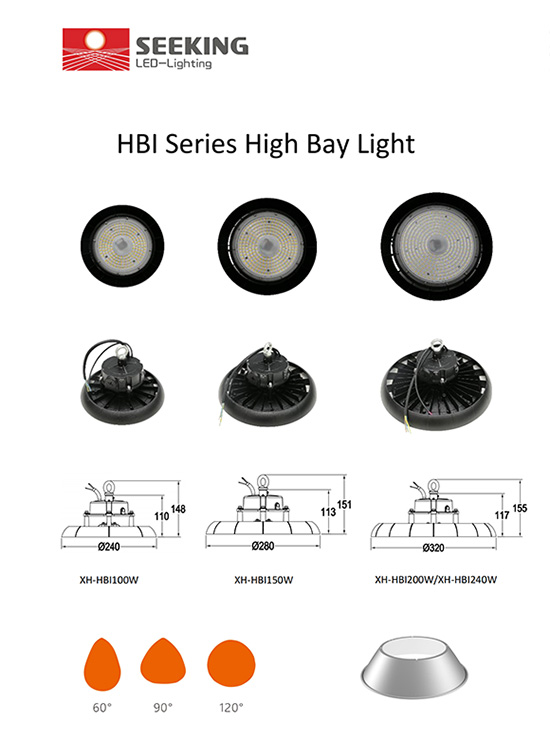

Dimension
Accessories
Installation
Video
Short Video
Download
-
HBI Series High bay light SPEC
-
IES+LDT
Please contact our sales to obtain password
Sales：sales01@seekingled.com
