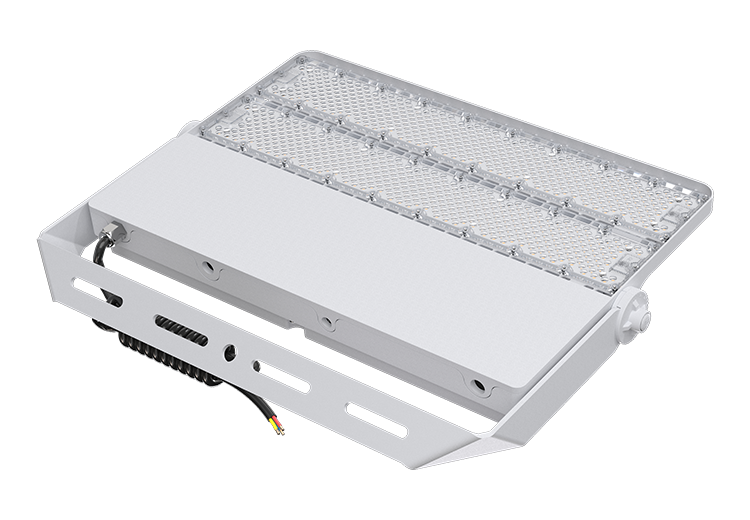

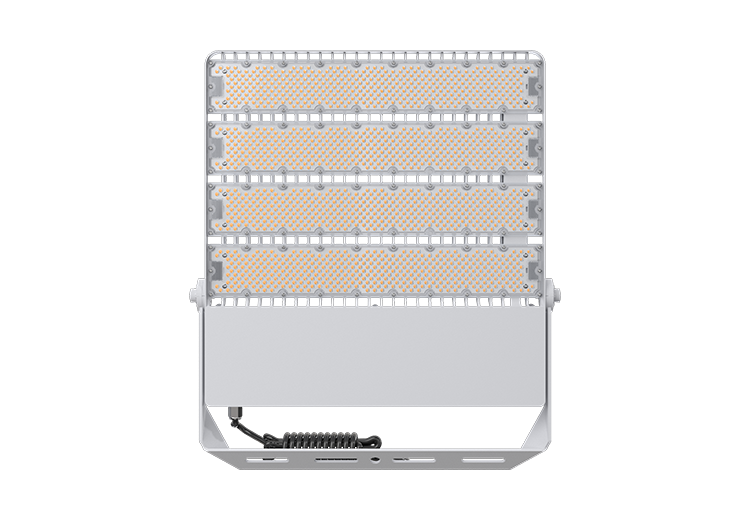

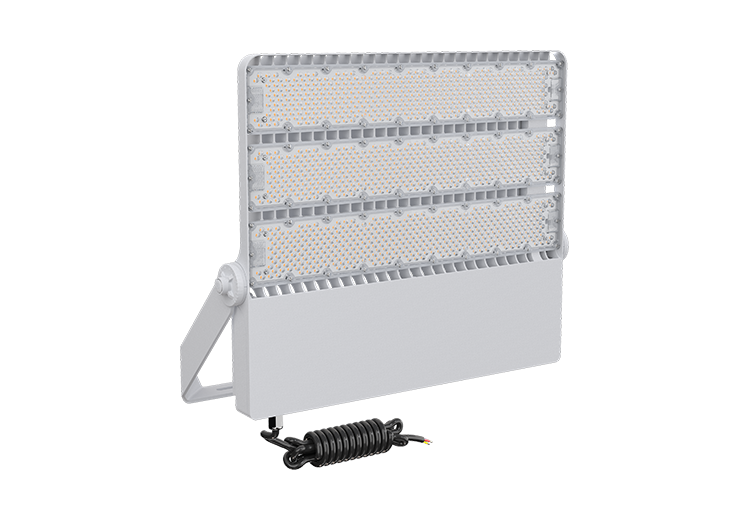

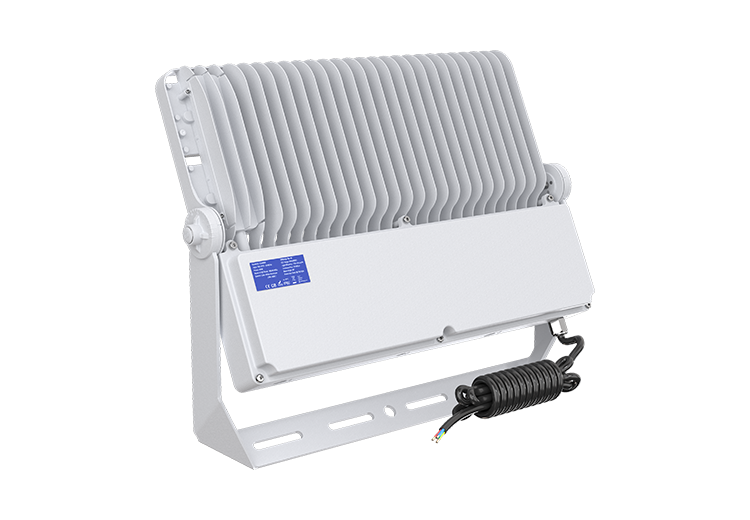

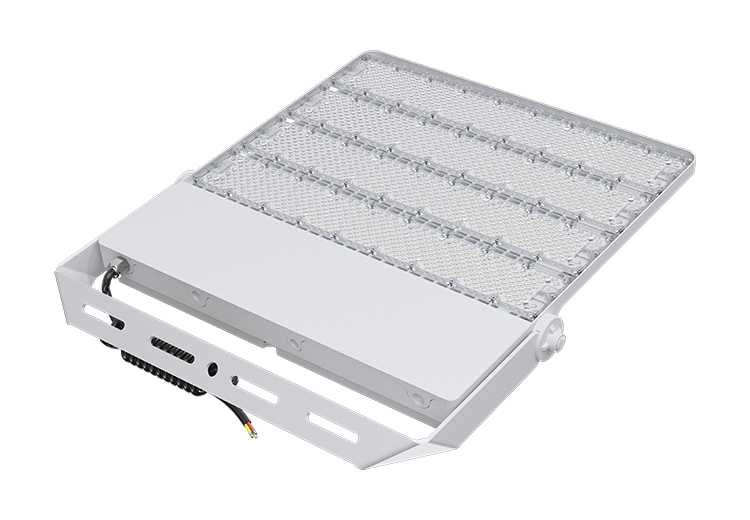

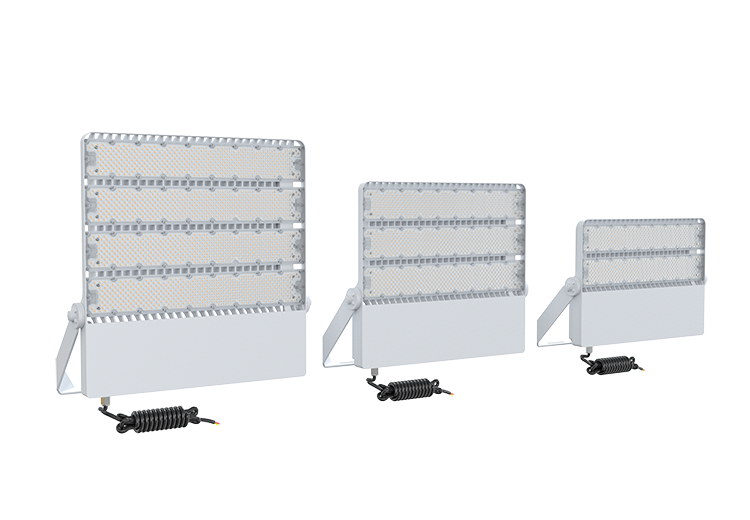

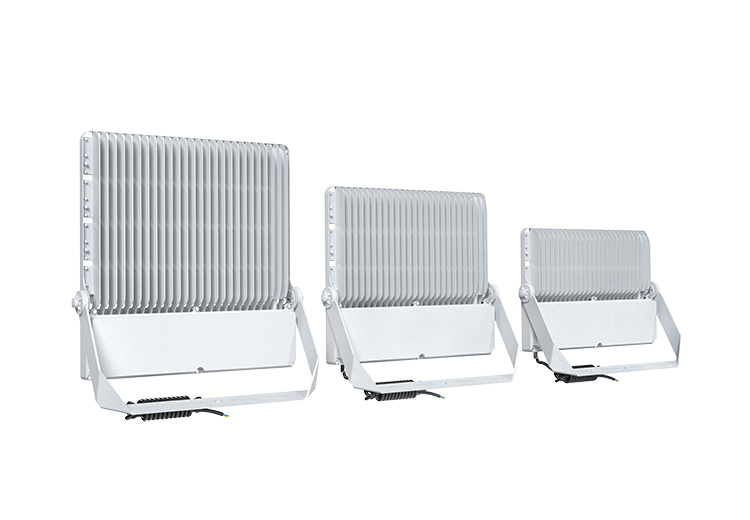

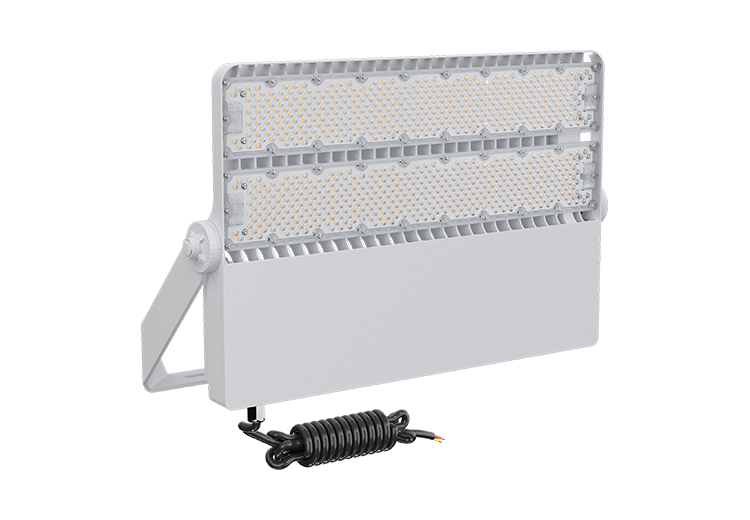

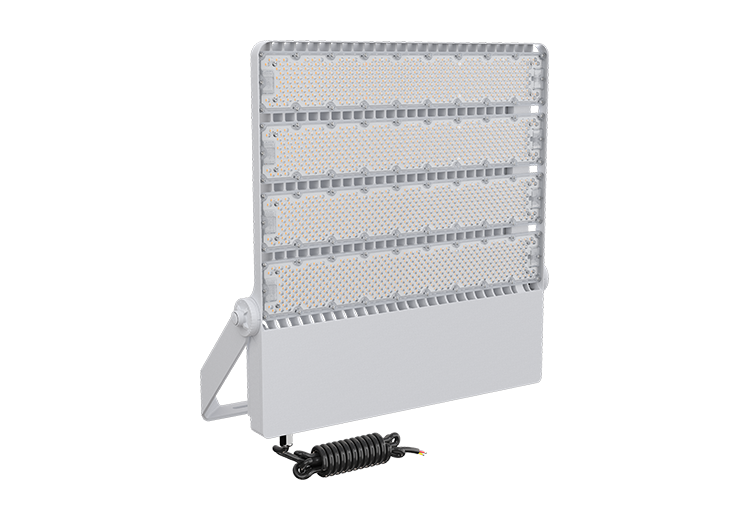

FLD SERIES
2024
170lm/w 480W/720W/960W 15°/30°/60°/90°/P50

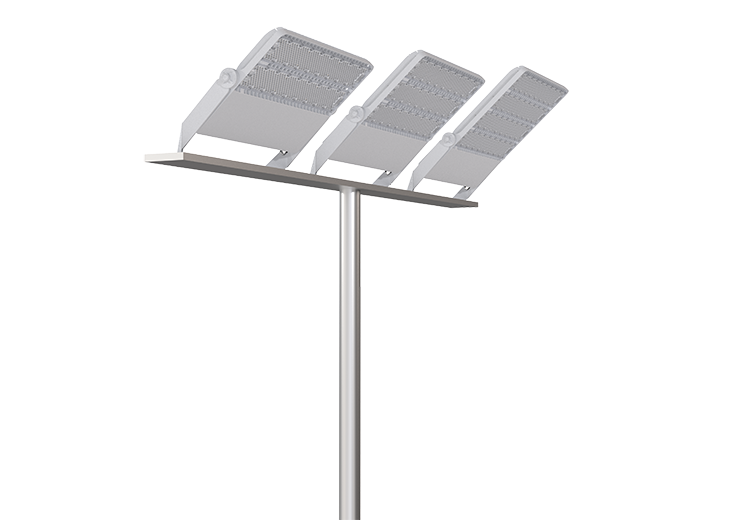

FLD series flood light provides a solution for recreational sports and area lighting, Provides a variety of different angles of light distribution design to meet the lighting needs of different occasions. High power design, simplified lighting design for large venues, Protection level up to IK08 and IP66. Constant Current Power Driver, L80B20 can reach more than 100,000 hours.
- Parameter
- Dimension
- Accessories
- Installation
- Video
- Short Video
- Download
Parameter
| Model NO. | Power (W) | Luminous Flux 170lm/W |
|---|---|---|
| XJ-FLD400W | 400 | 68000 |
| XJ-FLD480W | 480 | 81600 |
| XJ-FLD600W | 600 | 102000 |
| XJ-FLD720W | 720 | 122400 |
| XJ-FLD800W | 800 | 136000 |
| XJ-FLD960W | 960 | 163200 |
Above lumens based on 4000K Ra:80

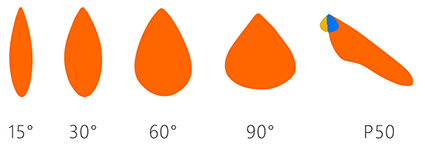

Light distribution curve
AC Input：100-277V 50/60Hz
Brand of LED Driver：SOSEN/MEAN WELL
Light Source：2835
CRI Range：Ra>80
CCT Range：NW(4000K) CW(5700K)
Light Efficiency：170±5% Lm/W
Beam Angle：15° / 30° / 60° / 90° / P50
Housing：Aluminum Alloy
Surge Protection：10kV
Waterproof：IP66 & IK08
L80B20@25℃：>100000H
PF：≥0.95 THD<15% Power Efficiency：≥0.9
Certifications：CE, CB
Warranty：5 Years
Light body color：White Aluminum( RAL 9006 )

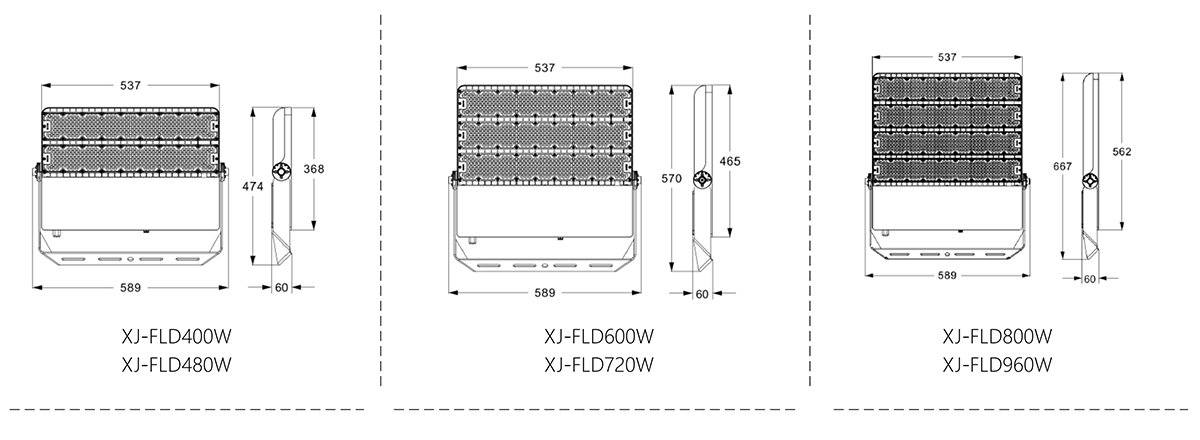

Dimension

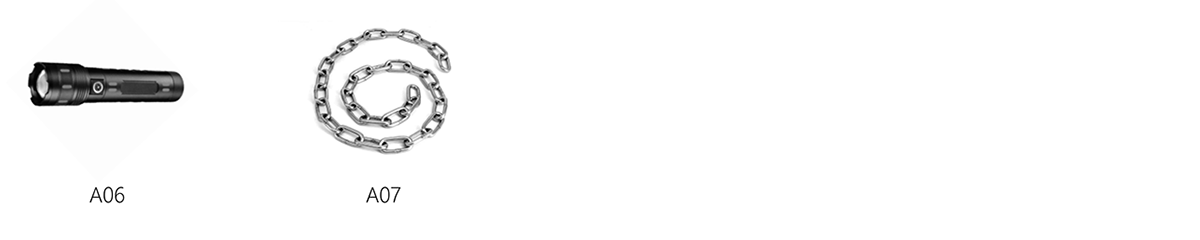

Accessories
| accessories | image | material | dimensions | weight | accessory use |
|---|---|---|---|---|---|
| Optional | A06 | Aluminium | ∅ 30x120mm | 200g | Lamp angle positioning |
| Standard | A07 | SUS304 | ∅ 5x1000mm | 0.6kg | Increase the safety performance |

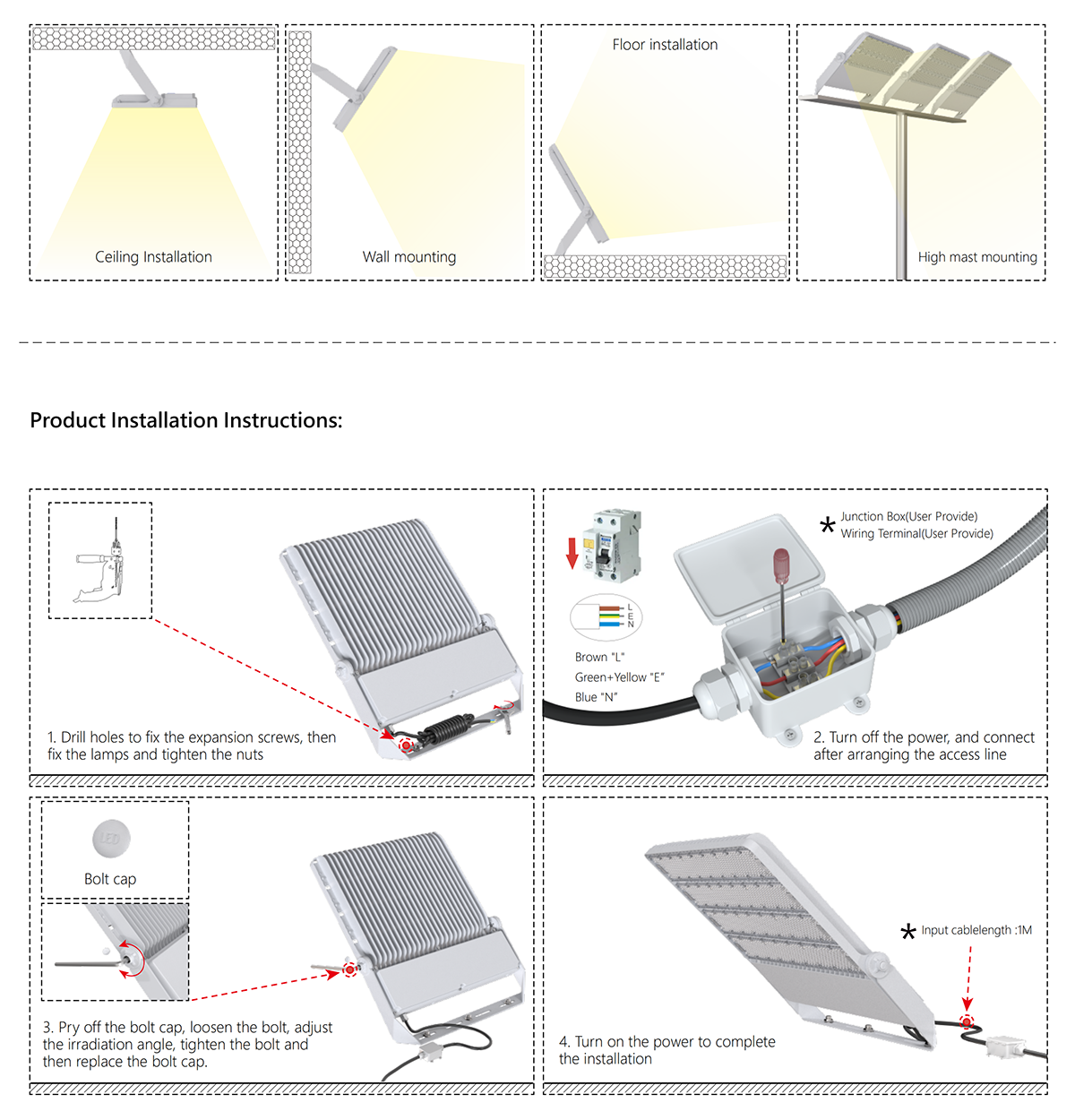

Installation
Note : Please make sure the power off before opertion, lnstallation must be performed by skilled electrician who are familiar with the requirements and proper installation methods of LED luminaire, in order to avoid damage or hazard;The external flexible cable or cord of this luminaire can not be replaced, if the cord is damaged, the luminaire must be destroyed,The light source contained in this luminaire shall only be replaced by a qualified person;
Video
Short Video

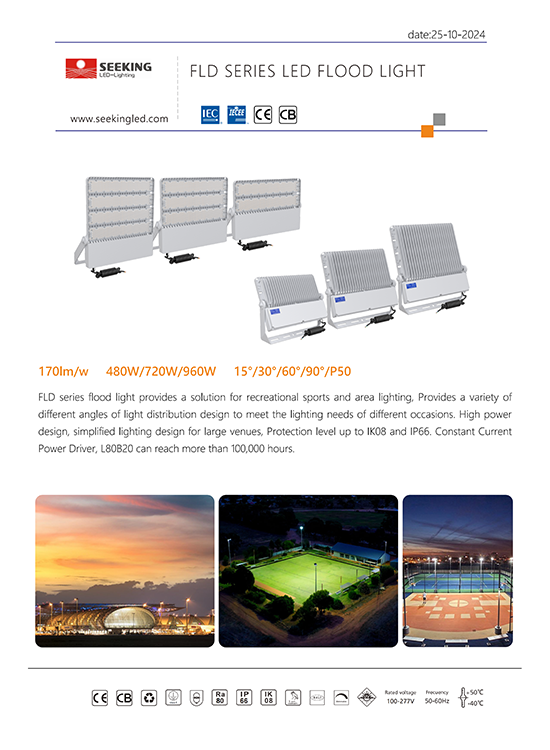

Download
Please contact our sales to obtain password
