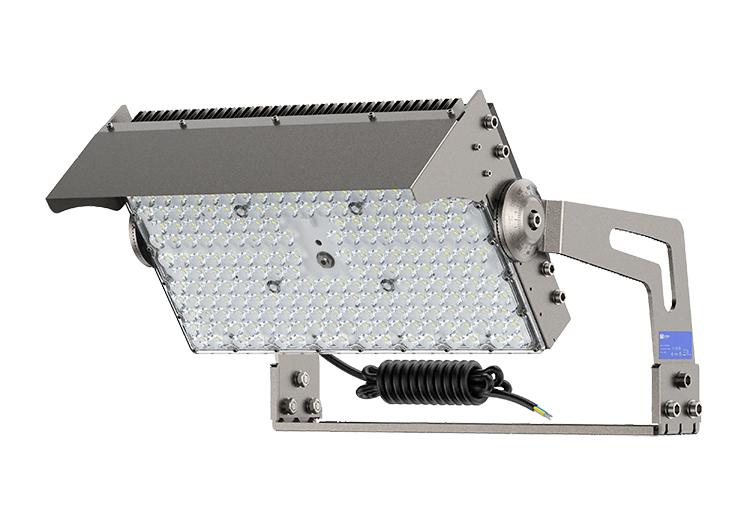

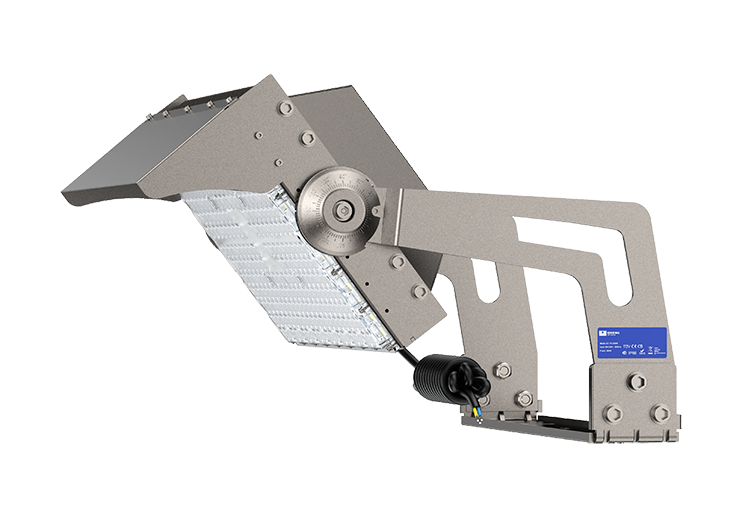

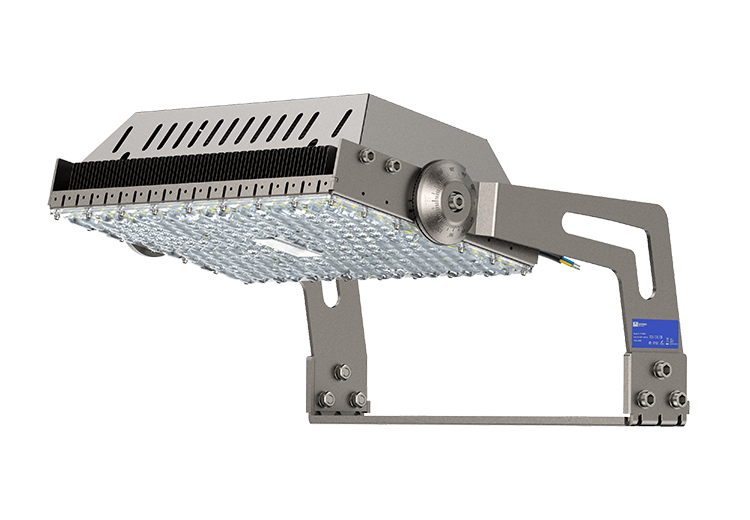

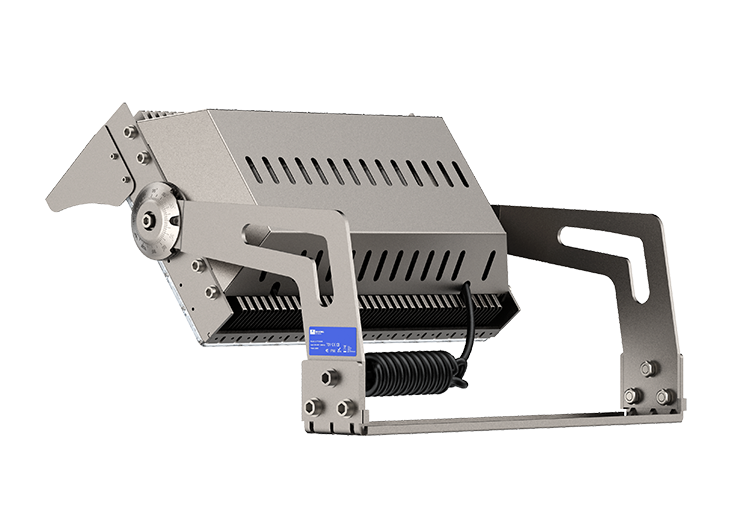

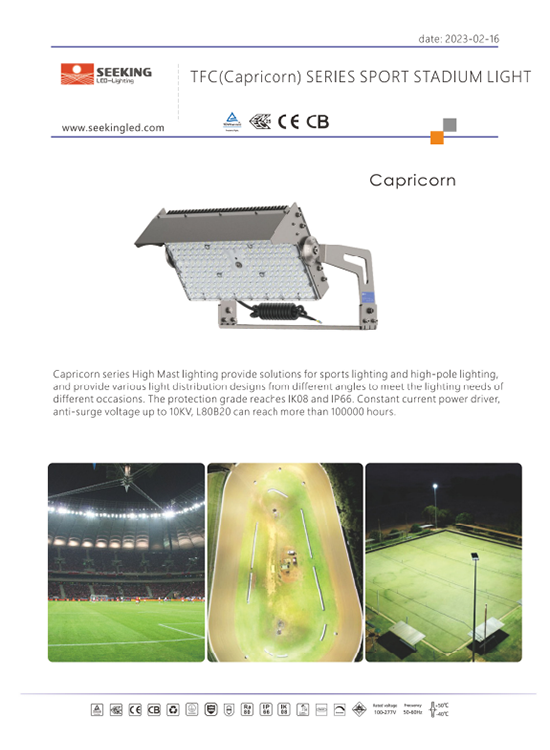

TFC SERIES (CAPRICORN)
2023 NEW
The Capricorn series High Mast lighting offers solutions for sports lighting and high-pole lighting, with various light distribution designs to meet the lighting needs of different occasions. It features a protection grade of IK08 and IP66. Equipped with a constant current power driver and anti-surge voltage protection up to 10KV, it ensures durability and reliability. The L80B20 lifetime exceeds 100,000 hours, providing long-lasting performance.
- Parameter
- Dimension
- Accessories
- Installation
- Video
- Download
Parameter
| Model NO. | Power (W) | Luminous Flux 150lm/W |
|---|---|---|
| XJ-TFC600W | 600 | 90000 |
Above lumens based on 4000K Ra:80

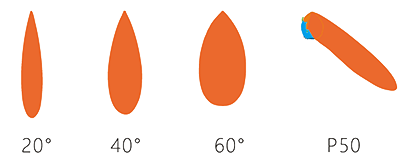

Light distribution curve
AC Input: 100-277V, 50/60Hz
LED Driver Brand: INVENTRONICS
Light Source: 5050 LEDs (LUMILEDS)
CRI Range：Ra>80
CCT Range：NW(4000K), CW(5700K)
Light Efficiency: 150 ± 5% Lumens per Watt (lm/W)
Beam Angle Options: 20°, 40°, 60°, P50
Housing: Aluminum Alloy
Surge Protection: 10kV
Waterproof Rating: IP66 & IK08 (impact resistance)
L80B20@25℃：>100000H
PF：≥0.95
(THD): < 15%
Power Efficiency: ≥ 0.9
Certifications：TUV, ENEC, CE, CB

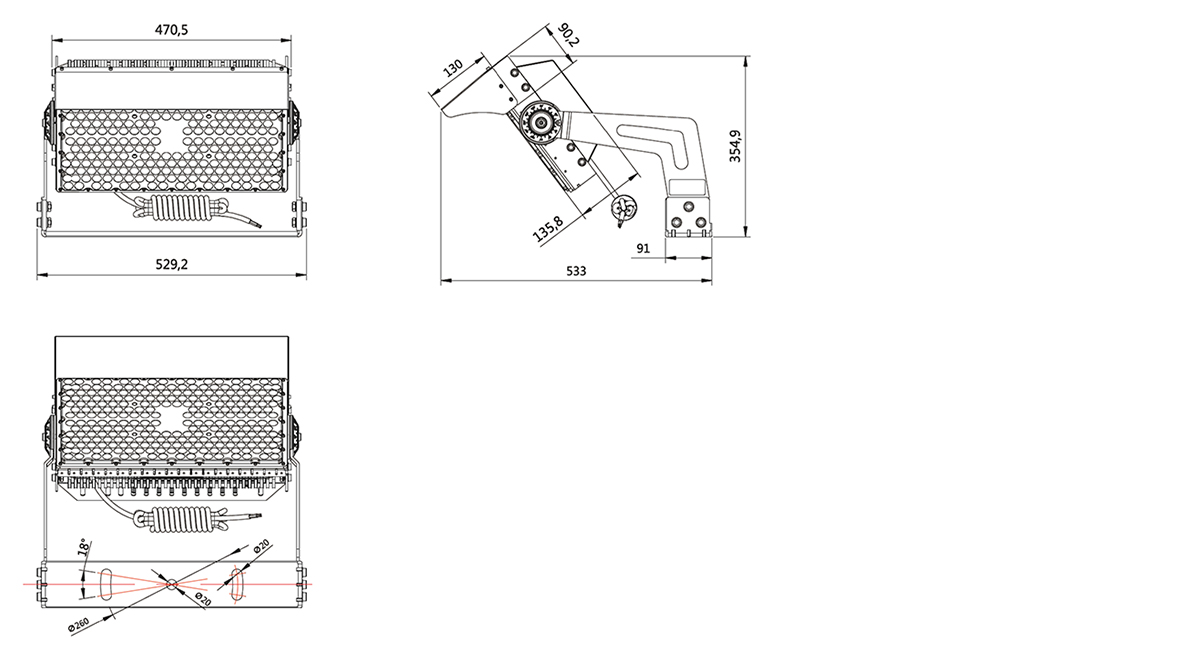

Dimension
Accessories
| accessories | image | material | dimensions | weight | accessory use |
|---|---|---|---|---|---|
| Optional | A06 | Aluminium | ∅ 30x120mm | 200g | Lamp angle positioning |
| Optional | A07 | SUS304 | ∅ 5x1000mm | 0.6kg | Increase the safety performance |
Installation

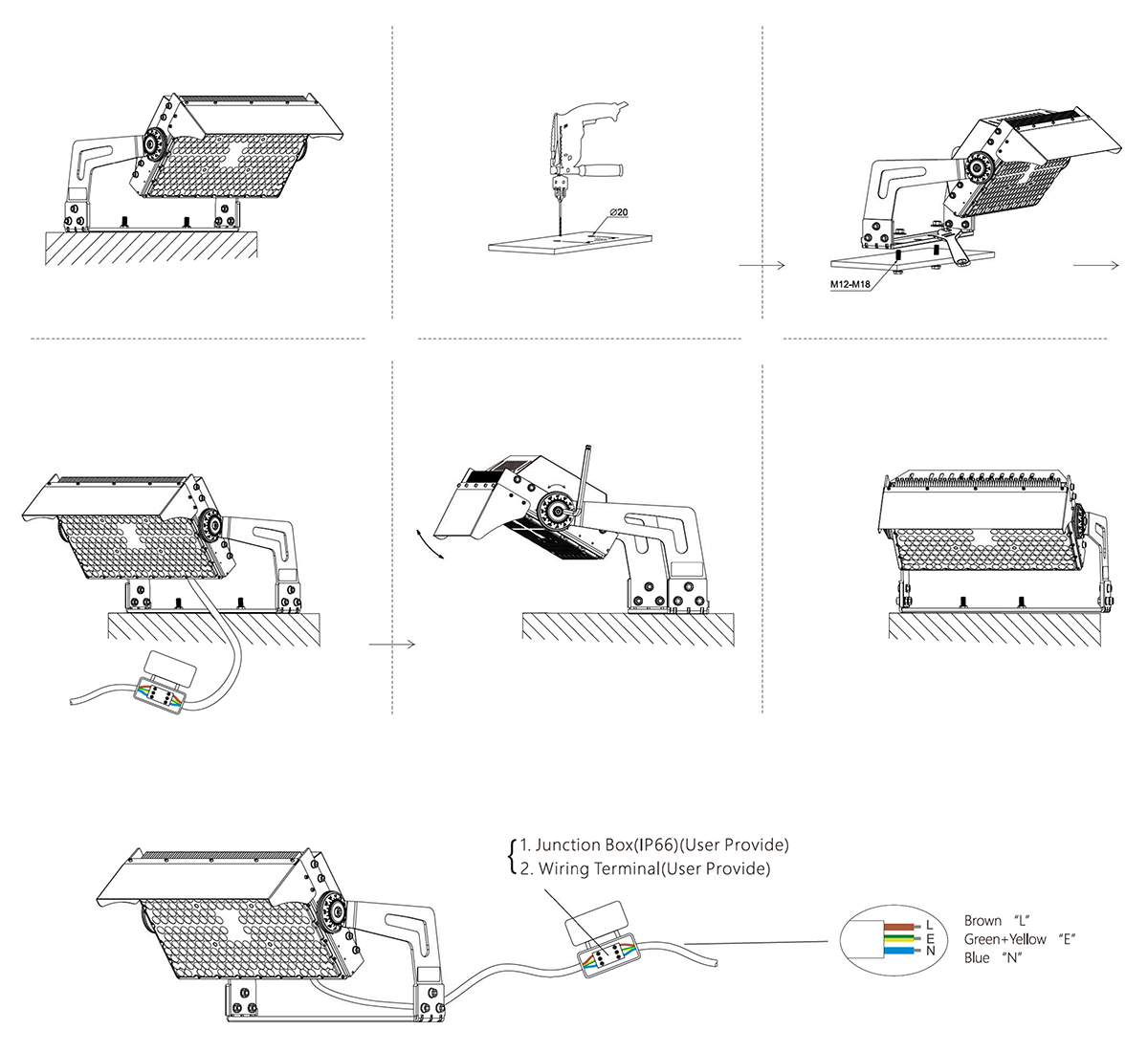

Installation steps
A: Punch two holes with a spacing of 260mm.
B: Align the holes of the lamp bracket with the installation position.
C: Fix the lamp with screws and nuts.
D. Connect the power cable.
E: Adjust the lamp angle and clean it.
Note: Ensure the power is turned off before any operation. Installation must be performed by a skilled electrician familiar with the requirements and proper installation methods of LED luminaires to avoid damage or hazards. The external flexible cable or cord of this luminaire cannot be replaced. If the cord is damaged, the luminaire must be disposed of.
The light source within this luminaire should only be replaced by a qualified person.
