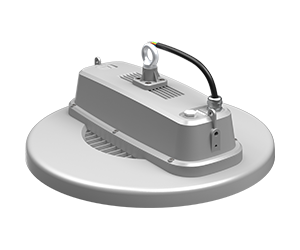

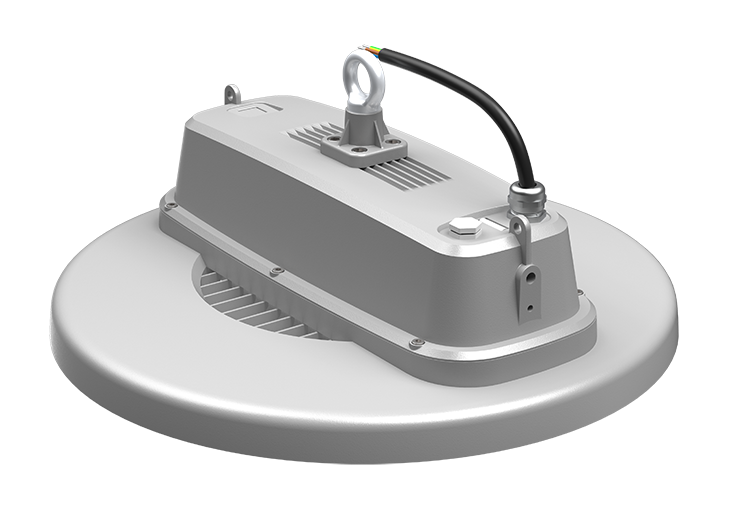

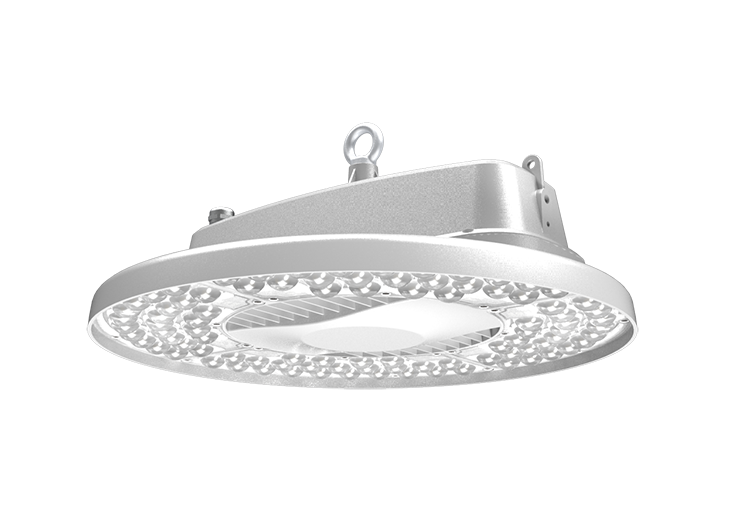

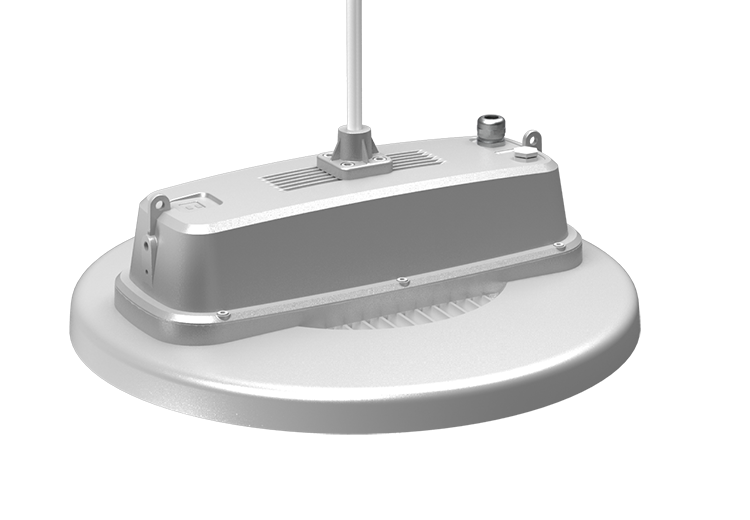

HB15(GLE) SERIES
2023
UGR < 19 CIE190:2010

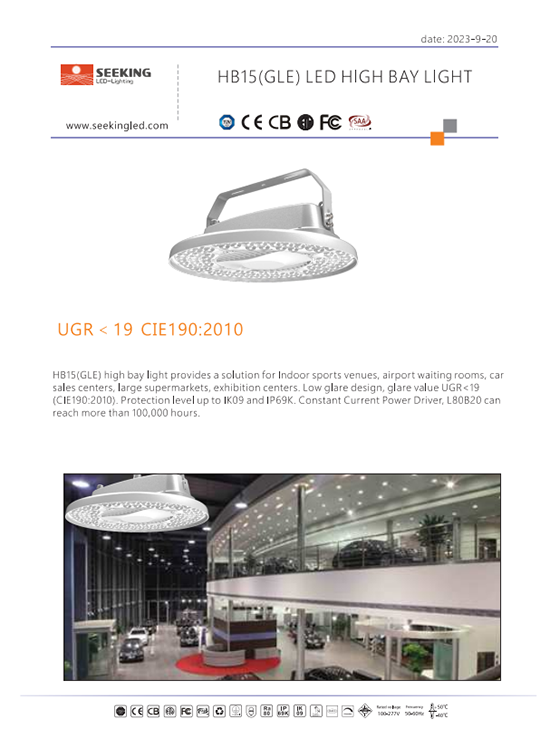

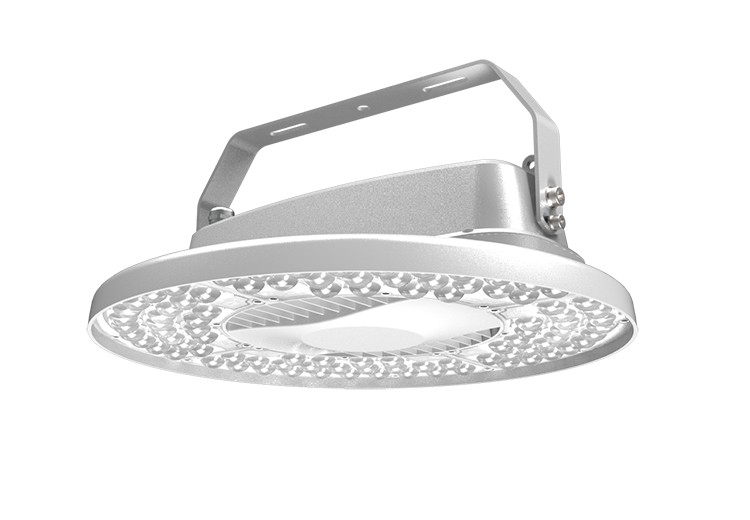

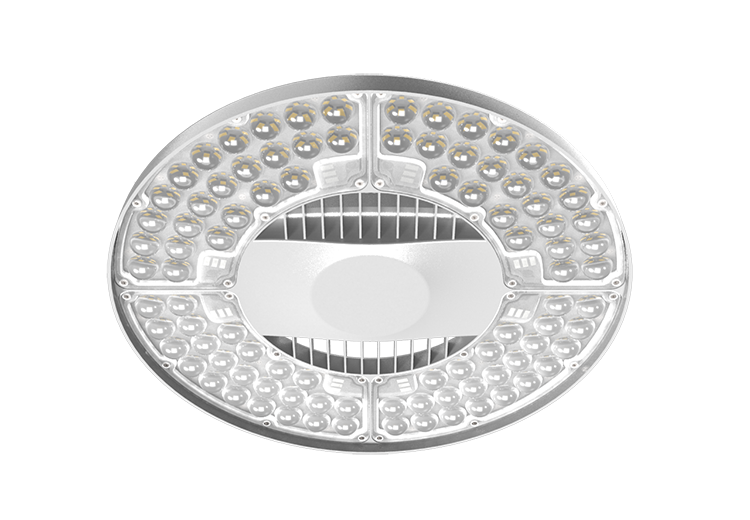

The HB15(GLE) high bay light is perfect for indoor sports venues, airport waiting rooms, car sales centers, supermarkets, and exhibition centers. It features a low glare design with a UGR < 19 (CIE190:2010). With a protection level up to IK09 and IP69K, it ensures durability and reliability. The constant current power driver and L80B20 rating guarantee a lifespan of over 100,000 hours.
- Parameter
- Dimension
- Accessories
- Installation
- Video
- Short Video
- Download
Parameter
| Model NO. | Power (W) | Luminous Flux 170lm/W |
|---|---|---|
| XJ-GLE80W | 80 | 13600 |
| XJ-GLE100W | 100 | 17000 |
| XJ-GLE150W | 150 | 25500 |
| XJ-GLE200W | 200 | 34000 |
| XJ-GLE240W | 240 | 40800 |
Above lumens based on 4000K Ra:80
Light distribution curve
AC Input：100-277V 50/60Hz
Brand of LED Driver：MEANWELL / MOSO
Light Source：2835
CRI Range：Ra>80
CCT Range：NW(4000K) CW(5700K)
Light Efficiency：170±5% Lm/W
Beam Angle：90°
Housing：Aluminum Alloy
Waterproof：IP69K & IK09
L80B20@25℃：>100000H
PF：≥0.95 THD<15% Power Efficiency：≥0.9
Certifications：TUV, CE, CB, ETL, FCC, SAA

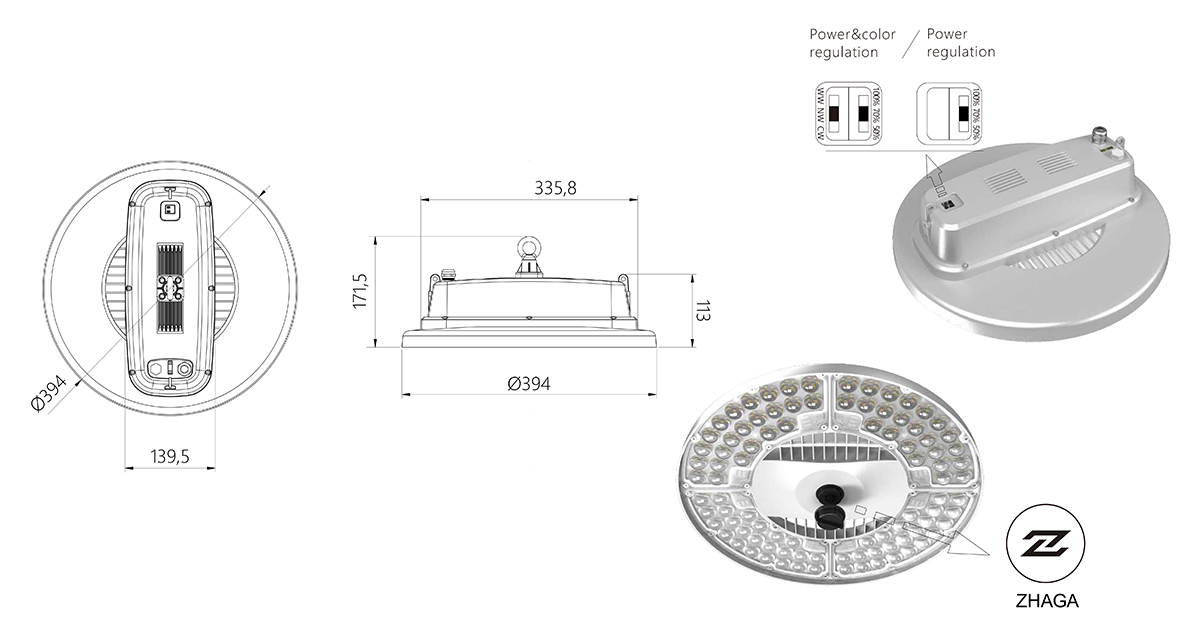

Dimension

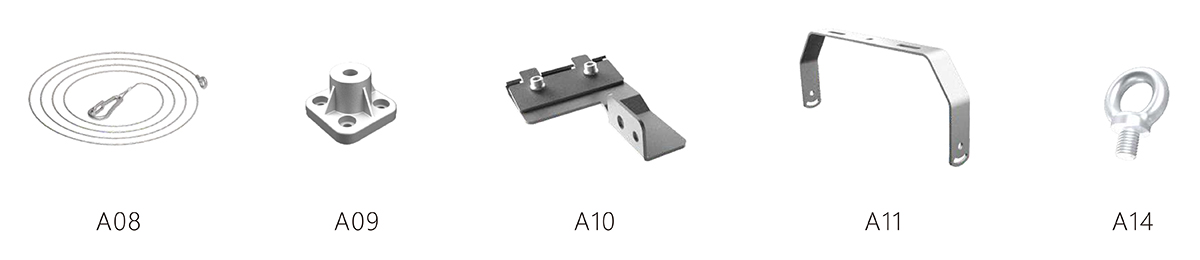

Accessories
| accessories | image | material | dimensions | weight | accessory use |
|---|---|---|---|---|---|
| Optional | A08 | SUS304 | ∅ 2.0x1000mm | 0.04kg | Suspension installation |
| Optional | A09 | ADC12 | M10 | 0.05kg | Hang pipe installation |

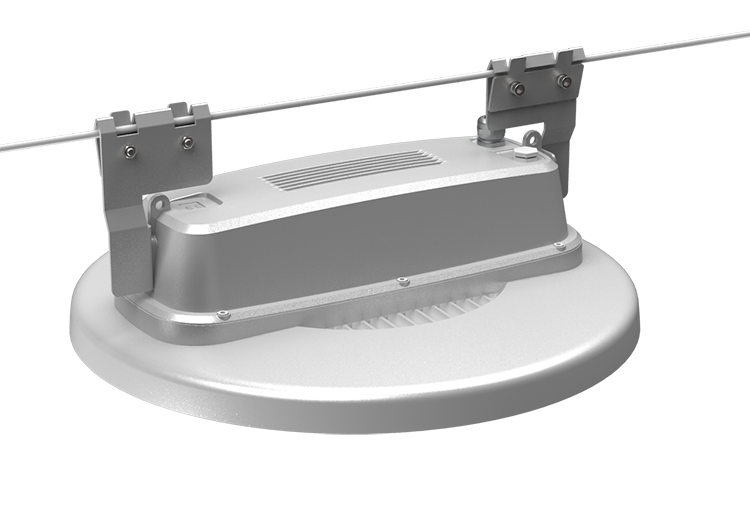

| Optional | A10 | carbon steel | 76.5×25×115mm | 0.15kg | Steel wire installation |
| Optional | A11 | carbon steel | 318×133×32mm | 0.38kg | Bracket installation |
| Optional | A14 | carbon steel | M10 | 0.06kg | Suspension installation |

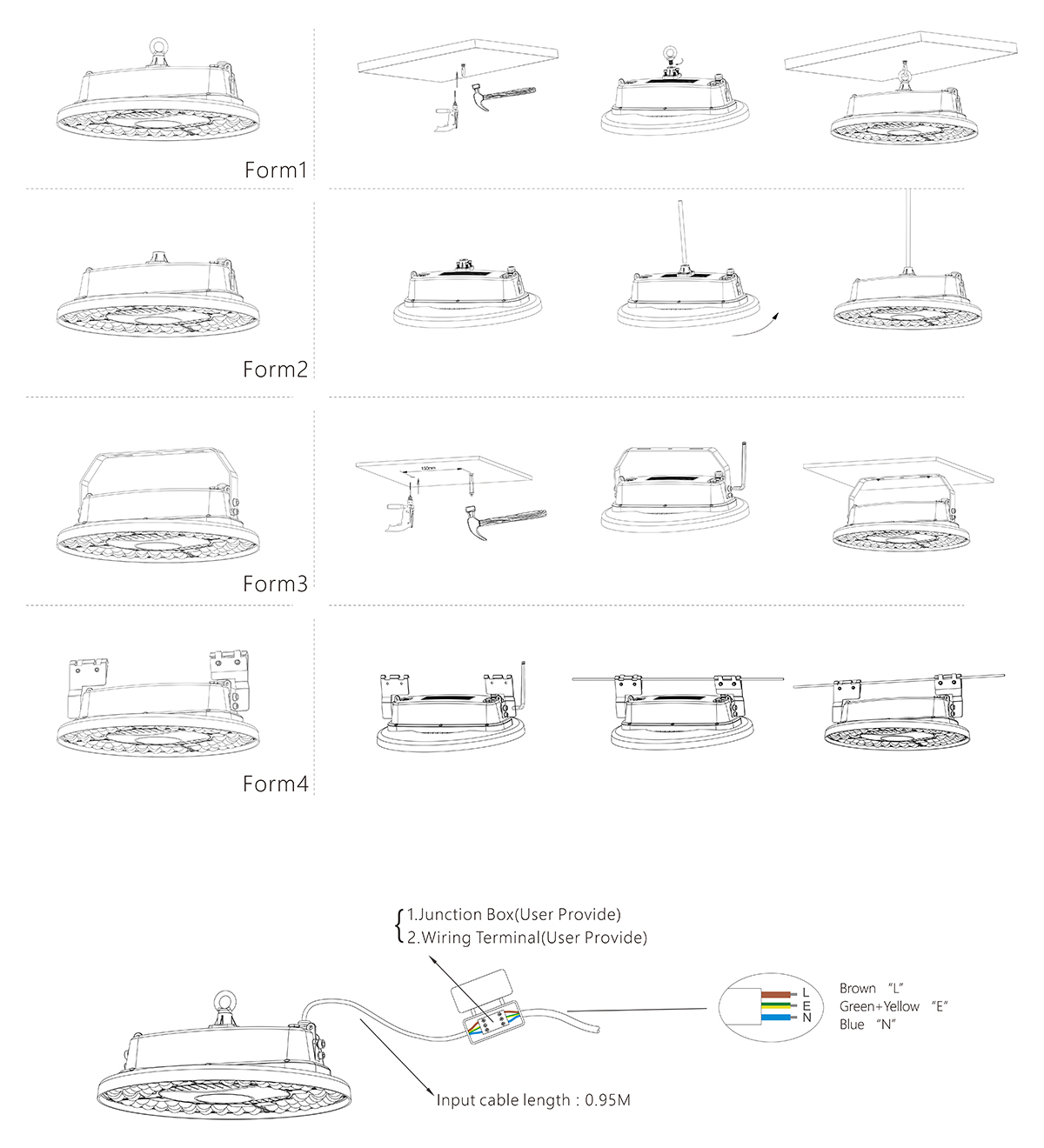

Installation
Important Note: Please ensure the power is off before operation. Installation must be performed by skilled electricians familiar with the requirements and proper installation methods of the LED luminaire. To avoid damage or hazards, the external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire must be discarded. The light source contained in this luminaire should only be replaced by a qualified person.
Video
Short Video
Download
Please contact our sales to obtain password
