FLE SERIES
2023

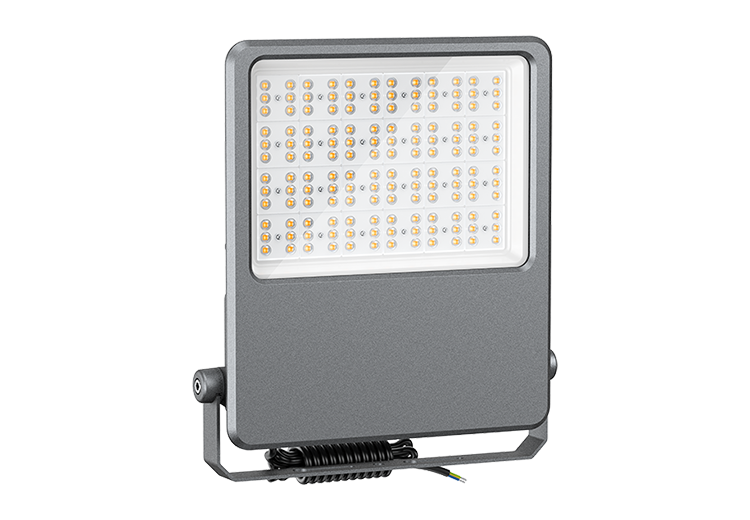

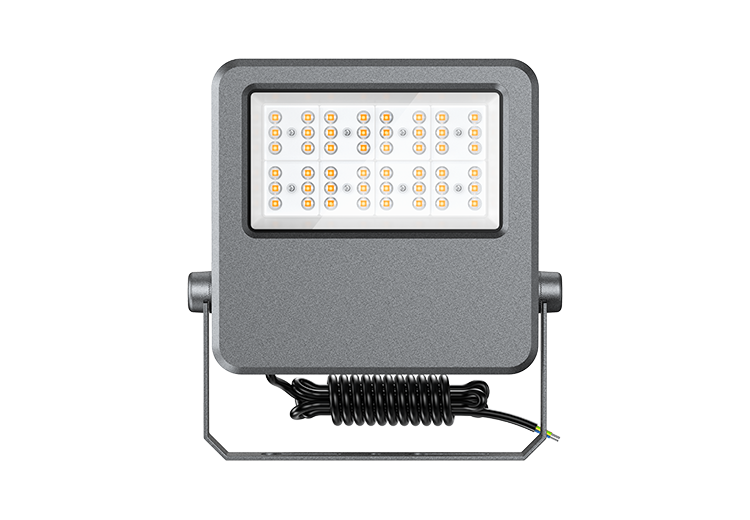

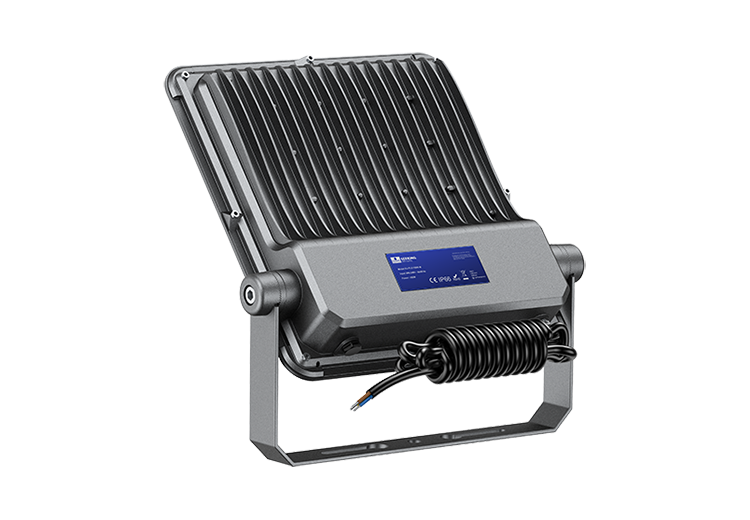

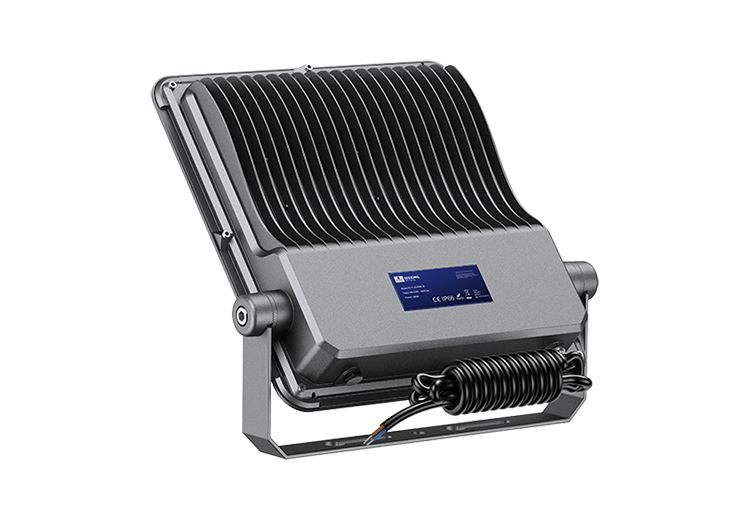

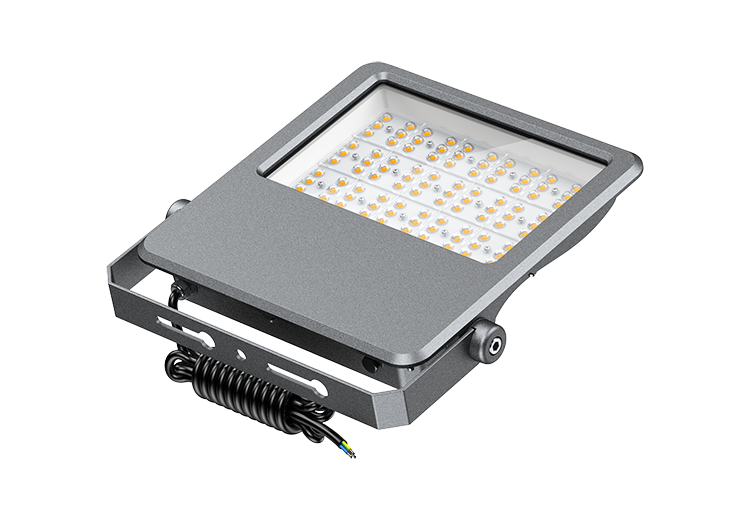

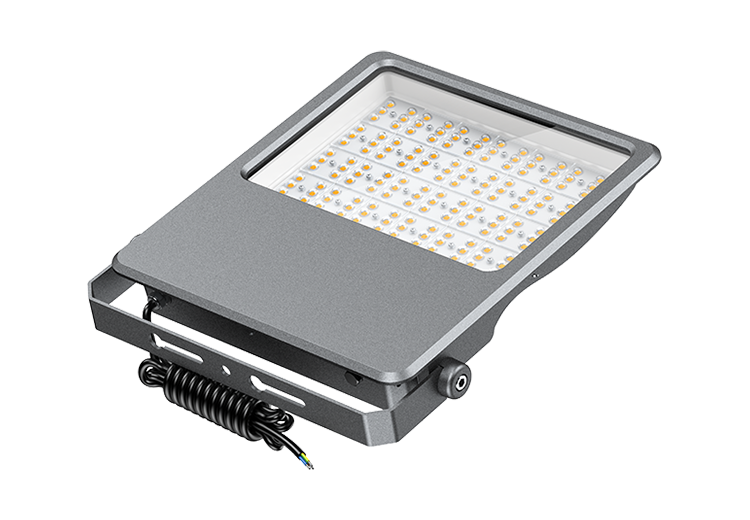

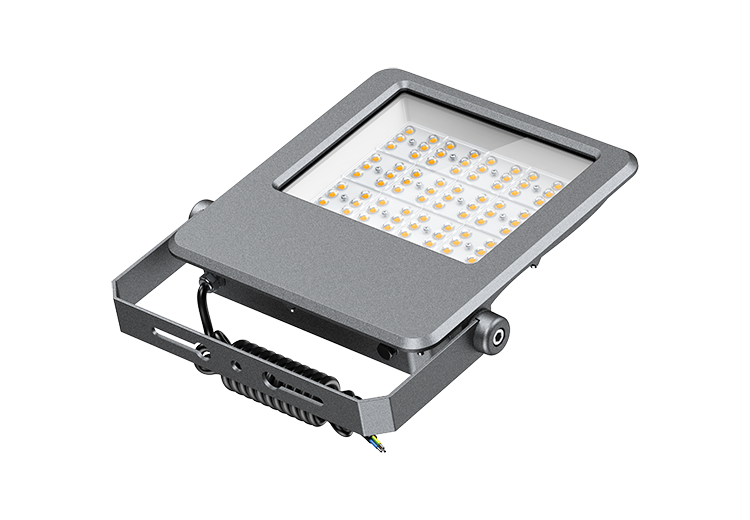

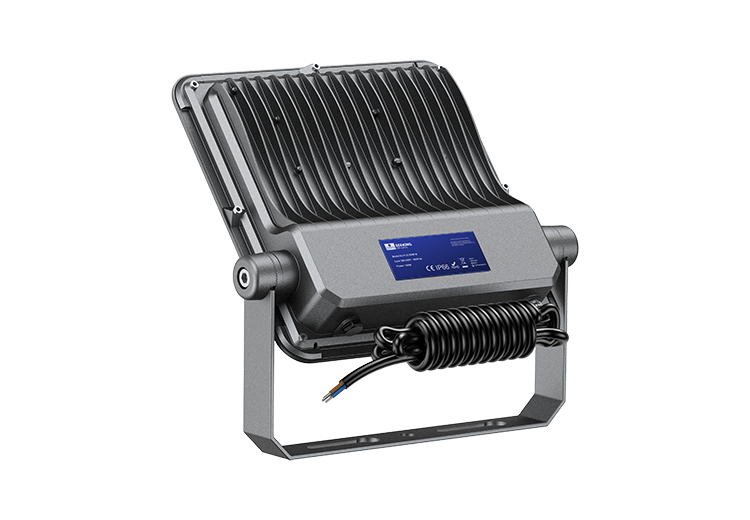

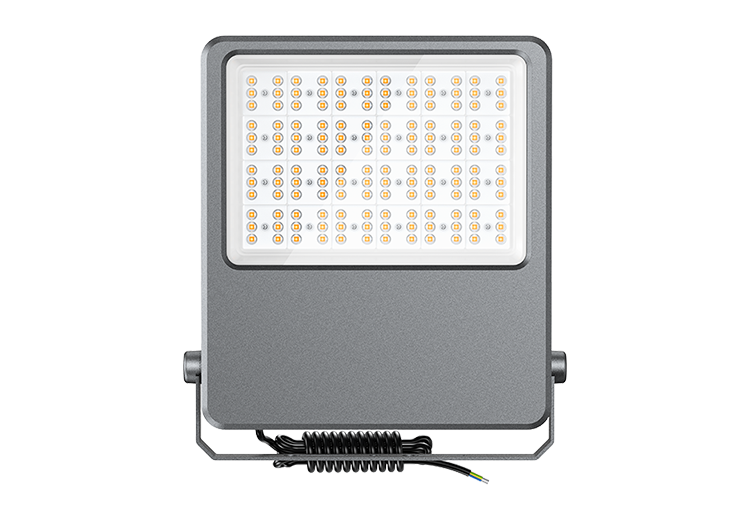

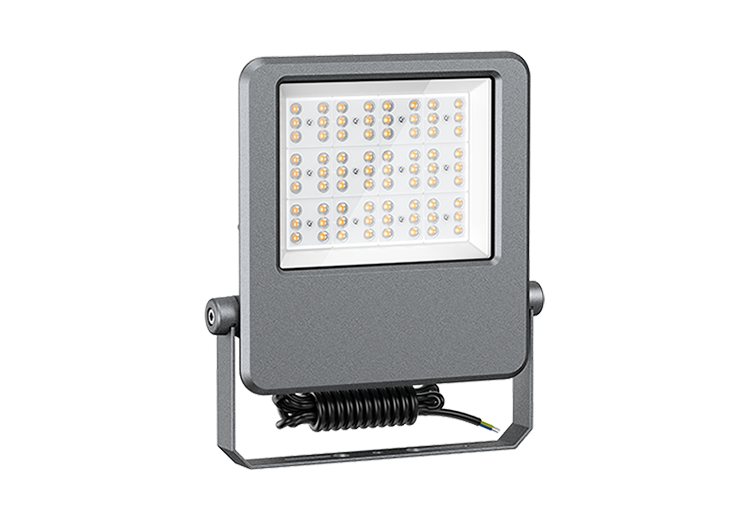

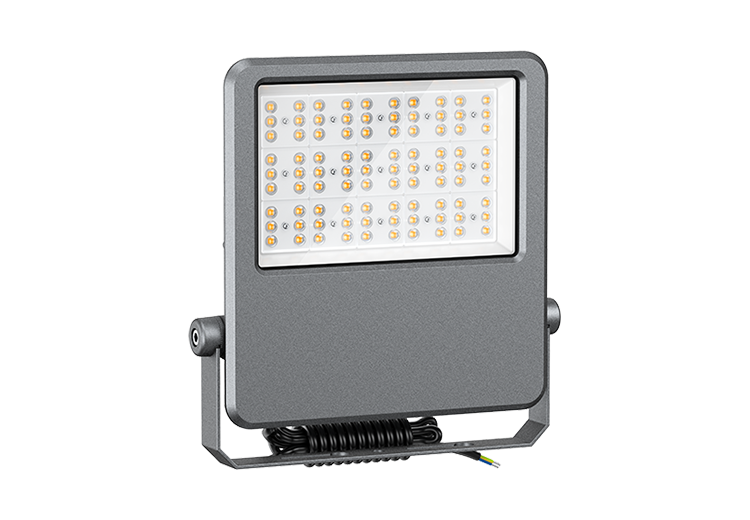

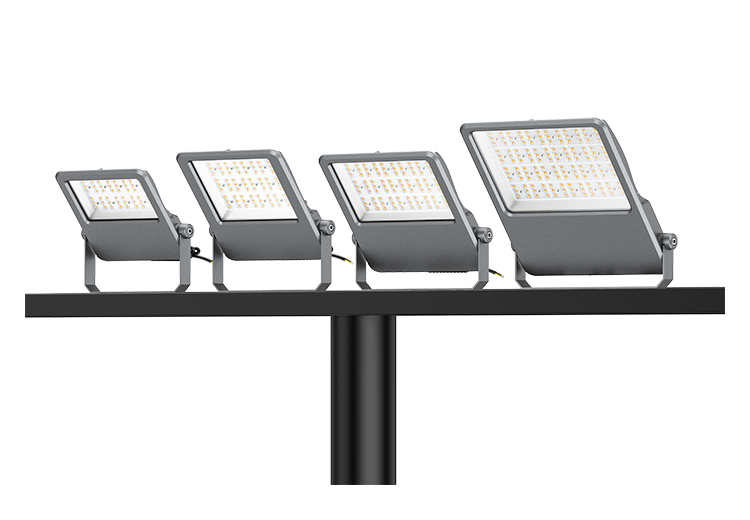

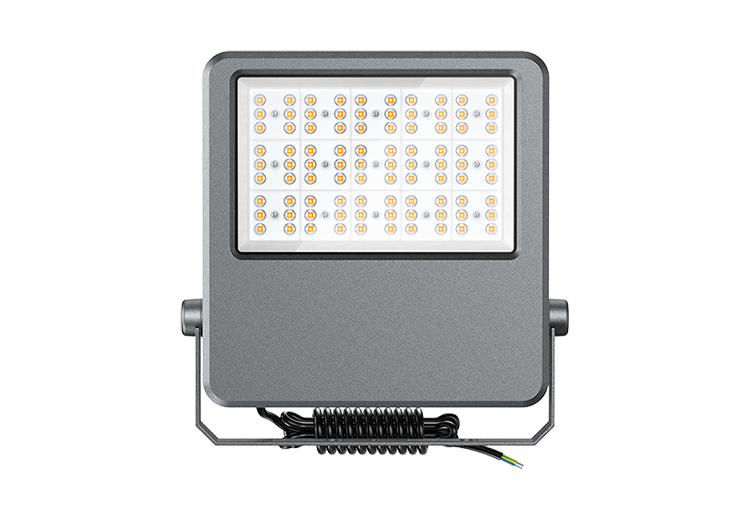

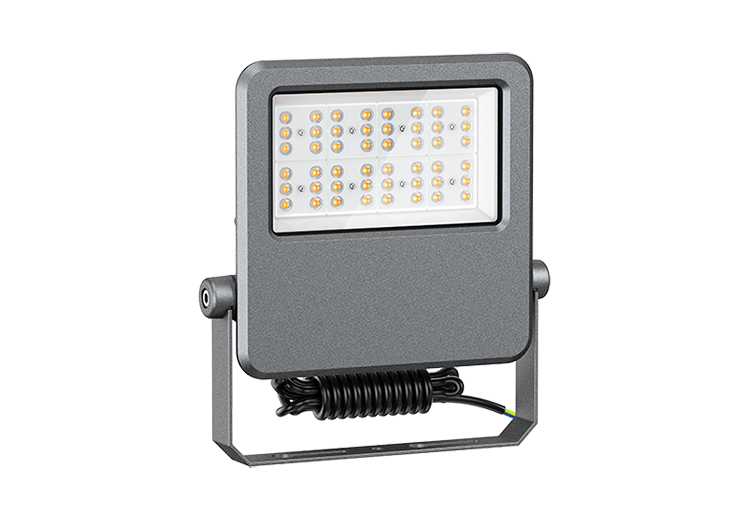

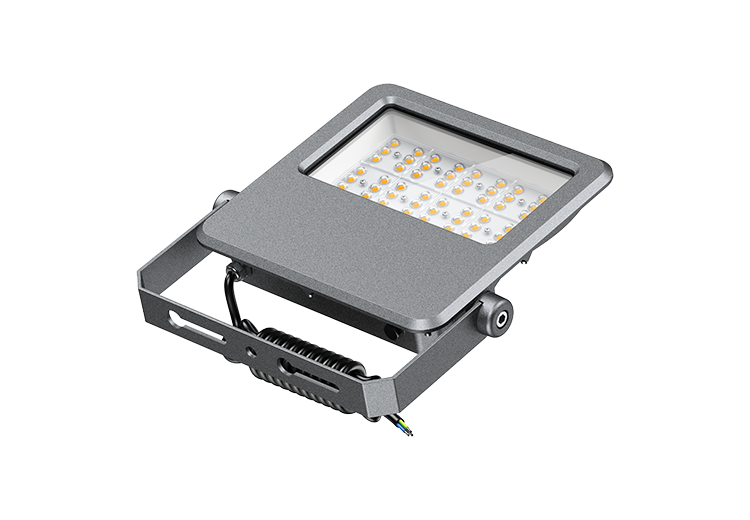

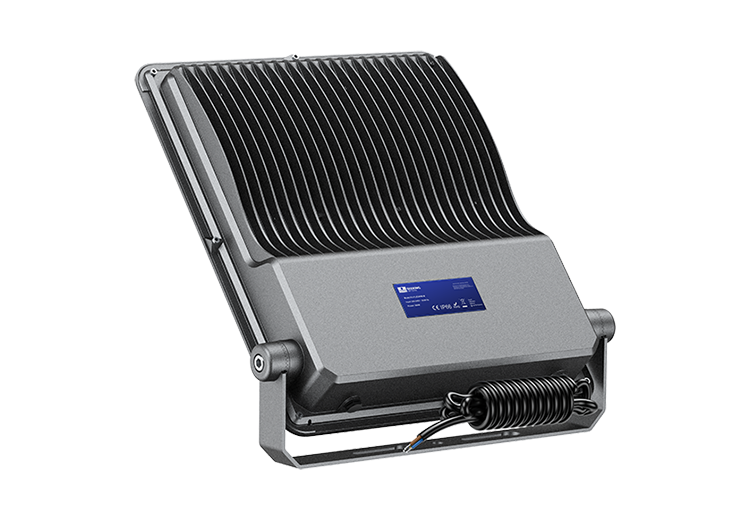

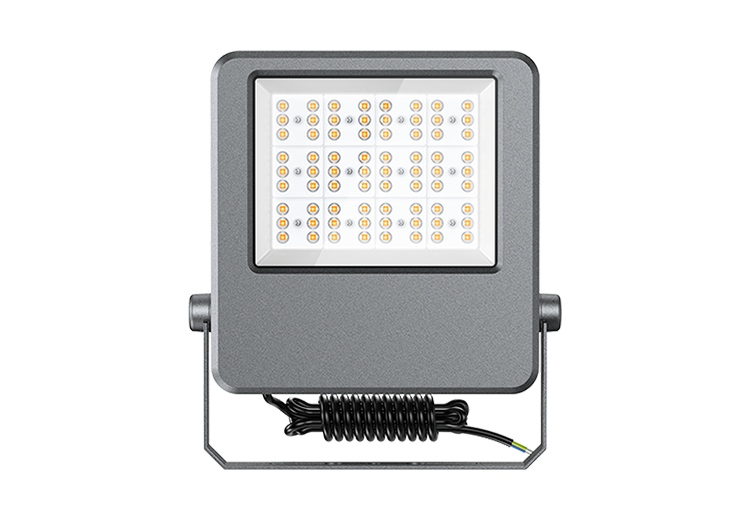

The Gemini series flood light offers versatile solutions for recreational sports and area lighting, featuring multiple light distribution angles to meet various lighting needs. It is equipped with tempered glass and polycarbonate optical lenses, achieving a protection level of up to IK08 and IP66. The constant current power driver ensures an L80B20 rating, providing over 100,000 hours of use.
- Parameter
- Dimension
- Accessories
- Installation
- Video
- Short Video
- Download
Parameter
| Model NO. | Power (W) | Luminous Flux (LM) |
|---|---|---|
| XJ-FLE100W-L | 100 | 17000 |
| XJ-FLE100W-M | 100 | 16000 |
| XJ-FLE150W-L | 150 | 25500 |
| XJ-FLE150W-M | 150 | 24000 |
| XJ-FLE200W-L | 200 | 34000 |
| XJ-FLE200W-M | 200 | 32000 |
| XJ-FLE300W-L | 300 | 51000 |
| XJ-FLE300W-M | 300 | 48000 |
Above lumens based on 4000K Ra:80
-L For LlFUD Driver
-M For MEAN WELL Driver
Light distribution curve
AC Input：100-277V 50/60Hz
Brand of LED Driver：LIFUD / MEAN WELL
Light Source：2835
CRI Range：Ra>80
CCT Range：NW(4000K) CW(5700K)
Light Efficiency：160/170±5% Lm/W

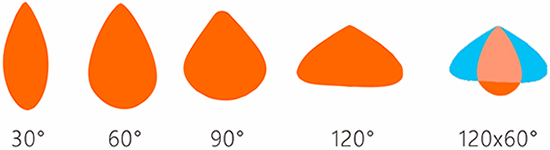

Beam Angle：30° / 60° / 90° / 120° / 120×60°
Housing：Aluminum Alloy
Waterproof：IP66 & IK08
L80B20@25℃：>100000H
PF：≥0.95 THD<15% Power Efficiency：≥0.9
Certifications：TUV, CE, CB, UKCA, SAA

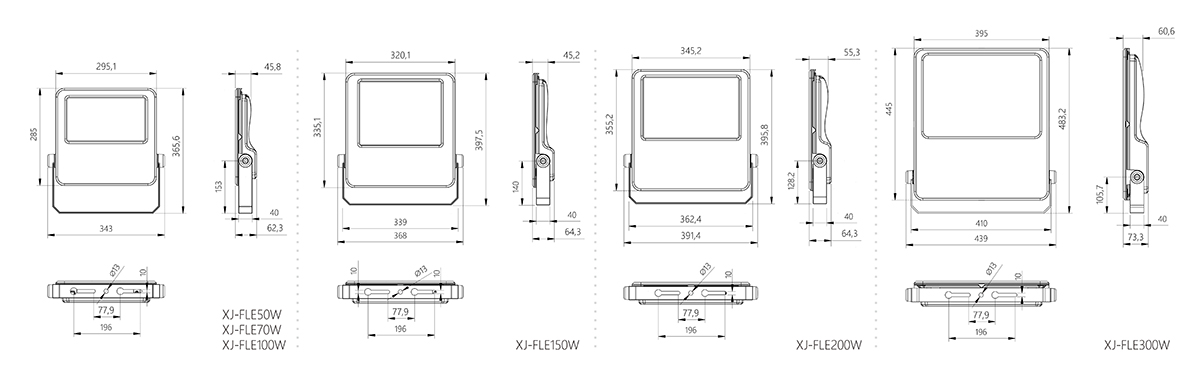

Dimension

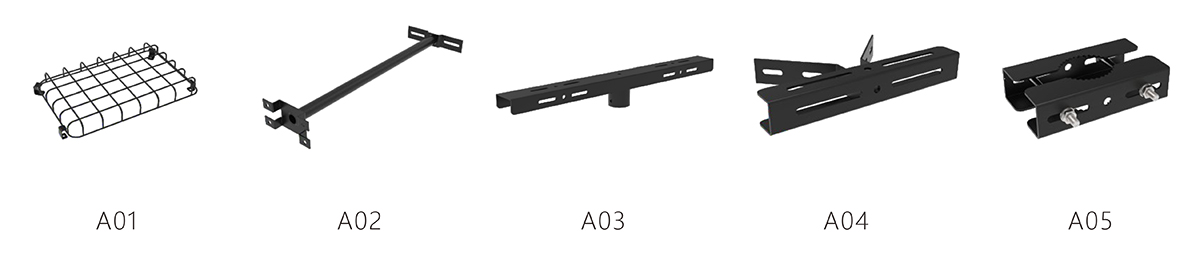

Accessories
| accessories | image | material | dimensions | weight | accessory use |
|---|---|---|---|---|---|
| Optional (only 200W&300W) | A01 | sus304 | 350x218x58mm 400x271×57mm | 0.35kg 0.40kg | Protective the glass cover |
| Optional | A02 | carbon steel | 686x160x75mm | 2.1kg | Wall extension installation |
| Optional | A03 | carbon steel | 850x103x80mm | 3.7kg | Installation on top of the lamp pole |
| Optional | A04 | carbon steel | 350x174x50mm | 1.0kg | Wall corner mounted lamp |
| Optional | A05 | carbon steel | 200x100x50mm | 1.3kg | Round pole-mounted lamp |
Installation

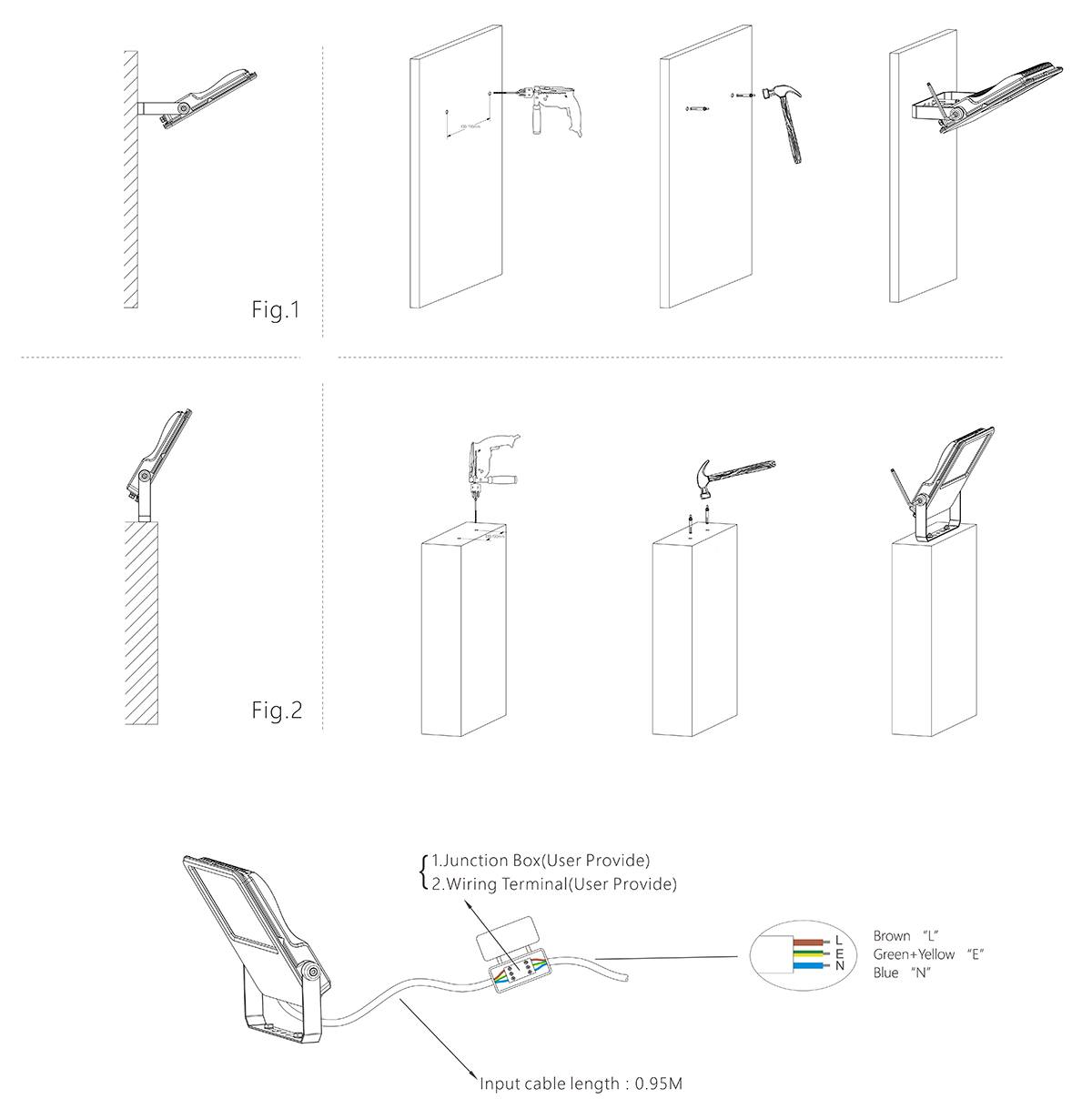

Installation Steps
1. Punch holes: Drill two holes with a spacing of 100-190mm.
2. Install setscrews: Secure the setscrews in the holes.
3. Attach lamp: Place the lamp bracket into the setscrews and tighten securely.
4. Connect power: Attach the power cable.
5. Adjust and clean: Adjust the lamp angle and clean the fixture.
Note: Ensure the power is off before operation. Installation must be performed by skilled electricians familiar with the requirements and proper installation methods of LED luminaires to avoid damage or hazards. The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire must be destroyed.
The light source contained in this luminaire should only be replaced by a qualified person.
Video
Short Video
Download
-

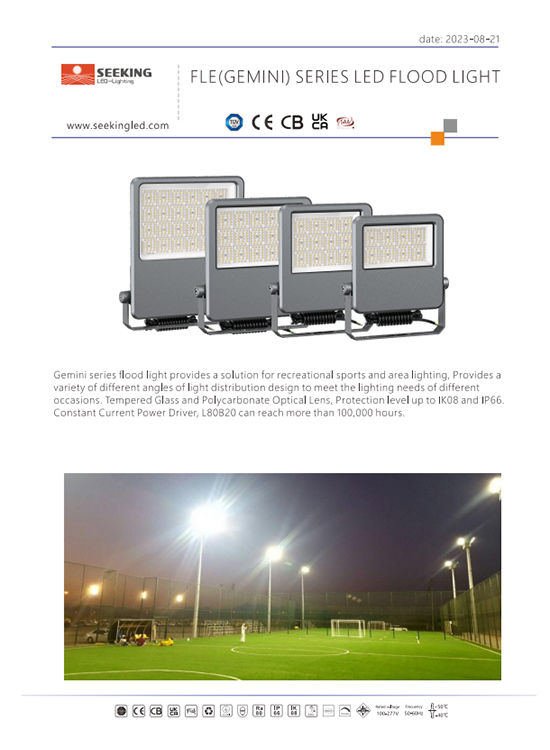

FLE Flood light SPEC
-
IES+LDT
Please contact our sales to obtain password
Sales：sales01@seekingled.com
