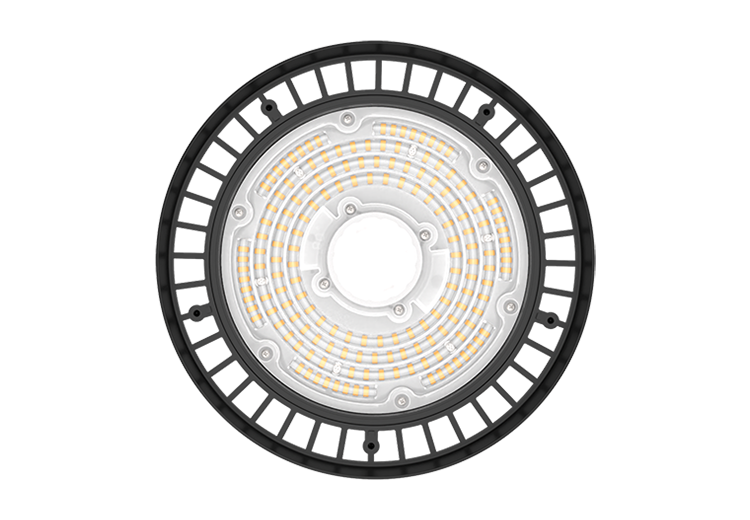

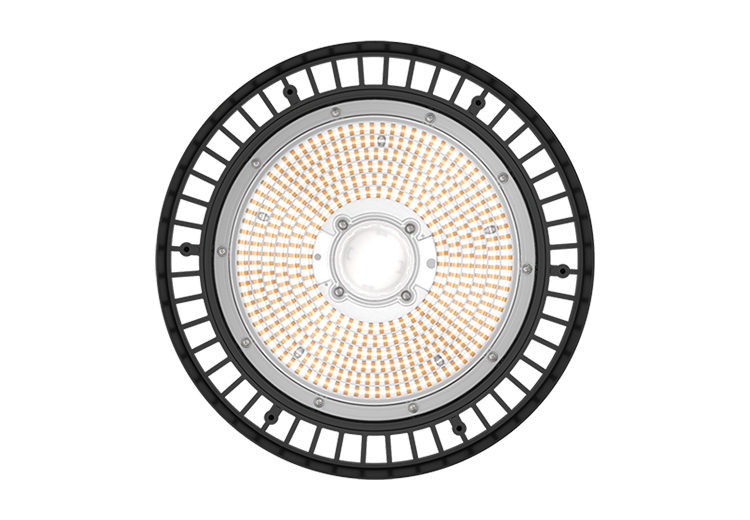

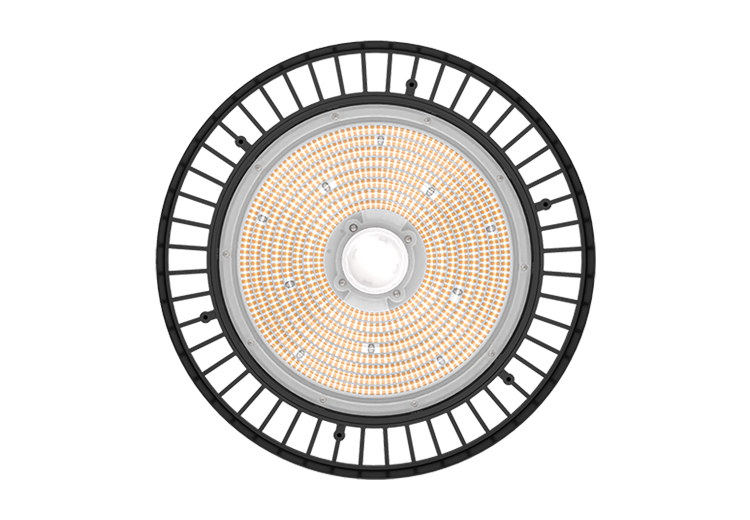

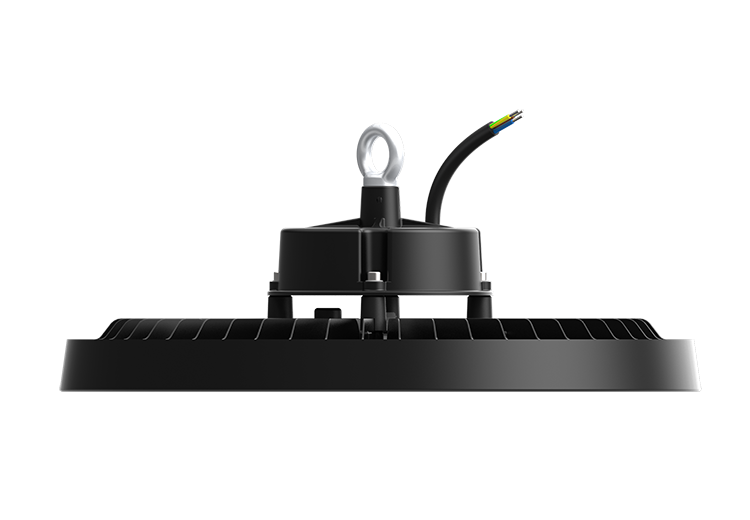

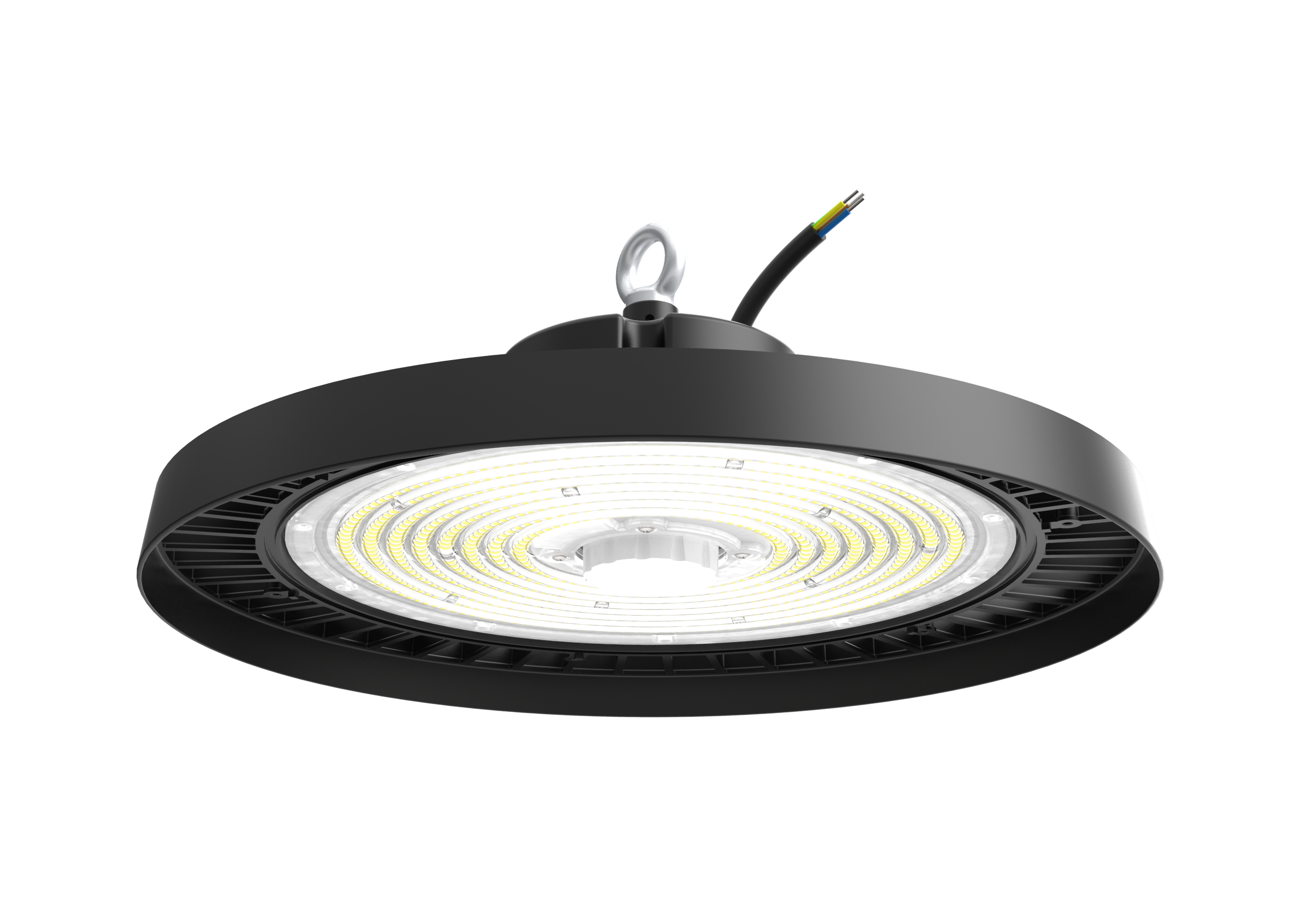

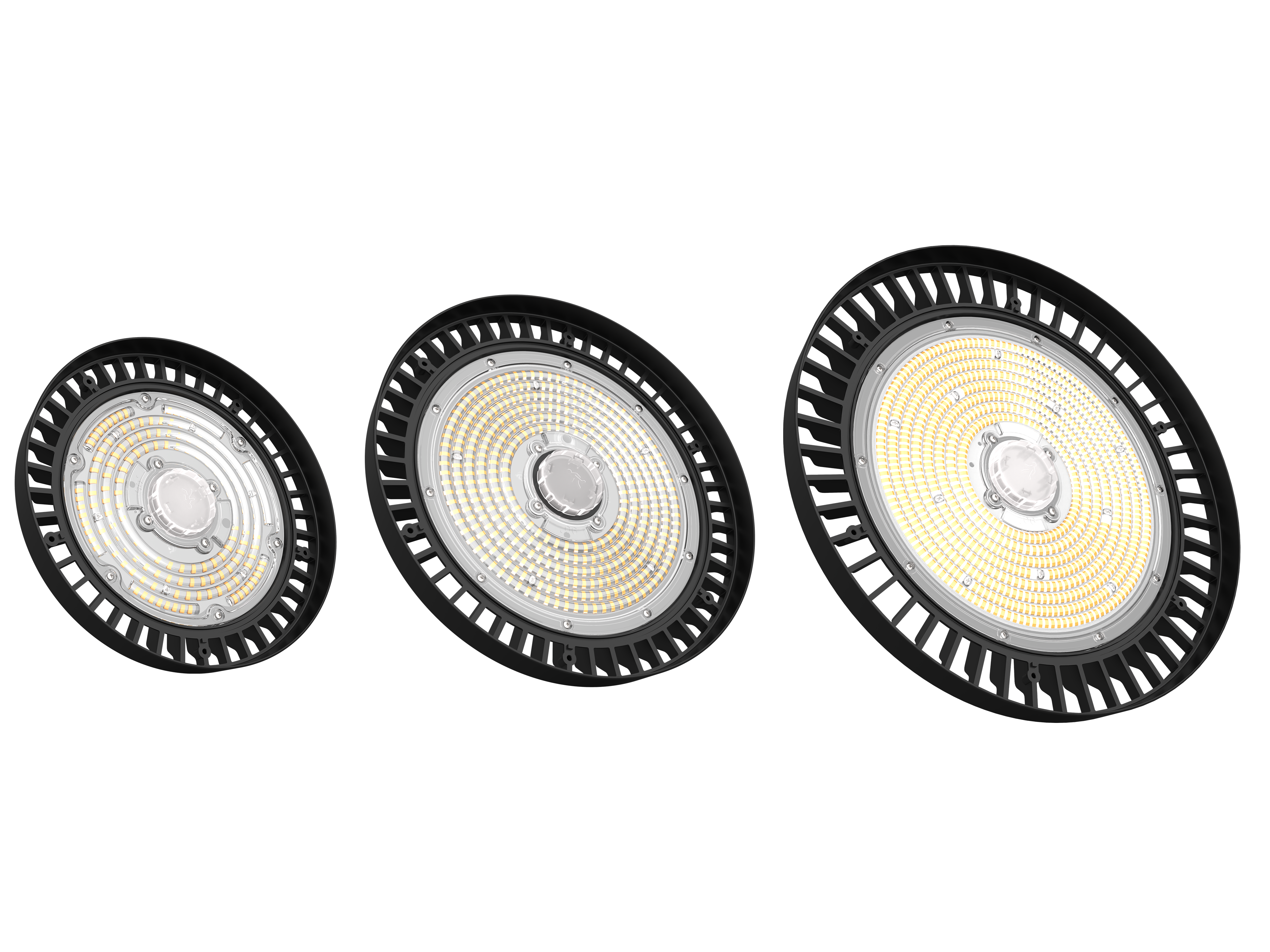

HBC SERIES
2023

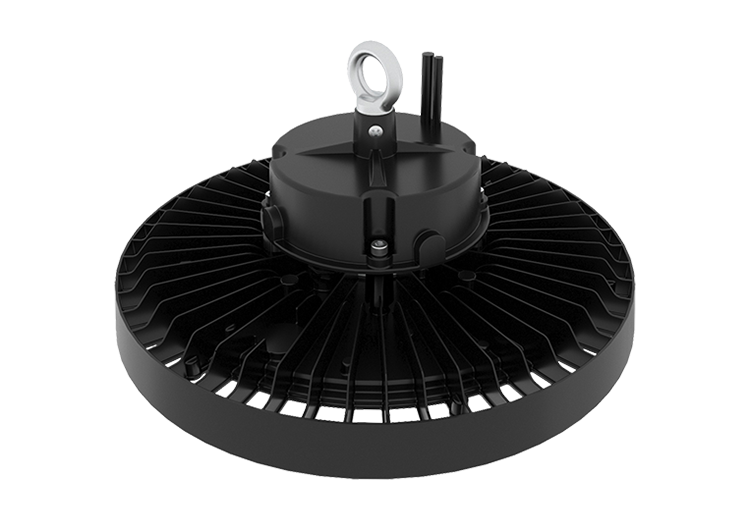

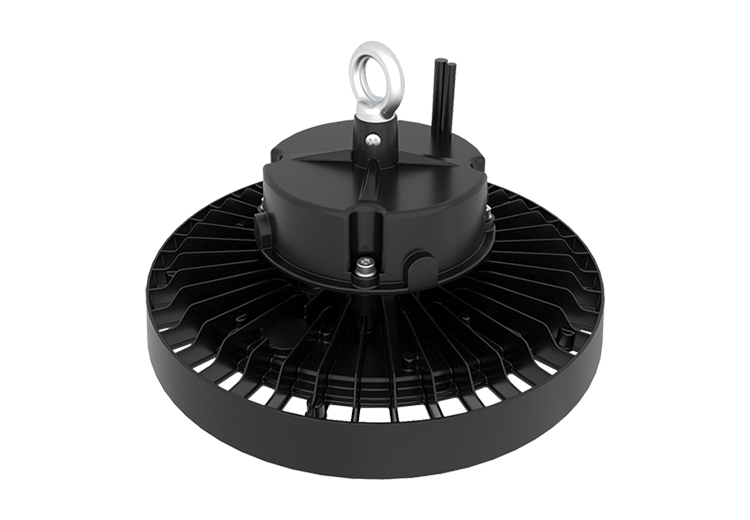

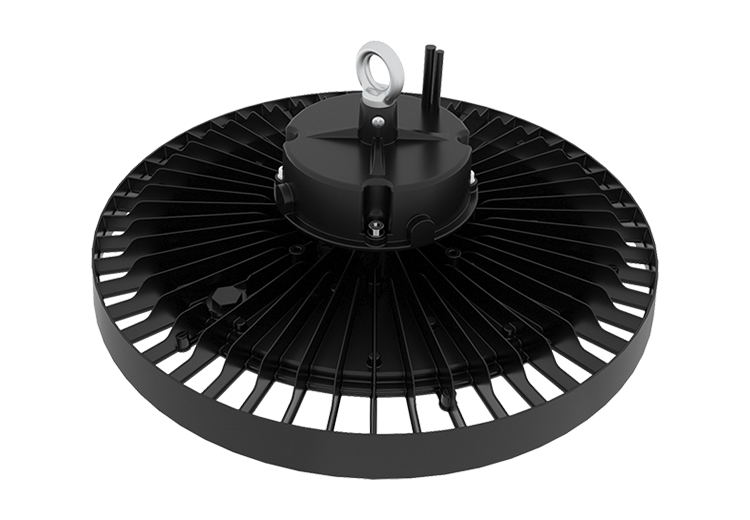

HBC series UFO high bay light have fully considered the balance between product performance and cost control from the beginning of the design. Therefore, while ensuring good heat dissipation and highlight efficiency, it brings excellent cost performance and optimal packaging volume. It uses high-quality die-casting aluminum radiator, SOSEN flicker-free driver, light efficiency up to 170lm/w at CRI>80, IP65, IK08, supports microwave motion sensor, easy plug and play, for more energy saving use.
HBC passed CE, CB certification, it is really a excellent choice for distribution, wholesale, project.
- Parameter
- Dimension
- Accessories
- Installation
- Video
- Short Video
- Download
Parameter
| Model NO. | Power (W) | Luminous Flux (150lm/W) / (170lm/W) |
|---|---|---|
| XJ-HBC100W-*-15 | 100 | 15000 |
| XJ-HBC100W-*-17 | 100 | 17000 |
| XJ-HBC150W-*-15 | 150 | 22500 |
| XJ-HBC150W-*-17 | 150 | 25500 |
| XJ-HBC200W-*-15 | 200 | 30000 |
| XJ-HBC200W-*-17 | 200 | 34000 |
| XJ-HBC240W-*-15 | 240 | 36000 |
| XJ-HBC240W-*-17 | 240 | 40800 |
Above lumens based on 4000K Ra:80
Light distribution curve
AC Input：100-277V 50/60Hz
Brand of LED Driver：SOSEN
Light Source：2835
CRI Range：Ra>80
CCT Range：NW(4000K) CW(5700K) WW(3000K)(Optional) DW(5000K)(Optional)
Light Efficiency：150±5% Lm/W / 170±5% Lm/W
Beam Angle：60° / 90°
Maximum detection distance：12metre
Housing：Aluminum Alloy
Waterproof：IP65 & IK08
L80B20@25℃：>100000H
PF：≥0.95 THD<15% Power Efficiency：≥0.9
Certifications：CE, CB
Warranty：5 Years

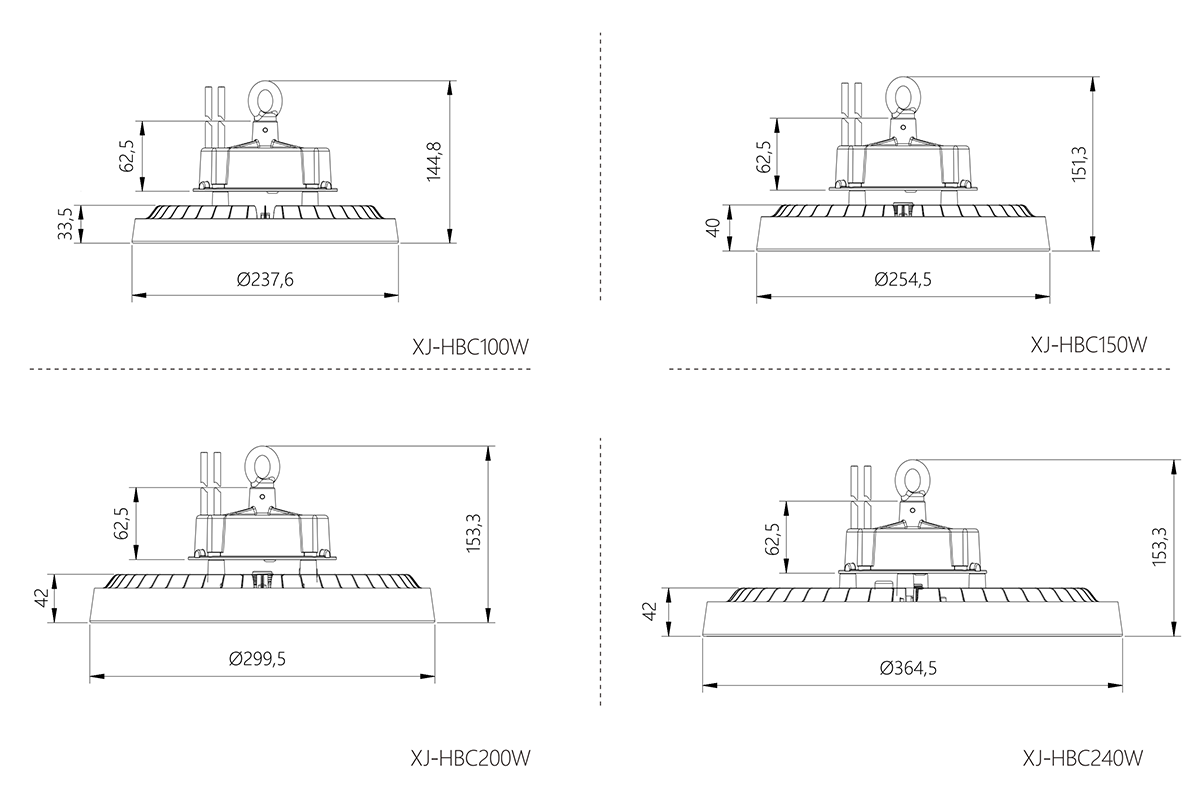

Dimension
Accessories
Installation

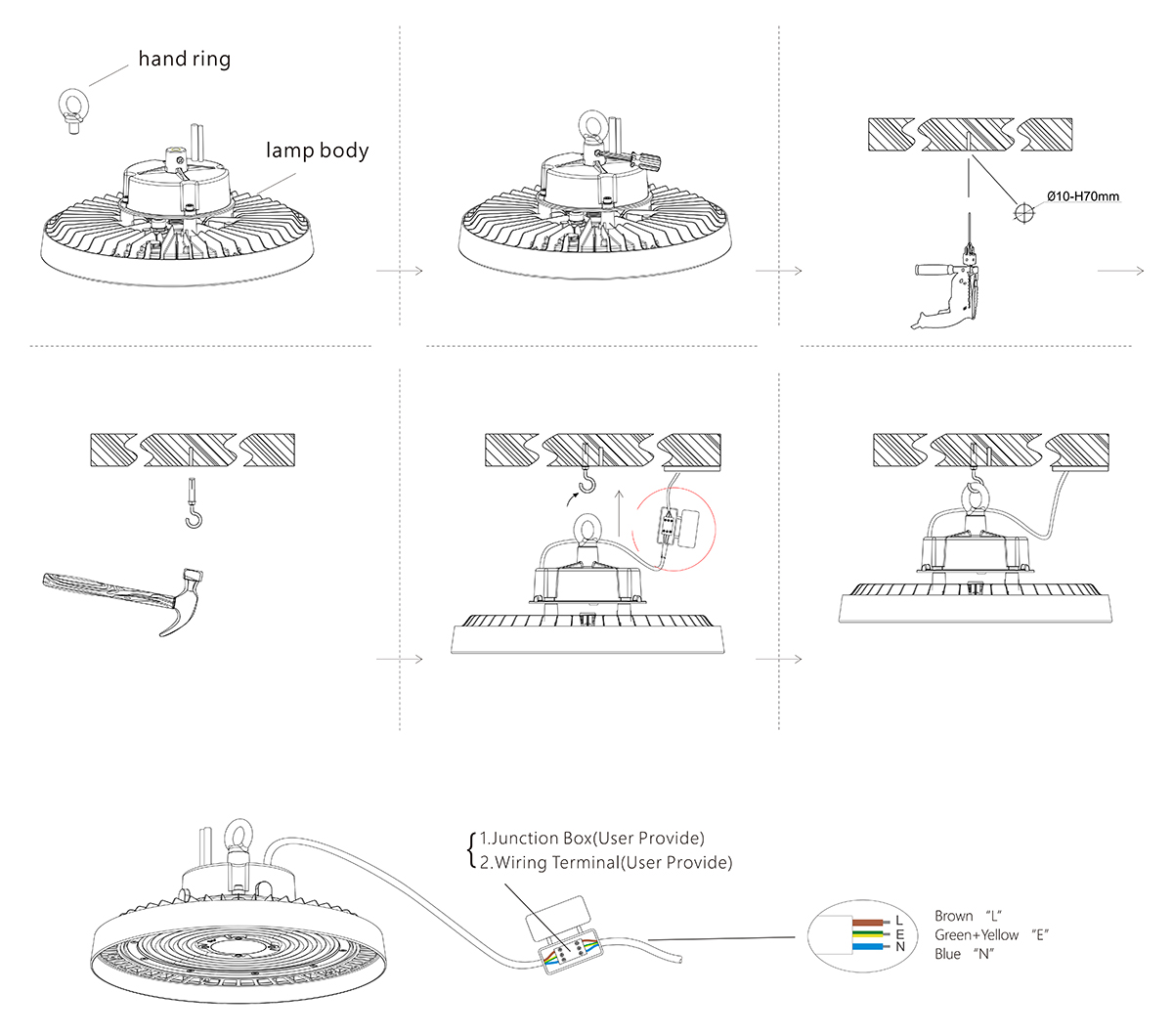

Installation steps
A: Open the packaging take out the lamp body and the hand ring;
B: Install the hand ring,tighten the Screw with a Screwdriver;
C: Drill a hole in ceiling;
D: Insert the screw with hook into the hole;
E: Install the luminaire onto the hook,and connect the wires as showing.
E: Clean the lamp and complete the installation.
Note: Please make sure the power off before opertion,Installation must be performed by skilled electrician who arefamiliar with the requirements and proper installation methods of LED luminaire. In order to avoid damage or hazard; The external fxible cable or cord of this luminaire can not be replaced, if the cord is damaged, the luminaire must bedestroyed.
The light source contained in this luminaire shall only be replaced by a qualified person.
Video
Short Video

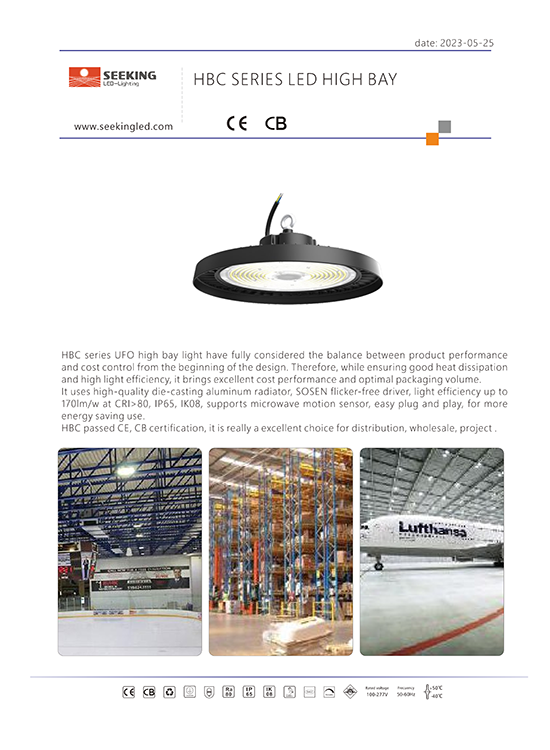

Download
Please contact our sales to obtain password
