TFT SERIES (TAURUS)
2023 NEW

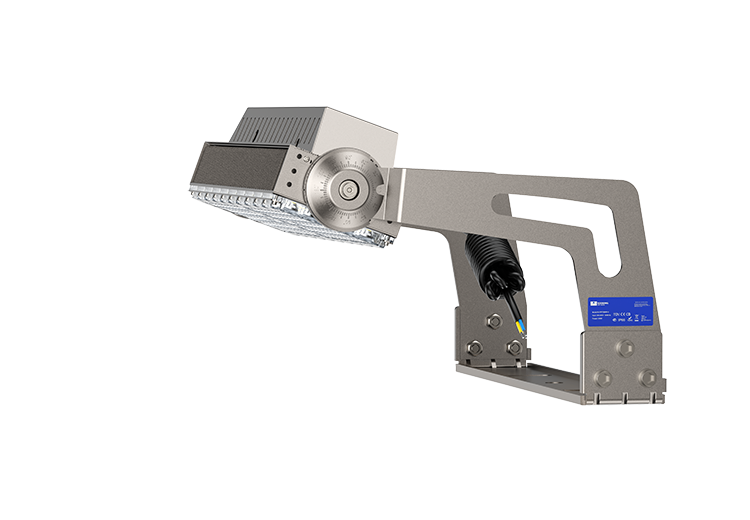

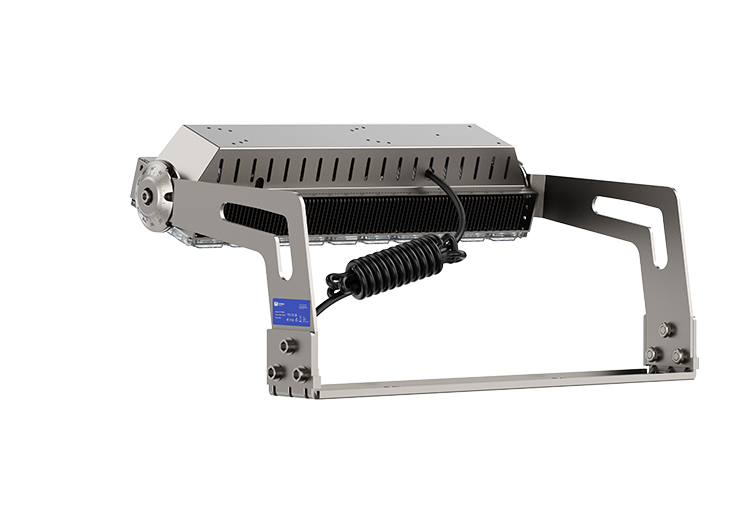

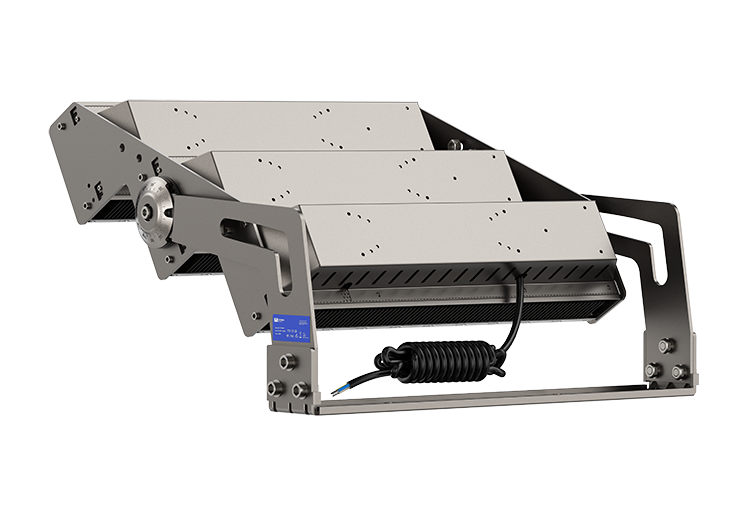

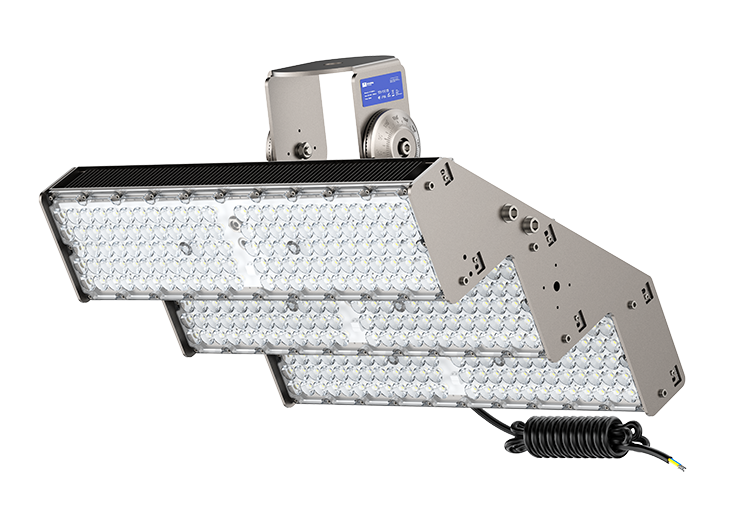

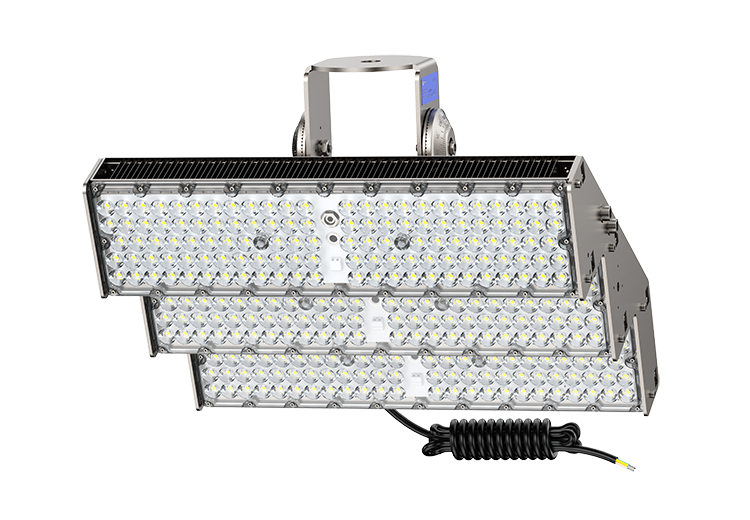

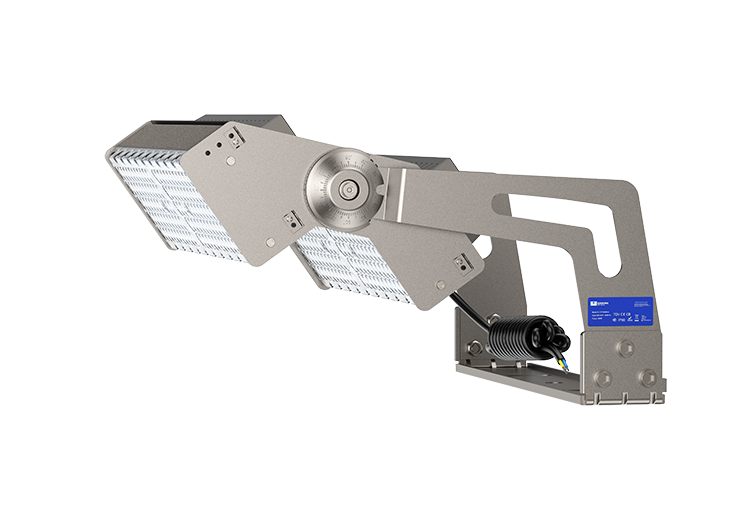

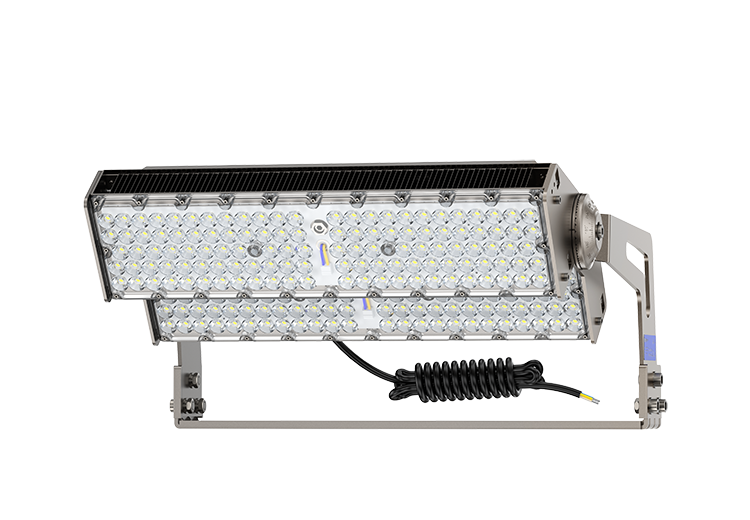

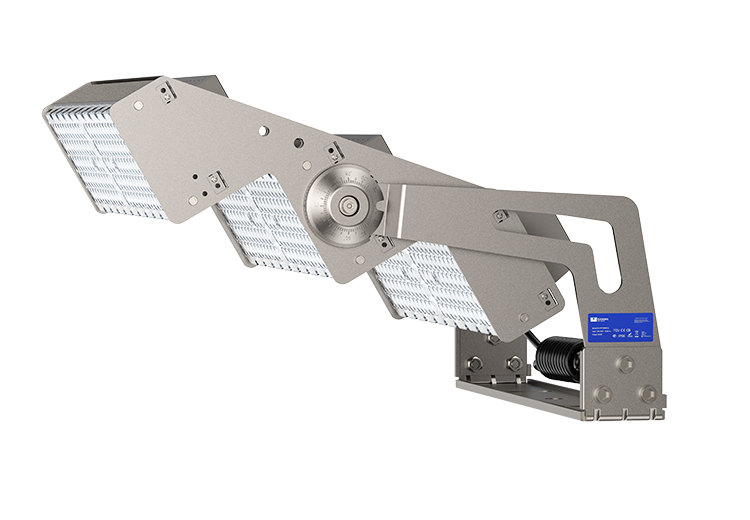

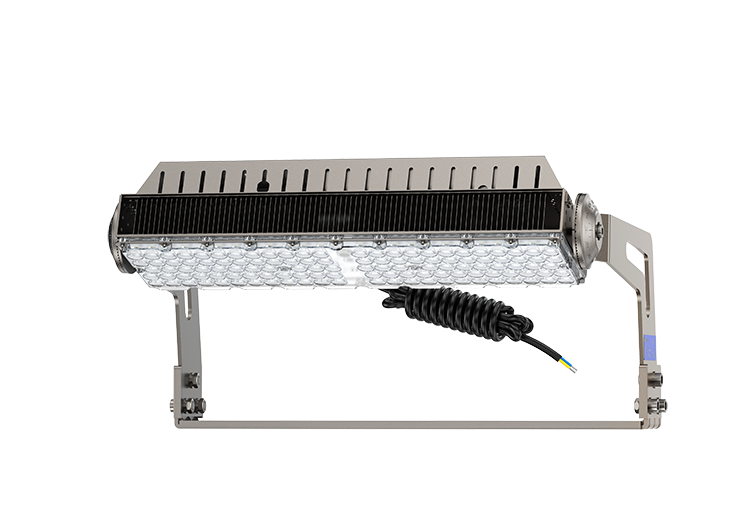

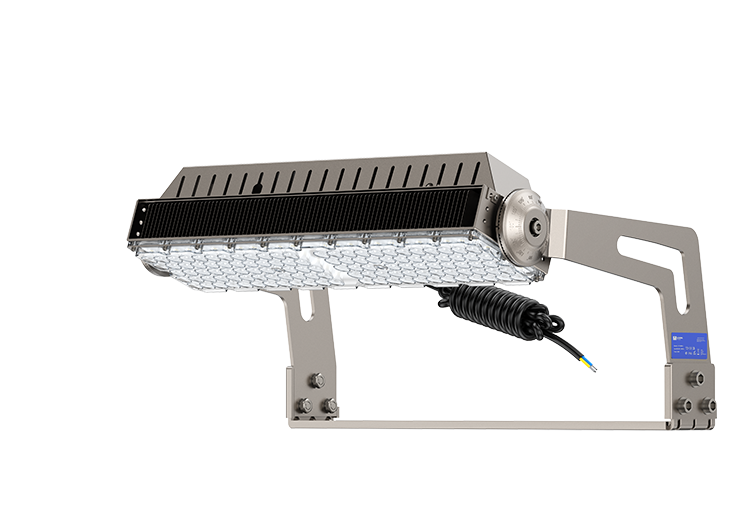

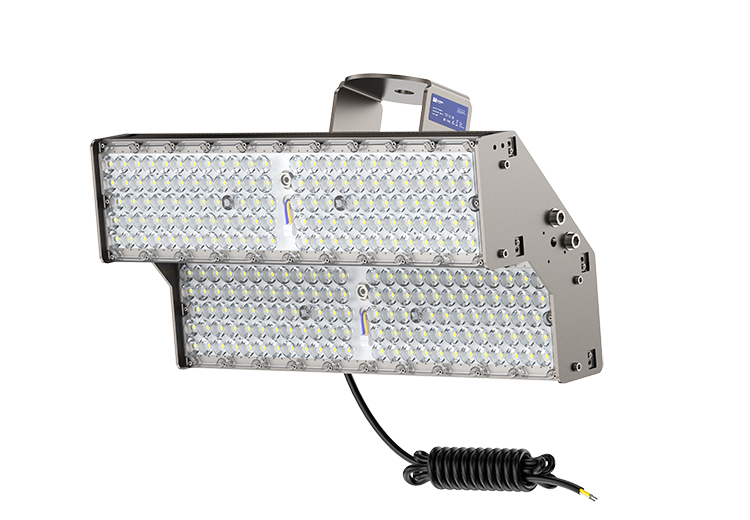

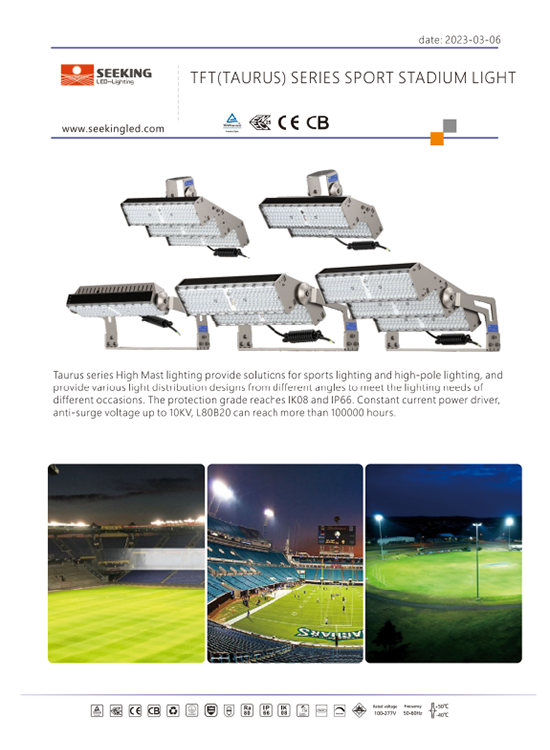

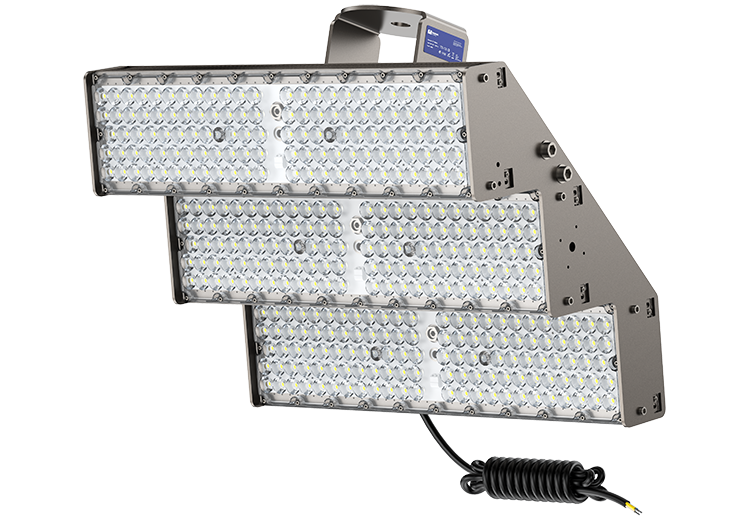

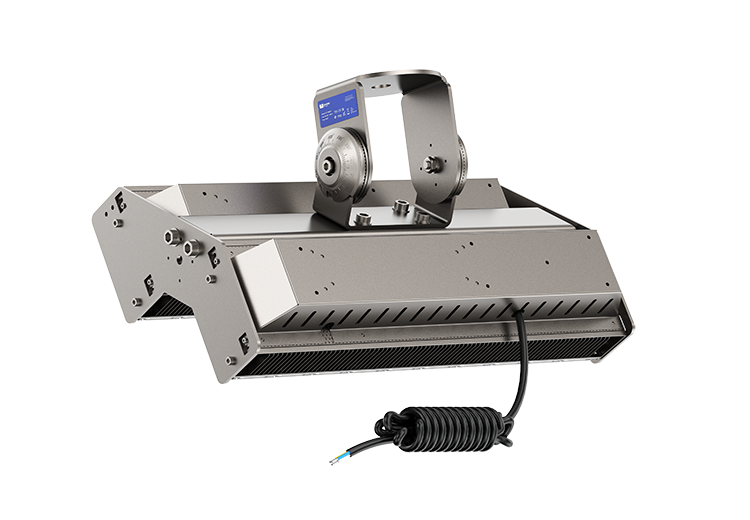

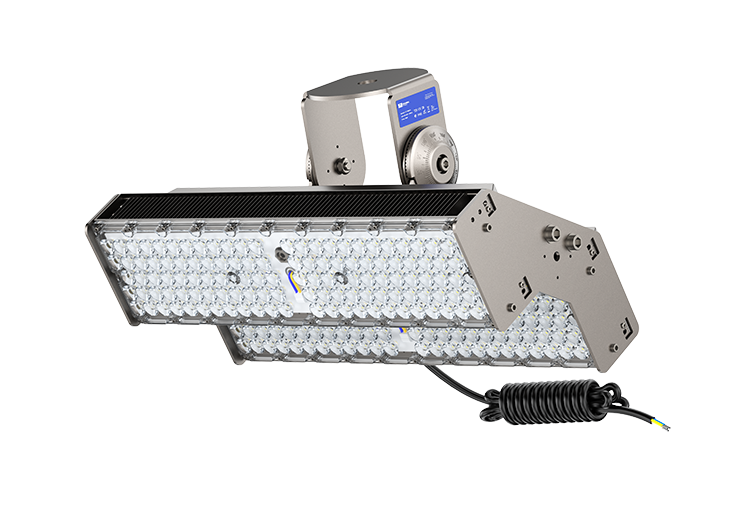

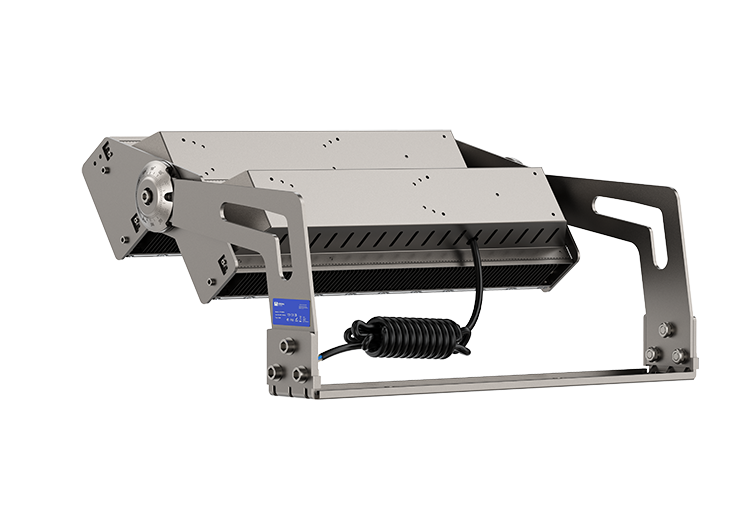

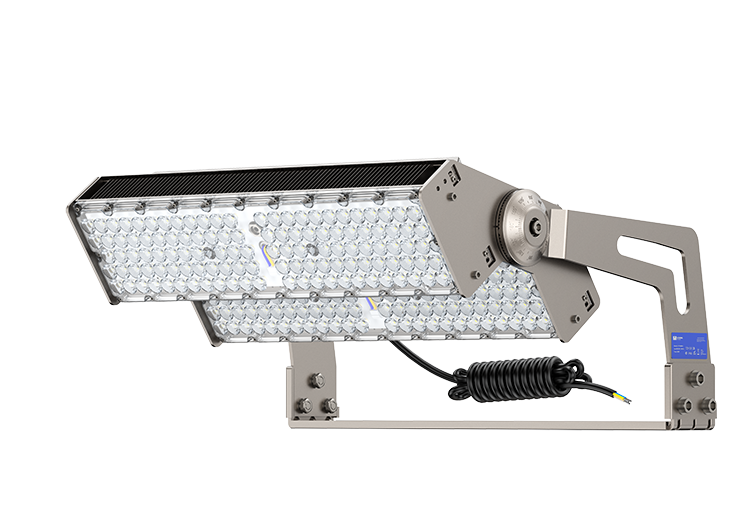

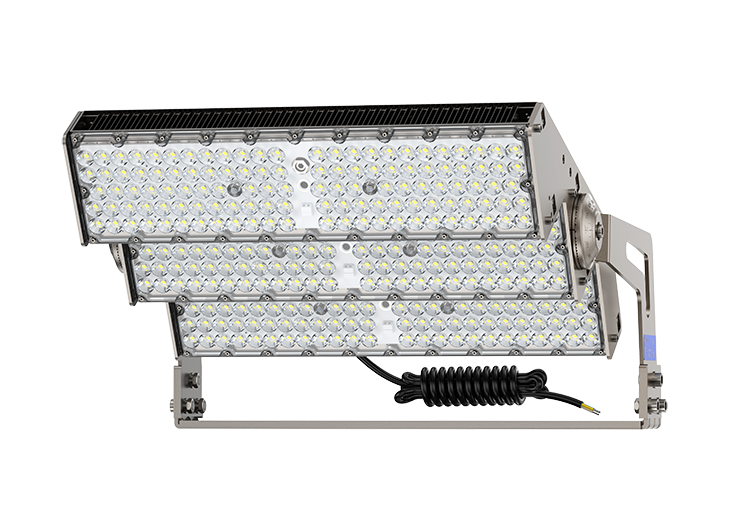

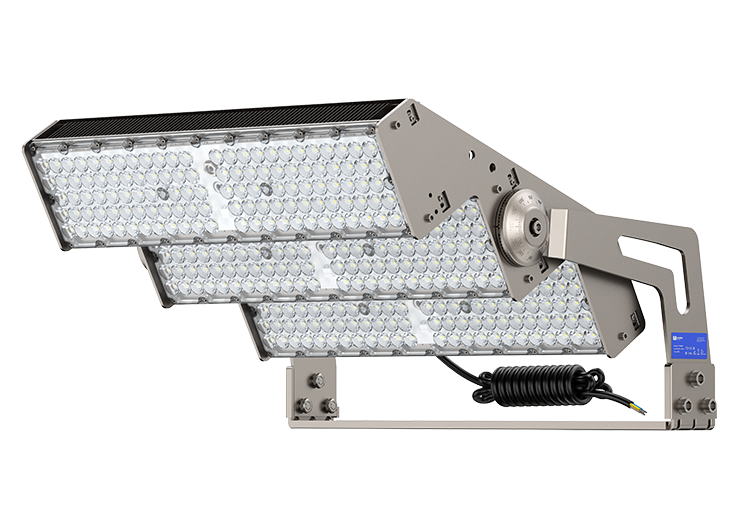

The Taurus series High Mast lighting offers solutions for both sports and high-pole lighting. It features various light distribution designs from different angles to meet diverse lighting requirements. The protection grade is rated at IK08 and IP66, ensuring robust durability. Equipped with a constant current power driver and anti-surge voltage up to 10KV, the Taurus series boasts an impressive lifespan with L80B20 exceeding 100,000 hours.
- Parameter
- Dimension
- Accessories
- Installation
- Video
- Download
Parameter
| Model NO. | Power (W) | Luminous Flux 160lm/W |
|---|---|---|
| XJ-TFT300W-* | 300 | 45000 |
| XJ-TFT600W-* | 600 | 90000 |
| XJ-TFT900W-* | 900 | 135000 |
Part No* H: Horizontally-mounted

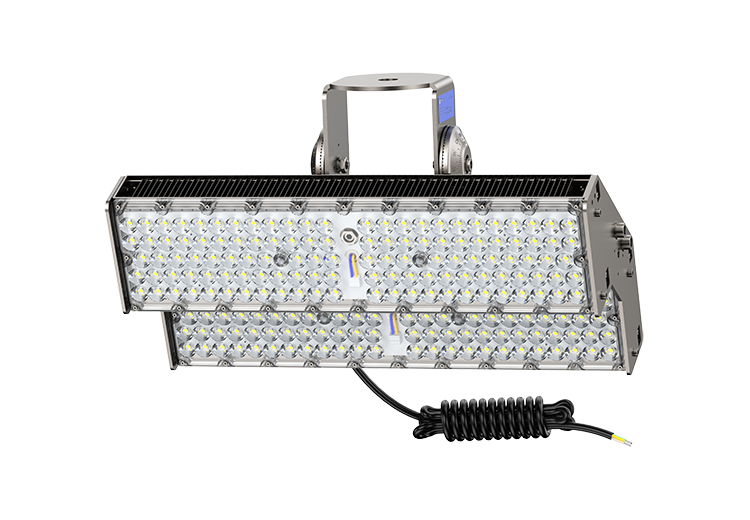

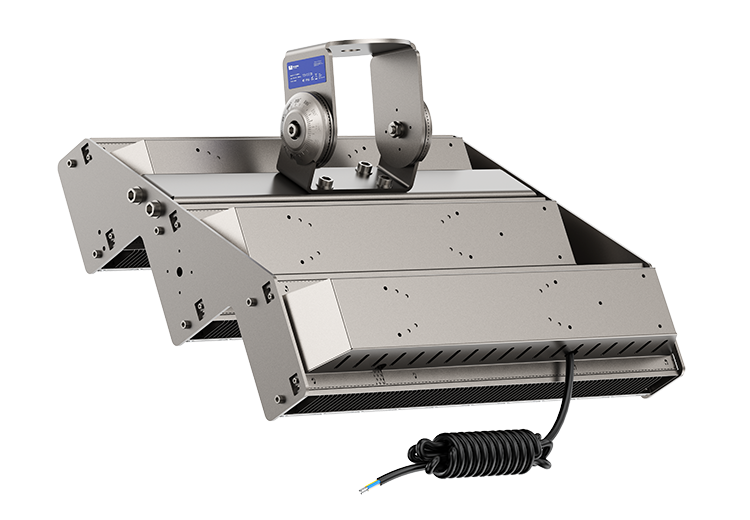

Part No*=S:Suspension mounting
Above lumens based on 4000K Ra:80

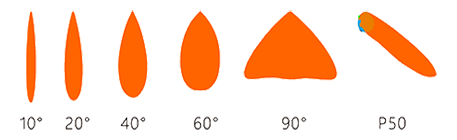

Light distribution curve
AC Input：100-277V 50/60Hz
Brand of LED Driver: MEANWELL
Light Source: 5050 (LUMILEDS) / 3737 (OSRAM P8) (10°)
CRI Range：Ra>80
CCT Range：NW(4000K)，CW(5700K)
Light Efficiency: 150±5% Lm/W
Beam Angle: 10° / 20° / 40° / 60° / 90° / P50
Housing：Aluminum Alloy
Surge Protection: 10kV
Waterproof：IP66 & IK08
L80B20@25℃：>100000H
PF：≥0.95
THD：<15%
Power Efficiency：≥0.9
Certifications：TUV, ENEC, CE, CB
Warranty：5 Years

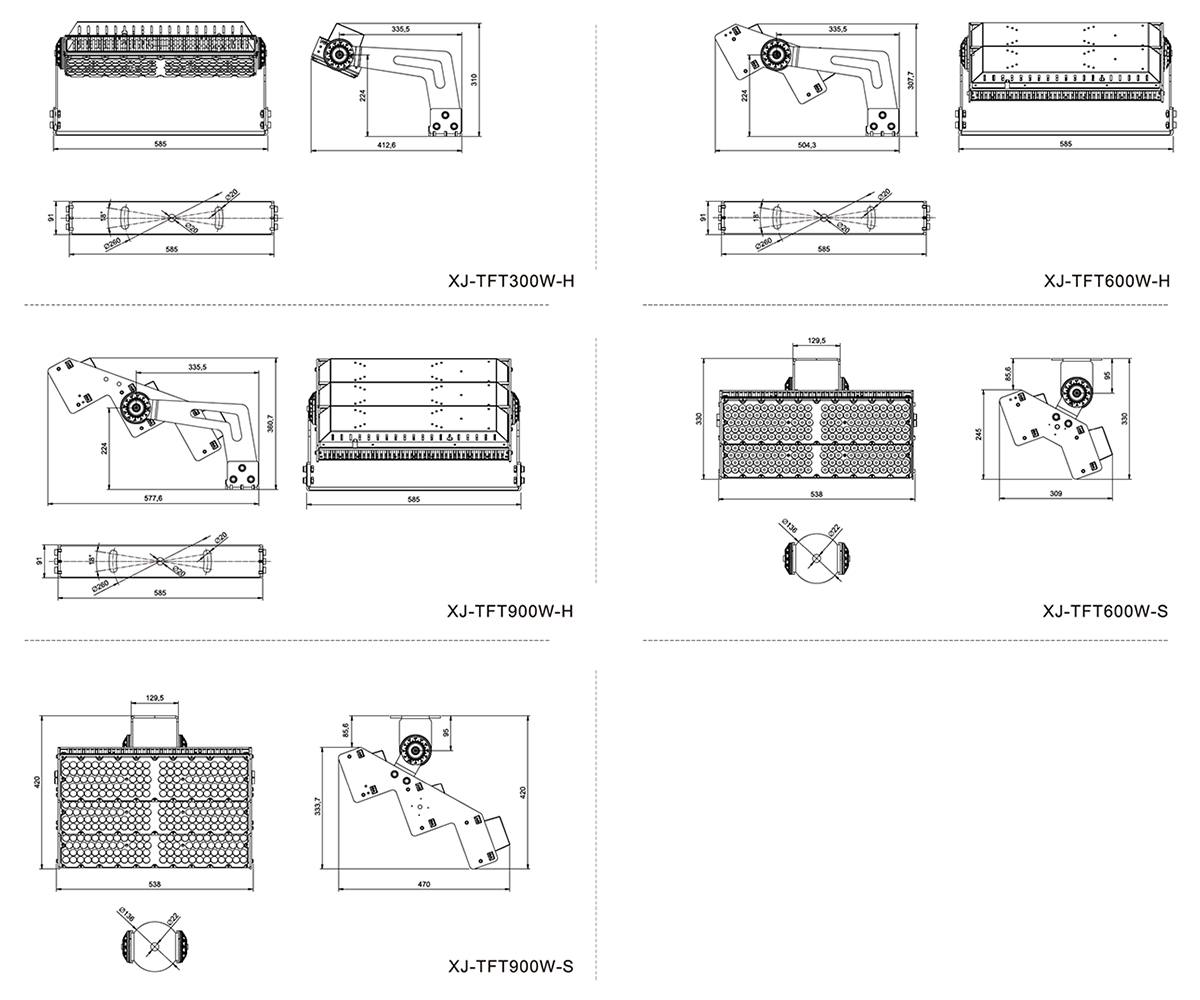

Dimension
Accessories

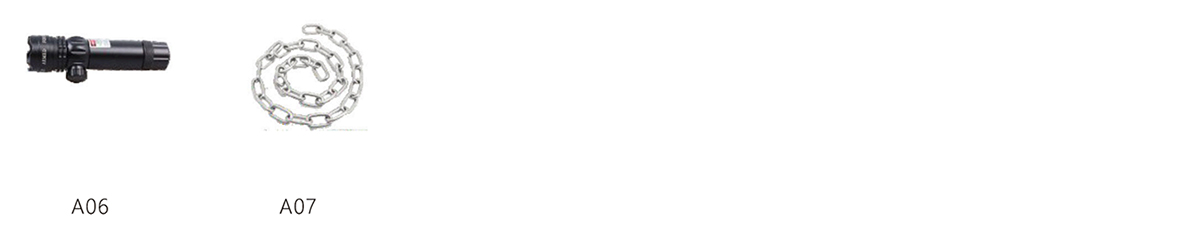

| accessories | image | material | dimensions | weight | accessory use |
|---|---|---|---|---|---|
| Optional | A06 | Aluminium | ∅ 30x120mm | 200g | Lamp angle positioning |
| Standard | A07 | SUS304 | ∅ 5x1000mm | 0.6kg | Increase the safety performance |
Installation

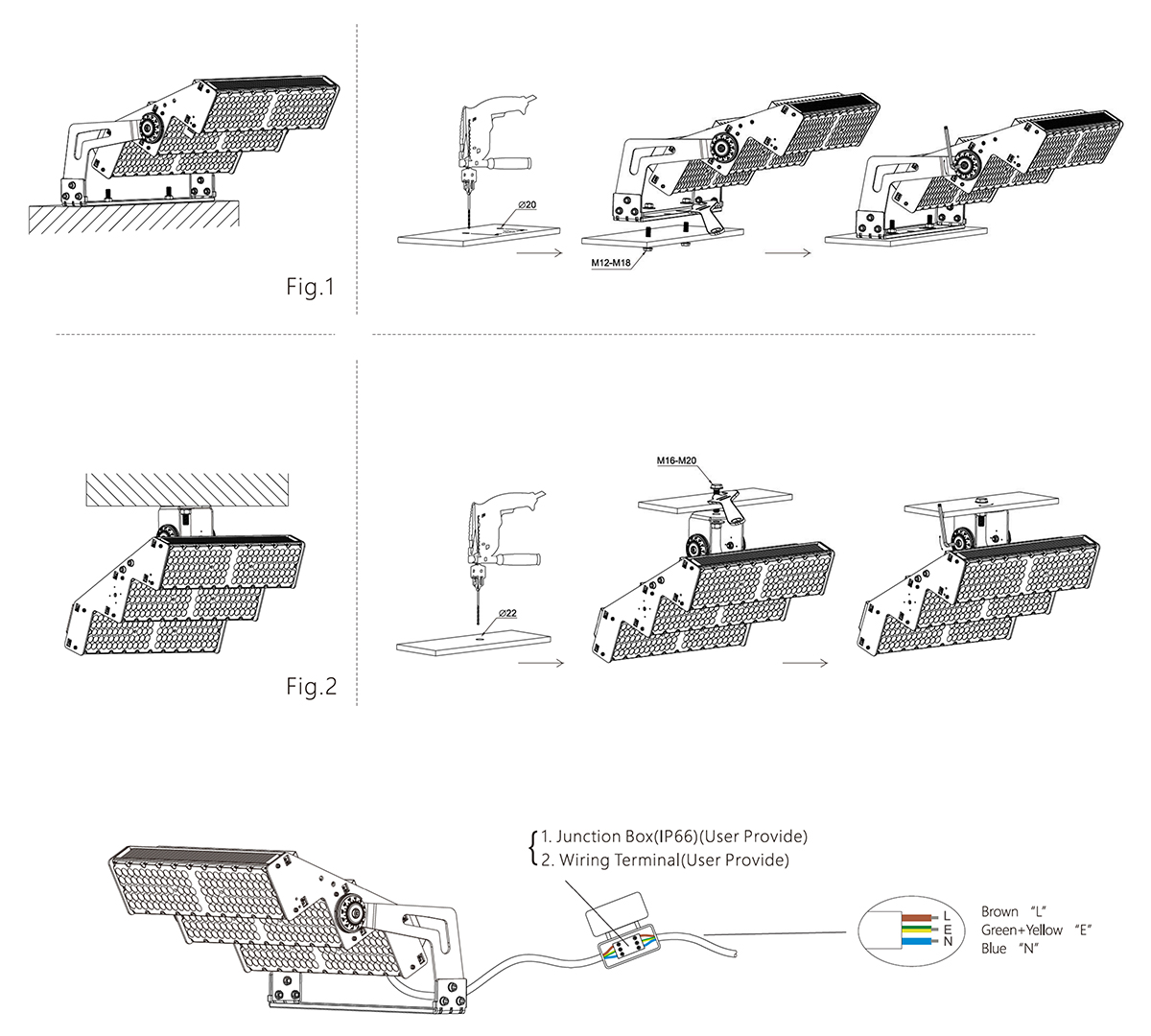

Installation steps
A: Punch two holes with a spacing of 260mm (see Fig.1).
Punch a hole with a diameter of 20mm (see Fig.2).
B: Align the hole of the lamp bracket with the installation position.
C: Secure the lamp using screws and nuts.
D. Connect the power cable.
E: Adjust the lamp angle and clean it.
Ensure the power is off before starting operations. Installation should be carried out by a skilled electrician familiar with the requirements and correct installation methods of LED luminaires to avoid damage or hazards. The external flexible cable or cord of this luminaire cannot be replaced; if damaged, the luminaire must be discarded.
Only a qualified person should replace the light source contained in this luminaire.
