TPB SERIES
2025

145-150lm/w    32W/50W/60W    120°

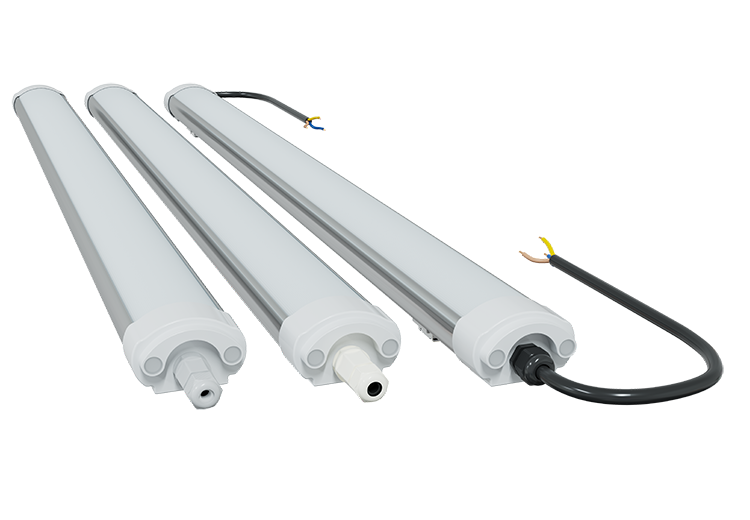

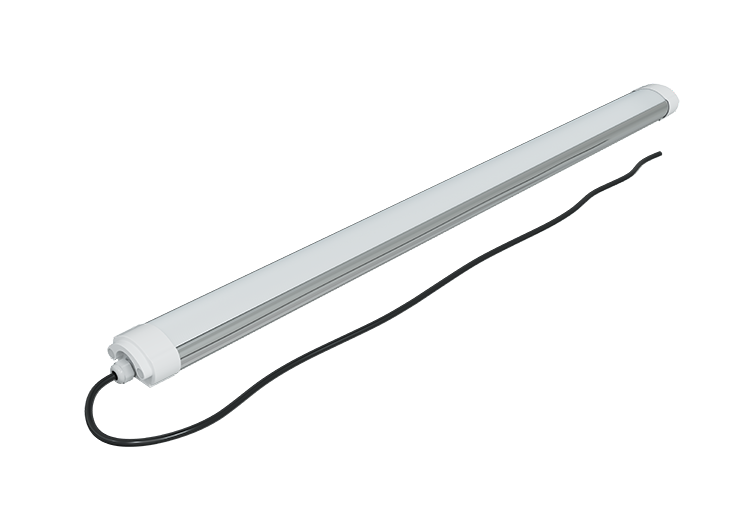

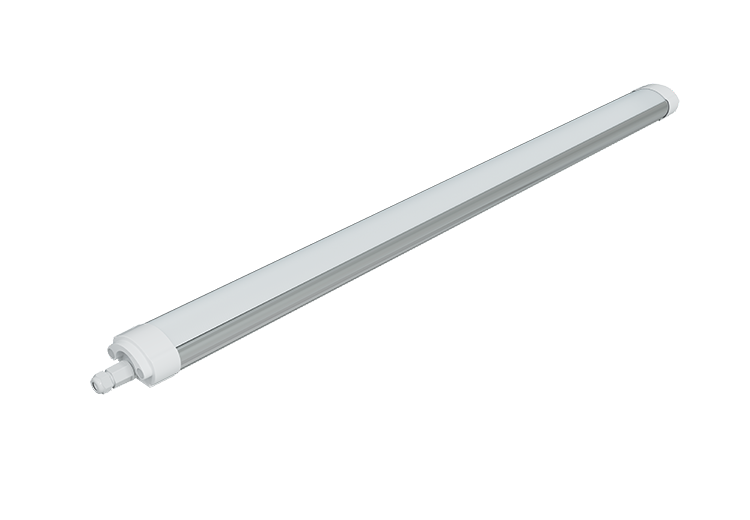

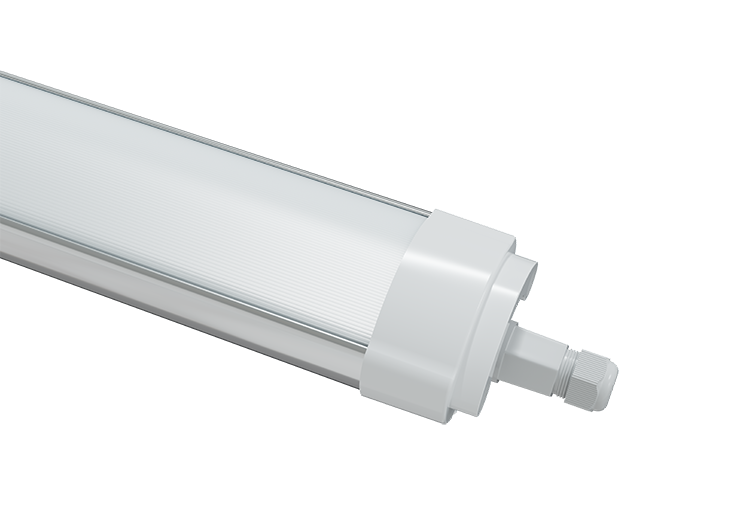

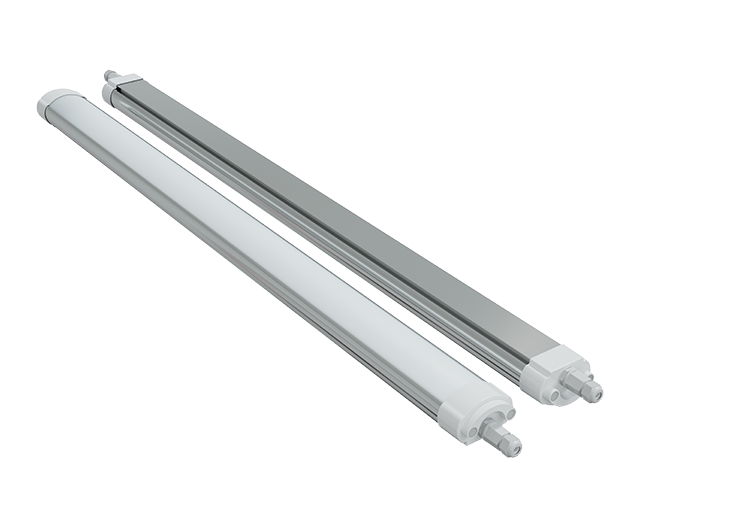

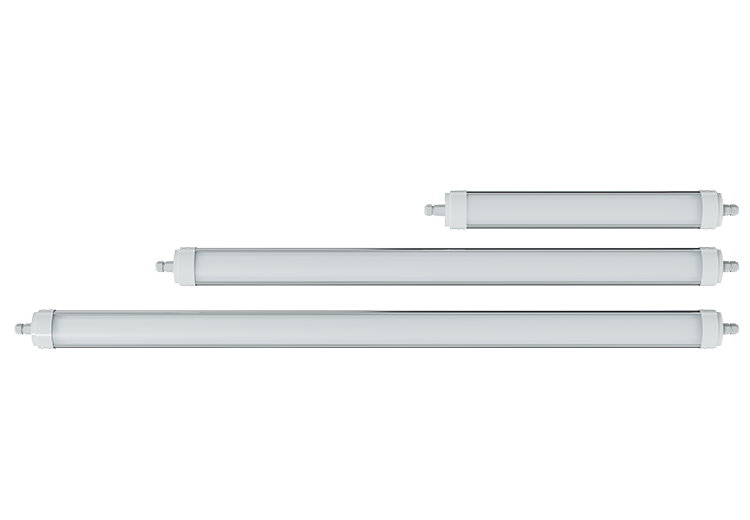

TPB SERIES LED Tri-proof lamp has a non-porous sealed design to prevent corrosion, dust, dirt, insects, moisture and bacteria. Tool-free terminal design makes installation more convenient, and with the induction function, it is more suitable for lighting in various places, such as underground parking lots, subways, factory workshops, cold storages, shopping malls, supermarkets, textile factories, anti-corrosion and other places.

  • Parameter
  • Dimension
  • Accessories
  • Installation
  • Video
  • Short Video
  • Download

Parameter

Model NO.Power (W)Luminous flux
140-150lm/w
XJ-TPB06-*W18 (Optional values)
22 (Optional values)
28 (Optional values)
32 (Typical values)
2520
3080
3920
4480
XJ-TPB12-*W28 (Optional values)
36 (Optional values)
42 (Optional values)
50 (Typical values)
4200
5400
6300
7500
XJ-TPB15-*W32 (Optional values)
40 (Optional values)
50 (Optional values)
60 (Typical values)
4800
6000
7500
9000

1. The power is adjustable and pre-set before leaving the factory. It is not recommended for users to adjust it by themselves.
2. Above lumens based on 4000K Ra:80

Light distribution curve

TPB SERIES LED Tri-proof lamp

AC Input:200-240V 50/60Hz

Brand of LED Driver:TRIDONIC

Light Source:2835

CRI Range:Ra>80

CCT Range:WW(3000K) NW(4000K) CW(5700K)

Light Efficiency:140-150±5% Lm/W

Beam Angle:120°

Housing:Aluminum Alloy+PC

Waterproof:IP66 & IK08

L80B20@25℃:>100000H

PF:≥0.95  THD<15%  Power Efficiency:≥0.9

Certifications:CE, CB

Warranty:5 Years

Light body color:White Aluminum ( RAL 9006 )

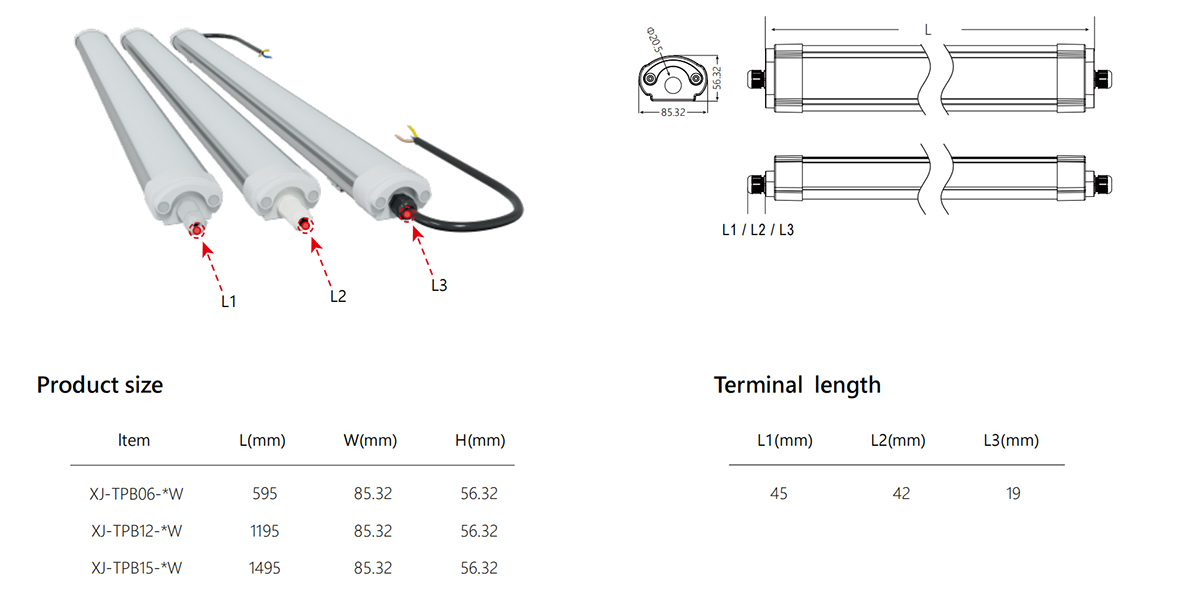

Dimension

TPB SERIES_SEEKING LED-LIGHTING LIMITED Dimension

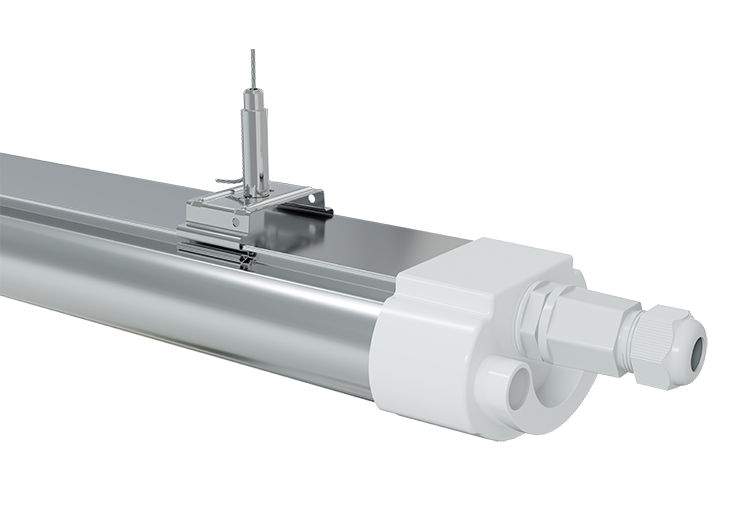

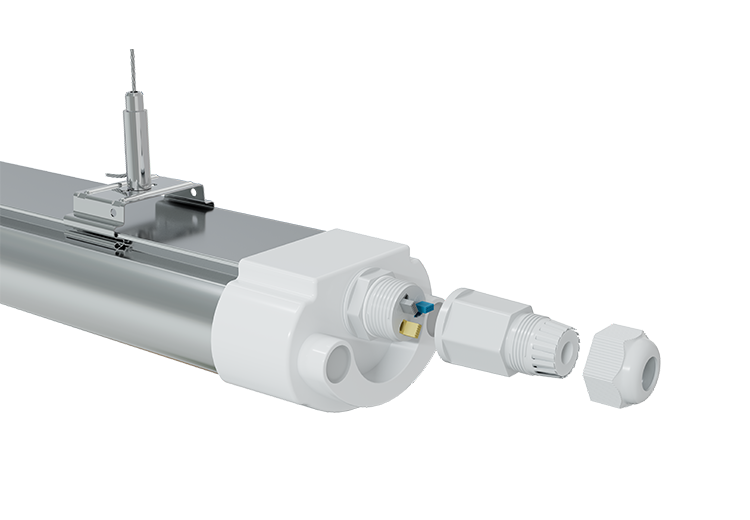

Accessories

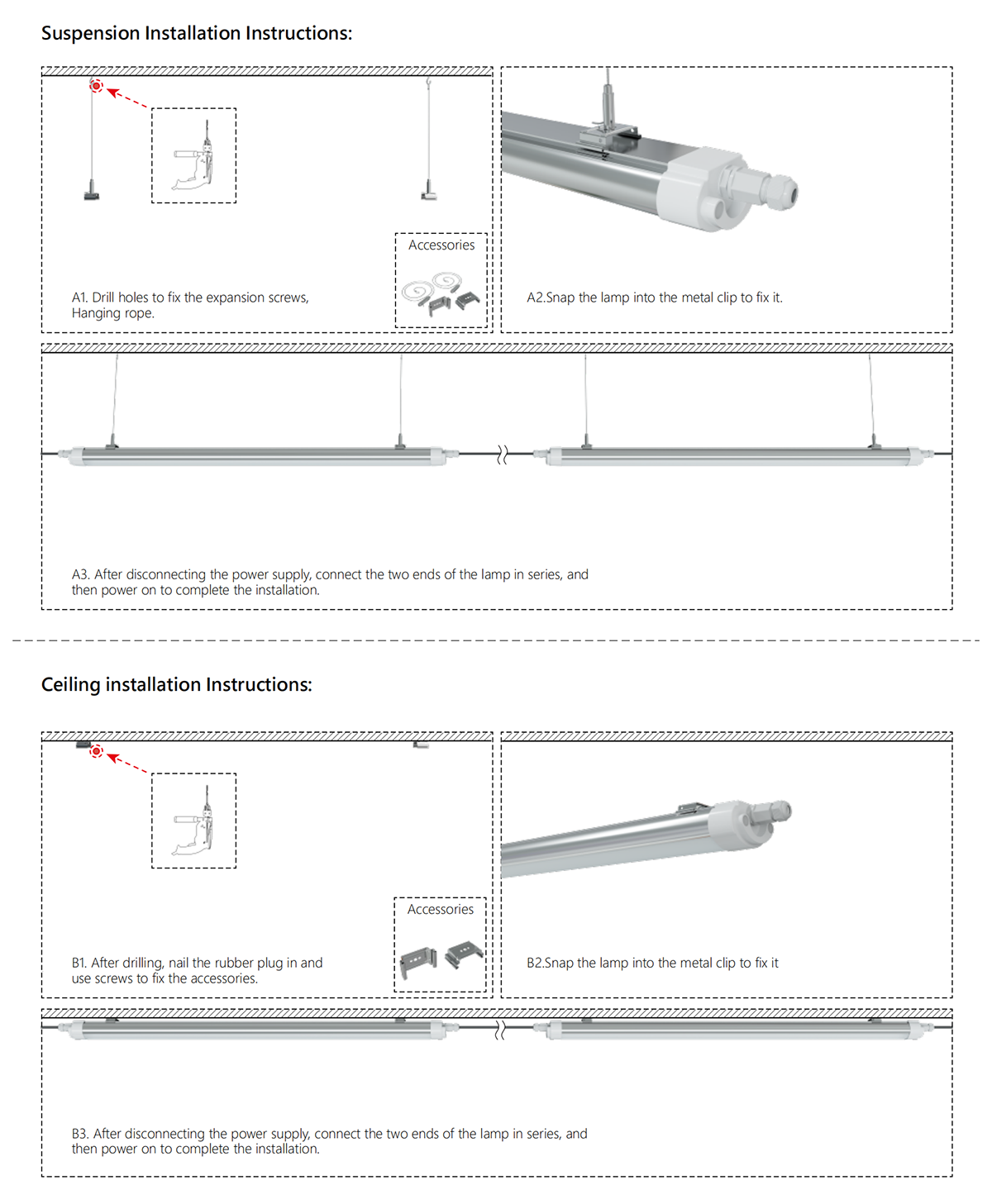

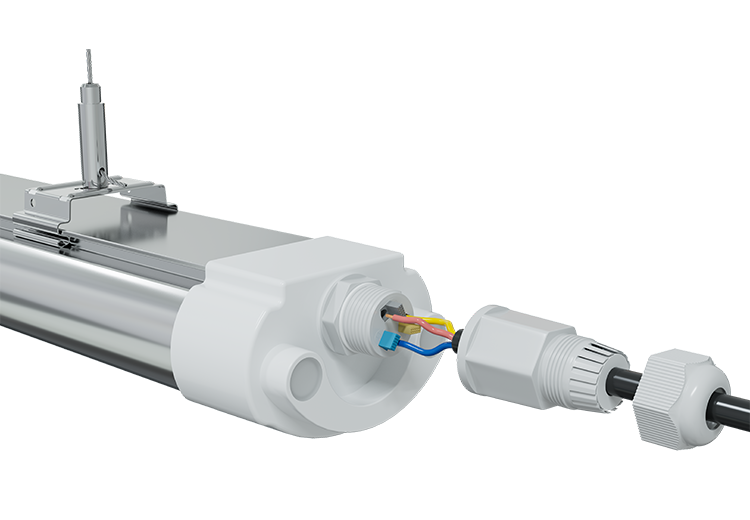

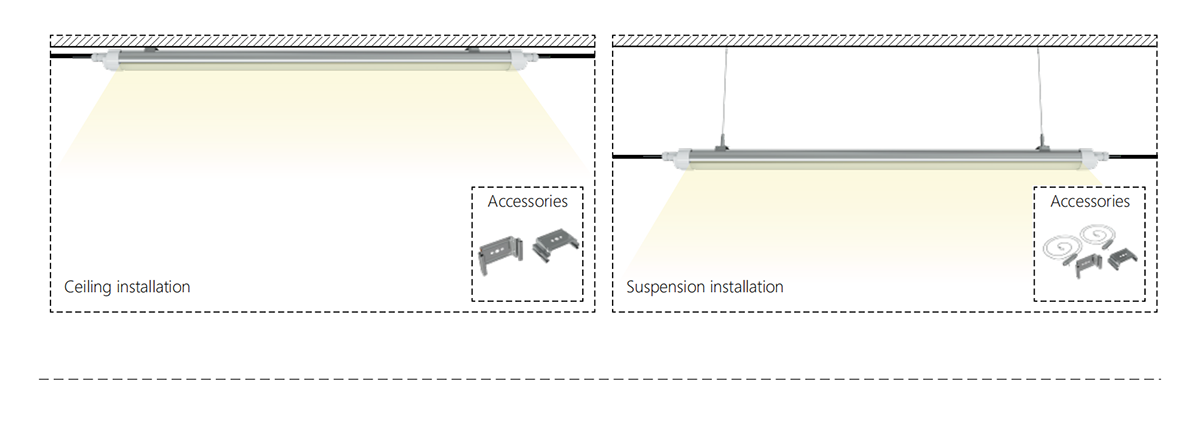

Installation

TPB SERIES LED Tri-proof lamp SPEC

TPB SERIES LED Tri-proof lamp SPEC

TPB SERIES LED Tri-proof lamp SPEC

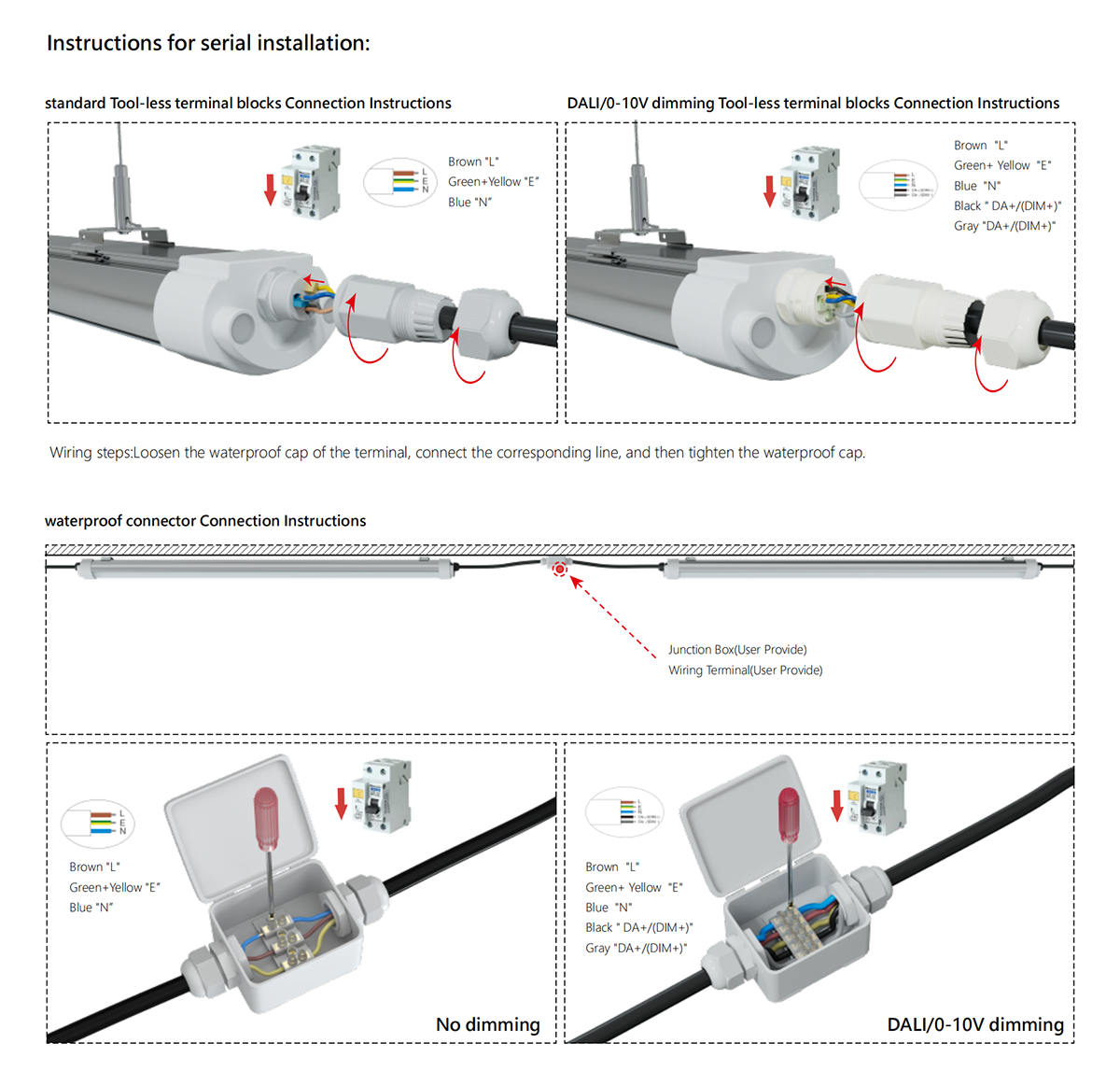

Note :

1.The diameter of the connecting wire is determined by the size of the built-in cabling of the lamp.

2. Solid cable-end (provided by the user)

3.Please make sure the power off before opertion, lnstallation must be performed by skilled electrician who are familiar with the requirements and proper installation methods of LED luminaire, in order to avoid damage or hazard
