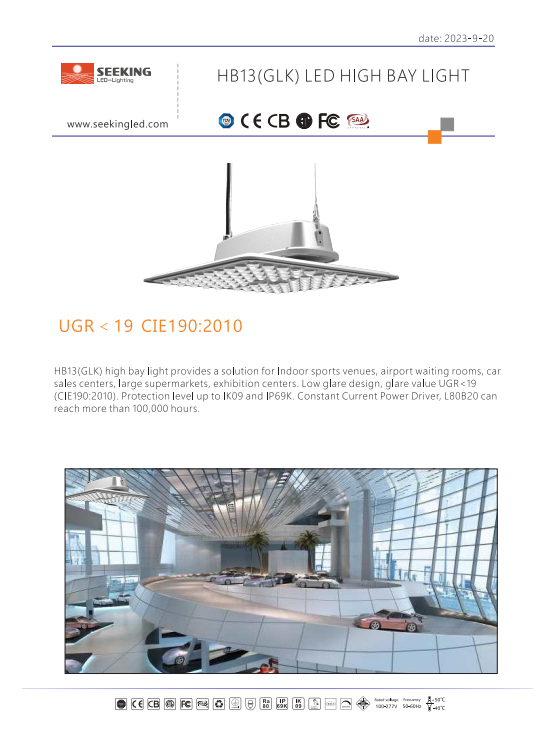

HB13(GLK) SERIES
2023
UGR < 19 CIE190:2010

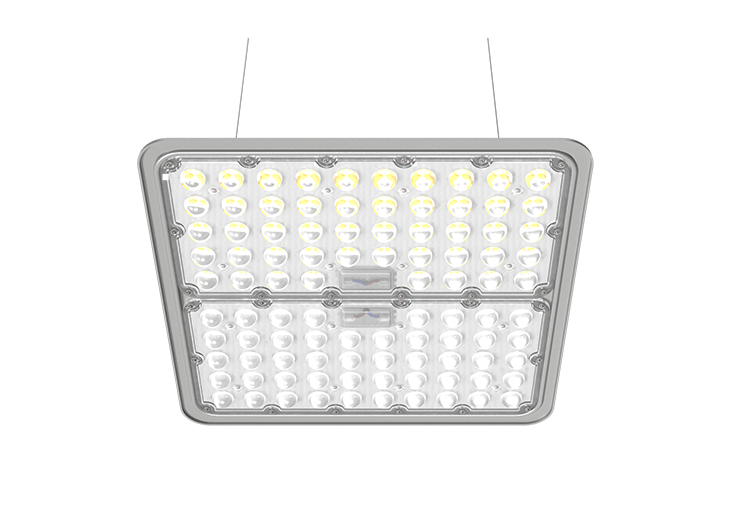

HB13(GLK) high bay light provides a solution for Indoor sports venues, airport waiting rooms, car sales centers, large supermarkets, exhibition centers. Low glare design, glare value UGR<19 (CIE190:2010). Protection level up to IK09 and IP69K. Constant Current Power Driver, L80B20 can reach more than 100,000 hours.
- Parameter
- Dimension
- Accessories
- Installation
- Video
- Short Video
- Download
Parameter
| Model NO. | Power (W) | Luminous Flux 170lm/W |
|---|---|---|
| XJ-GLK80W | 80 | 13600 |
| XJ-GLK100W | 100 | 17000 |
| XJ-GLK150W | 150 | 25500 |
| XJ-GLK200W | 200 | 34000 |
| XJ-GLK240W | 240 | 40800 |
Above lumens based on 4000K Ra:80
Light distribution curve
AC Input：100-277V 50/60Hz
Brand of LED Driver：MEANWELL / MOSO
Light Source：2835
CRI Range：Ra>80
CCT Range：NW(4000K) CW(5700K)
Light Efficiency：170±5% Lm/W
Beam Angle：90°
Housing：Aluminum Alloy
Waterproof：IP69K & IK09
L80B20@25℃：>100000H
PF：≥0.95 THD<15% Power Efficiency：≥0.9
Certifications：TUV, CE, CB, ETL, FCC, SAA

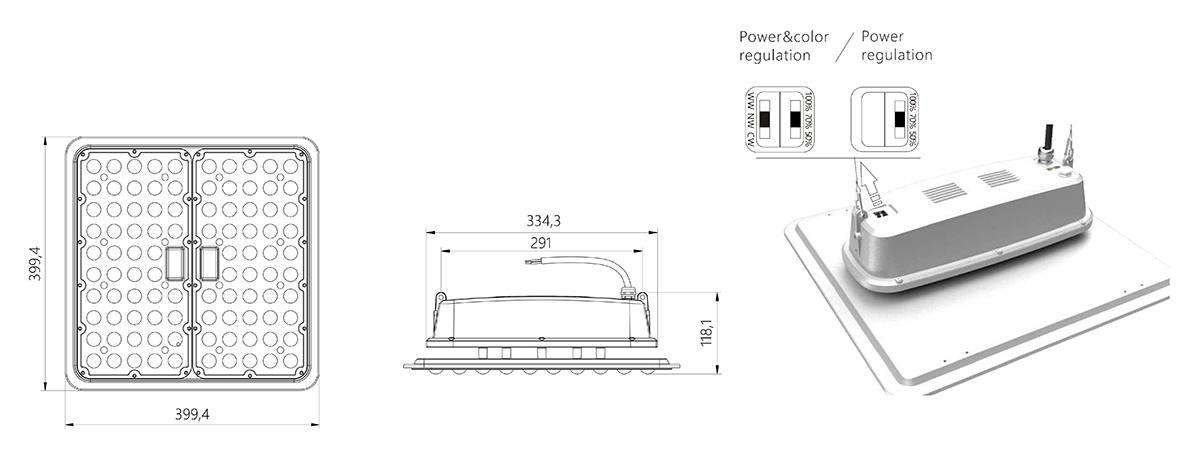

Dimension

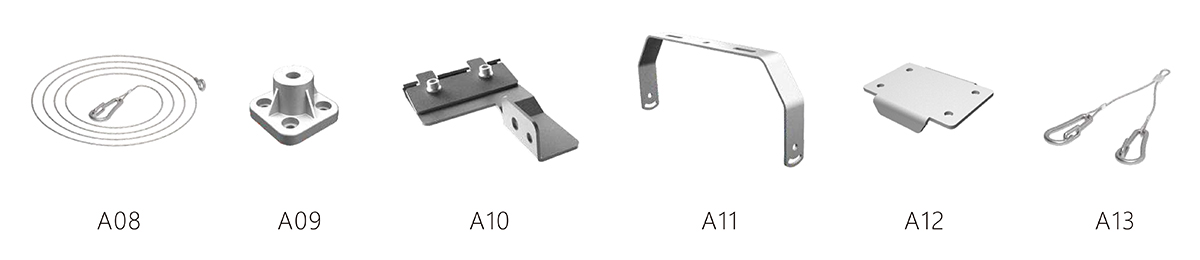

Accessories
| accessories | image | material | dimensions | weight | accessory use |
|---|---|---|---|---|---|
| Optional | A08 | SUS304 | ∅ 2.0x1000mm | 0.04kg | Suspension installation |
| Optional | A09 | ADC12 | M10 | 0.05kg | Hang pipe installation |
| Optional | A10 | carbon steel | 76.5×25×115mm | 0.15kg | Steel wire installation |
| Optional | A11 | carbon steel | 318×133×32mm | 0.38kg | Bracket installation |
| Optional | A12 | carbon steel | 66×50×10mm | 0.06kg | Fixation of lamp bridging |
| Optional | A13 | SUS304 | ∅ 2.0×300mm | 0.04kg | Suspension installation |

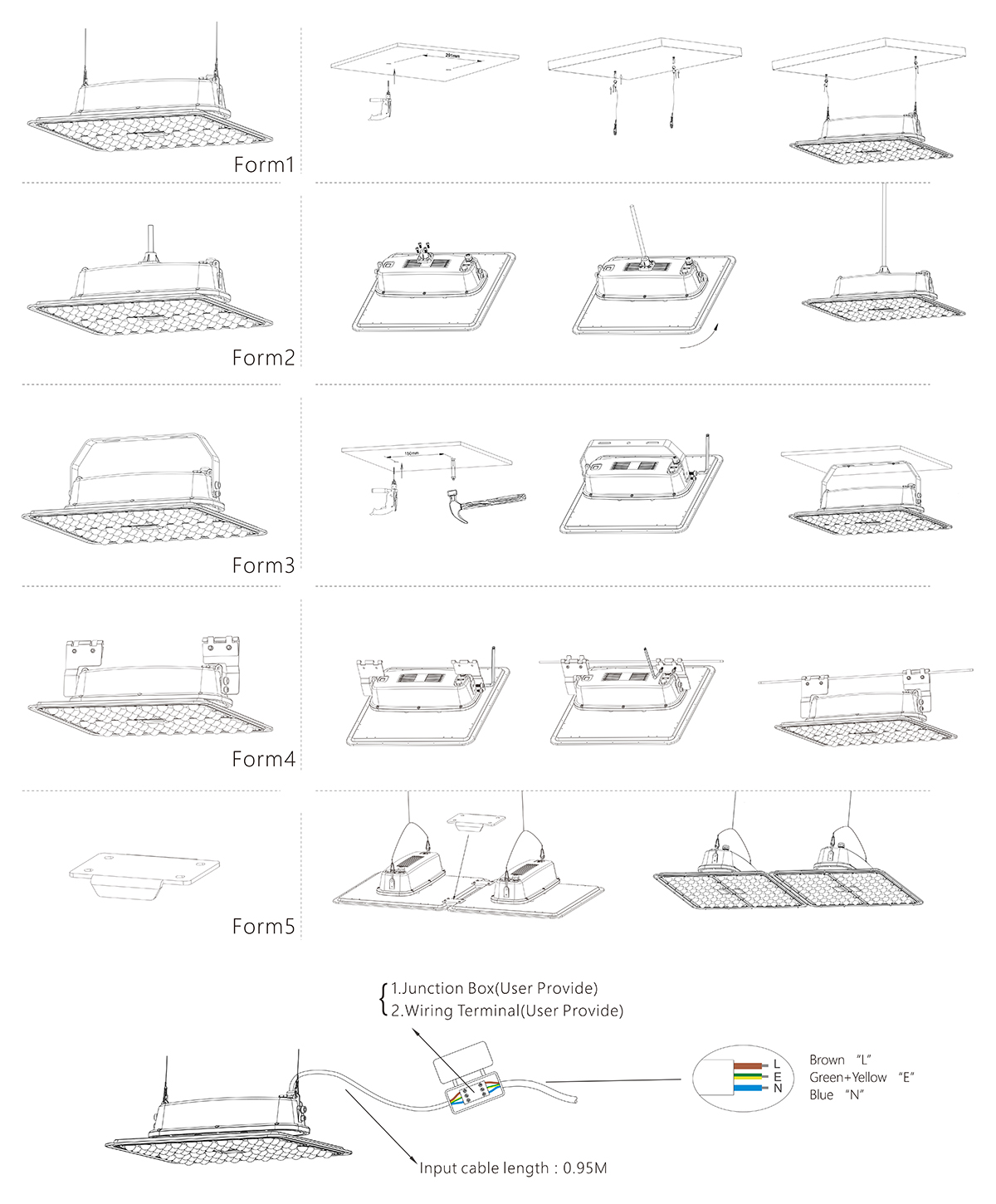

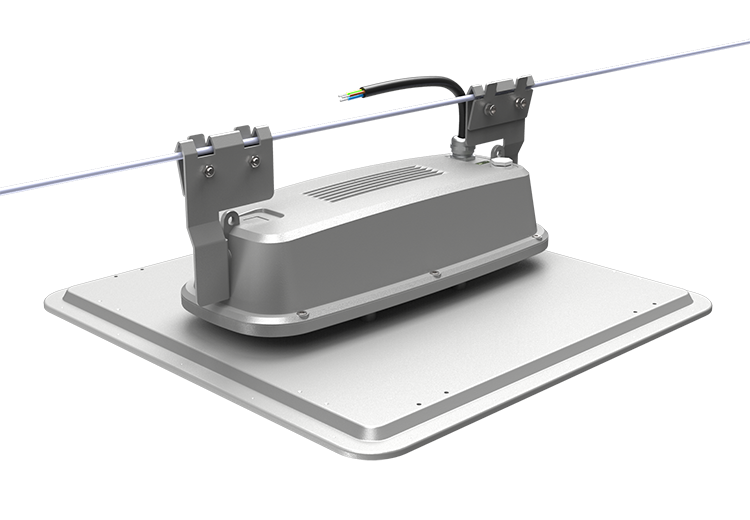

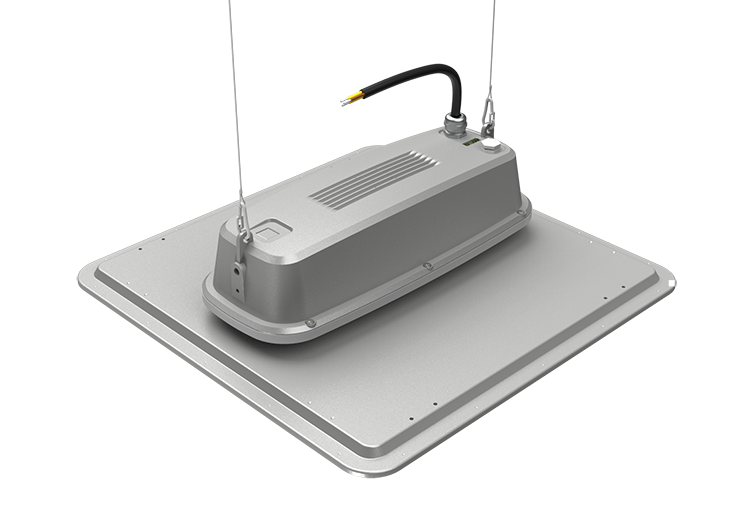

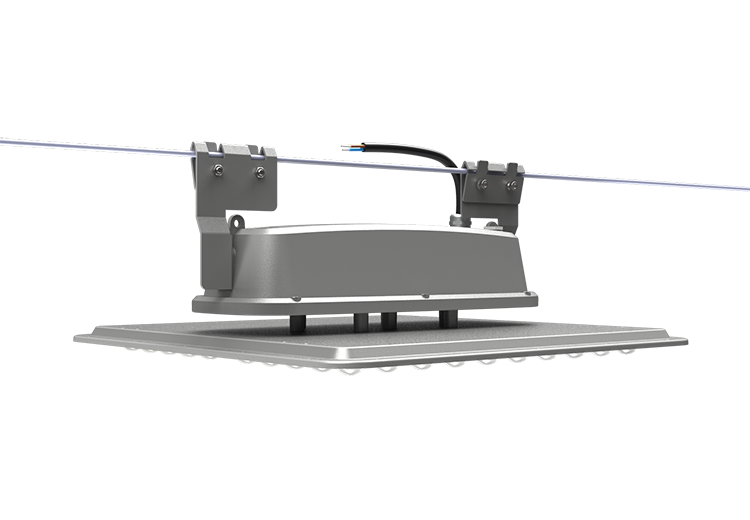

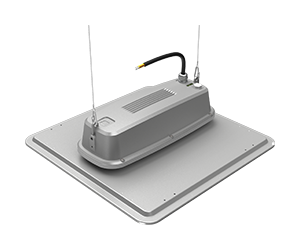

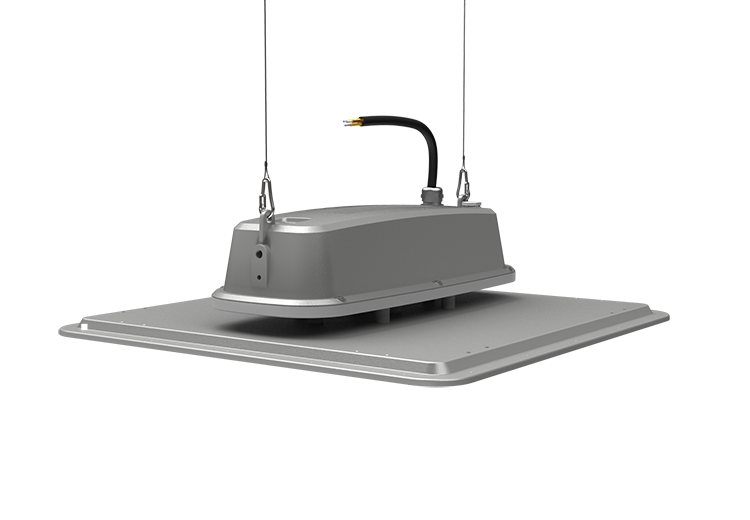

Installation
Note: Please make sure the power is off before operation. Installation must be performed by skilled electricians who are familiar with the requirements and proper installation methods of the LED luminaire. To avoid damage or hazard, the external flexible cable or cord of this luminaire can not be replaced, if the cord is damaged, the luminaire must be destroyed. The light source contained in this luminaire shall only be replaced by a qualified person.
