high bay LED lights

HBI SERIES

The SEEKINGLED HBI Series high bay LED lights were developed for industrial projects where energy savings, long maintenance cycles and realistic budgets all have to be balanced. Instead of pushing cost at the expense of thermal design, the HBI Series uses a die-cast aluminum heat sink with wide fins and a flicker-free SOSEN driver, so the fixture keeps its efficiency even in long daily operating hours.

Available from 60 W up to 240 W, each power level has several built-in flux versions, reaching up to 200 lm/W (depending on configuration). For warehouse operators and contractors, this normally means fewer fixtures per hall and noticeably lower energy consumption compared to conventional mercury or metal halide industrial lamps.

HBI adopts IP65 protection and IK08 resistance, suitable for dusty production floors and distribution depots. A microwave motion sensor interface is reserved for plug-and-play use in logistics aisles or stacking zones, so lights only go to full output when movement is detected — a practical advantage in facilities where traffic is periodic rather than continuous.

SEEKINGLED has passed CE and CB testing for the HBI Series, which is why the product already appears in distribution, wholesale and industrial refurbishment programs across different regions.

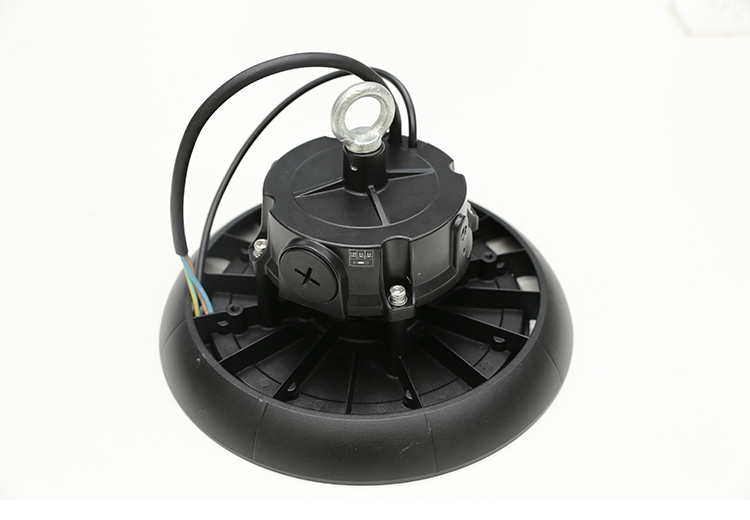

Die-cast aluminum heat sink with wide fins for long-term thermal performance in industrial halls
Light output up to 200lm/W (model dependent), helping reduce fixture quantity in mid-to-high ceiling applications
SOSEN flicker-free driver, CRI>80, IP65, IK08 for dusty or semi-harsh environments
4000K and 5700K colour temperature options suitable for both production and warehouse lighting
Microwave motion sensor interface for plug-and-play energy saving control (optional)
Multiple power ranges from 60W to 240W, designed for warehouse aisles, logistics centers and production workshops
L80B20 >100,000 hours and 5-year support from SEEKINGLED

Technical Specifications:

AC Input100-277V 50/60Hz
Brand of LED DriverSOSEN
Luminous efficiency140/160/180 lm/W
Mounting TypeSuspension mounted
Standards60598-2-1, 60598-1

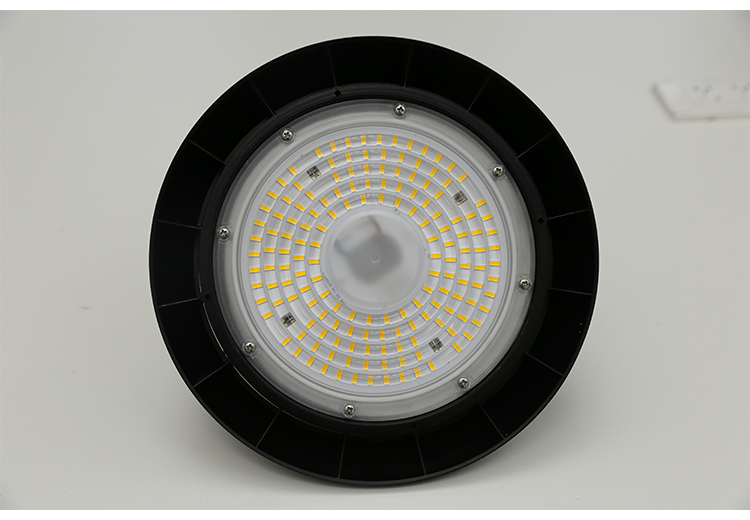

Light SourceSMD 2835
CRI RangeRa>80
Colour Temperature4000K / 5700K
Operating Temperature-40°C / +50°C

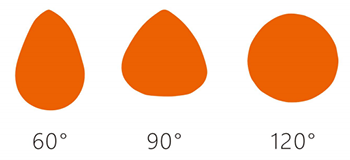

Beam Angle90°(60°/120° optional)
Microwave Sensoroptional
System Lifetime>100,000h
Power Efficiency97%
Power Factor>0.95
CertificationsCE, CB

Get Samples

High Bay LED Lights Parameter

Model NO.

XJ-HBI100W
XJ-HBI150W
XJ-HBI200W
XJ-HBI240W

Power (W)

60/80/100
100/120/150
120/150/200
150/200/240

Luminous Flux (lm)@max. watt

14000/16000/18000
21000/24000/27000
28000/32000/36000
33600/38400/43200

Light distribution curve

Above lumens based on 5700K Ra:80

HBI Series-High Bay LED Lights SPEC

Download

Need Help? Start Here..

Get Samples

FAQs – High Bay LED Lights – HBI Series

What are the HBI Series high bay LED lights used for?

HBI is mainly used in warehouses, factory halls, production lines, logistics centers, large wholesale sheds and other sites with mounting heights typically above 6 metres.

Which wattage should I choose for my project?

The HBI Series has configurations ranging from 60W up to 240W with several lumen options. Lower wattages are often applied to storage aisles, while higher wattages cover open production floors or higher ceiling ranges.

Are these industrial fixtures efficient enough to replace older lamps?

Yes. Many warehouse owners replace 250W~400W metal halide units using HBI between 100W and 200W depending on lux targets. The high efficiency (up to 200lm/W) usually means fewer fixtures or lower running cost.

Does the HBI Series support sensor control?

A microwave motion sensor interface is reserved. With the correct sensor model the fixture can dim automatically when no movement is detected. This is especially useful in logistics aisles and buffer areas.

Can I mount this high bay using a hook or chain?

Yes, HBI is mainly suspension mounted. Most customers use chain or hook systems above racking or open floor areas.

What type of LED and driver does the HBI use?

It uses SMD 2835 LEDs together with a SOSEN flicker-free driver.

Is the HBI Series suitable for dusty warehouses?

Yes. IP65 protects against dust and water spray, and IK08 provides impact resistance.

How long is the expected lifetime?

SEEKINGLED designs HBI for long-term industrial operation, with a system expectation above 100,000 hours (L80B20 under standard conditions).

What certifications are available?

HBI has CE and CB certification and follows 60598-2-1 and 60598-1 standards.

Can these high bay LED lights be used in wholesale distribution projects?

Yes, this series was specifically developed with distribution and project markets in mind, giving contractors a balance of optical performance, robust construction and realistic pricing.
