Sports Stadium LED Lighting-High Mast & Stadium Lighting

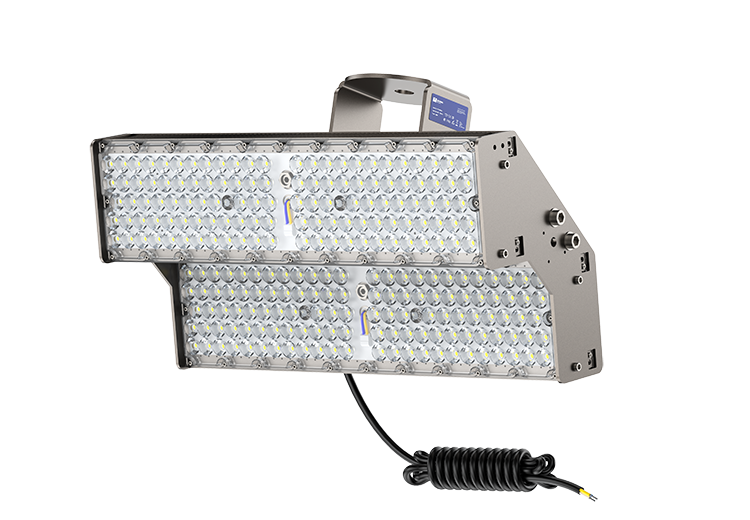

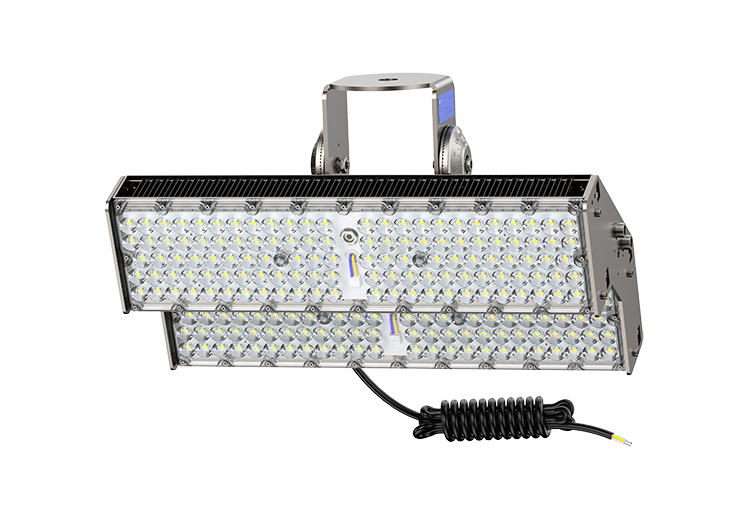

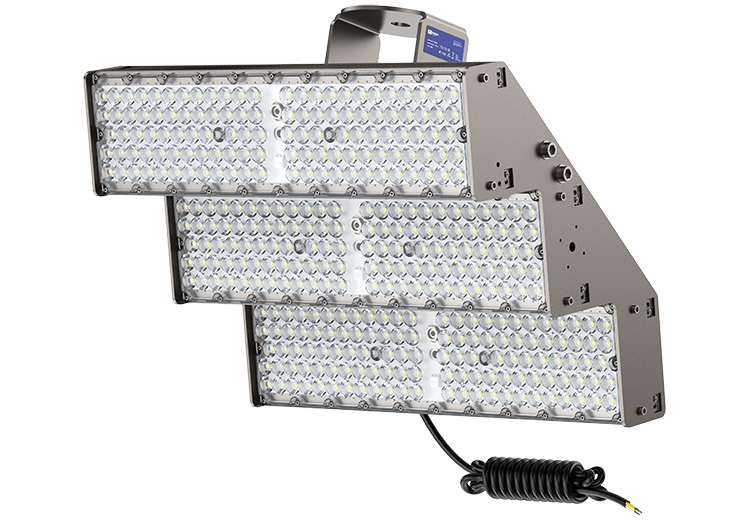

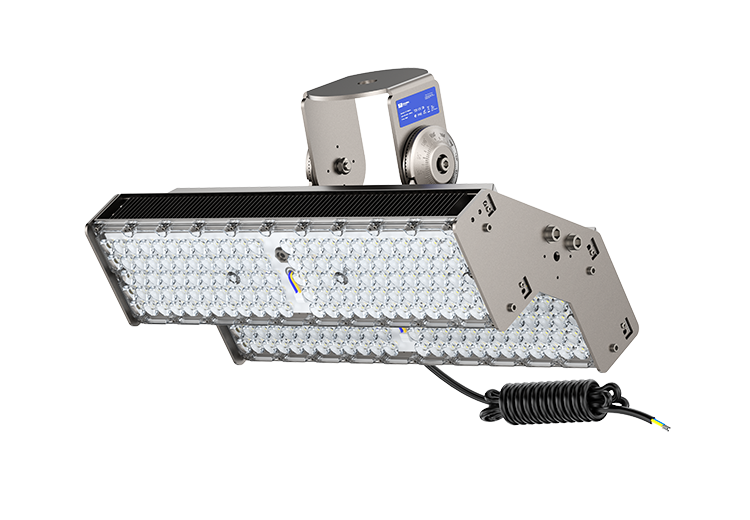

TFT SERIES

The TFT Series sports stadium lighting from SEEKING is developed for large-scale outdoor lighting projects where height, distance, and precision matter. It is commonly used on high poles and stadium structures, where stable output and controlled beam angles are critical for player visibility and audience comfort.

This series offers power options from 300W up to 900W, delivering strong lumen output with an efficiency of around 160 lm/W. Multiple optical options, including narrow and wide beam angles, make it easier to adapt the same fixture to football fields, athletics tracks, ports, airports, or large industrial yards.

The housing is built from heavy-duty aluminum alloy with IP66 waterproof and IK08 impact protection. Combined with a MEAN WELL constant current driver and 10kV surge protection, the TFT Series is designed to operate reliably in demanding outdoor environments for many years, even under frequent switching and unstable power conditions.

Technical Specifications:

AC Input100-277V 50/60Hz
Brand of LED DriverMEANWELL
Light Source5050 (LUMILEDS) / 3737 (OSRAM P8) (10°)
CRI RangeRa>80
CCT RangeNW(4000K)，CW(5700K)
Light Efficiency150±5% Lm/W

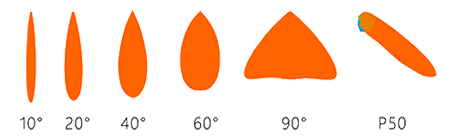

Beam Angle10° / 20° / 40° / 60° / 90° / P50
HousingAluminum Alloy
Surge Protection10kV
WaterproofIP66 & IK08
L80B20@25℃>100000H
PF≥0.95 THD
CertificationsTUV, ENEC, CE, CB
Warranty5 Years
Light body colorWhite Aluminum( RAL 9006 )

Get Samples

TFT SERIES – Sports Stadium Lighting Parameter

Model NO.

XJ-TFT300W-*
XJ-TFT600W-*
XJ-TFT900W-*

Power (W)

Luminous Flux 160lm/W

45000
90000
135000

Light distribution curve

Above lumens based on 4000K Ra:80

TFT SERIES – Sports Stadium Lighting ProductSheet

Download

Need Help? Start Here..

Get Samples

FAQs – Sports Stadium Lighting – TFT Series

What type of projects is the TFT Series sports stadium lighting designed for?

The TFT Series sports stadium lighting is mainly designed for stadiums, sports fields, large arenas, and high-mast lighting projects. It is also widely used in ports, logistics centers, airport aprons, mining areas, and other wide open spaces where lighting must cover long distances from high mounting points.

What makes this sports stadium lighting suitable for high poles?

The key advantage is the combination of high lumen output and multiple beam angle choices. Narrow beam options like 10° and 20° allow the light to reach the ground efficiently from tall poles, while wider angles are used to fill surrounding areas evenly without dark spots.

How do I choose between 300W, 600W, and 900W models?

The choice depends on pole height, installation layout, and required lux levels. Lower wattages such as 300W are often used for medium-height poles or auxiliary lighting, while 600W and 900W models are typically selected for main stadium lighting or very high mast installations above 25–40 meters.

Can this sports stadium lighting reduce glare for players and spectators?

Yes. The TFT Series uses professional optical lenses to control light distribution. By selecting the correct beam angle and mounting position, glare toward players, referees, and audiences can be effectively reduced while keeping the field evenly lit.

Is the TFT Series suitable for outdoor weather conditions?

This sports stadium lighting fixture is rated IP66 for water and dust resistance and IK08 for impact protection. It is designed to handle rain, dust, wind, and temperature changes commonly found in outdoor stadium environments.

What LED chips and drivers are used in this sports stadium lighting?

The TFT Series uses high-quality 5050 LED chips, with optional OSRAM P8 chips for specific narrow-beam applications. The driver is from MEAN WELL, known for stable performance, long lifespan, and strong surge protection capability.

How long is the expected lifetime of the TFT Series?

Under normal operating conditions, the TFT Series sports stadium lighting is designed with an L80B20 lifetime of over 100,000 hours. This means reduced maintenance frequency and lower long-term operating costs for large projects.

What color temperatures are available?

Standard options include 4000K neutral white and 5700K cool white. These color temperatures are commonly used in sports stadium lighting to ensure good visibility, accurate color rendering, and clear camera recording during events.

Can the TFT Series be used for retrofit projects?

Yes. The TFT Series is suitable for both new installations and retrofit projects where traditional metal halide or older LED floodlights are being replaced. In many cases, fewer fixtures are needed to achieve the same or better lighting levels.

What warranty does SEEKING provide for this sports stadium lighting?

SEEKING provides a 5-year warranty for the TFT Series. This covers the luminaire and driver under normal usage conditions, offering long-term confidence for stadium owners, contractors, and project developers.
