UFO LED High Bay Lighting

HBD SERIES

The HBD Series LED High Bay Lighting from SEEKINGLED was created for places where lights are expected to work every single day without much attention—busy production floors, tall warehouse aisles, logistics hubs and even large indoor public spaces like airport halls or mall atriums. Instead of trying to make the thinnest or most decorative housing, SEEKINGLED focused on something more important: a high bay that keeps running steadily, gives strong illumination, and doesn’t need frequent replacement.

At the core of the HBD design is its 160 lm/W ±5% optical performance, driven by efficient 2835 LEDs. Whether you choose 100W, 150W, 200W or 240W, the lumen output covers a broad range of industrial applications—from mid-height assembly lines to tall storage racking where strong penetration is needed. Many older metal-halide or sodium fixtures can be replaced one-to-one while cutting energy use dramatically.

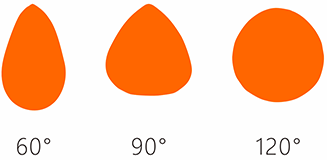

The series offers 60°, 90° and 120° beam angles, giving lighting designers some flexibility based on spacing and mounting height. Narrow beams work well for high shelves or tall hangars, while the wider 120° beam spreads light more evenly in open production zones.

A strong highlight of the HBD Series is the IP66 & IK08 protection level. Dust, airborne particles, humidity and the occasional bumps from forklifts or tools are all common in industrial settings. The aluminum alloy housing handles these conditions without degrading quickly. Inside, a SOSEN constant-current driver keeps the fixture stable even under long operating hours, with a high PF and low THD that help avoid electrical issues in older buildings.

With colour temperatures available in 4000K neutral white and 5700K cool white, project owners can match lighting to task requirements—4000K for more comfortable work areas, and 5700K for high-clarity inspection or logistics zones.

Rated at L80B20 > 100,000 hours, the HBD Series is built for long-term service with minimal intervention. For facilities that run lights 10–20 hours a day, this reliability becomes a major cost advantage over time. And with certifications such as TUV, CE and CB, the fixture meets the expectations needed for international procurement and engineering projects.

In short, the SEEKINGLED HBD Series offers a dependable form of led high bay lighting—the kind you can install once and expect to run smoothly for years.

• AC Input100-277V 50/60Hz
• Brand of LED DriverSOSEN
• Light Source2835
• CRI RangeRa>80
• CCT RangeNW(4000K) CW(5700K)
• Light Efficiency160±5% Lm/W
• Beam Angle60° , 90° , 120°
• HousingAluminum Alloy
• WaterproofIP65 & IK08
• L80B20@25℃>100000H
• PF≥0.95 THD<15% Power Efficiency：≥0.9
• CertificationsTUV, CE, CB
• Warranty5 Years
