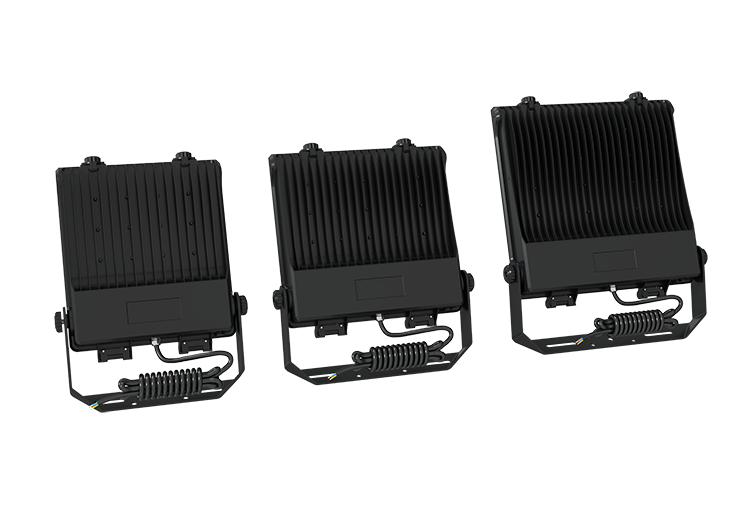

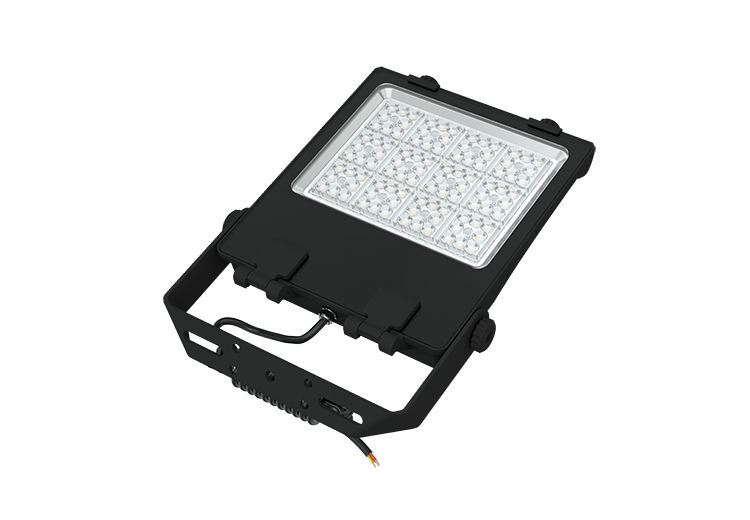

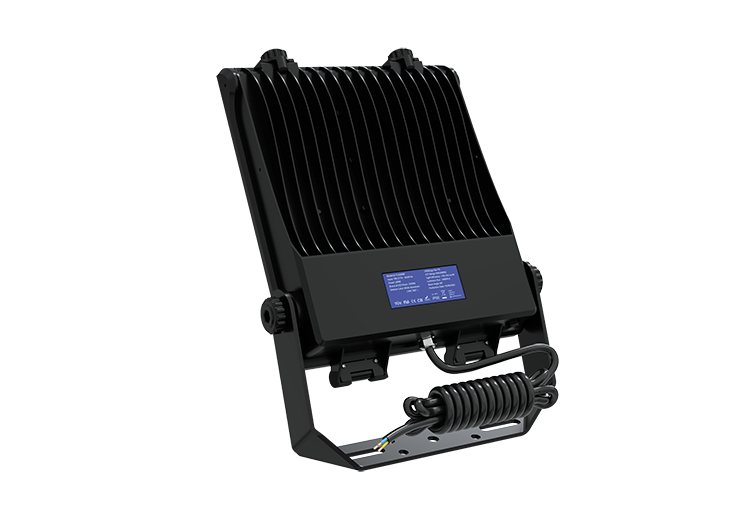

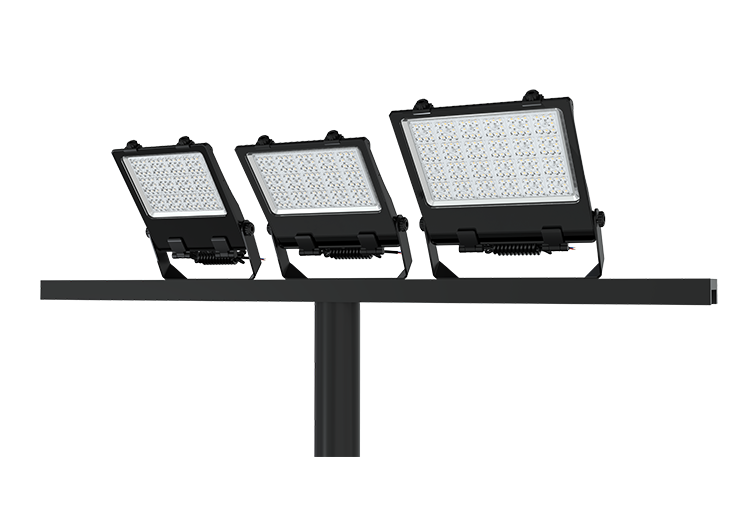

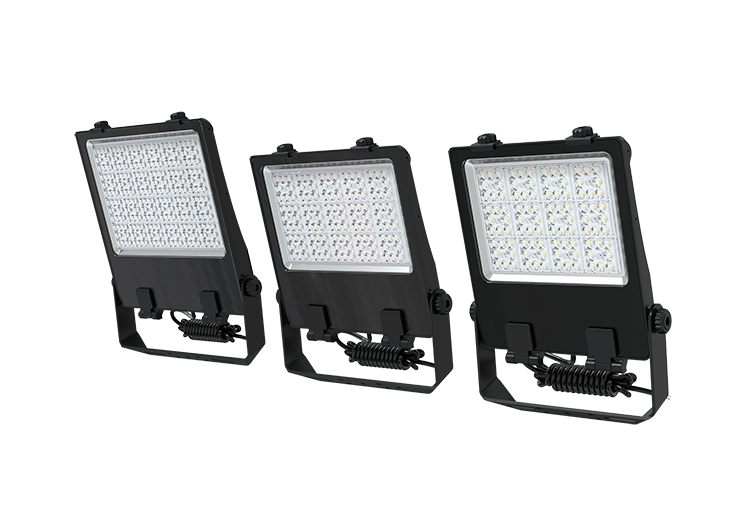

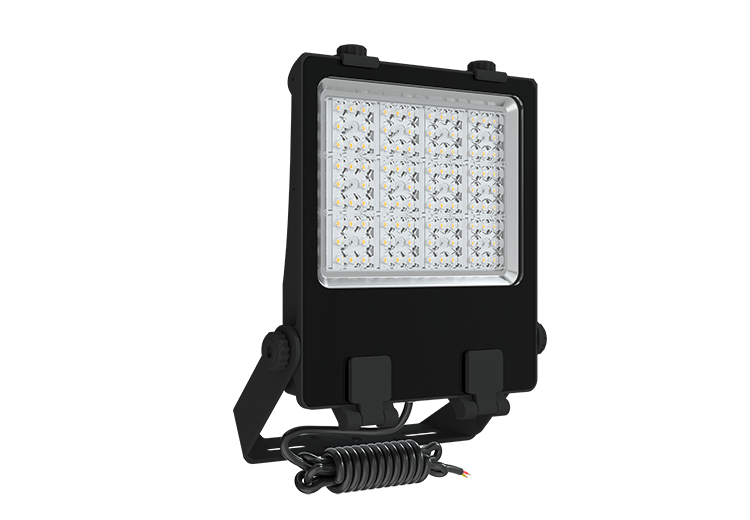

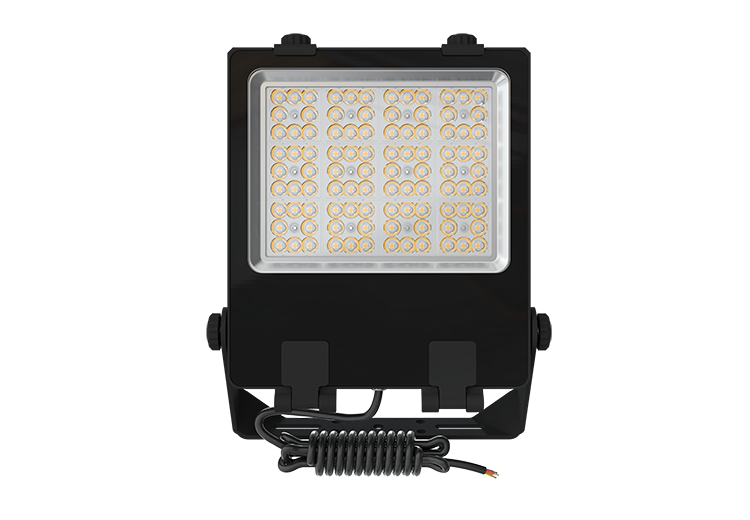

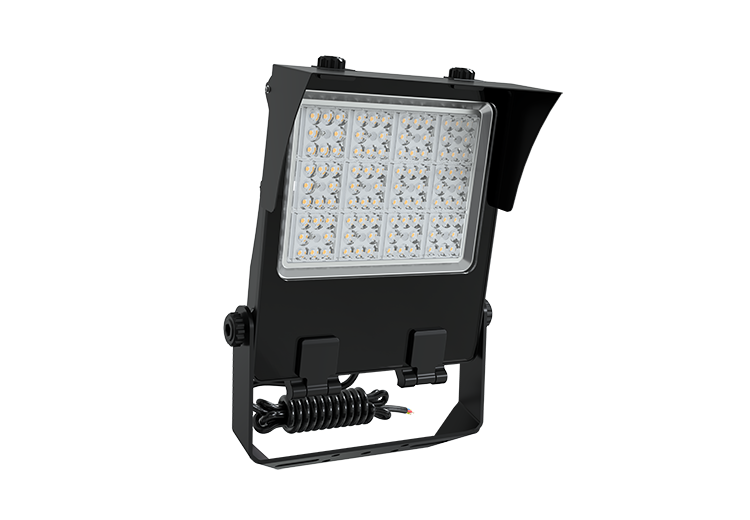

FLX SERIES

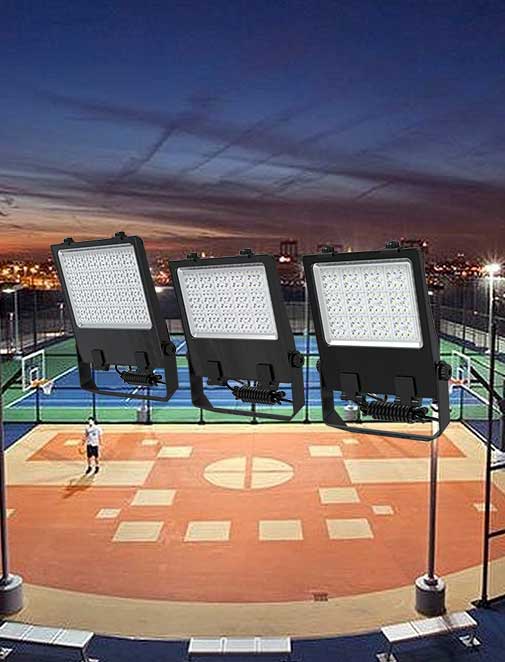

The FLX Series from SEEKING is built for outdoor projects where you need a strong, durable LED Flood Light Outdoor capable of staying in use for long hours every night. Recreational sports fields, school courts, building surroundings and general area lighting are typical sites. The overall design focuses on beam flexibility and high output rather than decorative effects, which makes the FLX a practical choice for lighting engineers working on open spaces.
Power ratings go from 100W up to 400W, each based on high-efficiency 5050 LED packages. With a nominal 170 lm/W, the FLX Series can often deliver the same usable ground illumination with fewer fixtures compared with older HID models. In many retrofit installations, customers reduce the total number of luminaires without sacrificing brightness.
Optical choice is wide: 20°, 40°, 60°, 90°, P50 and 30×70°. Narrow beams are suited to hitting sports markings while wide patterns help distribute light over parking areas, leisure squares or loading zones. The body is aluminum alloy with IK08 and IP66, able to handle outdoor conditions such as dust, rain and temperature cycles during the year.
Typical real-world applications include school basketball courts, community tennis areas, small football training grounds, industrial perimeters, warehouse fronts, or any outdoor zone that needs dependable light at night.
Model NO.
Power (W)
Luminous Flux 170lm/W

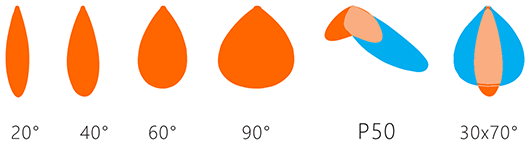

Light distribution curve
Above lumens based on 4000K Ra:70
The FLX range is chosen for medium outdoor sports areas, building surroundings, parking zones and sites where good lighting uniformity matters. It’s strong enough for community sports and general outdoor use.
With around 170lm/W, the FLX Series high quality outdoor led flood lights often replaces higher-power metal halide lamps. Many projects reduce electricity consumption simply because each luminaire gives more output per watt.
Narrower beams such as 20° or 40° are good for hitting court lines and reducing spill light. Wider patterns like 60° or 90° are useful for open yards or public areas. The 30×70° beam helps cover long rectangular fields.
The housing comes with IP66 and IK08, so it handles typical outdoor humidity and rain exposure. If the site is close to the sea, SEEKING can give advice on maintenance and installation to extend surface longevity.
Not necessarily. It depends on mounting height and how bright the court needs to be. Some schools prefer 300W, while training areas or multi-purpose spaces use 400W for more coverage.
The FLX Series supports 3000K warm white, 4000K neutral white, and optional 5000K or 5700K. Outdoor recreation and commercial sites commonly select 5000K or 5700K because visibility feels crisper.
The constant-current driver and L80B20 >100,000h design mean the fixture can run many hours daily. In sports sites that operate 5-6 nights a week, the FLX still maintains good lumen output for years.
Yes. SEEKING uses MEAN WELL drivers throughout the range, and SOSEN for the 400W model. Both brands are well known in long-life LED installations.
The FLX Commercial LED Flood Light can be used with external photocells, timer switches or a central control panel. Most outdoor systems use circuit-level control rather than individual fixture control.
In many projects yes. If the existing poles and mounting brackets are suitable, the installer removes the old fitting and installs the SEEKING unit. Sharing pole height and spacing helps select the right wattage and beam angle.
