linear high bay LED lights

HB17 (HLD) SERIES

The HLD Series linear high bay LED lights from SEEKINGLED are designed around spaces where the installation height is different from one building to another and a single beam angle simply doesn’t work for every aisle. Instead of the classic round format, this linear design throws the light along shelves and corridors, which often makes them more effective in warehouse walkways, libraries or production corridors.

The structure is integrated and lightweight, so installers usually don’t need additional brackets for most situations. Six different beam angles (30°, 60°, 90°, 120°, P25, SP25) mean you can match the distribution to the floor layout rather than using one type everywhere. Narrow beams focus on tall storage aisles while wider beams ensure open areas receive equal illumination without over-lighting the ceiling.

Brightness ranges from 100W up to 200W, and the series is able to reach 170–200 lm/W under standard conditions, which is clearly higher than many conventional high bays. Emergency battery options and sensor integration make this model practical for locations where the light shouldn’t drop out in case of a power failure or where occupancy control matters for energy saving.

Colour temperature and dimming are also adjustable, something that reduces stocking pressure for distributors and allows project planners to fine-tune lighting tone depending on the working area. With IP54 protection, the luminaire is suitable for most indoor industrial environments such as workshops, corridors, garages, and logistics buildings that run lighting for long hours.

Linear high bay LED lights with multiple optical distributions for various ceiling heights
High efficiency up to 200 lm/W, saving energy in long-run industrial applications
Adjustable CCT and dimming, reducing stocking variation and project customization time

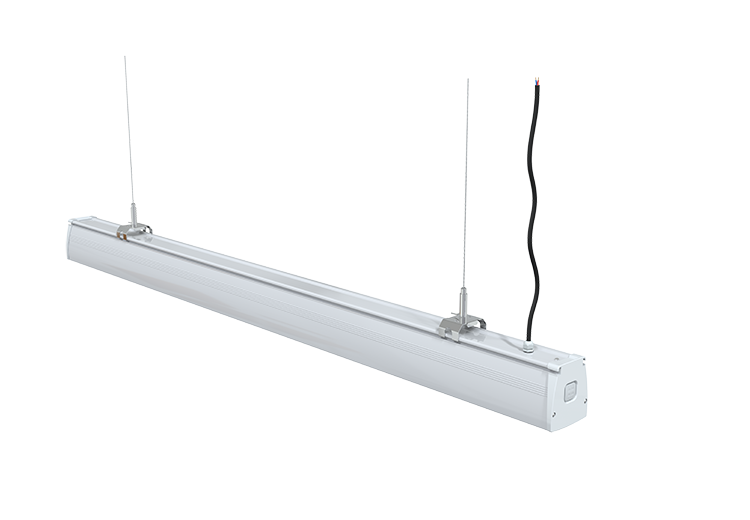

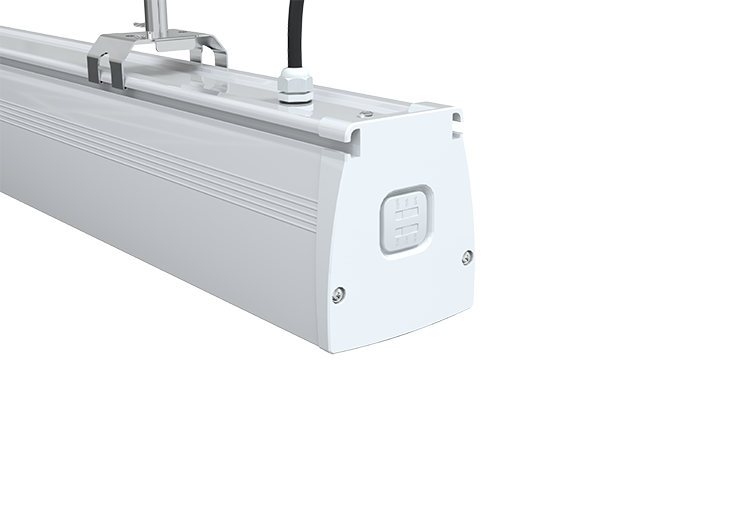

Integrated design, easy mounting, optional emergency battery and motion sensing

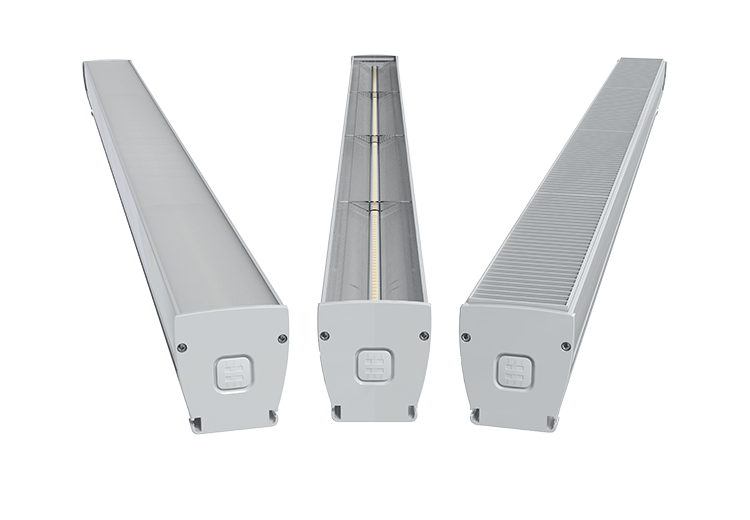

Aluminium housing with IP54 protection for general industrial indoor conditions
Ra>80, multiple CCT options (3000K / 4000K / 5700K) for different visual requirements
SOSEN driver with PF ≥ 0.95 and THD < 15% for stable operation
L80B20 >100,000 h for long-term industrial installations

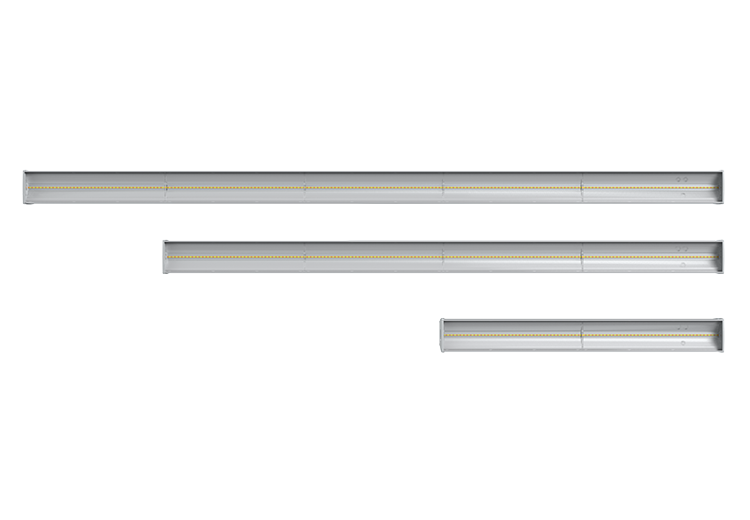

Power options from 100W to 200W depending on target lux level
Standard white body (RAL 9003) for clean appearance in commercial interiors

Technical Specifications:

AC Input100-277V 50/60Hz
Brand of LED DriverSOSEN
Light Source2835
CRI RangeRa>80
CCT RangeWW(3000K) NW(4000K) CW(5700K)
Light Efficiency170-200Lm/W
Beam Angle30°, 60°, 90°, 120°, P25, SP25
HousingAluminum Alloy
WaterproofIP54
L80B20@25℃>100000H
PF≥0.95 THD<15% Power Efficiency：≥0.9
CertificationsCE, CB
Warranty5 Years
Light body colorLight body color: white(RAL9003)

Get Samples

linear high bay LED lights Product Video

linear high bay LED lights Product Explanation Videos

Visit our YouTube homepage

Linear High Bay LED Lights Parameter

Model NO.

XJ-HLD-100W-*

XJ-HLD-150W-*

XJ-HLD-200W-*

Power (W)

100
75
50

150
113
75

200
150
100

Luminous Flux 170-200lm/w

17000-20000
12750-15000
8500-10000

25500-30000
19210-22600
12750-15000

34000-40000
25500-30000
17000-20000

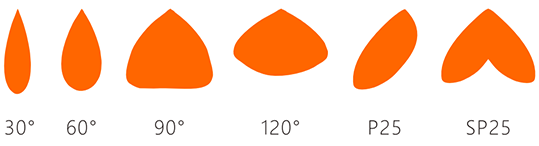

Light distribution curve

Above lumens based on 4000K@CRI80

HB17 (HLD) SERIES-Linear High Bay LED Lights SPEC

Download

Need Help? Start Here..

Get Samples

FAQs – Linear High Bay LED Lights – HB17 (HLD) SERIES

Where are the HLD Series linear high bay LED lights most commonly installed?

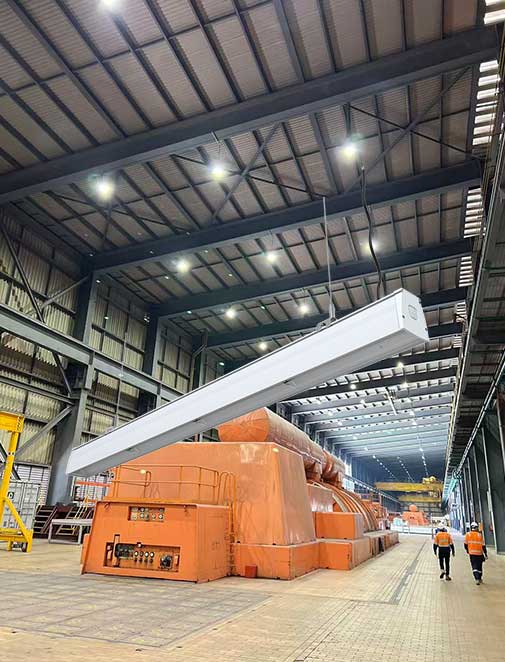

They are typically used in warehouse walkways, logistics corridors, workshops, garages, libraries and places where linear distribution works better than round high bays.

How do I select the beam angle?

Narrow beams such as 30° or 60° are usually used for tall racks, while 90° or 120° spread the light in more open areas. P25 and SP25 are useful for long aisles where light needs to be focused along the path.

Does this linear model improve lighting uniformity in aisles compared with round high bays?

Yes. The linear format throws light along the aisle direction, which normally improves uniformity in long corridors and reduces dark spots between shelves.

Are colour temperature adjustments available?

Yes. The HLD Series provides adjustable CCT (3000K, 4000K and 5700K). Cooler tones help visibility in technical areas, while warmer tones are often preferred in reading zones or quieter working areas.

Can this product be dimmed with a standard industrial control system?

The unit supports 0–10V dimming, so most industrial control systems can be integrated without additional hardware.

Is IP54 enough for an industrial indoor environment?

For normal indoor workshops, logistic halls and garages, IP54 is generally sufficient. If your project has heavy dust or exposure to liquids, SEEKINGLED can recommend higher-grade solutions from other series.

Does the HLD include an emergency lighting option?

Yes. Emergency battery and induction (sensor) functions are optional, especially useful in buildings that require safety illumination in case of power loss.

Which driver brand is used?

The HLD uses a SOSEN industrial driver with PF ≥ 0.95 to ensure stable performance under continuous operation.

How long is the rated lifetime?

The luminaire is designed for L80B20 >100,000 h under standard laboratory conditions. Installation environment and ambient temperature will influence the real lifetime.

What if my building has both high ceiling zones and lower corridors?

One advantage of the HLD Series is that the same product family covers different power levels and beam angles, so designers can use one series across the building instead of mixing multiple product types.
