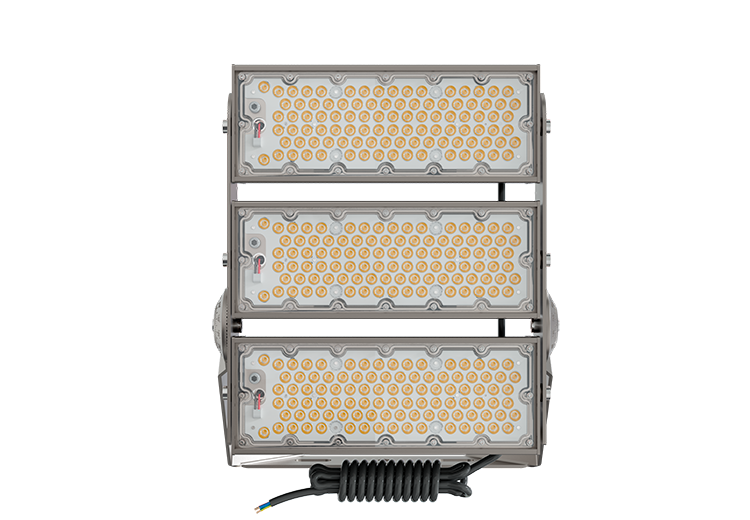

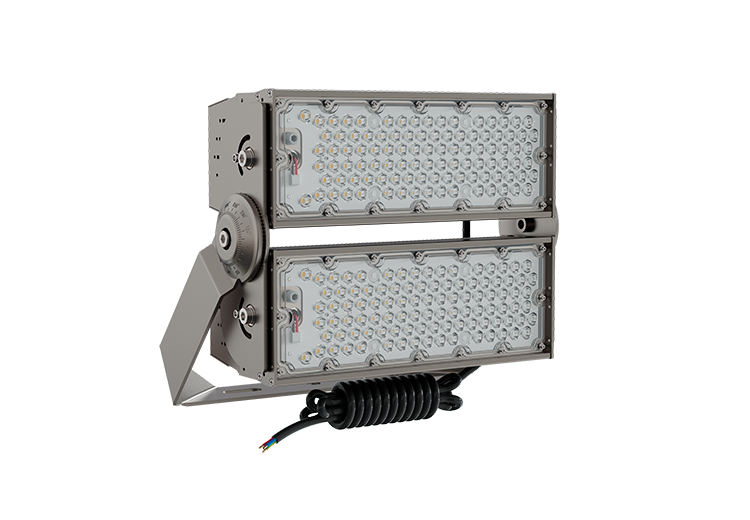

TFD SERIES
The TFD Series sports stadium LED lighting from SEEKING is developed for large-scale outdoor spaces where strong, focused illumination is essential. Designed for stadiums, sports fields, and high mast installations, this series combines high output with flexible beam control to meet different lighting layouts and mounting heights.
With power options from 250W up to 1000W and a luminous efficiency of up to 170 lm/W, the TFD Series can easily replace traditional metal halide or HID systems while cutting energy use and maintenance costs. The 5050 LED light source and precision optics offer a wide choice of beam angles, allowing lighting designers to control spill light and improve uniformity across the field.
The aluminum alloy housing is built for outdoor use, rated IP66 for water and dust protection and IK08 for impact resistance. A high-quality isolated SOSEN driver with 10kV surge protection ensures stable operation even in areas with unstable power grids. With a rated lifetime of over 100,000 hours (L80B20), the TFD Series is a dependable solution for long-term stadium and high-pole lighting projects.
Typical applications include football stadiums, athletics tracks, training grounds, large parking areas, ports, logistics yards, and other open spaces that require reliable, high-output LED lighting from elevated mounting positions.
Model NO.
Power (W)
Luminous Flux 170lm/W
Light distribution curve
Above lumens based on 4000K Ra:80
The TFD Series is mainly used for sports stadiums, football fields, tennis courts, and large outdoor venues. It is also suitable for high mast lighting in ports, industrial yards, airports, and large parking areas where lights are mounted at significant heights.
The combination of high lumen output, multiple beam angle options, and strong aluminum housing makes the TFD Series well-suited for high mast poles. It provides focused illumination from long distances while maintaining good light uniformity on the ground.

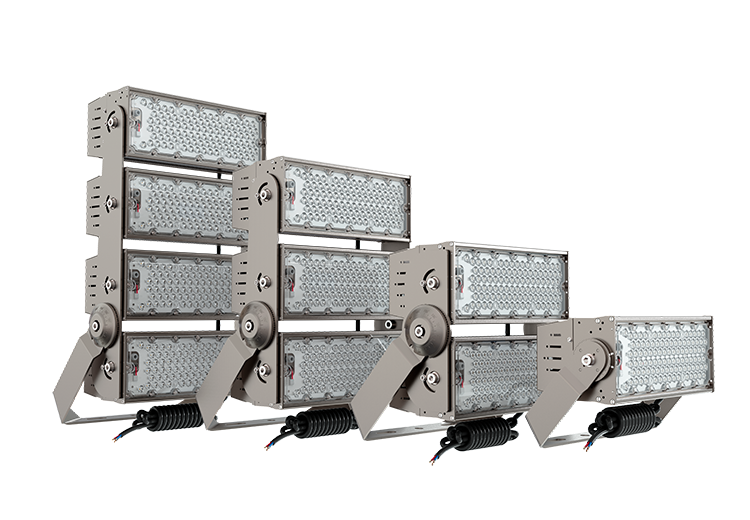

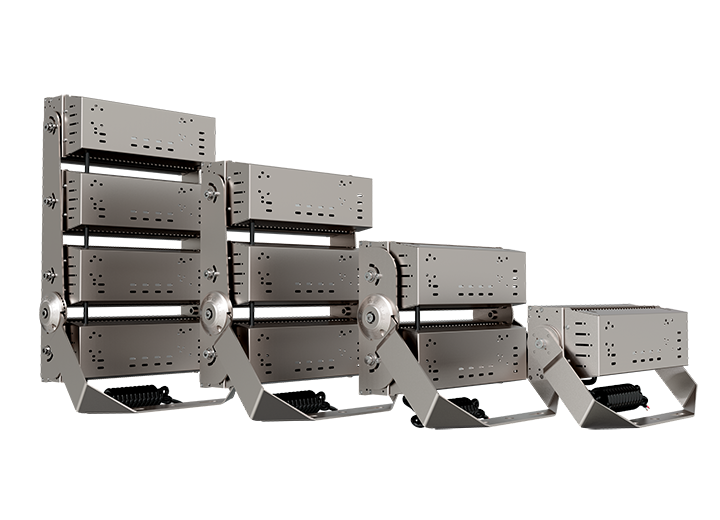

SEEKING offers the TFD Series in 250W, 500W, 750W, and 1000W versions. This range allows lighting designers to select the right power level based on pole height, spacing, and the required lux level for the sports venue.

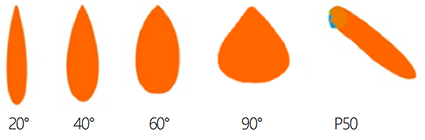

The TFD Series supports 20°, 40°, 60°, 90°, and P50 beam angles. Narrow beams are often used for tall masts and long throws, while wider beams work better for lower mounting heights or broader coverage areas.
Yes. With an efficiency of up to 170 lm/W, the TFD Series can significantly reduce power consumption compared to metal halide or sodium lamps. Many stadium upgrades see lower energy bills and reduced maintenance costs after switching to LED.
The lights use an isolated SOSEN constant current driver with 10kV surge protection. This helps protect the fixture from voltage spikes caused by lightning or unstable power, which is common in large outdoor installations.
Standard options include 4000K and 5700K, which are commonly used for sports lighting due to their clarity and visibility. Optional 3000K and 5000K are also available for projects with specific visual or broadcast requirements.
Yes, the stable light output, controlled beam angles, and consistent color performance make this sports stadium LED lighting suitable for many professional and semi-professional sports venues, including those with TV or video recording needs.
The TFD Series is designed with an L80B20 lifetime of over 100,000 hours at 25°C. This means the light output remains stable for many years, even in demanding outdoor environments.
SEEKING supplies the TFD Series with a 5-year warranty. The fixtures are certified with CE and CB, meeting international safety and quality standards for sports stadium LED lighting and high mast applications.
