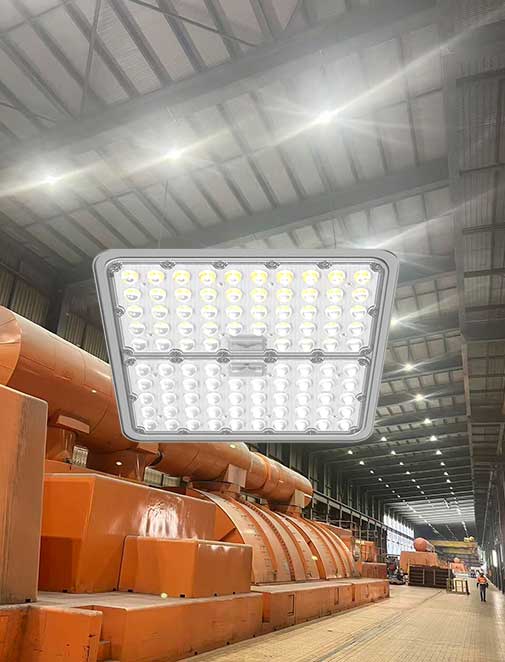

ufo led high bay light

HB13(GLK) SERIES

SEEKINGLED’s HB13(GLK) Series ufo led high bay light is built for large indoor environments that demand consistent illumination, low glare and long-term reliability. In stadium corridors, indoor sports venues, airport waiting halls, high-end car showrooms or busy supermarkets, lighting needs to be bright enough for visibility yet comfortable enough to avoid harsh reflections. The HB13(GLK) Series strikes that balance with a controlled optical system designed to achieve UGR < 19 (CIE190:2010), helping reduce visual fatigue in high-activity areas.

With efficacy up to 170 lm/W, this high bay series provides high brightness with reduced energy consumption, often replacing traditional metal halide high bays at a fraction of the power. The wattage range—80 W, 100 W, 150 W, 200 W and 240 W—gives flexibility for different mounting heights and coverage areas. Whether you’re upgrading a basketball court or lighting a warehouse aisle, there’s a suitable output to fit existing layouts.

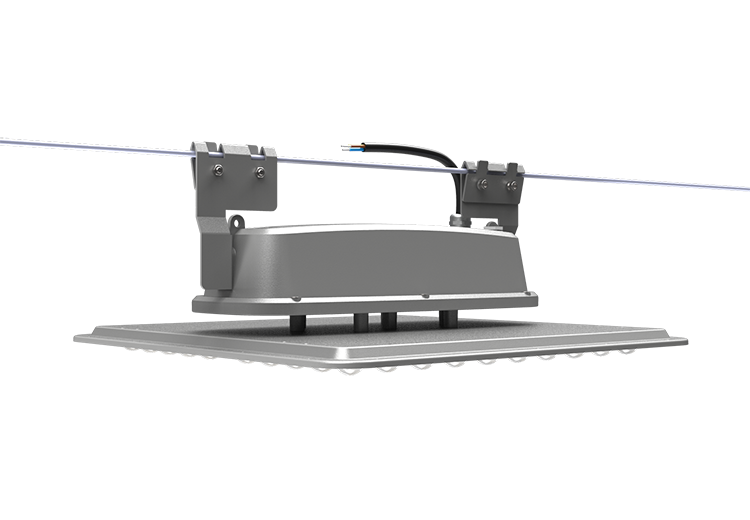

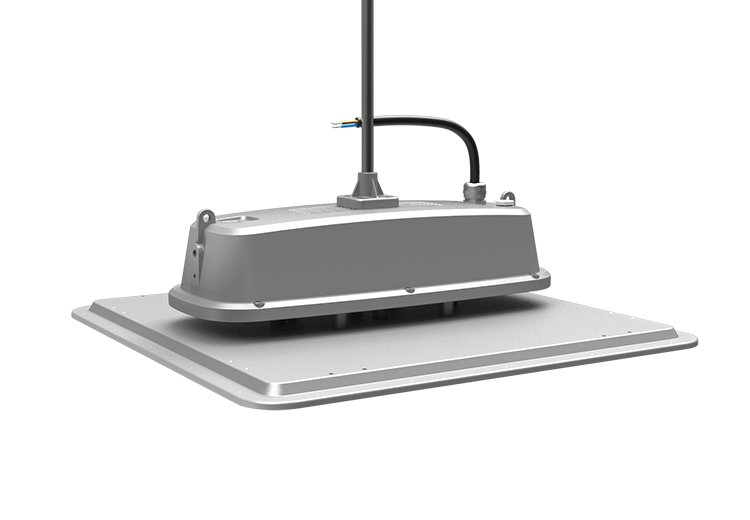

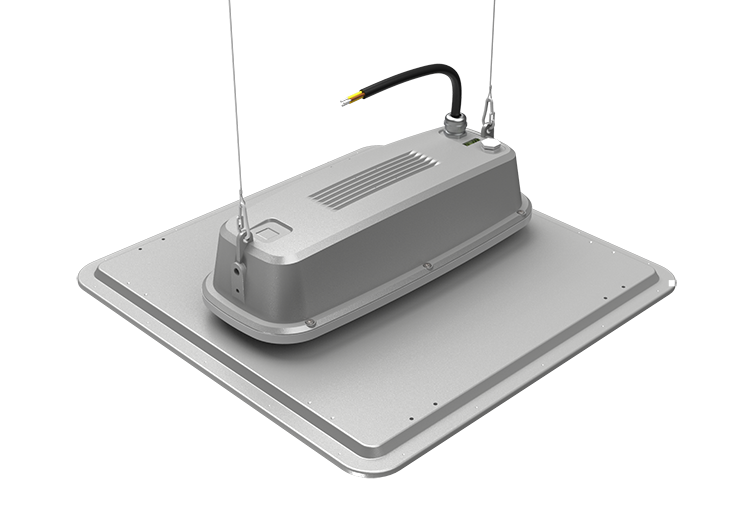

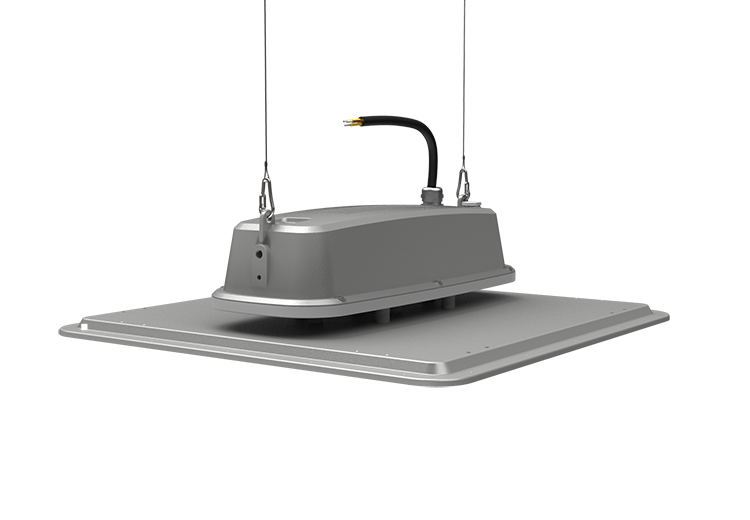

The fixture is engineered with a robust die-cast aluminum body, sealed to IP69K for high-pressure, high-temperature cleaning environments, and rated IK09 for mechanical impact. This makes the HB13(GLK) Series not only suitable for industrial spaces but also for food processing halls or locations requiring rigorous maintenance.

Inside, the light uses quality LED chips and a constant-current driver from MEANWELL or MOSO, combined with low THD (<15%) and PF ≥ 0.95 for stable operation. Both 4000K and 5700K color temperatures are available, making it suitable for commercial, industrial and sports lighting.

Typical applications include sports facilities, exhibition centers, airport reception zones, automotive sales stores, wholesale warehouses and large supermarkets—anywhere wide, high spaces need bright, dependable illumination. As a modern industrial ufo high bay lighting fixture, the HB13(GLK) Series offers a strong upgrade path for new construction and retrofits alike.

Technical Specifications:

AC Input100-277V 50/60Hz
Brand of LED DriverMEANWELL / MOSO
Light Source2835
CRI RangeRa>80
CCT RangeNW(4000K) CW(5700K)
Light Efficiency170±5% Lm/W
Beam Angle90°
HousingAluminum Alloy
WaterproofIP69K & IK09
L80B20@25℃>100000H
PF≥0.95 THD<15% Power Efficiency：≥0.9
CertificationsTUV, CE, CB, ETL, FCC, SAA
Warranty5 Years

Get Samples

ufo led high bay light Product Video

ufo led high bay light Product Explanation Videos

Visit our YouTube homepage

UFO LED High Bay Light Parameter

Model NO.

XJ-GLK80W
XJ-GLK100W
XJ-GLK150W
XJ-GLK200W
XJ-GLK240W

Power (W)

80
100
150
200
240

Luminous Flux 170lm/W

13600
17000
25500
34000
40800

Light distribution curve

Above lumens based on 4000K Ra:80

HB13(GLK) Series-UFO LED High Bay Light SPEC

Download

Need Help? Start Here..

Get Samples

FAQs – UFO LED High Bay Light – HB13(GLK) Series

What is the SEEKINGLED HB13(GLK) Series ufo led high bay light?

The HB13(GLK) Series is SEEKINGLED’s professional-grade ufo led high bay light engineered for large indoor environments. It includes a full lighting unit with LED engine, constant-current driver and durable aluminum housing ready for high-ceiling installations.

Where can the HB13(GLK) Series be installed?

This series is widely used in indoor sports venues, airport lounges, car showrooms, warehouses, supermarkets, exhibition halls and logistics centers. Anywhere requiring wide, high-efficiency overhead lighting can benefit from this model.

What makes the HB13(GLK) low-glare (UGR < 19)?

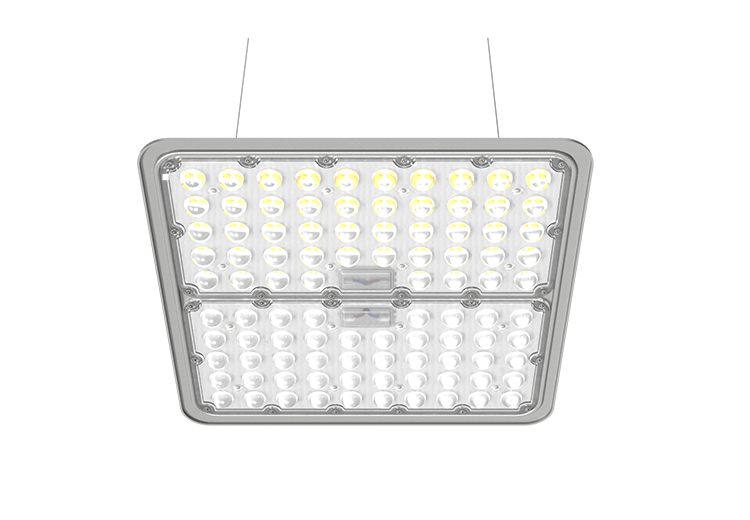

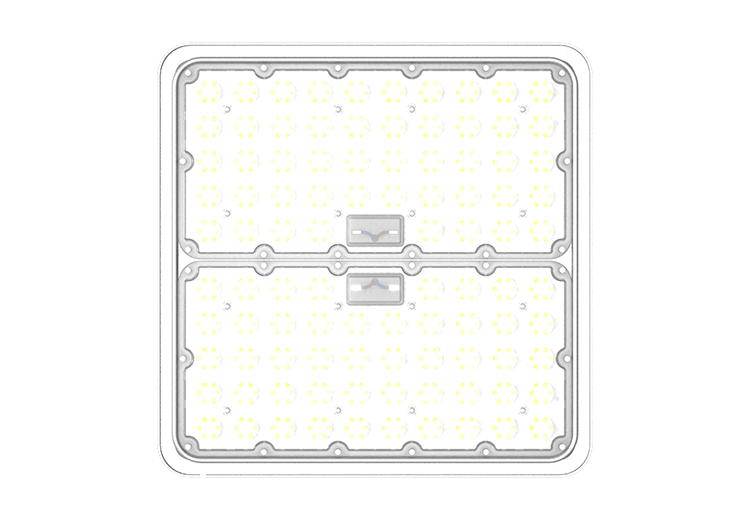

The optical system spreads light evenly through a carefully shaped reflector and LED layout, limiting direct glare and reducing visual stress—particularly important in sports halls or spaces where people look up frequently.

How do I choose the right wattage?

Lower wattages like 80 W or 100 W suit mounting heights around 6–8 m, while 150 W to 240 W versions are ideal for 10–16 m ceilings. The lumen output ranges from 13,600 lm to 40,800 lm, making it easy to match existing lux requirements.

Does the HB13(GLK) save energy compared to traditional high bays?

Yes. At up to 170 lm/W, the HB13(GLK) uses dramatically less power than HID or metal halide fixtures. Many projects achieve more than 50% energy savings when switching to these commercial ufo led high bay replacements.

How durable is the HB13(GLK) for industrial use?

The housing is aluminum alloy with IP69K waterproofing and IK09 impact resistance. It tolerates dust, moisture, high-pressure cleaning and accidental impacts common in industrial and sports environments.

Which LED driver brands are used?

The HB13(GLK) uses high-reliability drivers from MEANWELL or MOSO, ensuring stable performance, low flicker and long lifespan.

What is the expected lifetime of this ufo led high bay light?

The design achieves L80B20 > 100,000 hours at 25°C under standard conditions—excellent for facilities that need continuous lighting for long periods.

Can this fixture be used for retrofit projects?

Absolutely. Many projects replace older metal halide high bays with the HB13(GLK) Series because the mounting and wiring requirements are straightforward. The high efficiency also makes it ideal for long-hour operations like warehouses and sports complexes.

Are different beam angles or color temperatures available?

The standard beam angle is 90°, suitable for wide, uniform coverage. Color temperature options include 4000K for balanced commercial lighting and 5700K for crisp, high-visibility industrial or sports environments.

ufo led high bay light

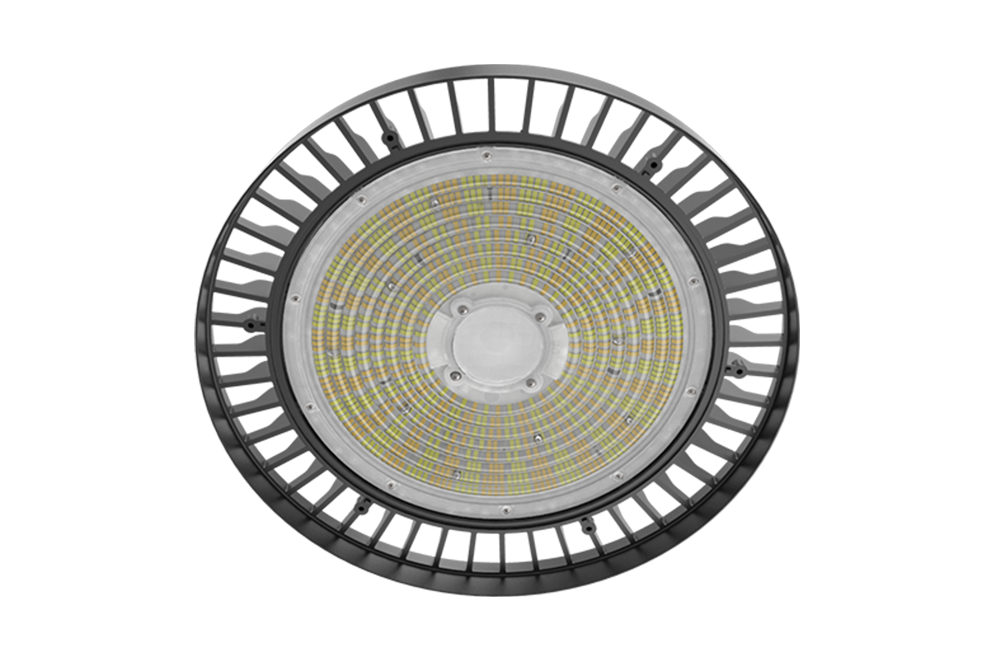

HBC-T SERIES High Bay Lights LED
