HB21 Series

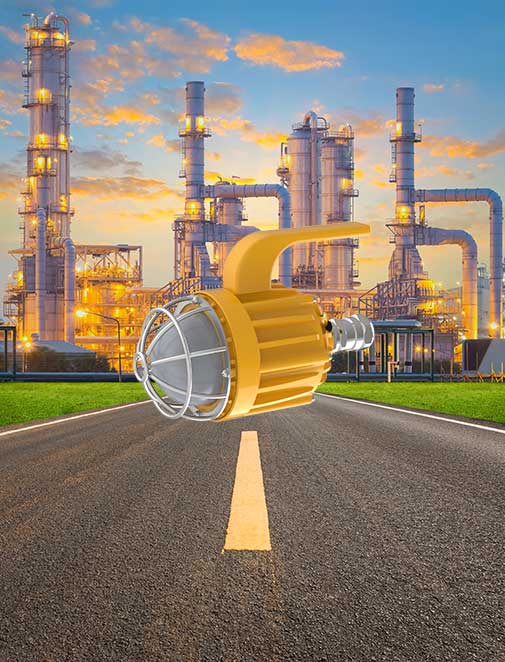

The HB21 series Explosion proof work lights has been developed and manufactured in-house by SeekingLED for use in high-risk explosive atmospheres, such as those found in oil & gas, petrochemical and chemical plants.
It is constructed to Ex d (flameproof) protection, rated IIC T6, and is certified for Zone 1 and Zone 21 (gas) as well as Zone 2 and Zone 22 (dust) by both ATEX and IECEx.
Two power supply options are available:
The exploration proof led work lights are lightweight, portable, and comfortable to hold for extended periods. It includes an adjustable mounting bracket for positioning at any angle, a strong magnetic base on selected models for hands-free attachment to steelwork or machinery, and a hook for suspension. These features make it practical in confined spaces, on elevated platforms, inside vessels or underneath pipework.
Technical Specifications:
AC Input: 100-277V 50/60Hz（A type）
DC Input: 10-50V （D type）
CRI Range: Ra>80
CCT Range: NW(4000K) CW(5700K)
Light Efficiency: 120±5% Lm/W
Protection grade: Ip66 & IK10
L80B20@25℃:>100000H
PF:≥0.95 THD<15% Power Efficiency:≥0.9
When someone asks what is an explosion-proof led work lights, the answer is straightforward.
It’s a portable lighting unit designed so that if an internal electrical spark or arc occurs, it cannot ignite the surrounding explosive atmosphere.
In the HB21 Series, we use Ex db flameproof protection. That means the enclosure is strong enough to contain any internal explosion and prevent flame propagation outside the housing.
It’s not about stopping explosions in the plant.
It’s about making sure the light doesn’t cause one.
Many engineers still ask how does explosion proof lighting work in practical terms.
It works through containment and controlled temperature.
For HB21, the rating II 2G Ex db IIC T6/T5 Gb ensures suitability for high-risk gas groups, including hydrogen environments.
It’s physics, not marketing.
The HB21 explosion proof work lights are certified for:
Typical applications include:
Portable lighting becomes critical during shutdown maintenance. Fixed lighting doesn’t always reach inside tanks or beneath pipe racks.
That’s where a portable explosion proof work light becomes necessary.
An explosion proof led work light provides clear advantages over older halogen-based portable systems:
Halogen units generate excessive heat. In hazardous areas, that’s not ideal.
LED reduces that thermal burden significantly.
HB21 Series offers flexibility.
For field maintenance teams, DC battery operation is often preferred. It eliminates dependency on temporary AC distribution inside confined zones.
Flexibility reduces setup time.
Explosion proof work lights must survive real conditions — not showroom displays.
HB21 features:
In refineries, equipment gets knocked, dropped, exposed to moisture. Lightweight does not mean fragile.
The unit is balanced for portability without sacrificing structural integrity.
Portability is not just about weight. It’s about usability.
HB21 includes:
When working inside vessels or under pipework, hands-free operation is essential. A led explosion proof work light that requires constant handling defeats its purpose.
Practical mounting options matter.
Certification is critical.
ATEX marking:
II 2G Ex db IIC T6/T5 Gb
II 2D Ex tb IIIC T80°C/T95°C Db
IECEx marking:
Ex db IIC T6/T5 Gb
Ex tb IIIC T80°C/T95°C Db
These certifications ensure compliance across European and international markets.
When inspectors review equipment lists, documentation clarity prevents project delays.
CRI Ra>80 ensures color clarity in maintenance tasks.
CCT options: 4000K (NW) and 5700K (CW).
In confined maintenance spaces, accurate color rendering helps identify leaks, corrosion, or cable markings.
Brightness alone isn’t enough. Visibility quality matters.
SEEKINGLED designs and manufactures explosion proof work lights in-house.
That matters.
We control:
We don’t rebrand generic housings. The HB21 Series was engineered specifically for high-risk explosive atmospheres.
In hazardous zones, reliability isn’t optional.
It’s expected.
Certified explosion proof floodlights for Zone 2 & 22 hazardous areas. Lightweight, DALI-ready, fast wiring design. Reliable industrial safety by SEEKINGLED.
LED explosion proof high bay lights are designed for Zone 1, Zone 2, Zone 21 and Zone 22 hazardous areas. This page introduces the HB21 Series from SEEKING, including certifications, power options and real application considerations.
LED Linear Explosion Proof Lights for Zone 1, Zone 2, Zone 21 and Zone 22 hazardous areas. ATEX & IECEx certified explosion proof LED linear lighting with emergency function, adjustable power and IP67 protection by SEEKINGLED.
SEEKINGLED LED Linear Explosion Proof Light is ATEX and IECEx certified for Zone 1, Zone 2, Zone 21 and Zone 22 hazardous locations, built for long-term industrial use.
SEEKINGLED LED Explosion Proof Flood Lights are flameproof ATEX and IECEx certified for Zone 1 and Zone 2 hazardous areas, offering high power, adjustable output and long service life.
SEEKINGLED LED Explosion Proof Flood Lights are ATEX certified for Zone 2 and Zone 22 hazardous areas, offering high efficiency, adjustable power and integrated junction box.
SEEKINGLED LED Gas Station Canopy Lights are ATEX certified for Zone 2 and Zone 22 hazardous areas, featuring adjustable power and built-in explosion-proof junction box.

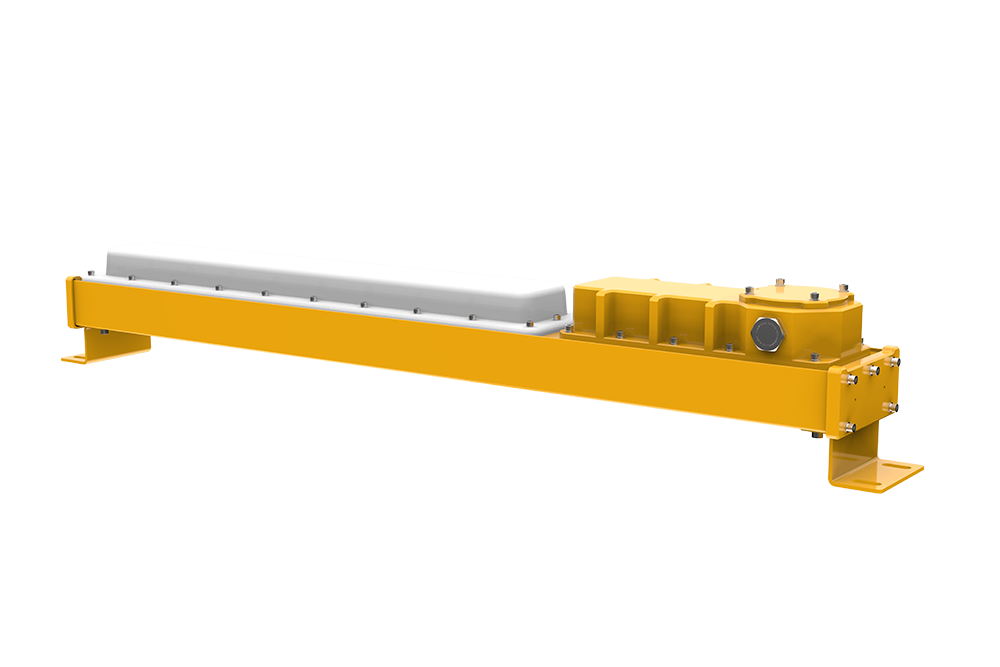

LED Linear Explosion Proof Lights from SEEKINGLED. LU Series ATEX-certified explosion proof LED linear lighting for Zone 2 gas and Zone 22 dust areas, IP69K, IK10, long lifetime and flexible power options.
