500w LED High Bay light & 500w LED Flood lights

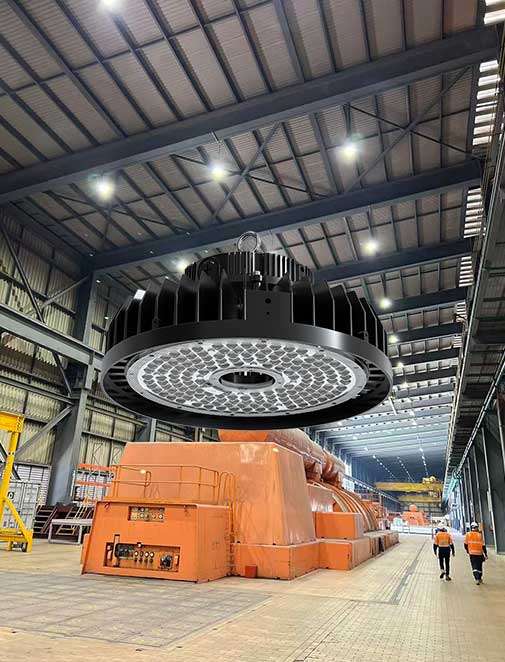

HBK SERIES

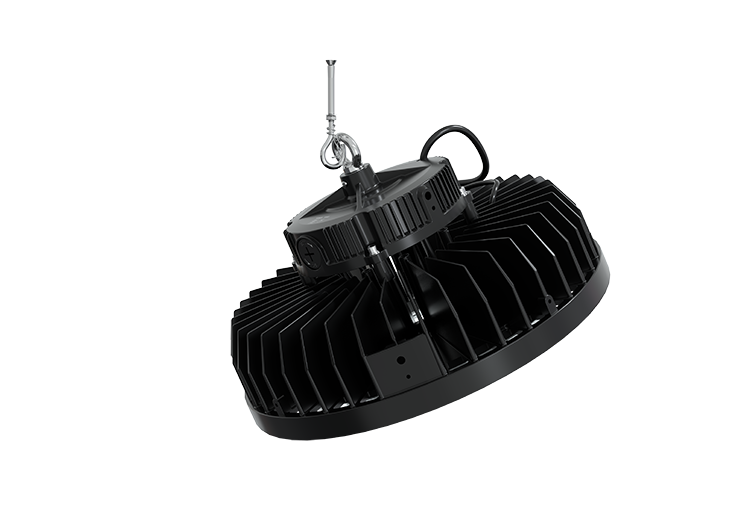

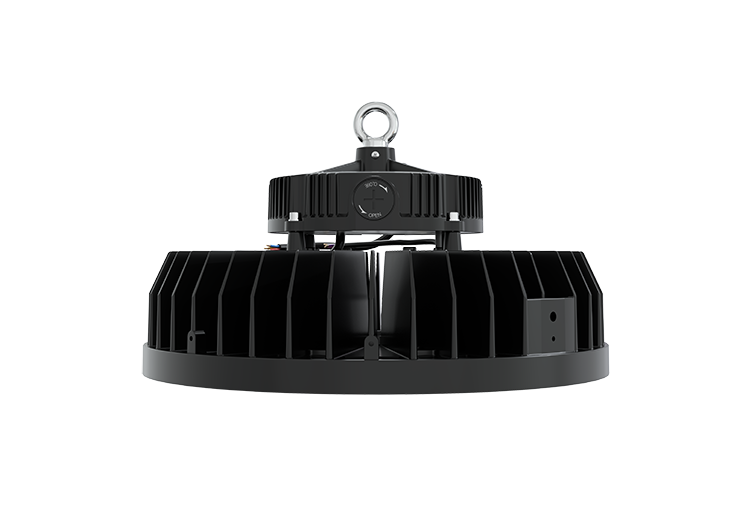

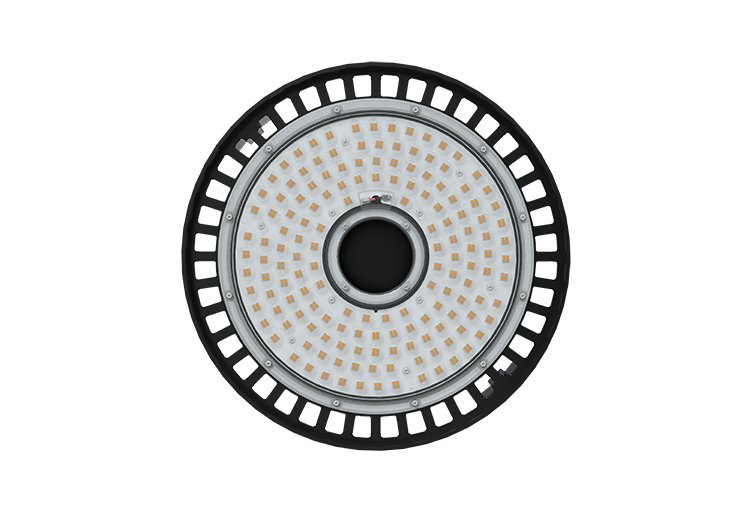

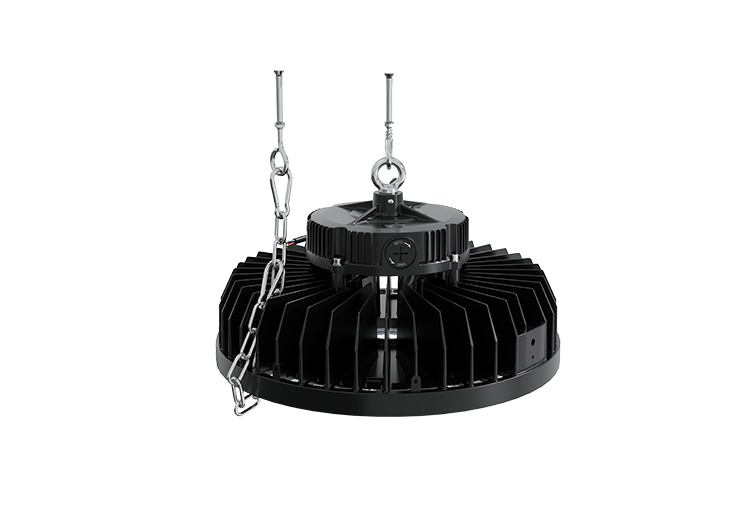

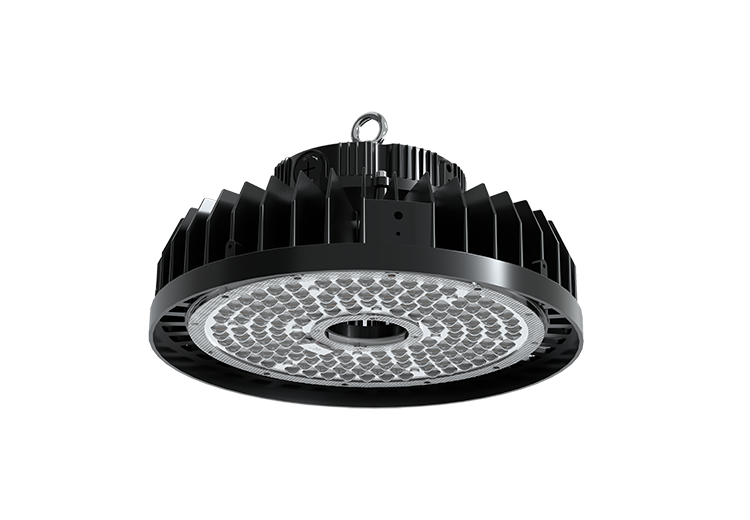

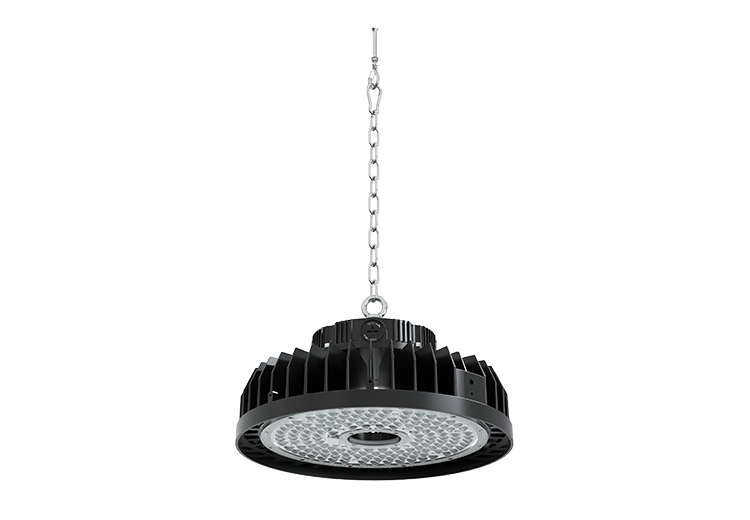

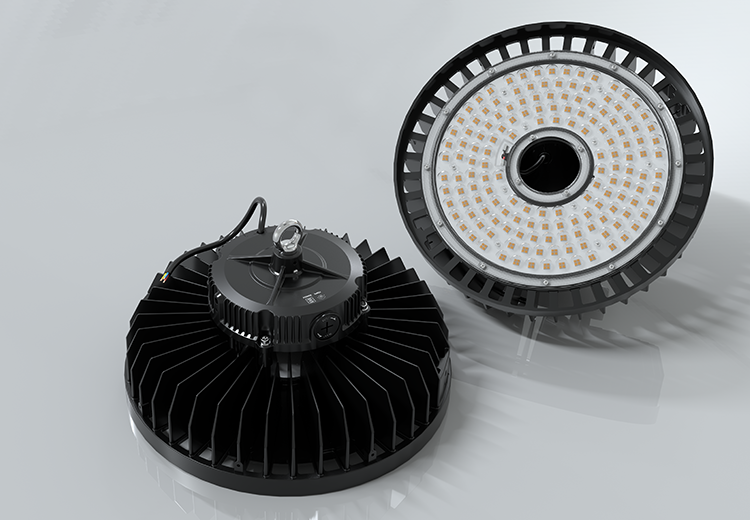

The HBK Series LED high bay light from SEEKINGLED is designed around real industrial working conditions where heat, dust and long operating hours are simply part of everyday use. Built as a 300–500W adjustable package, it can deliver up to 175 lm/W and a maximum lumen output of 80,000 lm, which is enough for large warehouse aisles, high ceiling production halls and mechanical workshops where light levels matter to both safety and efficiency.

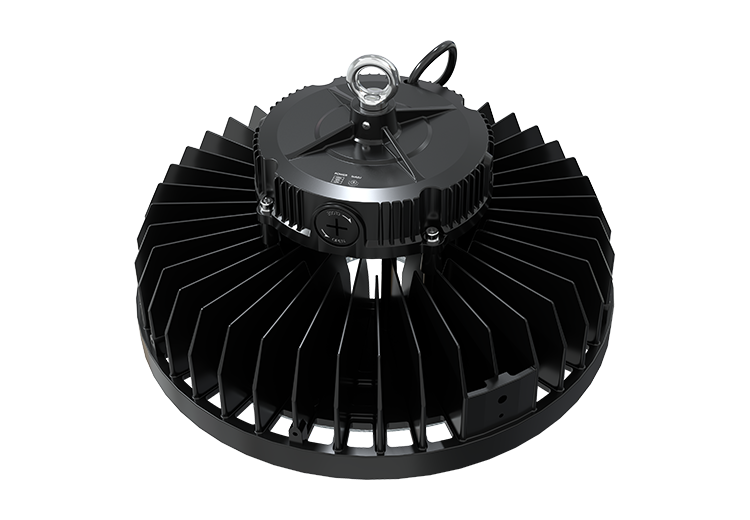

Instead of relying on forced cooling or bulky heat fins, the HBK uses a chimney-effect thermal structure where the hot air naturally rises and fresh air flows in from below, creating a continuous cooling cycle. This keeps LED junction temperature in check even during long shifts, so lumen performance remains stable and the risk of early decay is significantly reduced.

Two beam options, 60° and 90°, make the HBK flexible for different heights. Taller storage buildings typically go for 60° to keep the light focused, while lower installations often select 90° for more spread across the working area. In both cases, the beam remains clean and controlled without unnecessary spill.

The housing is cast from high-strength aluminum and sealed to IP65, making the luminaire suitable for dusty production floors, warehouse loading bays and general industrial areas. Combined with its long-life LED platform and 3-in-1 dimming interface, the HBK Series led high bay light aims to reduce energy consumption and routine maintenance at the same time.

Up to 175 lm/W and 500W high-output design for large industrial and warehouse applications
Chimney-effect heat dissipation, supporting long hours and reducing thermal stress
Lightweight die-cast aluminum housing with IP65 & IK08 protection for demanding sites
Adjustable wattage (300–500W) with 60° / 90° optical distribution
Ra>80, 4000K / 5700K colour options for workshop and inspection zones
MOSO driver, PF ≥ 0.95 and THD < 15% for stable long-term operation
3-in-1 dimming (0–10V / PWM / resistor ready)
L80B20 >100,000h design life at 25°C
Surge protection 6kV / 6kV
Factory-black appearance RAL 9005 for a clean industrial look

Technical Specifications:

AC Input100-277V 50/60Hz
Brand of LED DriverMOSO
Light Source2835
CRI RangeRa>80
CCT RangeNW(4000K) CW(5700K)
Light Efficiency160-175Lm/W
3 in 1 dimmable0-10V / PWM / Resistor
Beam Angle60°/ 90°
HousingAluminum Alloy
Surge Protection6kV line-line,6kV line-earth
Driver TypeConstant Current (CC)
WaterproofIP65 & IK08
Category of corrosionC3
L80B20@25℃>100000H
PF≥0.95 THD<15% Power Efficiency：≥0.9
CertificationsCE, CB
Warranty5 Years
Light body colorTiefschwarz (RAL 9005)

Get Samples

LED High Bay Light Product Video

LED High Bay Light Product Explanation Videos

Visit our YouTube homepage

LED High Bay Light Parameter

Model NO.

XJ-HBK500W

Power (W)

300-500W (Power Adjustable)

Efficacy 160-175lm/w

52500-80000

Light distribution curve

Above lumens based on 4000K Ra:80

HBK SERIES-LED High Bay Light SPEC

Download

Need Help? Start Here..

Get Samples

FAQs – LED High Bay Light – HBK Series

What is the HBK Series LED high bay light mainly used for?

The HBK Series is targeted at industrial spaces with high ceilings, including logistics warehouses, fabrication workshops, machinery plants and production areas that require both brightness and long operating hours.

What ceiling height is suitable for this led high bay light?

Most projects fall between 8–20 metres. With the 60° option, the HBK works well in tall aisles and high rack storage; the 90° option suits medium heights and wider open areas.

Can I set different power levels on the HBK?

Yes. The unit is power-adjustable between 300W and 500W, which gives installers more flexibility when retrofitting or matching required lux levels without replacing the whole fixture.

Which driver brand is used inside this model?

SEEKINGLED uses a MOSO industrial-grade driver with power factor ≥0.95, designed for stable operation in long working cycles and variable grid conditions.

Is the fixture suitable for dusty or humid working spaces?

Yes. The HBK is IP65 rated, so it resists airborne dust, general moisture and typical workshop environments. It also carries an IK08 protection level for mechanical endurance.

Will the HBK help lower energy consumption compared with older metal halide units?

In most cases, yes. With up to 175 lm/W, it delivers significantly more illumination per watt than legacy metal halide or sodium lamps, which can reduce operating cost and heat load in large spaces.

Can this led high bay light be dimmed?

The product includes 3-in-1 dimming (0-10V, PWM and resistor), so it can work with many industrial control systems or lighting automation designs used in warehouses.

What is the typical lifetime of the HBK Series?

Under normal conditions, the luminaire is tested for L80B20 >100,000 hours at 25°C. Actual lifetime depends on installation environment and operation hours.

Is the colour temperature selectable?

The HBK is available in 4000K and 5700K. Workshops and inspection areas generally prefer 5700K for visibility, while general warehouse lighting often chooses 4000K.

What kind of maintenance is needed in the long term?

The integrated thermal design reduces thermal stress on LED components, so maintenance usually only involves occasional surface cleaning and electrical checks. No special servicing procedures are required.
