High Bay Lights LED

HBC-T SERIES

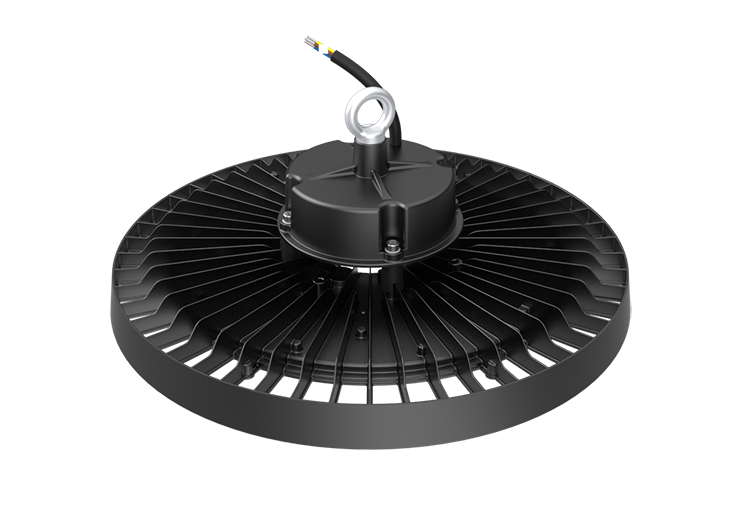

The SEEKINGLED HBC-T Series High Bay Lights LED is engineered for indoor environments where dependable, uniform lighting is essential every single day. Spaces such as production workshops, large logistics warehouses and distribution centers often run long hours, and many facilities rely on lighting almost continuously. These fittings are designed to cope with that kind of use. Their construction combines a strong aluminum alloy body, well-managed heat dissipation and tight sealing against dust and humidity, resulting in a light that remains stable even when installed in high-ceiling industrial areas.

The HBC-T Series offers 60° and 90° beam angles, two options that allow planners to match the light shape to the ceiling height or the width of racking aisles. Narrow aisles in tall warehouse installations often work best with 60°, while broader open areas—like airport waiting halls, cargo processing rooms or indoor construction zones—typically benefit from a wider 90° distribution.

Inside the fixture, SEEKINGLED uses a reliable SOSEN constant-current driver and a 2835 LED source, achieving up to 150 lm/W at 4000K (NW). This ensures that the illumination remains bright but efficient, improving visibility without unnecessarily increasing energy use. Warm white (3000K), neutral white (4000K) and cool white (5700K) are available to meet different project atmospheres.

With IP65 and IK08 ratings, the light is protected against dust, moisture and common impacts that often occur during warehouse operations or equipment movement. The model is tested to reach L80B20 > 100,000 hours, which helps facilities reduce the frequency of lamp replacement—especially important when the installation height is difficult or costly to access.

Typical application scenes include:
• Production and assembly workshops
• Large logistics warehouses and cargo centers
• Airport, dock and high-speed rail waiting rooms
• Interior areas of shopping malls or commercial halls
• Construction sites, industrial storage, distribution hubs

Technical Specifications:

AC Input100-277V 50/60Hz
Brand of LED DriverSOSEN
Light Source2835
CRI RangeRa>80
CCT RangeWW(3000K) NW(4000K) CW(5700K)
Light Efficiency130±5% Lm/W @ WW 140±5% Lm/W @ CW 150±5% Lm/W @ NW
Beam Angle60°, 90°
HousingAluminum Alloy
WaterproofIP65 & IK08
L80B20@25℃>100000H
PF≥0.95 THD<15% Power Efficiency：≥0.9
CertificationsCE, CB
Warranty5 Years

Get Samples

High Bay Lights LED Product Video

High Bay Lights LED Product Explanation Videos

Visit our YouTube homepage

High Bay Lights LED Parameter

Model NO.

XJ-HBC150W-T
XJ-HBC200W-T

Power (W)

150
200

Luminous Flux 150lm/W @ NW

22500
30000

Light distribution curve

Above lumens based on 4000K Ra:80

HBC-T SERIES-High Bay Lights LEDSPEC

Download

Need Help? Start Here..

Get Samples

FAQs – High Bay Lights LED – HBC-T Series

What is the SEEKINGLED HBC-T high bay lights LED series designed for?

The HBC-T Series is designed for large indoor spaces that require consistent, high-altitude lighting—warehouses, manufacturing workshops, logistics centers, airport halls and commercial storage areas. It delivers strong brightness and long service life without frequent maintenance.

What wattages are available in the HBC-T Series?

The series includes 150 W and 200 W models. These two power levels cover most typical ceiling heights found in industrial halls, from mid-range installations to very tall warehouse ceilings.

How do I choose between the 60° and 90° optics?

Choose 60° for tall ceilings or narrow aisles where you want deeper, focused lighting. Choose 90° for open floors, spacious loading zones or areas where you want more horizontal spread.

Are these high bay lights LED suitable for dusty or humid environments?

Yes. With IP65 protection, the HBC-T Series resists dust and water spray, making it suitable for industrial workshops, cargo zones and similar environments.

<strong>What is the lifespan of the HBC-T Series?</strong>

The light is rated at L80B20 > 100,000 hours, meaning it keeps stable output for many years even under regular daily operation. This helps reduce the cost and trouble of accessing high ceilings for maintenance.

What kind of driver is used in this high bay light?

SEEKINGLED uses a SOSEN constant-current driver, chosen for its reliability, efficiency and stability in long-running industrial applications.

Which color temperatures are available?

You can choose from 3000K (WW), 4000K (NW) or 5700K (CW). Neutral white is the most common for industrial lighting, while 5700K is preferred where crisp visibility is needed.

Can the light operate in logistics centers with long operating hours?

Yes. The HBC-T Series is built for environments where lighting is often used 12–24 hours a day. Its heat management and electrical stability ensure reliable operation.

Is this fixture approved for international projects?

The product carries CE and CB certifications, making it suitable for a broad range of commercial and industrial applications around the world.

Can the HBC-T Series replace traditional metal halide or fluorescent high bay lights?

In most cases, yes. The efficiency of up to 150 lm/W allows it to replace older HID or CFL units with much lower energy usage while delivering brighter and cleaner illumination.
