LED Gas Station Canopy Lights

GS Series

The GS Series LED Gas Station Canopy Lights have been specifically developed by SEEKINGLED to meet the demanding requirements of petrol station canopy lighting. This explosion-proof solution is fully suitable for Zone 2 (gas) and Zone 22 (dust) hazardous areas, delivering safe and reliable illumination for petrol station forecourts, canopies, as well as dangerous goods warehouses and other high-risk environments.
The GS Series fully complies with the essential safety requirements of EU Directive 2014/34/EU (ATEX) and is backed by a formal ATEX certificate issued by TÜV, ensuring true regulatory compliance and complete peace of mind for operators in Europe and all regions that recognise ATEX standards.
A major highlight of the design is the integrated explosion proof junction box, which eliminates the need to purchase and install a separate, expensive certified junction box — significantly reducing the overall project cost. Additionally, the explosion proof junction box incorporates a built-in DIP switch that allows installers to easily adjust the output power on site, offering three selectable levels: 200W, 150W, and 100W. With one luminaire covering three common power ratings, distributors benefit from greatly simplified inventory management and a substantial reduction in the number of SKUs required.
Featuring the proven nR protection method, high-quality LED performance, and direct ATEX certification, the GS Series achieves an optimal balance between uncompromising safety, ease of installation, and project economy — making it the practical, professional, and fully compliant choice for modern petrol station canopy lighting upgrades.

Feature：

3-speed power adjustable to reduce SKU
Comes with a built-in explosion proof junction box
Quick connection, reducing installation costs
Two cable entrances, can be installed in series Up to 28000LM@CRI80

ATEX：

II 3G Ex nR ⅡC T5/T6 Gc
II 3D Ex tc ⅢC T80℃/T95℃Dc
ATEX Certificate NO: TüV ***(Pending)
Gas: Zone 2
Dust: Zone 22
Allowable Temperature: -40°C – +55°C
Cable Entries: 2xM20x1.5

Get Samples

Technical Specifications:

AC Input : 100-277V 50/60Hz
CRI Range : Ra>80
CCT Range : NW(4000K) CW(5700K)
Light Efficiency : 150±5% Lm/W
Protection grade : Ip66 & IK10
L80B20@25℃: >100000H
PF:≥0.95 THD<15% Power Efficiency:≥0.9

Need Help? Start Here..

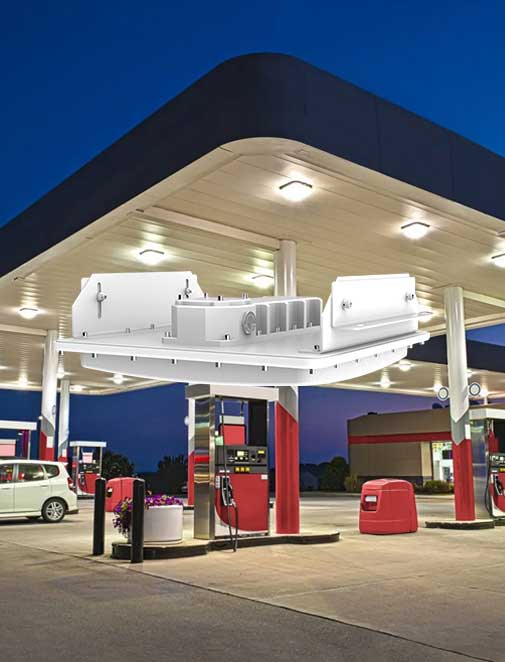

GS Series LED Gas Station Canopy Lights（images 2）

Get Samples

FAQs – LED Gas Station Canopy Lights

What type of sites are GS Series LED canopy lights mainly used for?

In practice, these LED canopy lights for gas station are mainly installed under petrol station canopies, refuelling areas, and similar semi-open spaces. We also see them used in dangerous goods warehouses where Zone 2 gas or Zone 22 dust classification applies.

Are these gas station canopy LED lights suitable for hazardous areas?

Yes. The GS Series gas station canopy LED lights are designed for Zone 2 gas and Zone 22 dust areas. They use the nR protection concept and are intended for locations where explosive atmospheres occur occasionally, not continuously.

What makes this gas station LED canopy lights design different from normal canopy fixtures?

The main difference is certification and structure. Ordinary canopy lights are not certified for hazardous areas. These gas station LED canopy lights are developed by SEEKINGLED to meet ATEX requirements and include a certified explosion-proof junction box.

Why is the built-in junction box important on a led canopy light for gas station use?

On many projects, a separate explosion-proof junction box is required, which adds cost and installation time. With this led canopy light for gas station applications, the junction box is already integrated, reducing material and labour cost.

How does the power adjustment work on canopy LED lights for gas stations?

Inside the junction box there is a DIP switch. Installers can select 200W, 150W, or 100W on site. This helps distributors reduce stock, as one canopy LED lights for gas stations model covers several common power levels.

Can these gas station LED canopy light fixtures be wired in series?

Yes. The GS Series gas station LED canopy light has two cable entries, which allows loop-in and loop-out wiring. This simplifies installation under long canopies.

What light output can be expected from these led canopy lighting gas stations solutions?

At full power, output can reach up to 28,000 lumens at CRI 80. In real installations, output is often adjusted based on canopy height and local lighting standards.

How durable are these led gas station canopy light fittings?

The housing is rated IP66 for dust and water protection and IK10 for impact resistance. This is important in forecourt areas where vibration, weather exposure, and occasional impact occur.

What is the expected service life of led gas station canopy lights?

The rated lifetime is L80B20 over 100,000 hours at 25°C. Actual lifetime depends on ambient temperature and operating hours, but maintenance requirements are much lower than traditional metal halide fittings.

Who designs and manufactures the GS Series led lights for gas station canopy?

The GS Series led lights for gas station canopy are designed and manufactured by SEEKINGLED, with focus on ATEX compliance, installation practicality, and long-term operation in petrol station environments.
