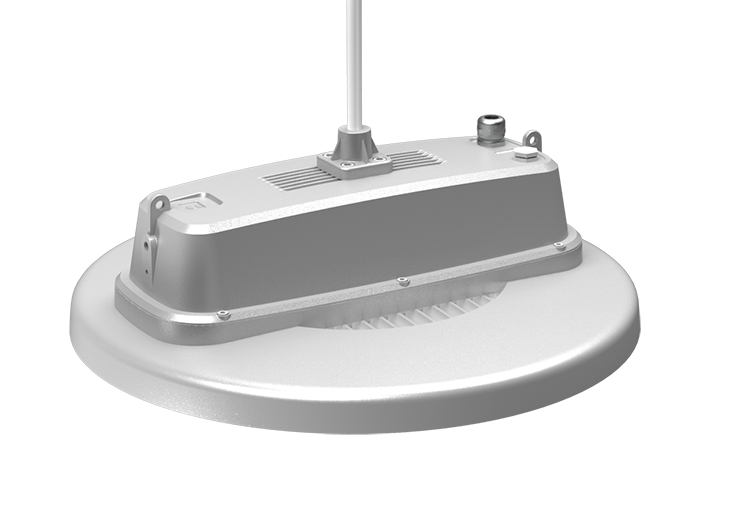

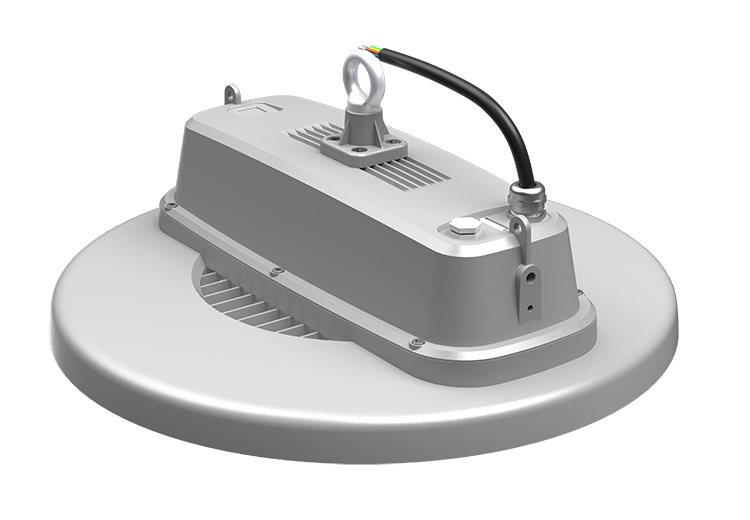

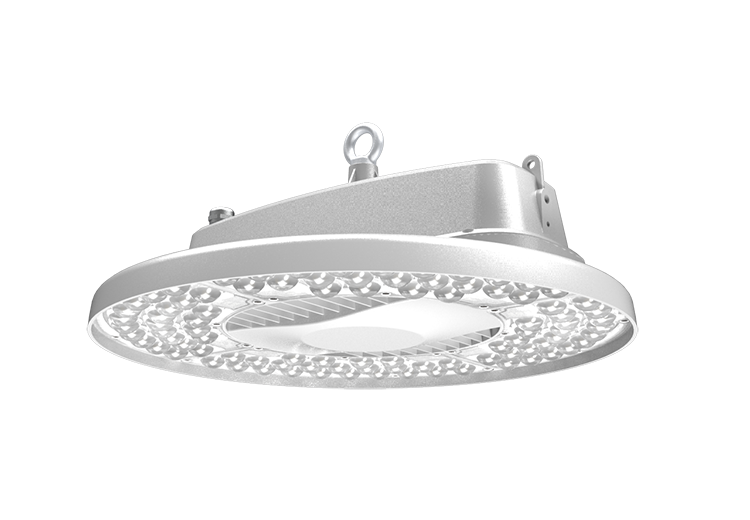

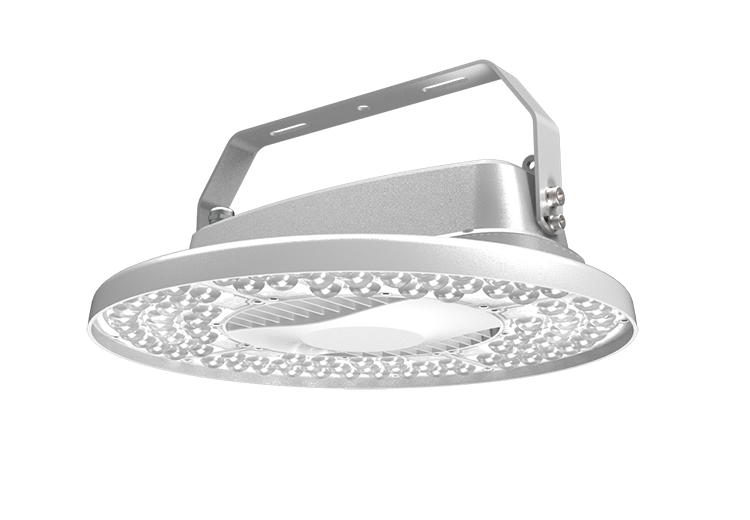

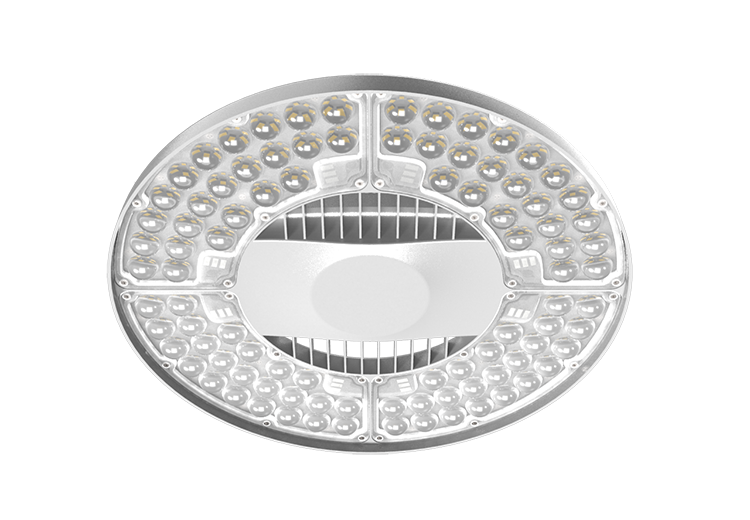

High Bay LED Lighting

HB15(GLE) SERIES

The SEEKINGLED HB15(GLE) Series High Bay LED Lighting is a new generation of high bay led lighting, engineered for indoor spaces where visibility, clarity and comfort matter just as much as brightness. Many commercial and sports facilities struggle with glare from traditional high bay fixtures, especially when ceilings are high and reflective surfaces are common. The HB15(GLE) solves this challenge with a carefully designed optical system that maintains a UGR < 19 (CIE190:2010), helping players, customers and staff see clearly without distraction or harsh reflections.

The performance of the HB15(GLE) is equally strong on efficiency. With an output of 170 lm/W, it delivers high illumination levels using far less energy than metal halide or older LED fixtures. Five wattage options—80 W, 100 W, 150 W, 200 W and 240 W—offer flexible solutions for mounting heights from retail aisles to sports courts and open commercial floors. The consistent lumen output (up to 40,800 lm at 240 W) ensures spaces can be lit evenly without overusing fixtures.

Durability is built into the core of the design. The high-strength aluminum alloy body is sealed to IP69K, capable of handling high-pressure cleaning or dusty industrial settings, while the IK09 impact rating resists accidental bumps from equipment or maintenance tools. The HB15(GLE) uses dependable constant-current drivers from MEANWELL or MOSO, ensuring stable operation with PF ≥ 0.95 and THD < 15%.

Color temperatures of 4000K or 5700K make it suitable for different environments—balanced lighting for supermarkets and airports, or crisp illumination for sports venues and exhibition halls. The fixture’s 90° beam angle ensures that light spreads evenly over wide floor areas without creating glare hotspots.

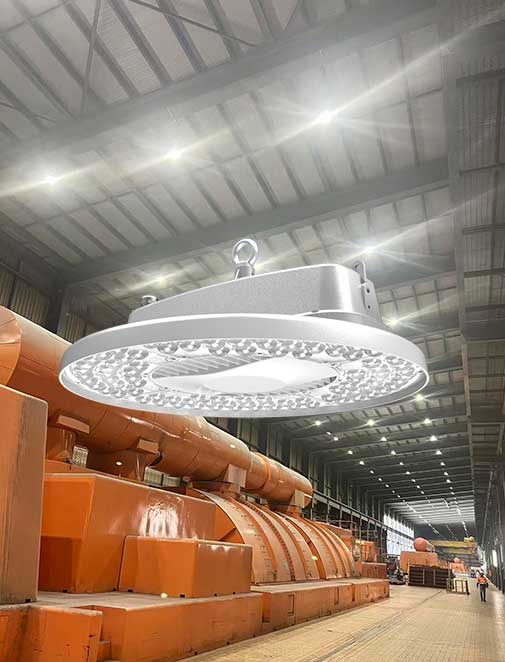

These attributes make the HB15(GLE) Series ideal for spaces such as indoor sports halls, airport waiting rooms, showroom floors, supermarkets, exhibition centers, logistics hubs, and other facilities demanding reliable, modern commercial high bay led lighting fixtures.

Technical Specifications:

AC Input100-277V 50/60Hz
Brand of LED DriverMEANWELL / MOSO
Light Source2835
CRI RangeRa>80
CCT RangeNW(4000K) CW(5700K)
Light Efficiency170±5% Lm/W
Beam Angle90°
HousingAluminum Alloy
WaterproofIP69K & IK09
L80B20@25℃>100000H
PF≥0.95 THD<15% Power Efficiency：≥0.9
CertificationsTUV, CE, CB, ETL, FCC, SAA
Warranty5 Years

Get Samples

High Bay LED Lighting Product Video

High Bay LED Lighting Product Explanation Videos

Visit our YouTube homepage

High Bay LED Lighting Parameter

Model NO.

XJ-GLE80W
XJ-GLE100W
XJ-GLE150W
XJ-GLE200W
XJ-GLE240W

Power (W)

80
100
150
200
240

Luminous Flux 170lm/W

13600
17000
25500
34000
40800

Light distribution curve

Above lumens based on 4000K Ra:80

HB15(GLE) Series-High Bay LED Lighting SPEC

Download

Need Help? Start Here..

Get Samples

FAQs – High Bay LED Lighting – HB15(GLE) Series

What is the SEEKINGLED HB15(GLE) high bay led lighting series?

The HB15(GLE) is SEEKINGLED’s professional solution for high-ceiling commercial and sports facilities, providing efficient, low-glare illumination with advanced LED technology and durable industrial construction.

Which environments is the HB15(GLE) designed for?

It performs especially well in indoor sports venues, airport waiting halls, auto sales centers, retail supermarkets, exhibition centers and large open commercial buildings where high bay led lighting must remain bright yet comfortable.

What makes its UGR < 19 rating important?

UGR < 19 indicates low glare, which reduces eye strain and improves visibility. This is crucial in sports environments where people frequently look up, or in retail areas where customers need clear, comfortable lighting.

How do I choose the right wattage for my space?

Lower wattages like 80 W or 100 W are often used for 6–8 m installations such as retail or supermarket aisles. Higher wattages (150–240 W) suit 10–16 m ceilings common in sports halls, exhibition spaces or industrial logistics areas.

Is the HB15(GLE) more efficient than older high bay fixtures?

Yes. With up to 170 lm/W, it provides significantly more light per watt than metal halide, sodium lamps, or early-generation LED high bays. This often results in large energy savings, especially for facilities running long operating hours.

How durable is the HB15(GLE) in real-world use?

The aluminum housing is built to IP69K, meaning it withstands high-pressure, high-temperature cleaning and dusty environments. The IK09 rating protects the fixture from impacts during maintenance or equipment movement.

What driver brands does SEEKINGLED use for this series?

The HB15(GLE) uses drivers from MEANWELL or MOSO, known for stable output, low flicker and long reliability, especially in commercial and industrial applications.

What is the expected lifespan of this high bay led lighting system?

The HB15(GLE) achieves L80B20 > 100,000 hours at 25°C, making it suitable for facilities operating continuously, such as airports, supermarkets and 24-hour logistics centers.

Can it be used to replace older HID or metal halide fixtures?

Yes. Its efficiency, lumen output and mounting compatibility make it a strong replacement solution. Many projects use the HB15(GLE) for retrofits to reduce energy consumption and improve lighting quality without major construction changes.

What optical and color options are available?

It comes standard with a 90° beam angle for wide, even distribution. Color temperatures include 4000K for balanced commercial lighting and 5700K for crisp, high-clarity environments such as sports halls or large presentation spaces.
