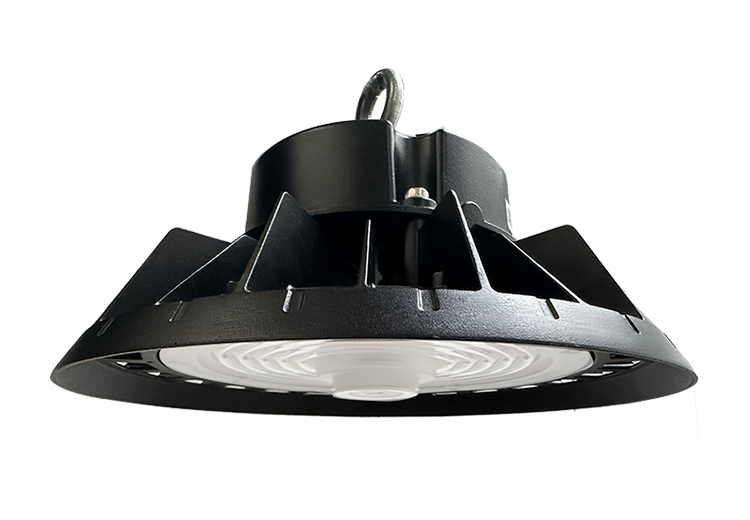

HBF SERIES
The HBF Series Industrial LED High Bay Lighting from SEEKING was developed with a clearer purpose than most typical UFO fixtures on the market. Industrial LED high bay lighting usually comes with a compromise between efficiency and cost, and that’s exactly the gap we wanted to narrow. Instead of pushing every feature to the extreme, our engineers kept the design compact, controlled the thermal mass properly, and selected a driver configuration that is reliable for continuous indoor industrial use without unnecessary complexity.

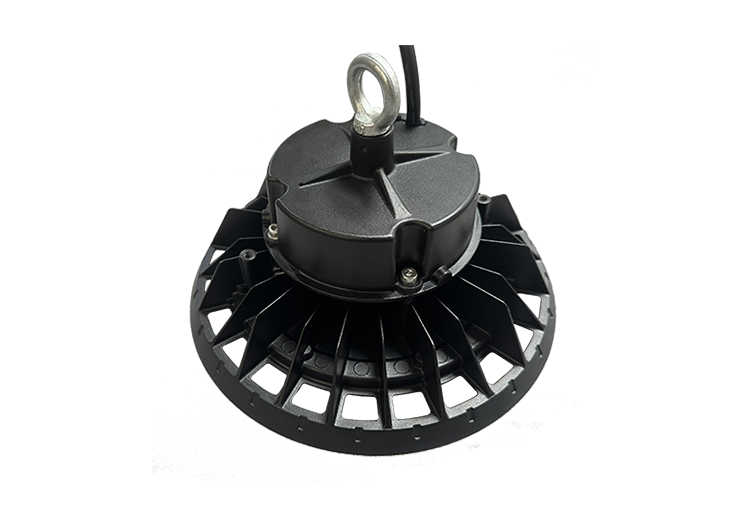

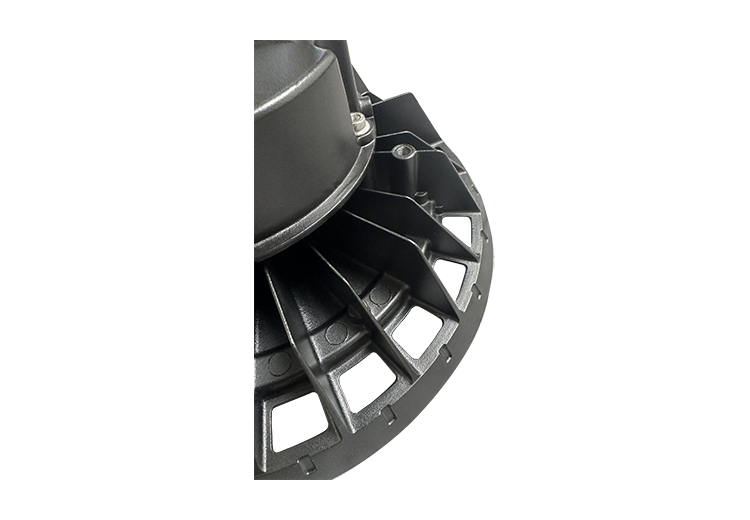

While many high bays advertise high output, the HBF Series actually delivers up to 200 lm/W, which means real energy savings inside warehouses and production halls that operate for long hours every day. A die-cast aluminum housing keeps the temperature under control even when mounted close to the ceiling in steel-roof factories. SOSEN’s flicker-free driver choice was intentional — the industrial market is increasingly sensitive to stable light output, especially in quality inspection lines or where cameras are installed.
Beam angles are available in 60° and 90°, allowing installers to specify according to the mounting height rather than correcting problems later. A microwave motion sensor interface (depending on the angle selection) is available for projects that want step-dimming or occupancy-based savings. It’s also worth noting that the HBF carries IP65 + IK08, so it’s prepared for dusty logistics environments, commercial warehouses, garages or semi-open industrial buildings.

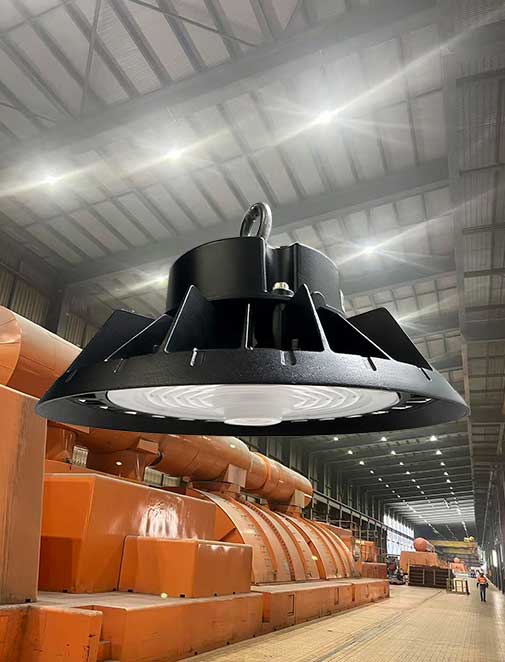

Typical applications include distribution warehouses, industrial workshops, steel-frame factories, logistics hubs, commercial garages, and wholesale project installations. The HBF Series is also a good fit for lighting upgrades in older facilities where energy reduction and faster payback matter more than fancy appearance.
Model NO.
Power (W)
Luminous Flux (200lm/W)
Light distribution curve
Above lumens based on 5700K Ra:70
The HBF Series is SEEKING’s UFO-type industrial LED high bay lighting solution that focuses on high efficiency and stable long-term operation. It’s designed mainly for large indoor spaces such as warehouses, factories and logistics areas.
It’s mainly used in warehouses, workshops, industrial production, logistic centres and commercial garages. Contractors often choose it when they need both good efficiency and controlled cost.
From 100W, 150W, 200W up to 240W. The choice normally depends on ceiling height and required average lux. Most distribution centres use 150W or 200W for 8–14m mounting points.
The efficiency is tested based on standard conditions and uses high-efficiency LED packages. In actual installation, the final effect also depends on ceiling height, reflectivity and power settings, but users generally see a noticeable reduction in kWh consumption compared to older HID fixtures.
Certain beam options come with a plug-ready interface. When the sensor is fitted, the light can dim automatically when nobody is present. This helps projects with long corridors or variable usage patterns.
Yes. The fixture is IP65 and IK08 rated, which is suitable for most indoor industrial spaces or semi-open loading areas. Only in extremely corrosive environments we would evaluate coatings or maintenance cycles.
Standard options include 4000K and 5700K, with extra availability for 3000K or 5000K depending on project request. Warehouses usually prefer cooler white for visibility.
The design target is L80B20 over 100,000h under standard testing. In typical 10–12 hour per day industrial conditions, the product usually runs trouble-free for many years without noticeable lumen drop.
Yes. Many facilities replace old HID lamps with HBF units because installation is straightforward. It’s also a good choice for new logistics warehouses that want lower long-term energy cost.
HBF carries CE and CB approvals and includes a standard 5-year warranty from SEEKING under normal use. For large industrial projects, we can provide detailed technical data and lighting calculation support.
