LED Linear Light

HLS SERIES

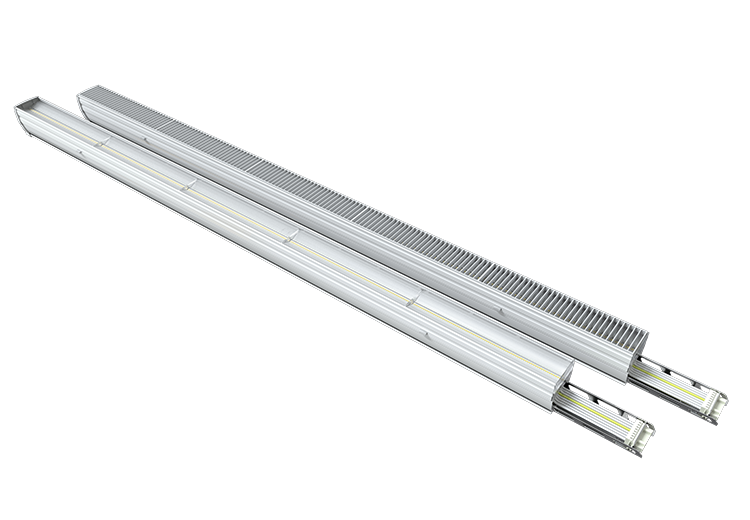

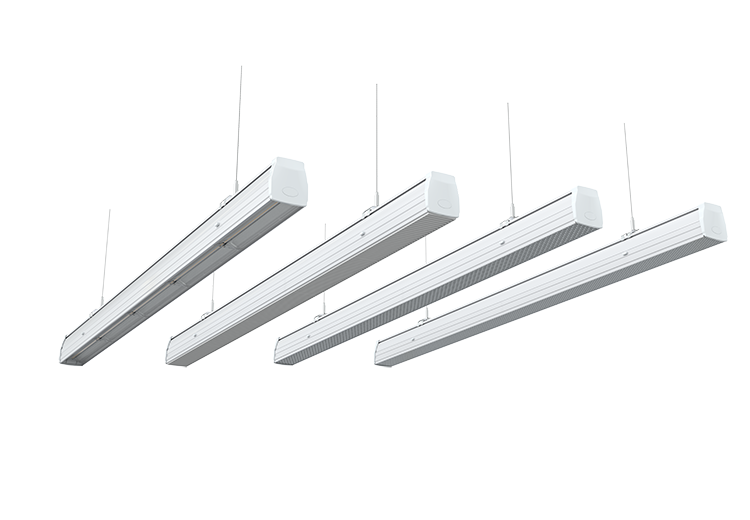

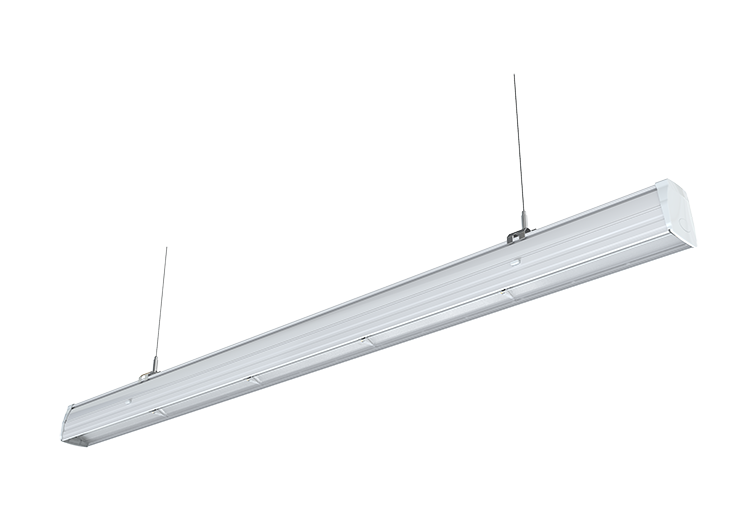

The HLS Series LED linear light from SEEKING is developed for projects where flexibility, speed of installation, and long-term efficiency really matter. Instead of traditional individual fixtures and cable trays, this linear trunking system combines lighting, wiring, and mounting into one clean solution.

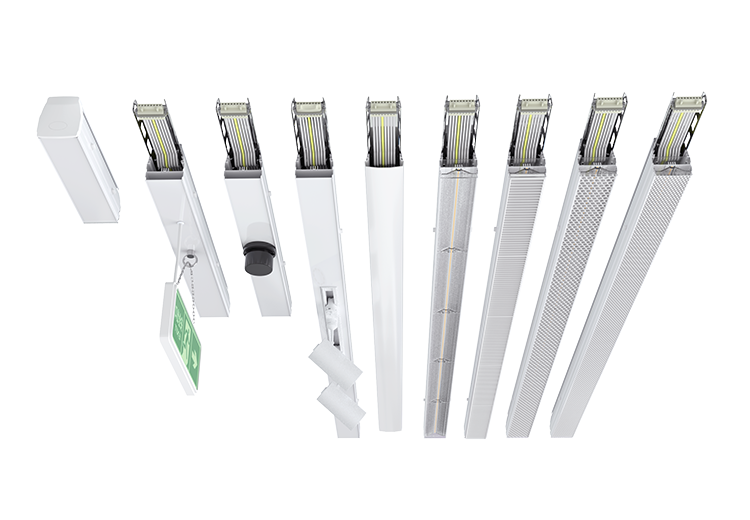

With a modular design, the HLS Series allows different lengths, beam angles, and power settings to be combined on site. Installers do not need extra bridges, complex wiring, or additional accessories. In many warehouses, factories, offices, and retail spaces, this directly shortens the construction period and helps reduce labor and material costs.

Thanks to high-efficiency optics and a reliable TRIDONIC driver, the system delivers up to 180 lm/W, with selected configurations reaching even higher performance. Optional functions such as dimming, emergency lighting, and sensor control make the HLS Series suitable for both simple projects and more advanced smart lighting layouts.

Typical applications include industrial production areas, logistics centers, supermarkets, open offices, corridors, and commercial interiors where continuous light lines and a tidy ceiling appearance are preferred.

Technical Specifications:

AC Input200-240V 50/60Hz
Brand of LED DriverTRIDONIC
Light Source2835
CRI RangeRa>80
CCT RangeNW(4000K), CW(5700K)
Light Efficiency180±5% Lm/W(200LM/W MAX.)
Beam Angle30°, 60°, 90°, 120°, P25, SP25
HousingAluminum Alloy
WaterproofIP40 & IK08
L80B20@25℃>100000H
PF≥0.95 THD
CertificationsTUV, ENEC, CE, CB, SAA
Warranty5 Years
Light body colorwhite (RAL7036) black (RAL8022)

Get Samples

HLS SERIES – LED Linear Light Parameter

Model NO.

XJ-HLS6980-0630-*x
XJ-HLS6980-1260-*x
XJ-HLS6980-1575-*x

Power (W)

32/28/23/19
59/50/41/33
74/66/59/52

Luminous Flux 180lm/W

5760
10620
13320

Light distribution curve

Above lumens based on 4000K Ra:80

HLS SERIES – LED Linear Light SPEC

Download

Need Help? Start Here..

Get Samples

FAQs – LED Linear Light – HLS Series

What is the HLS Series LED linear light system from SEEKING?

The HLS Series LED linear light is a modular linear trunking system designed to replace traditional separate fixtures and cable trays. It integrates lighting modules, power supply, and mounting structure into one system, making installation faster and cleaner.

Where is this LED linear light commonly used?

This LED linear light is widely used in factories, warehouses, workshops, offices, supermarkets, shopping malls, and commercial corridors. It works especially well in spaces that require long, continuous light lines and a uniform lighting effect.

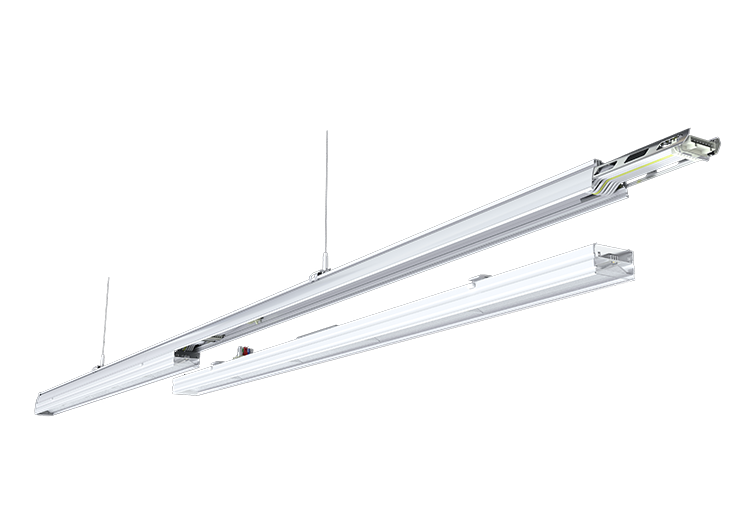

How does the modular trunking design help during installation?

With the HLS Series, installers can connect modules directly without extra wiring or bridges. This reduces installation time, minimizes errors on site, and lowers labor costs. For large-scale projects, the difference is very noticeable.

How efficient is the HLS Series LED linear light?

The standard efficiency reaches 180 lm/W, with some configurations capable of even higher output. This level of efficiency allows users to achieve required lux levels while keeping energy consumption under control.

Can I adjust the power or light output for different areas?

Yes. Different power options are available within the same system length, and dimming functions can be added when needed. This makes it easier to balance brightness between work zones, aisles, and general areas.

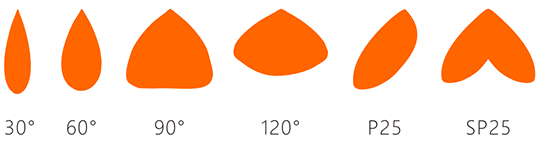

What beam angles are available for this linear trunking system?

The HLS Series LED linear light supports multiple beam angles, including 30°, 60°, 90°, 120°, and special optics such as P25 and SP25. This allows precise light distribution for shelves, workstations, or open spaces.

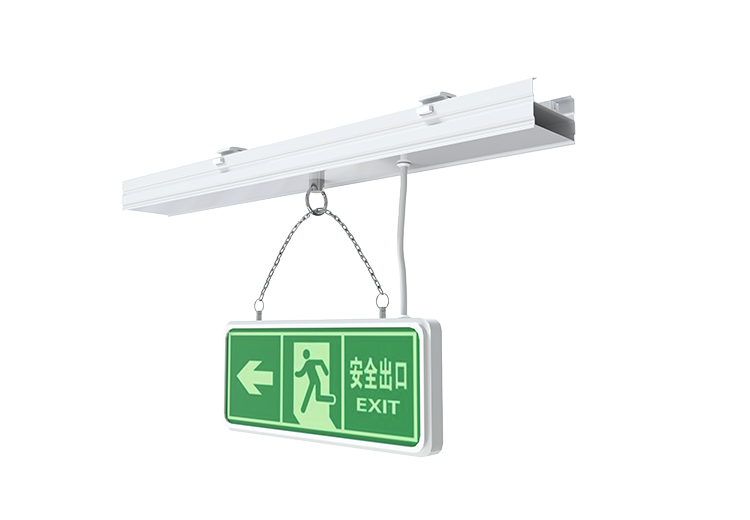

Does the system support emergency lighting or sensors?

Yes. Emergency lighting modules, motion sensors, and other control options can be integrated into the trunking system. These options are often used in industrial and commercial buildings to meet safety and energy-saving requirements.

How durable is the HLS Series LED linear light?

The housing is made from aluminum alloy with an IK08 impact rating. It is designed for long-term indoor use in demanding environments such as factories and logistics centers. The rated lifetime exceeds 100,000 hours (L80B20).

What color temperatures and finishes are available?

The standard color temperatures are 4000K and 5700K, suitable for most work and commercial spaces. The housing is available in white (RAL7036) or black (RAL8022), making it easier to match different interior styles.

Is the HLS Series suitable for retrofit projects?

Yes. Many customers use the HLS Series LED linear light to upgrade existing industrial or commercial lighting systems. As long as ceiling height and layout are suitable, old fixtures can be removed and replaced with a continuous trunking system to improve lighting quality and appearance.
