Are LED Flood Lights Dimmable?

Question:

Are LED flood lights dimmable, or do they only work at full brightness?

Answer:
Some LED flood lights are dimmable, but not all of them. Dimming depends on the driver inside the fixture, not the LED chip itself. If the driver supports dimming, the flood light can be dimmed smoothly. If it does not, adding a dimmer will not work and may even cause flicker or failure.

This is one of the most common misunderstandings in outdoor LED projects.

What “Dimmable LED Flood Lights” Actually Means

When users search are flood lights dimmable, what they usually mean is:

• Can brightness be adjusted smoothly?
• Will it work with a wall dimmer?
• Can it integrate with control systems?

The key point:

👉 A dimmable LED flood light is defined by its driver compatibility, not the LED chip.

From field experience, I’ve seen many installations fail simply because someone assumed all LED flood lights were dimmable.

They are not.

Why Not All LED Flood Lights Are Dimmable

LEDs operate on low-voltage, constant current. To dim them safely, the driver must be designed for controlled current reduction.

Non-dimmable LED flood lights:

• Run at fixed output only
• Cannot respond to dimmer signals
• May flicker or shut down if connected to a dimmer

Dimmable LED flood lights:

• Use dedicated dimming drivers
• Respond predictably to control signals
• Maintain stable light output at reduced levels

So when people ask are LED flood lights dimmable, the correct answer is “only if specified.”

Engineering Insight: Why Drivers Matter More Than LEDs

From a technical standpoint:

• LED chips are inherently dimmable
• Drivers determine whether dimming is usable

Typical failure cases in dimmable floodlights:

• Flicker below 30% output
• Sudden shut-off at low voltage
• Driver noise during dimming

According to industry testing referenced in LED driver design guides, incompatible dimming systems are the #1 cause of field failures, not the LEDs themselves.

Common Dimming Methods for LED Flood Lights

In commercial and outdoor projects, these are the most used options:

• 0–10V dimming – common for parking areas and façades
• DALI – used in smart building systems
• PWM or resistor dimming – often factory-set for projects
• Motion sensor dimming – full output only when needed

Traditional wall dimmers designed for halogen or incandescent lamps usually do not work unless the LED flood light is explicitly marked compatible.

Comparison of Dimming Technologies

Dimming Method	Typical Use	Compatibility
0–10V	Commercial outdoor lighting	High
DALI	Smart buildings	Very high
TRIAC	Residential dimmers	Limited
PWM	Industrial systems	High

Important note:

👉 Not all LED flood light dimmable systems support every method.

Always match:

• Driver type
• Control signal
• Wiring design

When Dimming LED Flood Lights Makes Sense

Dimming is often used to:

• Reduce light levels late at night
• Save energy during low-traffic hours
• Extend fixture lifespan by lowering thermal stress
• Comply with local light pollution regulations

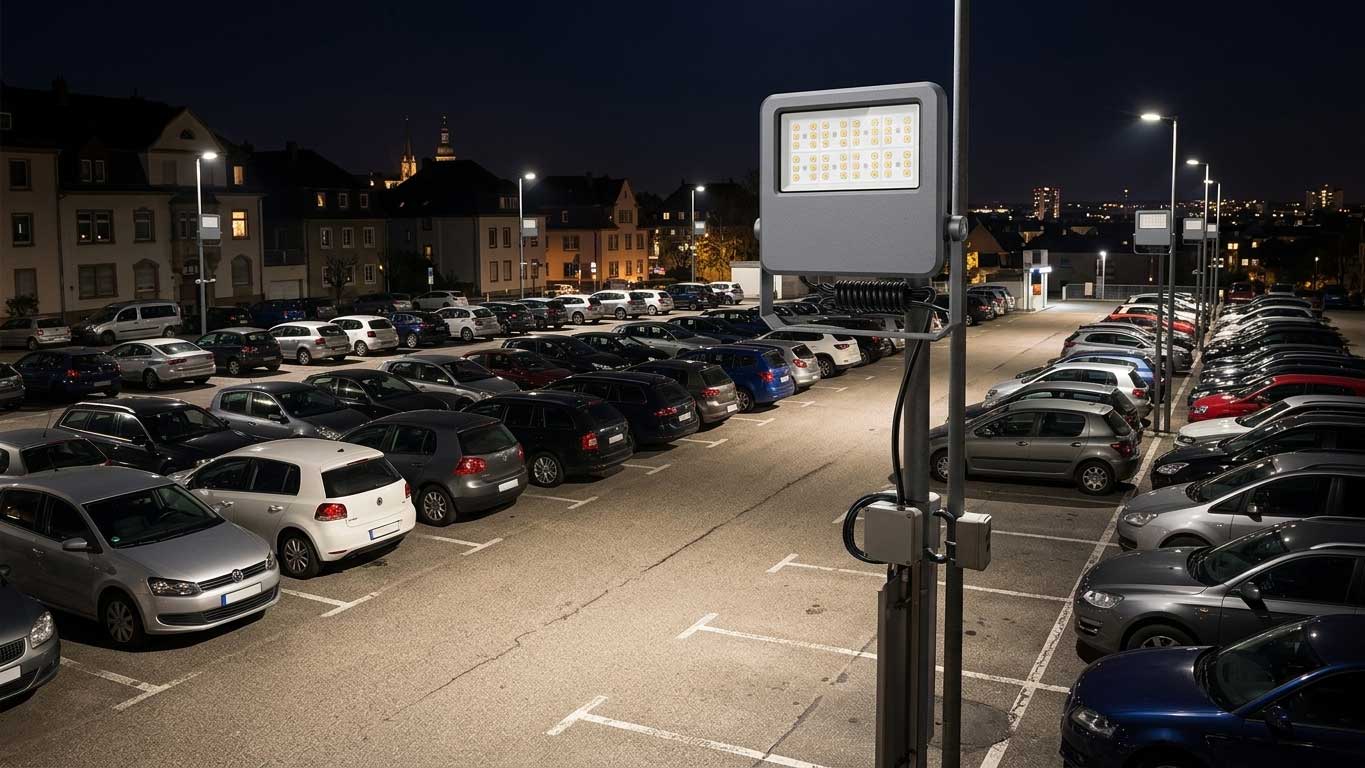

For sites like car parks, yards, or building perimeters, dimming is less about comfort and more about control and efficiency.

Real Project Observation

In one logistics park retrofit I reviewed:

• Lights dimmed to 40% after midnight
• Energy use dropped by ~35%
• No complaints from operators

This is where dimmable outdoor LED flood lights create measurable value—not just theoretical savings.

Common Problems When Dimming LED Flood Lights

Many dimming issues come from mismatched components, not the light itself.

Typical problems include:

• Flickering at low dim levels
• Lights not turning off completely
• Limited dimming range
• Noise from the driver

These usually happen when a non-compatible dimmer is used or when dimming wiring is incorrect.

Quick Troubleshooting Checklist

Before blaming the fixture, check:

✔ Is it truly a dimmable flood light?
✔ Is the flood light dimmer compatible?
✔ Is wiring correct (especially 0–10V lines)?
✔ Is voltage stable?

From field audits, over 70% of dimming issues are wiring or compatibility—not product defects.

Final Answer: Are LED Flood Lights Dimmable?

Yes, LED flood lights can be dimmable, but only when they are built with the correct driver and control interface. Dimming is not automatic, and it should never be assumed.

For outdoor and commercial projects, checking dimming compatibility early avoids most installation and performance issues later on.

FAQ: Are Flood Lights Dimmable & Related Questions

Are all flood lights dimmable?

No. Only dimmable flood lights with compatible drivers support brightness control. Standard models operate at fixed output.

Can I use a wall dimmer with LED flood lights?

Only if the fixture supports TRIAC dimming. Most LED floodlight dimmable systems require 0–10V or DALI instead.

What is a flood light dimmer?

A flood light dimmer is a control device that adjusts brightness. It must match the driver type (0–10V, DALI, or TRIAC).

Are dimmable LED flood lights suitable for outdoor use?

Yes. Dimmable outdoor LED flood lights are widely used in parking lots, yards, and building exteriors for energy-saving lighting control.

More answers

• How Many Amps Does a LED Flood Light Use?
• How to Change LED Flood Light Bulb?
• How to Wire a LED Flood Light?
• How Bright Is 10W LED Flood Light?
• How Bright Is a 10 Watt LED Flood Light?
• How Bright Is a 10W LED Floodlight?

SEEKINGLED Engineering Note

At SEEKINGLED, dimmable LED flood lights are designed with:

• Stable dimming drivers
• Flicker-free performance
• Wide dimming range (10–100%)
• Compatibility with industrial control systems

Because in real projects, smooth dimming matters more than just having the feature.

Final Insight

After years of working with dimmable LED flood lights, one pattern is clear:

Most problems don’t come from the light.

They come from assumptions.

Assuming all LEDs dim.
Assuming all dimmers work.

They don’t.

And in outdoor lighting projects,
that misunderstanding shows up quickly—
in flicker, failure, and callbacks.
