are all flood lights dimmable?

are all flood lights dimmable? No. Flood lights are only dimmable when the fixture’s driver and control system are designed for dimming. The LED chip itself can produce variable output, but a non-dimmable driver cannot safely respond to a dimmer.

That distinction matters in real outdoor installations. A flood light may look like a simple “LED fixture,” but the driver determines how it reacts to 0–10V, DALI, TRIAC, PWM, or other control signals. The U.S. Department of Energy specifically notes that the driver determines the dimming method and that equipment sharing a circuit must use compatible dimming methods.

Why Aren’t All Flood Lights Dimmable?

The common mistake is treating the LED source and the complete flood light as the same thing.

They are not.

An LED is capable of being controlled, but the finished fixture needs a suitable driver between the incoming power and LED modules. A standard constant-current driver may simply deliver the designed operating current continuously. Adding a dimmer upstream does not automatically turn that fixture into a dimmable flood light.

In commercial projects, this is one of those details that tends to surface after installation rather than during product selection. The fixture works at full power, then someone connects an incompatible control system and suddenly there is flickering, limited dimming, buzzing, or a light that refuses to respond.

The Department of Energy also emphasizes that LED luminaires can work with several control strategies, but compatibility between the driver and controls remains important.

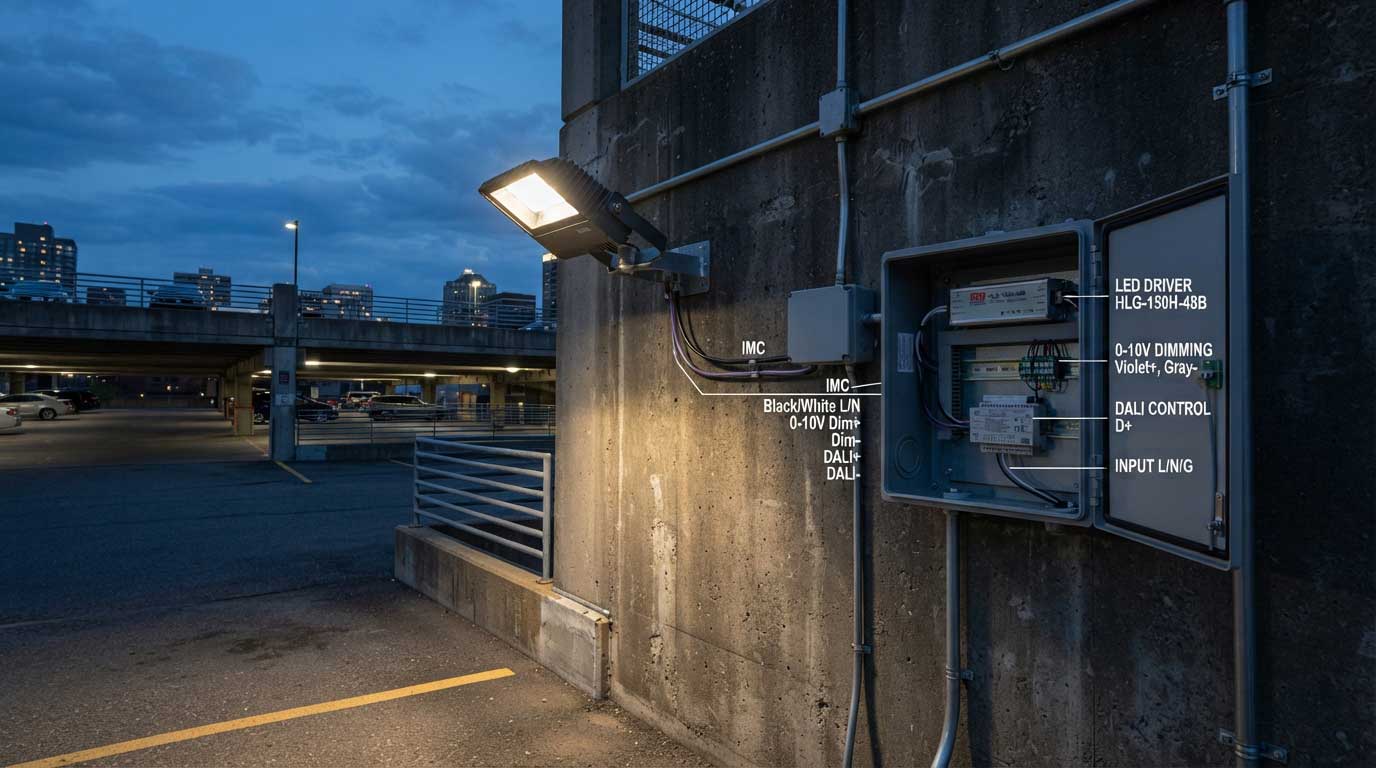

The Driver Determines Dimming Compatibility

Component	What it does	Determines dimming?
LED chip	Produces light	No, not by itself
LED driver	Regulates electrical power	Yes
Dimmer/controller	Sends the control signal	Yes, but must match
Wiring	Carries power/control signals	Must follow system requirements

For example, a commercial flood light may be specified for 0–10V dimming or DALI. That does not mean the same fixture will work with a household TRIAC wall dimmer.

The U.S. Department of Energy studied 23 LED streetlights claiming 0–10V dimming capability and found measurable variation in dimming performance between commercially available LED drivers. The study specifically examined consistency of expected light levels, energy use, and control performance.

That is useful context for buyers: “dimmable” is not the entire specification.

Which Flood Lights Can Be Dimmed?

Dimmable flood lights are available in several configurations. The important point is to match the control method with the driver specification.

Common options include:

• 0–10V: Frequently used in commercial and outdoor lighting control.
• DALI: Common in digitally controlled building and commercial lighting systems.
• TRIAC / phase-cut: More associated with compatible residential dimming applications.
• PWM: Used in certain LED control and driver arrangements.
• Sensor-based dimming: Can reduce output according to occupancy, daylight, or programmed schedules.

SEEKINGLED’s FLD Series, for example, lists DALI and Dimmable among its specifications, alongside IP66 protection, IK08 impact protection and 170 lm/W efficacy. The published specification also lists 480W, 720W, and 960W versions for large-area and sports lighting applications.

This is why product specifications should be checked before ordering rather than assuming every LED flood light has the same control capability.

Does Dimming a Flood Light Save Energy?

It can.

The actual saving depends on the driver, dimming level, operating schedule, control strategy, and installation. Dimming should not be treated as a fixed percentage reduction in electricity consumption.

The U.S. Department of Energy describes dimming as one element of broader lighting-control strategies. In a separate lighting-controls example involving 70 LED fixtures rated at 39W each, combining fixture-mounted motion detection and daylight harvesting reduced weekly electricity consumption from 168 kWh to 111 kWh, a 34% reduction in that particular office application. That figure is a project example, not a universal flood-light saving rate.

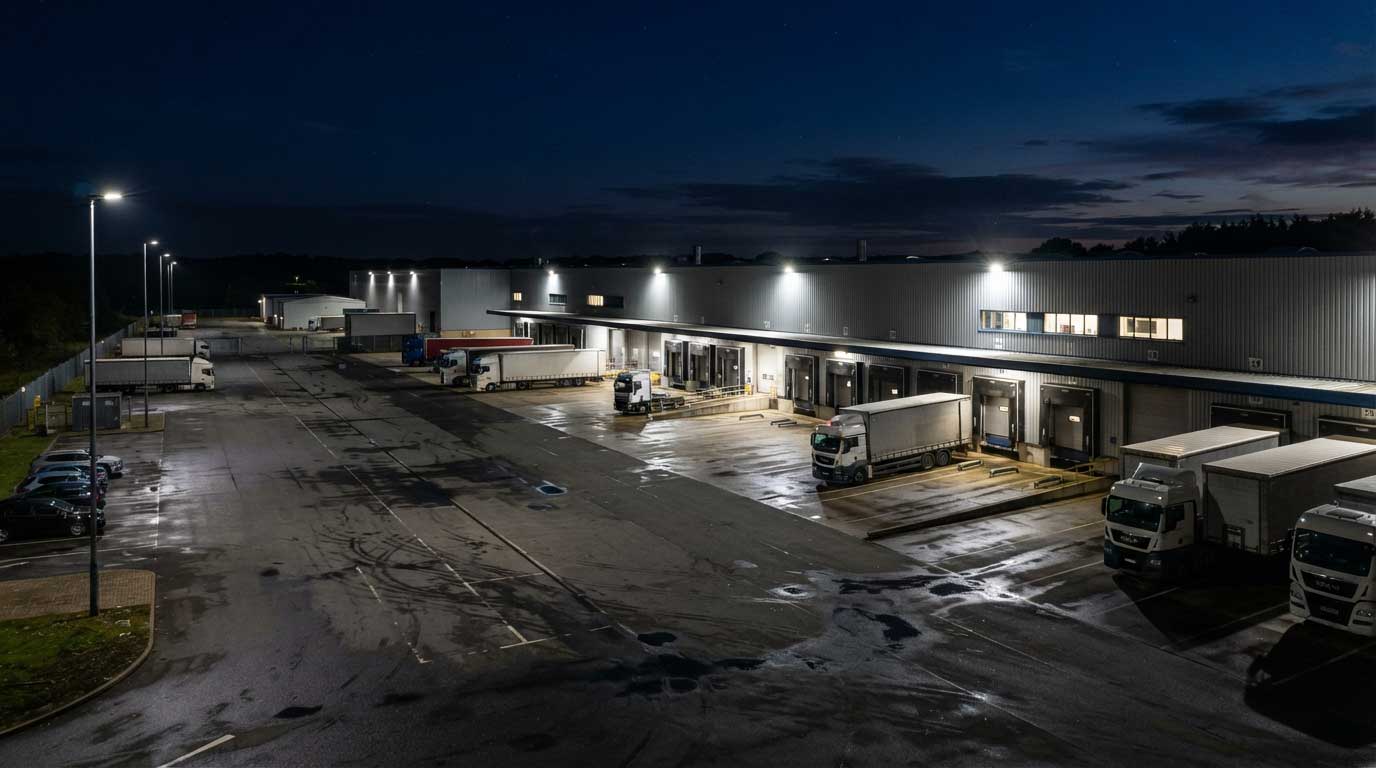

For outdoor flood lighting, practical applications include:

• Reducing output after business hours
• Lowering brightness in low-traffic periods
• Coordinating lighting with occupancy sensors
• Reducing unnecessary nighttime illumination
• Integrating flood lights into centralized building controls

A sports field, warehouse yard and residential driveway have very different lighting schedules. The control strategy should follow the application rather than simply choosing the strongest available dimmer.

How to Check Whether a Flood Light Is Dimmable

Before connecting a dimmer, check the technical documentation rather than testing it directly.

Look for:

1. Dimming specification — such as 0–10V, DALI, TRIAC, or PWM.
2. Driver model — identify the installed driver and its control interface.
3. Input voltage — confirm that the electrical supply matches the fixture.
4. Control wiring — some systems require dedicated control wires.
5. Minimum dimming level — a fixture may dim, but not necessarily down to zero.
6. Controller compatibility — the dimmer must match the driver.
7. Installation requirements — follow the manufacturer’s wiring diagram.

A useful field check is simple: if the product datasheet does not identify a dimming method, do not assume that adding a dimmer will make it dimmable.

FAQ About Dimmable Flood Lights

Are all flood lights dimmable?

No. Only flood lights equipped with compatible dimming drivers and control interfaces are designed for adjustable brightness.

Can I put a dimmer on any LED flood light?

No. The dimmer must match the driver and its specified control method. An incompatible dimmer can cause flickering, unstable output, or malfunction.

Are outdoor LED flood lights dimmable?

Some are. Commercial outdoor models may support 0–10V, DALI, or other control systems, but dimming capability must be confirmed in the product specification.

Are 0–10V and DALI the same?

No. They are different control approaches. A fixture designed for one should not automatically be connected to the other.

Can dimming reduce flood light electricity use?

Yes, reducing light output can reduce energy use, particularly when combined with occupancy, scheduling, or daylight controls. The actual reduction depends on the complete lighting system.

Why does my flood light flicker when dimmed?

An incompatible dimmer, incorrect control wiring, unsuitable driver, or poor low-level dimming performance can cause flicker. The driver and control system should be checked together.

What should I specify when buying dimmable flood lights?

Specify the required wattage, voltage, dimming protocol, control system, mounting environment, IP rating, beam angle, and operating schedule. For commercial projects, request the complete driver and dimming specifications before installation.

Final Answer

are all flood lights dimmable? No. Dimming is a system feature controlled mainly by the LED driver and its compatibility with the selected control method. For commercial and outdoor projects, confirming the driver, dimming protocol and wiring requirements before installation is far more reliable than assuming every LED flood light can be connected to a dimmer.
