Ex Proof LED Lighting: Real Safety, Design, and Industrial Use

Ex proof LED lighting is a sealed lighting system designed to prevent internal sparks, arcs, or heat from igniting flammable gases or dust, while delivering stable, high-efficiency illumination in hazardous environments.

That’s the direct answer.

But in actual industrial settings, the conversation rarely stops there.

I’ve worked alongside installation teams in refineries and chemical plants where lighting decisions were reviewed not by purchasing—but by safety officers. And when that happens, the question shifts from performance to consequence:

“What happens if this light fails?”

That’s where ex proof LED lighting separates itself from standard fixtures.

ex proof led lighting: What “Ex Proof” Really Means

“Ex proof” is shorthand for explosion-protected.

But it doesn’t mean the fixture is indestructible.

It means:

Any ignition inside the fixture is fully contained and cannot ignite the surrounding atmosphere.

This concept is defined under standards like IECEx and ATEX.

According to the IECEx system, certified equipment must ensure that internal ignition cannot propagate outside the enclosure.
Source: https://www.iecex.com

That requirement directly shapes design decisions:

• flameproof enclosures
• controlled surface temperatures
• sealed cable entries
• pressure-resistant housing

Typical Hazardous Environments

You’ll find ex proof LED lighting in places where a spark is enough:

• oil & gas facilities

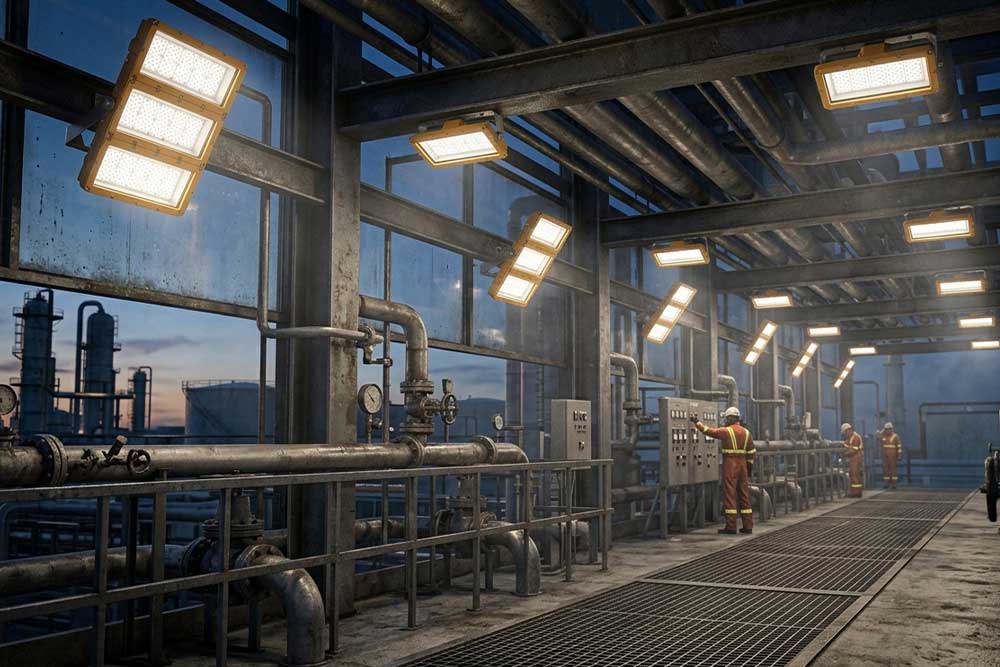

• chemical processing plants
• offshore platforms

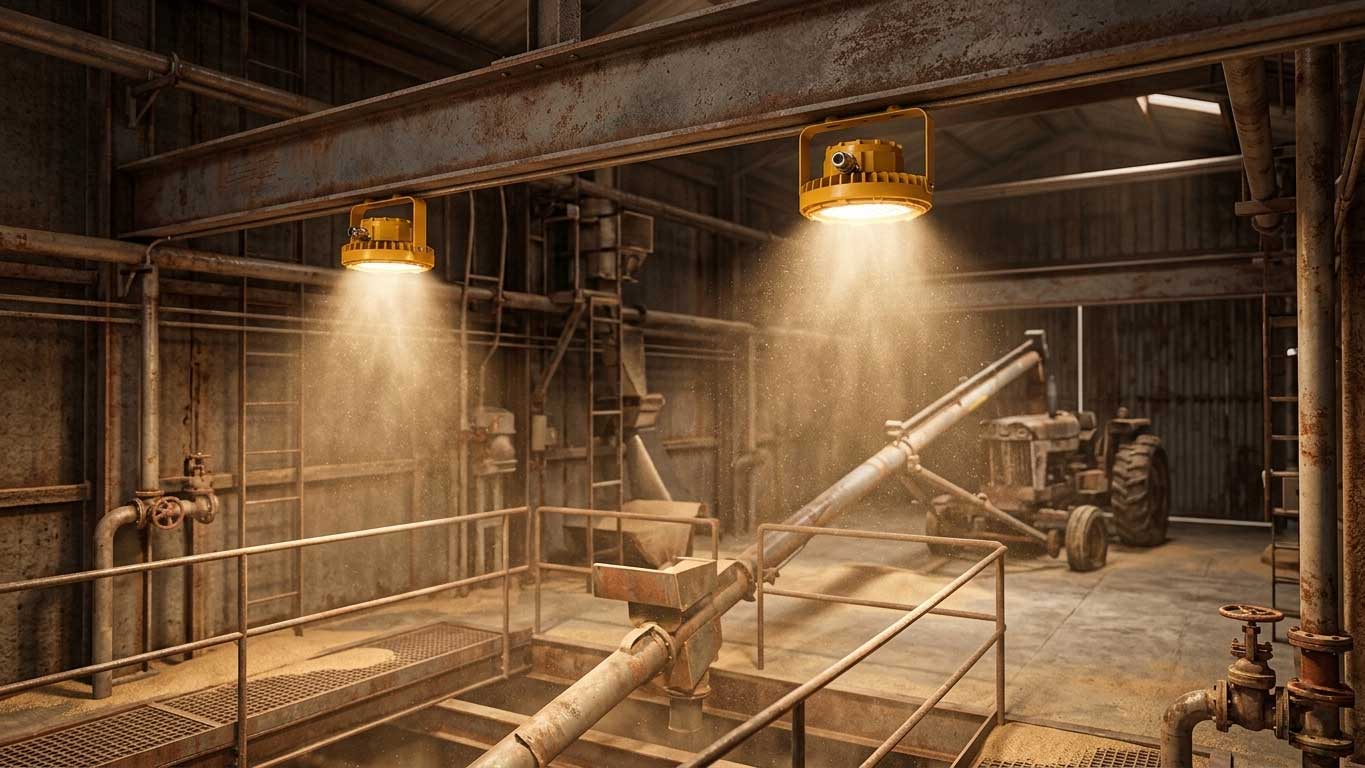

• grain silos (dust explosion risk)
• fuel storage areas

Dust explosions, for instance, can occur at concentrations as low as 50 g/m³, depending on material type.

That’s not theoretical—I’ve seen facilities underestimate it.

explosion proof led lighting: Performance Beyond Lumens

Let’s talk about output.

Typical Performance Range

Power	Lumens	Application
50W	6,000–8,000 lm	confined hazardous areas
100W	12,000–15,000 lm	workshops
150W	18,000–22,000 lm	industrial floors
200W	25,000–30,000 lm	large facilities

The U.S. Department of Energy reports LED systems can reduce energy use by up to 75% compared to traditional lighting.
Source: https://www.energy.gov/energysaver/led-lighting

But here’s the part that rarely gets emphasized:

In hazardous areas, thermal stability matters more than peak brightness.

A fixture running too hot can become the ignition source it was meant to prevent.

Thermal Design in Practice

Real-world ex proof LED lighting includes:

• oversized heat sinks
• controlled driver current
• high-temperature components
• sealed enclosures

In one project I observed, fixtures passed initial tests but showed gradual temperature rise after several hours of continuous operation.

That’s the kind of issue that only shows up in extended testing—not on a spec sheet.

hazardous area led lighting: Certification and Compliance

Certification isn’t optional.

It’s the baseline.

Key standards include:

• ATEX (Europe)
• IECEx (international)
• UL844 (North America)
• Class I Division 1 / 2

According to OSHA, improper electrical equipment is a significant contributor to hazardous location incidents.
Source: https://www.osha.gov

What to Check Before Purchase

• certification authenticity
• temperature class (T-rating)
• gas group compatibility
• IP66/IP67 sealing
• impact resistance

I’ve seen projects delayed because installed fixtures failed documentation checks—not because they didn’t work, but because they couldn’t be verified.

atex led lighting: Installation Reality

Installation is where even good products can fail.

Common Issues

• incorrect cable glands → sealing failure
• improper mounting height → uneven lighting
• ignoring ambient temperature → overheating
• poor wiring practices

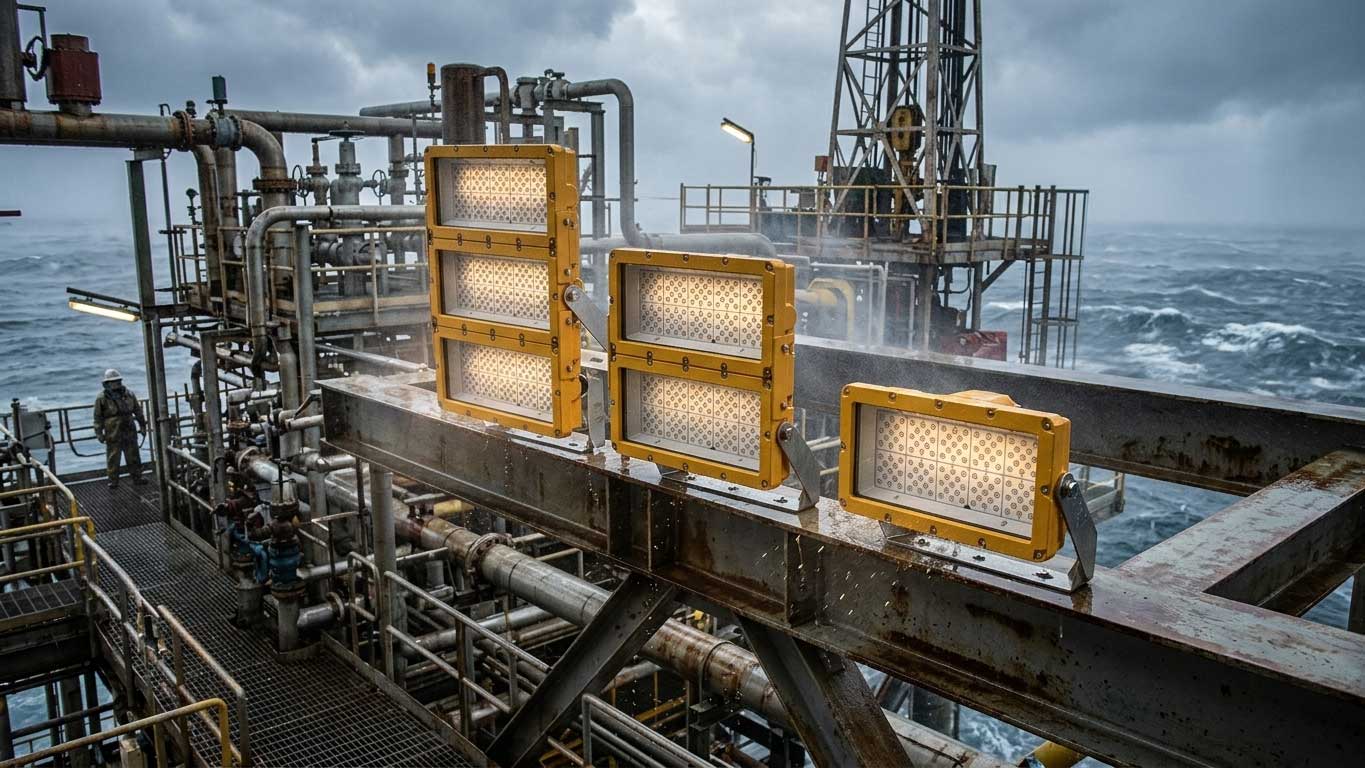

In one offshore installation, condensation built up inside fixtures due to incorrect sealing.

The result wasn’t immediate failure—but it was inevitable.

SEEKINGLED Field Insight

From a manufacturing and field perspective, ex proof LED lighting isn’t about hitting peak specs.

It’s about consistency.

I’ve been involved in:

• factory thermal testing reviews
• on-site installation troubleshooting
• supplier audits for critical components
• post-installation performance checks

What experience teaches you quickly:

• most failures don’t happen immediately
• small sealing issues become major problems over time
• installation quality directly affects product lifespan
• certification is only meaningful if properly verified

That’s why SEEKINGLED approaches lighting as part of a safety system—not just a product.

FAQ：Ex proof LED lighting

What is the lifespan of ex proof LED lighting?

Typically 50,000–100,000 hours depending on thermal management and driver quality.

Can ex proof LED lighting be used in normal environments?

Yes, but it is usually over-engineered and more expensive than standard lighting.

What’s the difference between ATEX and IECEx?

ATEX is required in Europe, while IECEx is an international certification system.

Is higher wattage always better?

No. Proper heat control and certification are more important.

Final Insight

Ex proof LED lighting isn’t just about illumination.

It’s about ensuring that light never becomes a source of ignition.

And in hazardous environments, that’s not optional—it’s fundamental.

Ex proof LED lighting

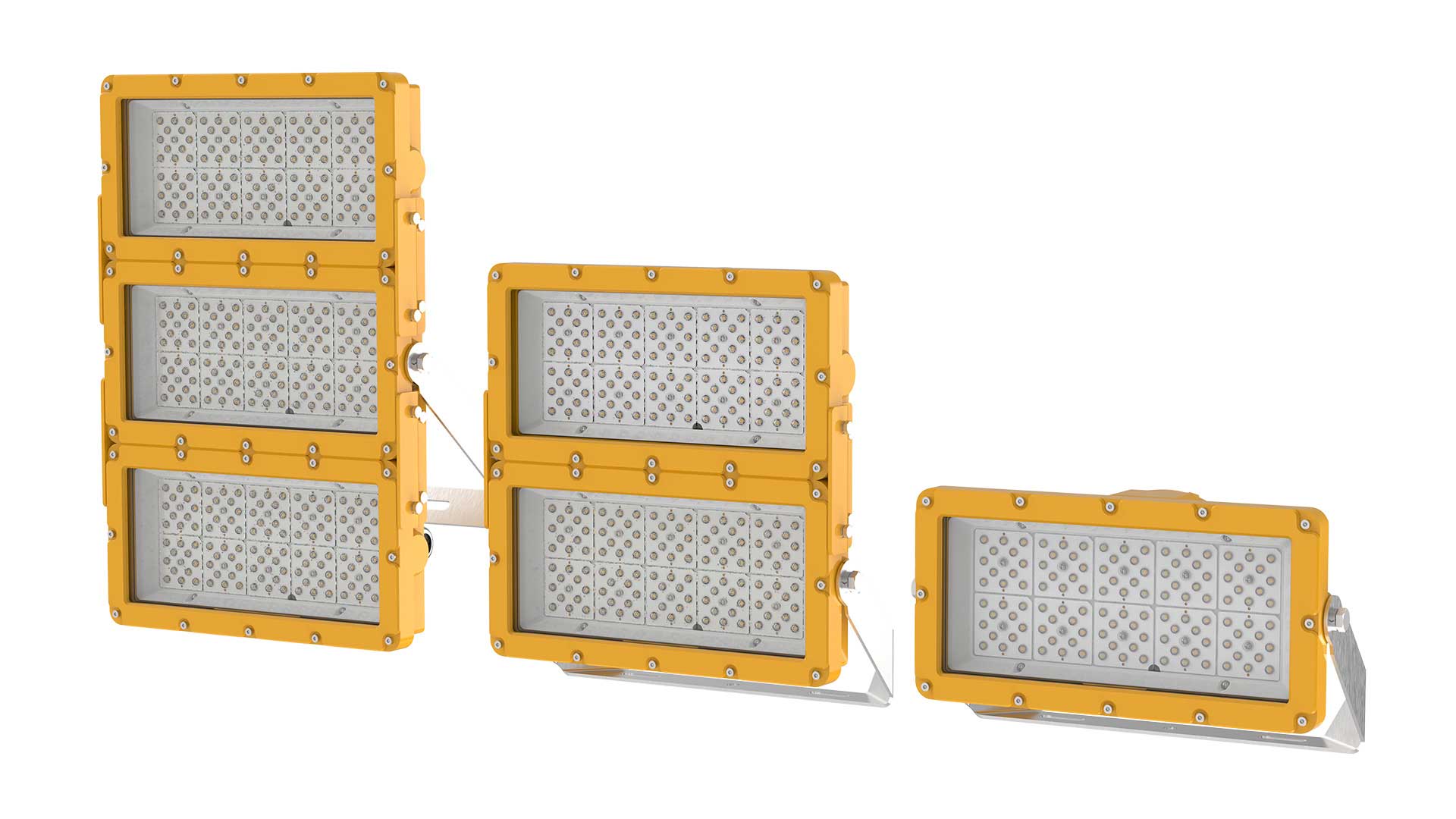

FL9 Series Explosion-proof Floodlights
