Explosion Proof LED High Bay: Real Industrial Performance Guide

An explosion proof LED high bay is a sealed industrial lighting fixture designed to deliver 10,000–40,000+ lumens while preventing internal sparks or heat from igniting hazardous gases or dust.

That’s the short version.

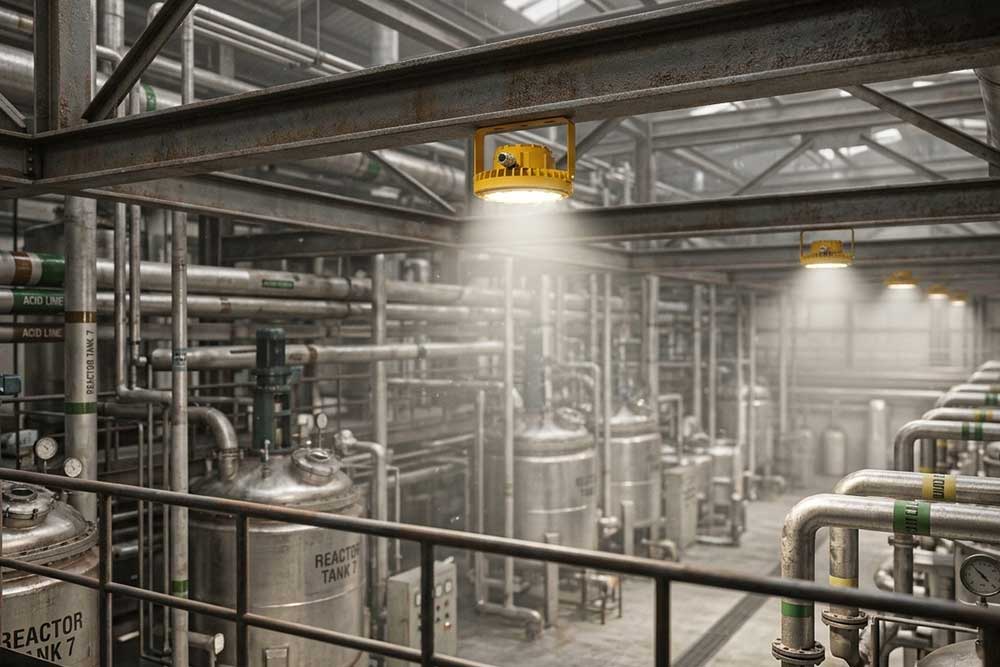

But out on an actual job site—standing under a 12-meter ceiling in a chemical plant—you don’t think in definitions. You look at light spread, glare, heat, and one quiet question in the back of your mind:

“If something goes wrong here… does this fixture make it worse?”

I’ve been in installations where that question wasn’t theoretical.

explosion proof led high bay: What It Actually Means

The term “explosion proof” still gets misunderstood—even by experienced buyers.

It doesn’t mean the fixture can survive an explosion.

It means:

Any internal ignition is contained and cannot ignite the surrounding atmosphere.

That principle is defined by standards like IECEx and ATEX.

According to IECEx certification rules, equipment must ensure that internal ignition cannot propagate outside the enclosure.
Source: https://www.iecex.com

That requirement drives design choices you won’t see in standard high bays:

• flameproof enclosures
• precision-machined joints
• pressure-resistant housing
• sealed cable entries

Where These High Bays Are Used

These aren’t general-purpose fixtures.

They exist because certain environments demand them:

• oil & gas refineries
• chemical processing plants

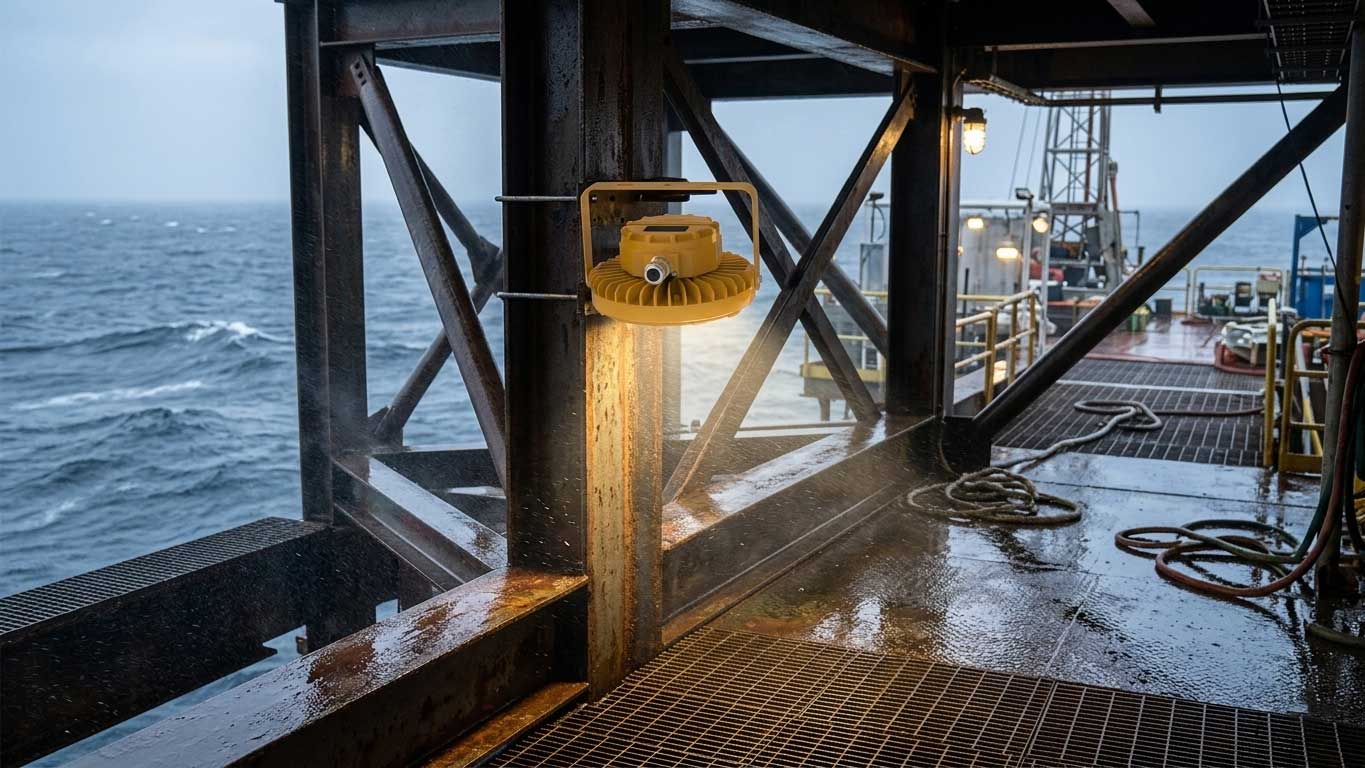

• offshore platforms
• grain silos (combustible dust)
• fuel storage terminals

Dust explosions can occur at concentrations as low as 50–100 g/m³, depending on material.

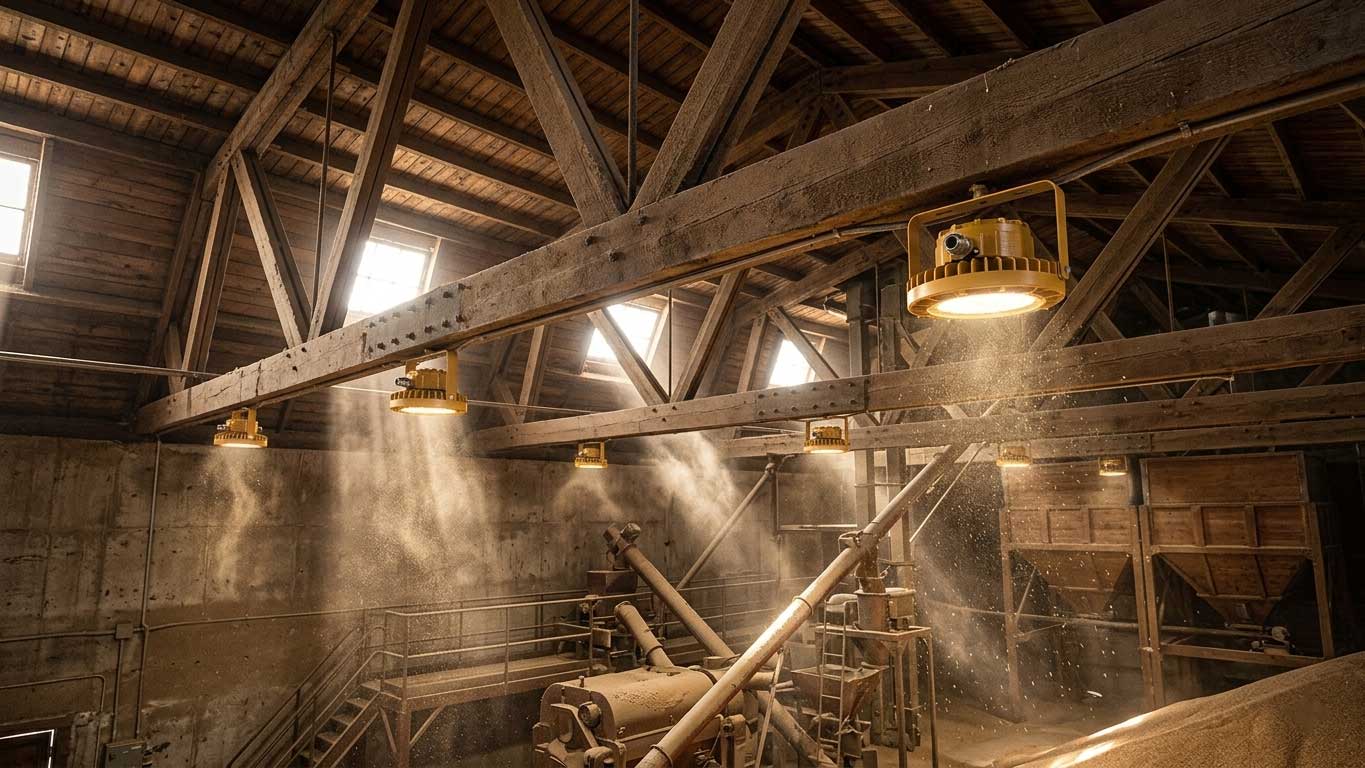

I’ve walked through a grain facility where dust hung visibly in the air. Lighting there isn’t just illumination—it’s part of the risk equation.

hazardous location high bay light: Brightness vs Heat

Let’s talk about output.

Typical Performance Range

Power	Lumens	Application
80W	10,000–12,000 lm	small hazardous zones
100W	13,000–16,000 lm	workshops
150W	20,000–24,000 lm	warehouses
200W	28,000–32,000 lm	large facilities
300W	40,000+ lm	heavy industry

The U.S. Department of Energy reports LED systems can reduce energy consumption by up to 75% compared to traditional lighting.
Source: https://www.energy.gov/energysaver/led-lighting

But brightness isn’t the limiting factor in hazardous environments.

Heat is.

Thermal Control: What Actually Matters

An explosion proof LED high bay must operate below the ignition temperature of surrounding gases.

That changes how it’s designed:

• oversized aluminum heat sinks
• controlled driver current
• high-temperature rated components
• sealed thermal pathways

In one project I reviewed, fixtures performed perfectly for the first few hours. Then temperature drift started—slow, subtle, but enough to exceed safety margins.

That batch never made it to installation.

atex led high bay: Certification Is the Baseline

Certification isn’t a bonus feature.

It’s the minimum requirement.

Key standards:

• ATEX (Europe)
• IECEx (international)
• UL844 (North America)
• Class I Division 1 / 2

According to OSHA, improper electrical equipment remains a major factor in hazardous location incidents.
Source: https://www.osha.gov

What to Check Before Buying

• certification authenticity
• temperature class (T-rating)
• gas group compatibility
• IP66/IP67 sealing
• impact resistance

I’ve seen installations where fixtures technically worked—but failed compliance checks due to missing certification traceability.

That’s a costly mistake.

industrial explosion proof high bay: Installation Reality

Even the best fixture can fail if installed poorly.

And installation issues are more common than product failures.

Common Mistakes

• incorrect cable glands → compromised sealing
• improper mounting height → uneven lighting
• wrong beam angle → shadow zones
• ignoring ambient temperature limits

In one offshore project, condensation formed inside fixtures—not because of design flaws, but because the sealing process during installation was rushed.

The result wasn’t immediate failure.

But it was inevitable.

SEEKINGLED Field Insight

From a manufacturer’s perspective, numbers are easy.

From a field perspective, consistency is harder.

I’ve been involved in:

• factory thermal testing validation
• supplier audits for critical components
• installation troubleshooting in hazardous sites
• long-term performance reviews

What stands out over time:

• most failures are gradual, not immediate
• small sealing defects become major risks
• installation quality directly affects lifespan
• certification must be verifiable—not just claimed

At SEEKINGLED, production isn’t just about output.

It’s about eliminating failure points before the product leaves the factory.

FAQ：explosion proof LED high bay

What is the lifespan of an explosion proof LED high bay?

Typically 50,000–100,000 hours depending on thermal design and driver quality.

Can explosion proof high bays be used in normal environments?

Yes, but they are heavier and more expensive than standard fixtures.

What’s the difference between Class I Div 1 and Div 2?

Div 1: hazardous substances present during normal operation
Div 2: present only under abnormal conditions

Is higher wattage always better?

No. Proper heat control and certification matter more.

Final Insight

An explosion proof LED high bay isn’t just a lighting fixture.

It’s a controlled system designed to ensure that light never becomes a source of ignition.

And in hazardous environments, that distinction is everything.
