How Many LED High Bay Lights Do I Need

Question
How many LED high bay lights do I need for my warehouse, factory, or workshop?

Answer
This is one of the most common questions we receive. There is no fixed number that works for every project. When people ask how many LED high bay lights do I need, they are usually trying to avoid two problems: dark areas and wasted power.

The final number depends on how the space is used, not just how big it is.

Start With the Size of the Area

The first step is always the total floor area. This gives a rough base, nothing more.

For reference only:

• Small warehouse: around 500–800 m²
• Medium warehouse: around 1,000–2,000 m²
• Large factory or logistics center: above 3,000 m²

Two spaces with the same size can still need a different number of LED high bay lights.

Ceiling Height Changes Everything

When estimating how many LED high bay lights you need, ceiling height often matters more than people expect.

Common situations we see:

• 6–8 m ceiling: fewer fixtures, wider spacing
• 8–10 m ceiling: standard high bay layout
• Above 10 m: higher lumen output or closer spacing

Higher ceilings do not automatically mean more lights, but they do require stronger output per fixture.

What Level of Brightness Is Actually Needed

Not every warehouse needs the same light level.

Typical examples:

• Storage only: light is mainly for visibility
• Picking and packing: more uniform lighting
• Assembly or inspection: higher brightness required

This directly affects how many LED high bay lights are installed. Skipping this step usually leads to under-lighting or over-lighting.

Lumen Output of the LED High Bay Light

Most LED high bay lights used in real projects fall between 18,000 and 30,000 lumens.

From experience:

• One 20,000–24,000 lm fixture often covers about 90–120 m²
• Higher output fixtures are used when ceilings are higher or spacing is limited

These are working ranges, not exact rules.

A Simple Example From a Real Project

For a warehouse around 1,000 m², with:

• Ceiling height around 9 m
• General working area (not inspection)
• LED high bay lights around 24,000 lm

The final layout usually ends up with 10 to 14 fixtures.
This range exists because layout, racking, and beam angle all change the result.

This is a typical answer to how many LED high bay lights do I need, not a calculator result.

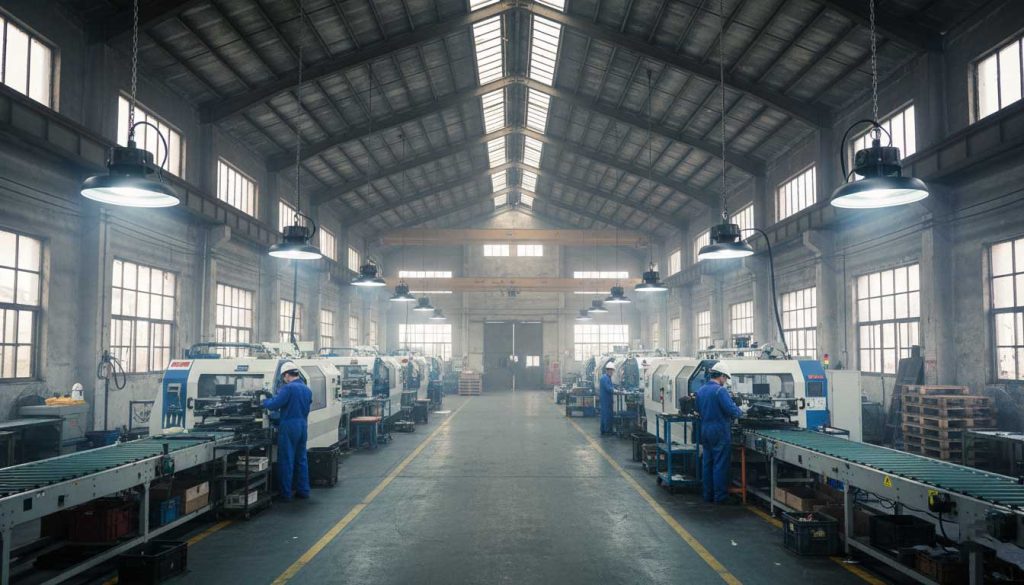

Layout Is Often the Deciding Factor

Even with the “right” number, poor placement causes problems. In real projects, we adjust lighting based on:

• Aisles and shelving rows
• Machinery positions
• Working zones
• Light distribution angle

That is why two warehouses with the same area may use different LED high bay quantities.

Practical Advice

If you are asking how many LED high bay lights do I need, use the calculation as a starting point, not the final answer. A basic estimate helps with budgeting, but layout and usage determine whether the lighting actually works.

At SEEKING, most adjustments happen after reviewing the space, not before.
