How Far Will a LED Flood Light Shine?

It’s a question people ask all the time when planning outdoor lighting: how far will a led flood light shine?

On paper, it sounds simple. In reality… it depends on a few things. Wattage matters, yes. But beam angle, mounting height, and even the surface around the light play a role.

I’ve seen installers expect a small flood light to light up an entire parking lot. That almost never works. At the same time, a well-positioned mid-power LED can easily cover a backyard or driveway with no problem.

So let’s talk about what actually determines the distance.

The Short Answer: Typical LED Flood Light Distance

For most outdoor setups, here’s a realistic estimate:

• 30W LED flood light: around 20–30 meters (65–100 ft)
• 50W LED flood light: around 30–50 meters (100–165 ft)
• 100W LED flood light: around 50–80 meters (165–260 ft)

That’s not a strict rule though. It’s more like a field observation.

A high-quality fixture — like the outdoor units produced by SEEKINGLED — often performs better because of improved optics and lumen output.

Cheap flood lights may claim high wattage but produce much less usable brightness. You notice it immediately once installed.

LED Flood Light Coverage Chart

LED Flood Light Power	Approx. Lumens	Recommended Mounting Height	Typical Lighting Distance	Coverage Area
20W LED Flood Light	2,000–2,800 lm	2–3 m	15–25 m	20–40㎡
30W LED Flood Light	3,000–4,200 lm	3–4 m	20–30 m	40–70㎡
50W LED Flood Light	5,000–7,000 lm	3–6 m	30–50 m	60–100㎡
100W LED Flood Light	10,000–15,000 lm	6–10 m	50–80 m	100–200㎡
200W LED Flood Light	20,000–30,000 lm	8–15 m	80–120 m	200–400㎡

Actual coverage changes according to beam angle, installation height, surrounding reflectivity, and required illumination level.

Why Beam Angle Matters More Than People Expect

Here’s something many buyers overlook: beam angle.

Two lights with the same wattage can behave very differently depending on how wide the beam spreads.

Typical beam angles include:

• 30° – Narrow beam (longer distance)
• 60° – Medium beam (balanced coverage)
• 120° – Wide beam (shorter reach but wider area)

A narrow beam concentrates the light forward, allowing it to travel farther.

A wide beam spreads light over a larger surface, which reduces distance.

For example:

• A 50W narrow beam flood light can illuminate objects 40–60 meters away.
• The same 50W with a 120° beam may only provide useful light up to 25–35 meters.

That’s why professional outdoor lighting designers always check beam angle first.

Mounting Height Changes the Distance

Another factor that quietly changes everything is installation height.

If the light is mounted too low, the beam hits the ground quickly and loses range.

Typical mounting heights:

• Wall lighting: 2.5–4 meters
• Residential yards: 3–5 meters
• Parking lots: 6–12 meters

The higher the light, the wider the coverage pattern becomes.

But there’s a balance. Too high, and brightness at ground level drops.

From field experience, a 50W LED flood light mounted at about 4 meters usually lights a driveway or yard perfectly.

Lumens: The Real Brightness Indicator

People often judge flood lights by wattage alone. That’s outdated thinking from the halogen era.

What really matters is lumens — the amount of light produced.

Typical ranges:

• 30W LED flood light: 3000–4200 lumens
• 50W LED flood light: 5000–7000 lumens
• 100W LED flood light: 10,000+ lumens

Higher lumens mean stronger light that can travel further.

Many SEEKINGLED flood lights reach 130–150 lumens per watt, which improves lighting distance without increasing power consumption.

That efficiency difference becomes obvious when you compare two lights side by side.

30W vs 50W LED Floodlight Comparison

Feature	30W LED Flood Light	50W LED Flood Light
Power Consumption	30W	50W
Typical Lumens	3,000–4,200 lm	5,000–7,000 lm
Lighting Distance	20–30 m	30–50 m
Coverage Area	40–70㎡	60–100㎡
Best Application	Garden, entrance, pathway	Driveway, warehouse entrance, parking area
Energy Use	Lower	Medium
Installation Height	2–4 m	3–6 m
Recommended Use	Small outdoor spaces	Medium outdoor spaces

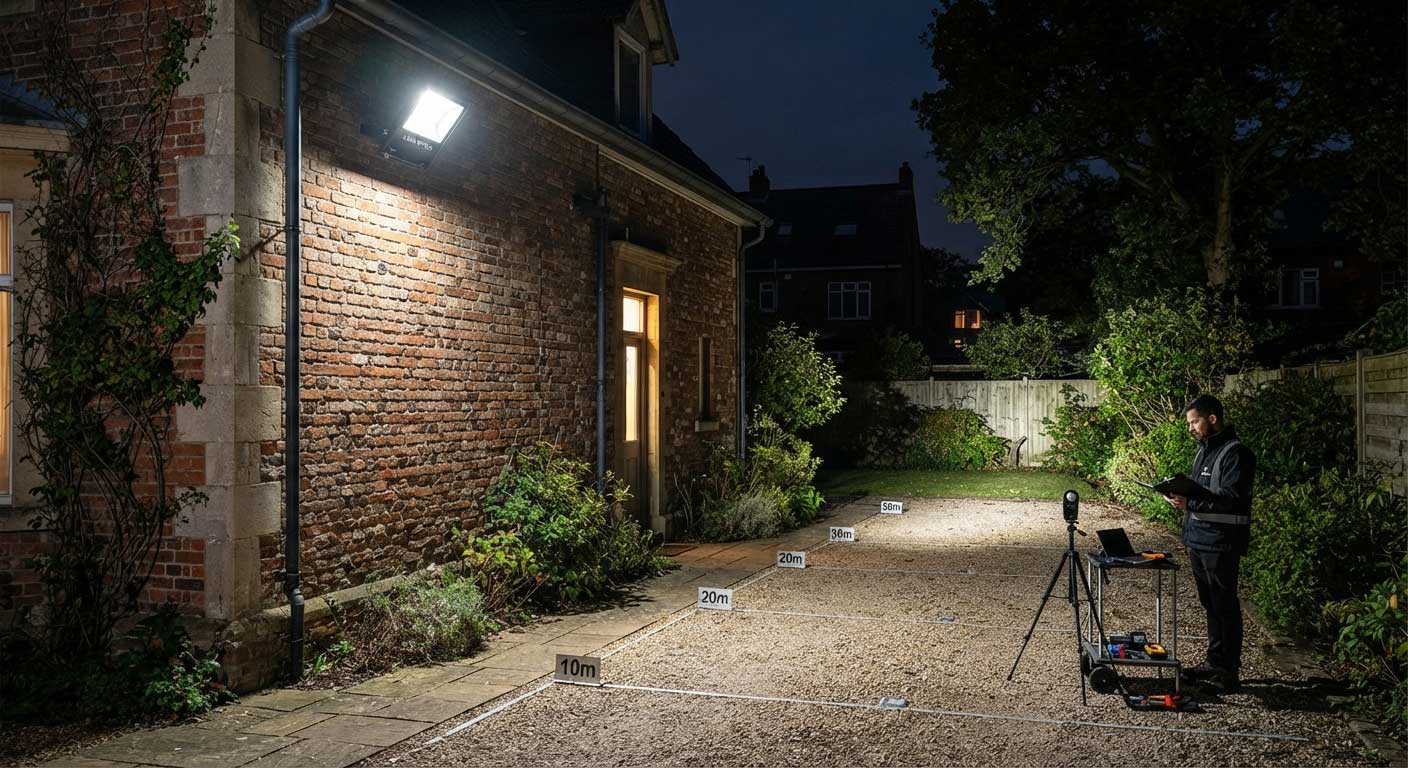

Real-World Example: Backyard Lighting

Let’s say someone installs a 50W LED flood light on a house wall.

• Mounting height: 3 meters
• Beam angle: 90°
• Output: around 6000 lumens

In this setup, the light usually covers:

• 25–35 meters forward
• 10–15 meters wide near the ground

That’s enough to illuminate:

• a backyard
• a driveway
• a small warehouse entrance
• garden security lighting

It won’t light an entire football field. But it’s not supposed to.

Choosing the Right Flood Light Distance

Instead of asking only how far will a led flood light shine, it’s better to think about the lighting purpose.

Different scenarios need different beam spreads.

Good uses for shorter distance flood lights

• patios
• house entrances
• garage areas
• gardens

Medium distance lighting

• driveways
• parking spaces
• building walls

Long distance flood lighting

• sports fields
• construction sites
• large industrial yards

For larger areas, installers often use multiple mid-power flood lights rather than one extremely powerful fixture.

This creates smoother lighting and fewer dark spots.

How to Get the Maximum Lighting Distance

A few practical tips make a big difference.

1. Choose a narrower beam angle
If you need longer reach, go for 30°–60° optics.

2. Mount lights slightly higher
Raising the fixture improves light spread.

3. Avoid cheap low-lumen products
High-efficiency LEDs maintain brightness at longer distances.

4. Use quality optics
Premium lenses focus light more effectively.

This is one reason professional installers prefer brands like SEEKINGLED when designing outdoor lighting projects.

Consistency matters.

FAQ About How Far Will a LED Flood Light Shine?

What Is Flood Light Coverage?

Flood light coverage refers to the total area illuminated by a flood light, which depends on wattage, lumen output, beam angle, and installation height. A 50W LED flood light can typically cover medium outdoor areas such as driveways, gardens, and building entrances.

What Is LED Beads 220V 100W?

LED beads 220V 100W are high-power LED chips used in flood lights designed for 220V electrical systems. A 100W LED flood light usually provides around 10,000 lumens or more, making it suitable for warehouses, industrial yards, and large outdoor spaces.

What Is Flood Light LED Coverage?

Flood light LED coverage describes how far and how wide an LED flood light can illuminate an area. The coverage depends on the beam angle, mounting height, and lumen efficiency. Narrow beams provide longer distance, while wider beams provide larger area coverage.

How Much Area Can a 100W LED Floodlight Cover?

A 100W LED floodlight can typically cover around 80–150 square meters depending on mounting height, beam angle, and required brightness level. It is commonly used for parking lots, warehouses, sports areas, and industrial lighting projects.

How Do Motion Flood Lights Work?

Motion flood lights use sensors to detect movement and automatically activate illumination. They are commonly installed for security lighting, entrances, gardens, and outdoor areas where lighting is only needed when activity occurs.

What Are Common Flood Light Dimensions?

Flood light dimensions vary by power rating and design. Typical outdoor LED flood lights range from compact models around 150×120mm to larger industrial fixtures exceeding 400mm in width. Higher wattage models usually require larger housings for better heat dissipation.

What Is the Coverage Area of a 50W Outdoor LED Flood Light?

A 50W outdoor LED flood light can usually illuminate approximately 50–100 square meters depending on beam angle and installation height. It is suitable for residential yards, driveways, small parking areas, and commercial entrances.

How Far Can a 50W LED Flood Light Shine?

A 50W LED flood light can typically shine around 30–50 meters with suitable optics. A narrow 30° beam can reach farther, while a 120° beam provides wider but shorter coverage.

What Is the Coverage Area of a 50 Watt LED Flood Light?

A 50 watt LED flood light coverage area is usually around 60–100 square meters for general outdoor lighting. Actual performance depends on lumen output, mounting height, and whether the goal is security lighting or full-area illumination.

How Much Area Can a 100 Watt LED Flood Light Cover?

A 100 watt LED flood light can cover approximately 100–200 square meters in many outdoor applications. Higher mounting positions and optimized beam angles allow the fixture to provide wider and more uniform lighting.

What Is a 30 Watt LED Flood Light Used For?

A 30 watt LED flood light is suitable for small outdoor areas such as gardens, patios, pathways, entrances, and residential security lighting. It usually produces about 3,000–4,200 lumens depending on LED efficiency.

What Is a 20W LED Floodlight?

A 20W LED floodlight is a compact outdoor lighting solution used for small spaces. It is commonly installed for home gardens, balconies, signs, walkways, and security applications where moderate brightness is required.

Are 120 Volt LED Flood Lights Available?

Yes, 120 volt LED flood lights are widely used in North America for residential and commercial outdoor lighting. They are designed to connect directly to standard 120V electrical systems and are available in different wattages and beam angles.

How Many Lumens Is a Flood Light?

How many lumens is a flood light? A flood light typically produces 2,000 to 30,000 lumens depending on wattage, application, and efficiency. Residential models often use 2,000–7,000 lumens, while commercial and industrial fixtures may exceed 10,000 lumens for large-area illumination.Learn more about “How Many Lumens Is a Flood Light“

How Many Lumens for Outdoor Flood Light?

How many lumens for outdoor flood light? Most outdoor flood lights need 2,000–10,000 lumens depending on the area size, mounting height, and lighting purpose. Small yards usually require 2,000–5,000 lumens, while commercial areas often need over 10,000 lumens.Learn more about “How Many Lumens for Outdoor Flood Light“

How many lumens for flood light?

How many lumens for flood light? A typical LED flood light requires 1,000–10,000 lumens depending on the application, coverage area, mounting height, and beam angle. Residential areas usually need 1,000–3,000 lumens, while commercial and industrial spaces often require 5,000 lumens or more.Learn more about “How many lumens for flood light“

how many lumens for backyard flood light?

Quick Answer: How many lumens for backyard flood light?

A backyard flood light typically needs 1,000–3,000 lumens for general outdoor illumination. Small patios may work with 700–1,500 lumens, while larger yards, driveways, and security areas often require 2,000–5,000 lumens for wider coverage and stronger visibility.Learn more about “how many lumens for backyard flood light“

how bright is a 50w led floodlight?

Quick Answer: How bright is a 50w led floodlight?

A 50W LED floodlight usually produces 5,000–7,500 lumens, depending on LED efficiency and optical design. It can effectively illuminate driveways, gardens, warehouses, and outdoor areas covering approximately 500–1,000 square feet when installed correctly.Learn more about “how bright is a 50w led floodlight“

how bright is a 30w led floodlight?

Quick Answer: How bright is a 30w led floodlight?

A 30W LED floodlight usually produces 3,000–4,500 lumens, depending on LED efficiency and optical design. It is bright enough for gardens, driveways, entrances, and small commercial areas. The actual coverage depends on mounting height, beam angle, and installation environment.Learn more about “how bright is a 30w led floodlight“

why is my led flood light not working?

If you’re asking why is my LED flood light not working, the issue usually comes down to three things: power supply problems, driver failure, or installation issues.

The LEDs themselves are rarely the first component to fail. In fact, most modern LED chips can run for tens of thousands of hours without serious degradation.

But the electronics around them — drivers, wiring, sensors — that’s where things usually go wrong.Learn more about “why is my led flood light not working“

How to Open Sealed LED Flood Light?

How to open sealed LED flood light is a question that usually comes up when a fixture stops working, traps moisture inside, or needs inspection after long-term outdoor use.
Unlike traditional lights, most modern LED flood lights are designed to stay closed for life, which makes opening them a bit tricky—and sometimes risky.

This guide explains what can be done, what should not be done, and what professionals actually do in real projects.Learn more about “How to Open Sealed LED Flood Light“

Final Thoughts

So, how far will a led flood light shine?

Most residential LED flood lights illuminate 20 to 50 meters, depending on wattage, beam angle, and installation height.

But the real takeaway is this: distance alone isn’t the goal. Good outdoor lighting is about balanced coverage — bright enough, wide enough, and placed correctly.

When the right fixture is used in the right place, even a modest 30W or 50W LED flood light can transform a dark space into a safe, well-lit area.

And that’s exactly what good lighting should do.
