how many high bay lights do i need? Most industrial spaces require 1 high bay light for every 100–400 square feet, depending on ceiling height, fixture wattage, lumen output, and required illuminance level.
In real warehouse and factory lighting projects, I rarely determine the quantity by floor size alone. A 10-meter ceiling and a 5-meter ceiling can require completely different layouts, even in the same building area.
How Many High Bay Lights Do I Need for My Space?
The number of high bay lights required depends on several factors:
Ceiling height
Floor area
LED fixture lumen output
Mounting height
Lighting requirements
Work activities performed below
A simple warehouse storage area may need fewer fixtures than a precision manufacturing workshop because the required light level is different.
According to the Illuminating Engineering Society (IES), recommended illuminance levels vary by application. General warehouse areas may require lower light levels, while detailed manufacturing tasks require higher illumination.
Number of High Bay Lights = Total Required Lumens ÷ Lumens Per Fixture
The total required lumens are calculated using:
Area × Required Foot-Candles × Light Loss Factor
Example:
A warehouse:
Size: 20,000 sq ft
Required lighting level: 30 foot-candles
Light loss factor: 0.8
Required lumens:
20,000 × 30 ÷ 0.8 = 750,000 lumens
If using a 150W LED high bay producing 22,500 lumens:
750,000 ÷ 22,500 ≈ 34 fixtures
The final number may change after considering beam angle, spacing, and installation height.
High Bay Light Quantity by Ceiling Height
Ceiling height is one of the biggest factors affecting fixture quantity.
Ceiling Height
Recommended LED High Bay Power
Typical Coverage
15–20 ft
100W–150W
100–200 sq ft per light
20–30 ft
150W–200W
200–300 sq ft per light
30–40 ft
200W–300W
300–400 sq ft per light
Higher ceilings usually require higher lumen output because light spreads over a larger distance.
However, simply increasing wattage is not always the best solution. Proper spacing often creates better uniformity.

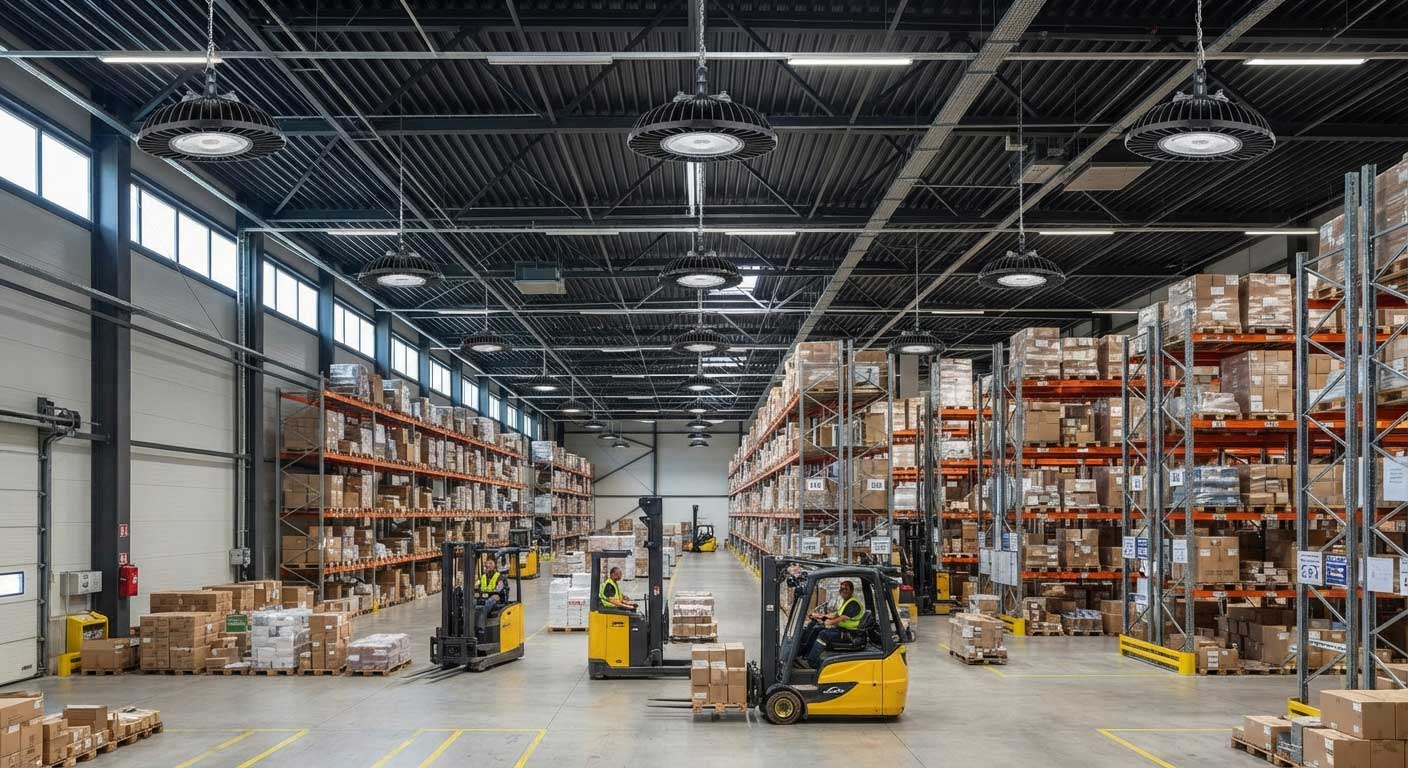

How Many LED High Bay Lights Do I Need for a Warehouse?
Warehouse lighting is usually influenced by:
Storage rack height
Aisle arrangement
Forklift movement
Worker safety requirements
For example:
A 50,000 sq ft warehouse with 30 ft ceilings may require approximately:
100 fixtures using traditional lower-output lights
50–70 LED high bay fixtures with modern high-efficiency technology
Modern LED high bays can reduce fixture quantity because many commercial models now achieve over 150 lumens per watt.
The U.S. Department of Energy reports that LED lighting can provide significant efficiency improvements compared with traditional lighting technologies.
Why Lighting Layout Matters More Than Fixture Count
One mistake I often see is calculating only the number of lights without considering placement.
Two warehouses may both require 40 fixtures, but the installation results can be completely different.
Important layout factors include:
Fixture spacing
Mounting height
Beam angle
Reflective surfaces
Work area location
A poorly arranged lighting system can create:
Dark areas between fixtures
Excessive glare
Uneven brightness
Higher energy consumption
Choosing the Right High Bay Light Before Calculating Quantity
The fixture specification directly affects how many lights are needed.
Important specifications include:
Specification
Why It Matters
Lumens
Determines light output
Wattage
Affects energy consumption
Beam angle
Controls light coverage
Color temperature
Influences working environment
IP rating
Determines environmental protection
For industrial applications, SEEKINGLED led high bay lighting solutions are designed for warehouses, factories, and commercial spaces where efficiency and reliability are important.
Real Project Experience: Avoid Buying Too Many Lights
In many factory upgrades, customers initially assume more lights mean better results.
That is not always true.
I have reviewed projects where additional fixtures created excessive brightness near working areas but still left dark corners because the layout was incorrect.
A lighting plan should balance:
Quantity
Position
Output
Application requirements
The goal is not the maximum number of fixtures. The goal is consistent and efficient illumination.
FAQ: how many high bay lights do i need?
How many high bay lights do I need for a 10,000 sq ft warehouse?
A 10,000 sq ft warehouse may require around 20–50 LED high bay fixtures depending on ceiling height, lumen output, and lighting requirements.
How far apart should high bay lights be installed?
Spacing depends on mounting height and beam angle. Many industrial installations use spacing between 15 and 40 feet.
How many lumens does a high bay light need?
Most industrial LED high bays produce approximately 10,000–45,000 lumens depending on application.
Can LED high bays replace metal halide lights?
Yes. LED high bays are commonly used as replacements because they provide higher efficiency and longer service life.
Should I calculate lights by watts or lumens?
Lumens are more accurate because wattage only shows energy consumption, not actual light output.
Conclusion
how many high bay lights do i need? The answer depends on your building size, ceiling height, fixture output, and lighting requirements.
A correct calculation combines lumen output, spacing, and application conditions rather than relying on floor area alone.
SEEKINGLED helps industrial customers design efficient high bay lighting systems that deliver reliable illumination for warehouses, factories, and commercial spaces.
