View detailsHow to Wire High Bay LED Lights With Dimmer？
Question

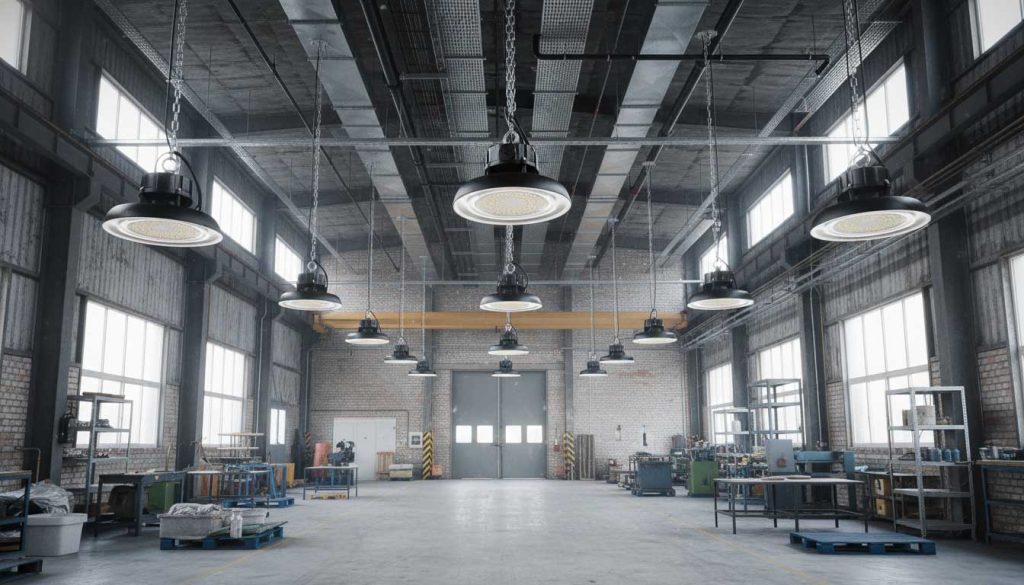

How do you wire high bay LED lights with a dimmer in a real warehouse setup?
Answer
People usually search how to wire high bay LED lights with dimmer after realizing one thing: a normal wall dimmer doesn’t work in an industrial space. High bays sit high, run long hours, and often need to react to movement or schedules. That changes how wiring is done.
The wiring itself isn’t difficult. The confusion comes from mixing power wiring and control wiring.
First Thing to Check (Before Any Tools)
Not every high bay LED light can be dimmed.
On site, installers always look at the driver label first. If it doesn’t clearly mention dimming (most commonly 0–10V), the dimmer won’t do anything. No amount of rewiring fixes that.
This is where many projects lose time.
Power Wiring Stays the Same
One thing that surprises people:
Adding a dimmer does not change how power is wired.
You still connect:
- Live
- Neutral
- Ground
Exactly the same way as a non-dimmable high bay. Power comes first. Always.
Where the Dimmer Actually Connects
Most industrial high bay lights use 0–10V dimming.
That means two extra thin wires, usually:
- Purple
- Gray
These wires don’t carry load power. They only send a control signal to the driver. Think of them as instructions, not electricity for lighting.
This is the key point people miss when learning how to wire high bay LED lights with dimmer.
Real-World Wiring Logic
In real projects, it usually looks like this:
- Power lines go directly to the fixture
- Control wires go from the dimmer, sensor, or controller
- Multiple high bays share one dimming signal
Installers don’t run a separate dimmer for every light. They group fixtures by zone.
Why Flickering Happens
If dimming doesn’t work properly, it’s rarely the fixture.
Common causes seen on site:
- Control wires tied too close to AC cables
- Wrong dimmer type
- Control polarity mixed up
- Dimmer incompatible with the driver
Most of these issues only show up after power is on.
Motion Sensors and Smart Controls
In warehouses, wall dimmers are often skipped completely.
Instead:
- Motion sensors handle dimming
- Lights drop to a low level when idle
- Full brightness returns when movement is detected
Wiring is cleaner, and no one touches the controls by accident.
Practical Advice From Installers
Many electricians wire and test dimming at floor level before lifting fixtures. It saves hours later. Once a high bay is up at 10 meters, small wiring mistakes become expensive.
At SEEKING, dimmer wiring questions usually come up during layout planning, not during installation. That’s where problems are cheapest to fix.
