what is high bay lighting?

2026-08-07News LED Light FAQ 00

Quick Answer: What is high bay lighting?

High bay lighting is a powerful lighting solution designed for large spaces with high ceilings, typically 15 feet or higher. It uses high-output LED technology to provide uniform illumination in warehouses, factories, workshops, and commercial buildings where standard fixtures cannot deliver enough coverage.

At SEEKINGLED, we have designed and supplied industrial LED lighting solutions for applications where lighting consistency directly affects productivity and safety. From warehouse aisles to manufacturing lines, selecting the right high bay lighting system requires understanding ceiling height, working conditions, and illumination requirements.

Understanding what is high bay lighting and why it is used

When customers ask what is high bay lighting, they are usually trying to understand why these fixtures are different from ordinary ceiling lights.

High bay lighting refers to specialized fixtures engineered for spaces with high mounting heights. Unlike residential lights that illuminate small areas, high bay systems are designed to push large amounts of controlled light downward across wide industrial spaces.

Common applications include:

Warehouses
Manufacturing plants
Distribution centers
Aircraft hangars
Sports facilities
Large retail buildings
Workshops

The main goal of high bay lighting is not simply producing more brightness. It is creating balanced illumination across a large area while reducing shadows and glare.

In real projects, we often find that a poorly designed lighting system causes problems even when the lumen output appears sufficient. The fixture position, beam angle, ceiling height, and reflective surfaces all affect the final lighting result.

According to the U.S. Department of Energy, LED lighting provides higher efficiency and longer service life compared with traditional lighting technologies, making LED high bay systems a preferred choice for industrial applications.

Source: U.S. Department of Energy LED Lighting Guide

How high bay lighting works in industrial environments

High bay lights are designed around three important principles:

1. High lumen output

Industrial spaces often have ceilings between 15 and 60 feet high. Light loses intensity as distance increases, so high bay fixtures require strong lumen output to maintain useful illumination at floor level.

Typical LED high bay outputs:

High Bay Type	Typical Power	Approximate Lumens
Compact LED High Bay	100W	13,000–15,000 lm
Standard Industrial High Bay	150W	20,000–22,000 lm
Heavy-duty High Bay	200W–240W	28,000–36,000 lm

The correct lumen output depends on the building layout and required lighting level.

2. Controlled light distribution

A high bay fixture uses optical lenses or reflectors to direct light efficiently.

Different beam angles serve different purposes:

Beam Angle	Application
60°	High ceilings and focused lighting
90°	General warehouse lighting
120°	Open areas and wide coverage

During industrial lighting installations, we often adjust beam distribution rather than simply increasing wattage. Better optical control can improve visibility without increasing energy consumption.

3. Thermal management

Industrial environments often operate lighting systems for long hours. Heat management directly affects LED lifespan and brightness stability.

Quality high bay lights use:

Aluminum heat sinks
Efficient LED drivers
Optimized airflow designs
Durable housing materials

At SEEKINGLED, thermal performance is considered during product development because industrial lighting failures often begin with excessive heat buildup.

High bay lighting vs regular LED lighting

Many customers initially think any bright LED fixture can replace high bay lighting. In practice, the application requirements are different.

Feature	High Bay Lighting	Standard LED Lighting
Ceiling height	15–60+ feet	Below 15 feet
Light output	High lumen	Medium lumen
Coverage	Large industrial areas	Small rooms
Installation	Suspended or mounted high	Ceiling/wall mounted
Main use	Factories and warehouses	Offices and homes

A warehouse with a 30-foot ceiling requires a completely different lighting approach compared with a 10-foot office.

Types of LED high bay lighting solutions

UFO LED high bay lights

UFO high bay lights are currently one of the most popular industrial lighting options.

Advantages include:

Compact design
Efficient heat dissipation
Easy installation
Wide application range

They are commonly used in warehouses, workshops, and production areas.

Linear LED high bay lights

Linear high bay fixtures provide long, continuous illumination.

They are ideal for:

Warehouse aisles
Supermarkets
Production lines
Storage facilities

Their shape helps distribute light evenly along long spaces.

Where is high bay lighting commonly installed?

High bay lighting is widely used wherever large spaces require reliable illumination.

Common locations:

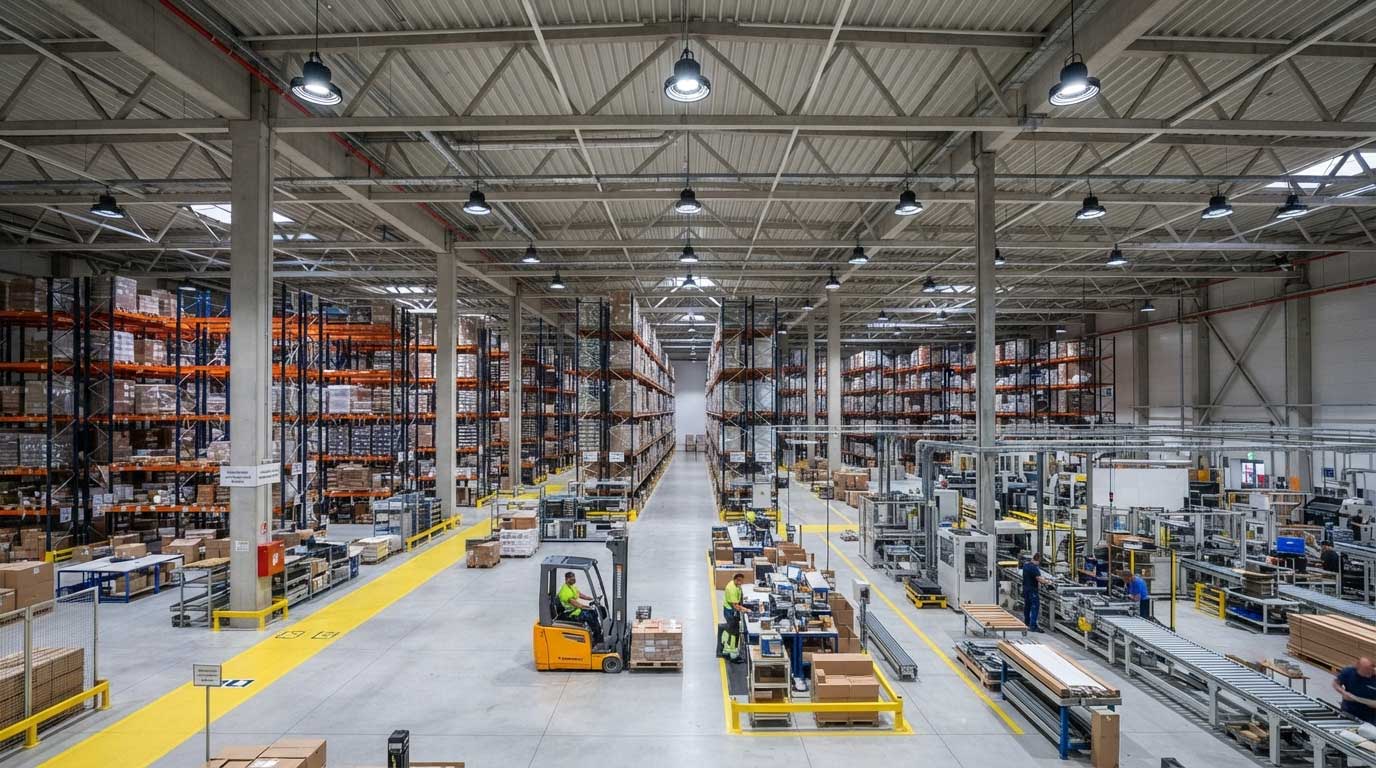

Warehouses

High bay fixtures help workers identify products, navigate aisles, and operate equipment safely.

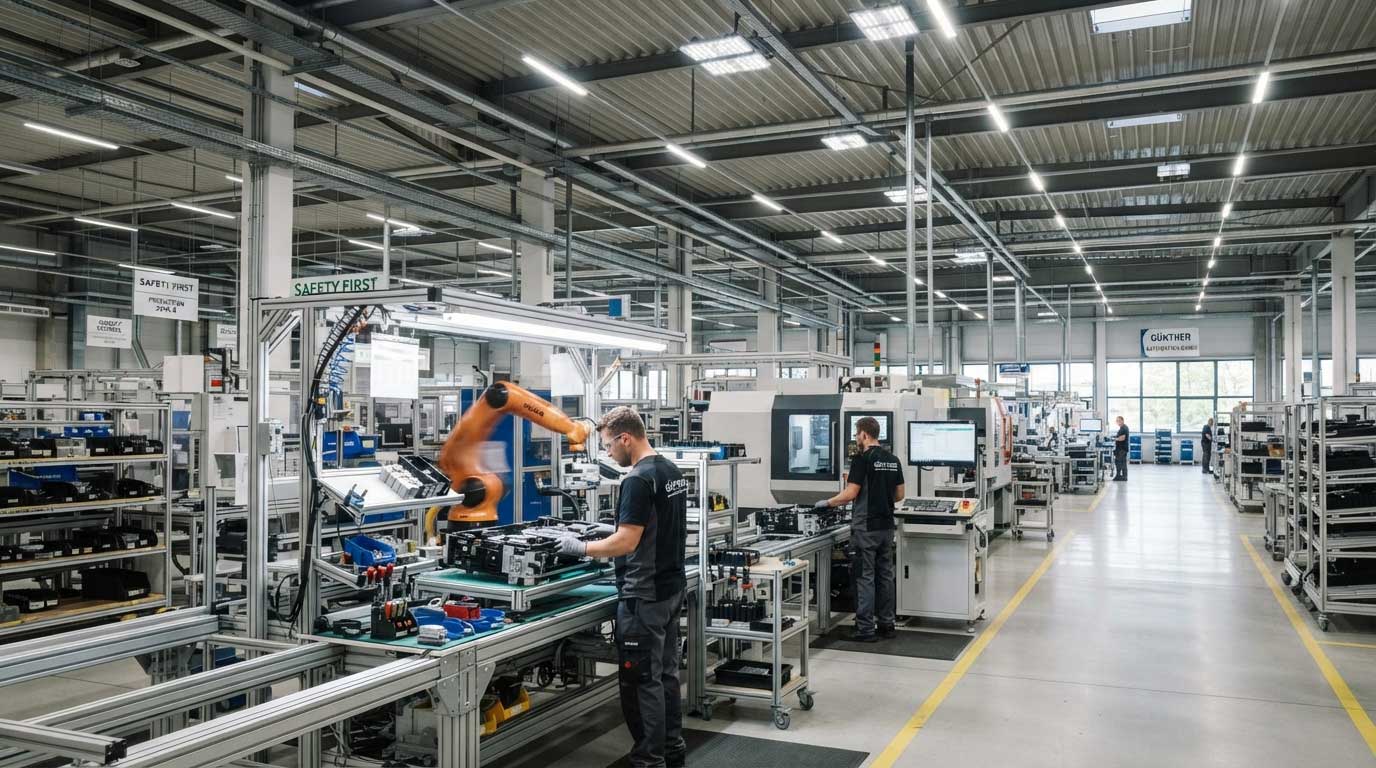

Manufacturing facilities

Factories require stable lighting for:

Machine operation
Quality inspection
Assembly work

Commercial buildings

Large stores and exhibition halls use high bay lighting to create wide-area illumination.

Sports facilities

Indoor sports venues require powerful lighting with controlled glare for players and spectators.

The Illuminating Engineering Society (IES) provides professional lighting recommendations based on application requirements, visual tasks, and safety considerations.

Source: Illuminating Engineering Society Official Website

How to choose the right high bay lighting system

Choosing the correct high bay lighting system requires more than selecting a fixture with the highest wattage. In actual industrial projects, lighting performance depends on how well the fixture matches the building structure and working environment.

At SEEKINGLED, we have evaluated high bay lighting projects where two facilities with the same floor area required completely different solutions. A warehouse storing products on tall racks needs different light distribution compared with an open production workshop.

Before selecting a high bay lighting system, consider:

Factor	Why It Matters
Ceiling height	Determines required lumen output
Floor area	Influences fixture quantity
Work activity	Defines required brightness
Mounting method	Affects light distribution
Operating environment	Determines durability requirements

A professional lighting layout usually evaluates:

Mounting height
Fixture spacing
Beam angle
Target lux level
Maintenance requirements

This approach avoids common problems such as over-lighting, dark zones, and unnecessary energy costs.

High bay lighting installation height and spacing guide

One of the defining characteristics of high bay lighting is its ability to illuminate areas with elevated ceilings.

Typical installation recommendations:

Ceiling Height	Recommended High Bay Solution
15–20 feet	100W–150W LED high bay
20–30 feet	150W–200W LED high bay
30–40 feet	200W–240W LED high bay
40+ feet	High-output industrial high bay system

Spacing also plays an important role.

For example:

Low ceiling industrial areas may use closer fixture spacing.
Higher ceilings may require fewer but more powerful fixtures.
Narrow aisles may need focused beam angles.
Open spaces may benefit from wider distribution.

A lighting design that ignores spacing often creates uneven brightness, even when the total lumen output looks correct.

Benefits of LED high bay lighting for industrial applications

Modern LED high bay lighting has become the preferred solution for many industrial facilities because it combines efficiency with long-term reliability.

Reduced energy consumption

Traditional industrial lighting systems often used high-power metal halide or fluorescent fixtures.

LED high bay replacements can significantly reduce energy usage.

Example:

Lighting System	Power Consumption
400W Metal Halide Fixture	400W
LED High Bay Replacement	100W–240W

For facilities operating lights 8–12 hours every day, the energy difference can become substantial.

The U.S. Department of Energy notes that LED lighting uses less electricity and offers longer operating life compared with conventional lighting technologies.

Source: U.S. Department of Energy Energy Saver Lighting Information

Lower maintenance requirements

Industrial lighting maintenance can interrupt production schedules.

LED high bay systems reduce maintenance because they typically provide:

Longer service life
More stable brightness
Better resistance to frequent operation

Many quality LED high bay fixtures are rated for 50,000 hours or more of operation depending on product design and environmental conditions.

Improved workplace visibility

Lighting quality directly affects working conditions.

A properly designed high bay lighting system helps:

Reduce shadows
Improve visibility
Support safer operations
Increase visual comfort

In manufacturing environments, consistent illumination is especially important for workers performing detailed tasks.

Why choose SEEKINGLED high bay lighting solutions?

SEEKINGLED focuses on developing LED lighting products designed for demanding commercial and industrial environments.

Our high bay lighting solutions are engineered around practical requirements:

High lumen efficiency
Reliable LED drivers
Strong thermal management
Durable industrial housings
Flexible installation options

Industrial lighting is not only about producing more light. A successful project requires stable performance over years of operation.

From warehouses and factories to large commercial buildings, SEEKINGLED helps customers select lighting systems that balance brightness, efficiency, and reliability.

FAQ: what is high bay lighting?

What is high bay lighting used for?

High bay lighting is used for large spaces with high ceilings, including warehouses, factories, workshops, distribution centers, and sports facilities.

What ceiling height requires high bay lighting?

High bay lighting is generally designed for ceilings around 15 feet or higher. Large industrial spaces with 20–60 feet ceilings commonly use high bay fixtures.

What is the difference between high bay and low bay lighting?

High bay lighting is designed for higher ceilings and larger areas, while low bay lighting is used for lower ceilings where less powerful illumination is required.

How many lumens does a high bay light need?

Most industrial LED high bay lights range from approximately 13,000 to 36,000 lumens depending on wattage, ceiling height, and application requirements.

Are LED high bay lights energy efficient?

Yes. LED high bay lighting typically consumes less energy than traditional industrial lighting systems while providing similar or improved illumination.

How long do LED high bay lights last?

Quality LED high bay lights commonly provide 50,000 hours or more of operation depending on temperature, driver quality, and installation conditions.

Conclusion

Understanding what is high bay lighting means understanding how industrial spaces achieve reliable, efficient, and uniform illumination.

High bay lighting is specifically designed for high-ceiling environments where traditional lighting cannot provide sufficient coverage. With advanced LED technology, modern high bay systems help businesses reduce energy consumption, lower maintenance costs, and improve workplace visibility.

SEEKINGLED provides professional LED high bay lighting solutions for warehouses, factories, and commercial applications, helping customers achieve efficient lighting performance in demanding environments.
