Queensland Football Stadium Training Lighting Upgrade: On-Site Notes

Project Location: Queensland, Australia
Application: Football Training Field
Installation Time: November 2024
Product Model: XJ-FLD720W
Quantity: 24 pcs
Brand: SEEKINGLED

This project was not about match broadcasting or spectator lighting. It was clearly defined as a training field upgrade. That distinction mattered from the start. The lighting needed to be consistent, predictable, and comfortable for repeated daily use, not pushed to television levels.

We received the field dimensions and existing pole positions first. No changes to pole height or quantity were planned, which set the boundary conditions early.

Initial Considerations

The client referenced CIE sports lighting standards in the early discussions. That immediately framed the targets: average illuminance above 300 lux, uniformity over 0.5, and CRI above 70. Nothing beyond that was requested.

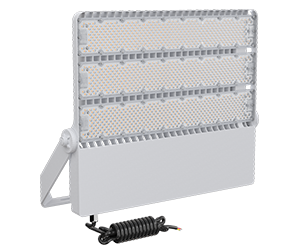

Given the number of poles and coverage area, higher-wattage fixtures were unavoidable. We selected the XJ-FLD720W LED Flood Light based on beam control and output range rather than just total lumen numbers.

Layout and Calculations

The layout went through several iterations. Training fields are sensitive to shadowing, especially across central zones where drills happen most often. We adjusted aiming angles repeatedly in the simulation to balance overlap without creating hot spots.

Final calculations showed an average illuminance exceeding 300 lux, with uniformity above 0.5 across the training surface. These figures aligned with CIE guidance for football training environments.

CRI remained above 70 throughout the calculation process. Higher color rendering was not required for this application.

Installation Phase

Installation took place in November 2024. All 24 fixtures were mounted according to the approved layout. On-site aiming took time. Small adjustments had noticeable effects, especially along the sidelines.

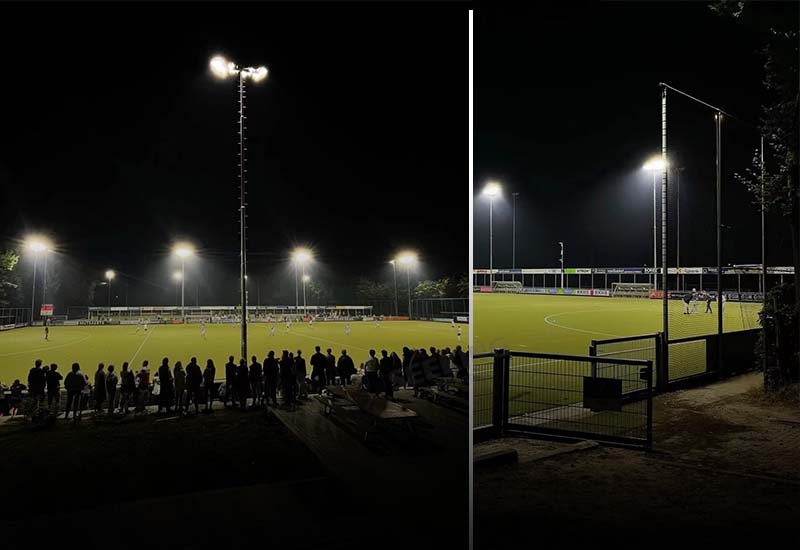

After power-up, we walked the field rather than relying only on meter readings. The light distribution felt even, particularly in areas used for passing drills and warm-up routines.

After Commissioning

Once measurements confirmed compliance with the design targets, no further changes were requested. From an engineering perspective, this Queensland Football Stadium Training Lighting Upgrade was defined by restraint—meeting standards without pushing beyond what the field actually needed.
