Minimum Height for High Bay Lights: What Installers Actually Use

Q: What is the minimum height for high bay lights?

The minimum height for high bay lights is 20 feet (about 6 meters). Below that, the fixture is no longer considered a true high bay. It behaves differently, throws light too aggressively, and creates glare problems that you can’t “fix” by lowering wattage.

That 20-foot threshold isn’t marketing language. It’s the line used in IES (Illuminating Engineering Society) guidance and is the same boundary most inspectors and lighting designers follow on real sites.

Q: Why does minimum height matter so much?

Because LEDs are directional. That sounds obvious, but it’s the mistake I see most often on site.

In one retrofit project we handled with SEEKINGLED, the client installed high bay fixtures at around 16–17 feet to save cost. On paper, the lumen output looked fine. On the floor, it was uncomfortable—bright hot spots, harsh reflections on pallets, and operators literally tilting their heads away from the light.

We replaced them with low-bay optics at the same height. Same brand. Same power class. The space immediately felt calmer.

So yes, minimum ceiling height for high bay lighting isn’t optional. It’s structural.

Q: Is 20 feet always enough?

Not always.

From experience:

• 20–25 ft (6–7.5 m): Entry-level high bay range
• 25–40 ft (7.5–12 m): Standard warehouse and production halls
• 40+ ft (12 m+): Logistics hubs, hangars, heavy industry

At the lower edge—right at 20 feet—you need wide beam angles (90°–120°) and careful spacing. Narrow optics at that height are a mistake. I’ve seen it tried. It never ends well.

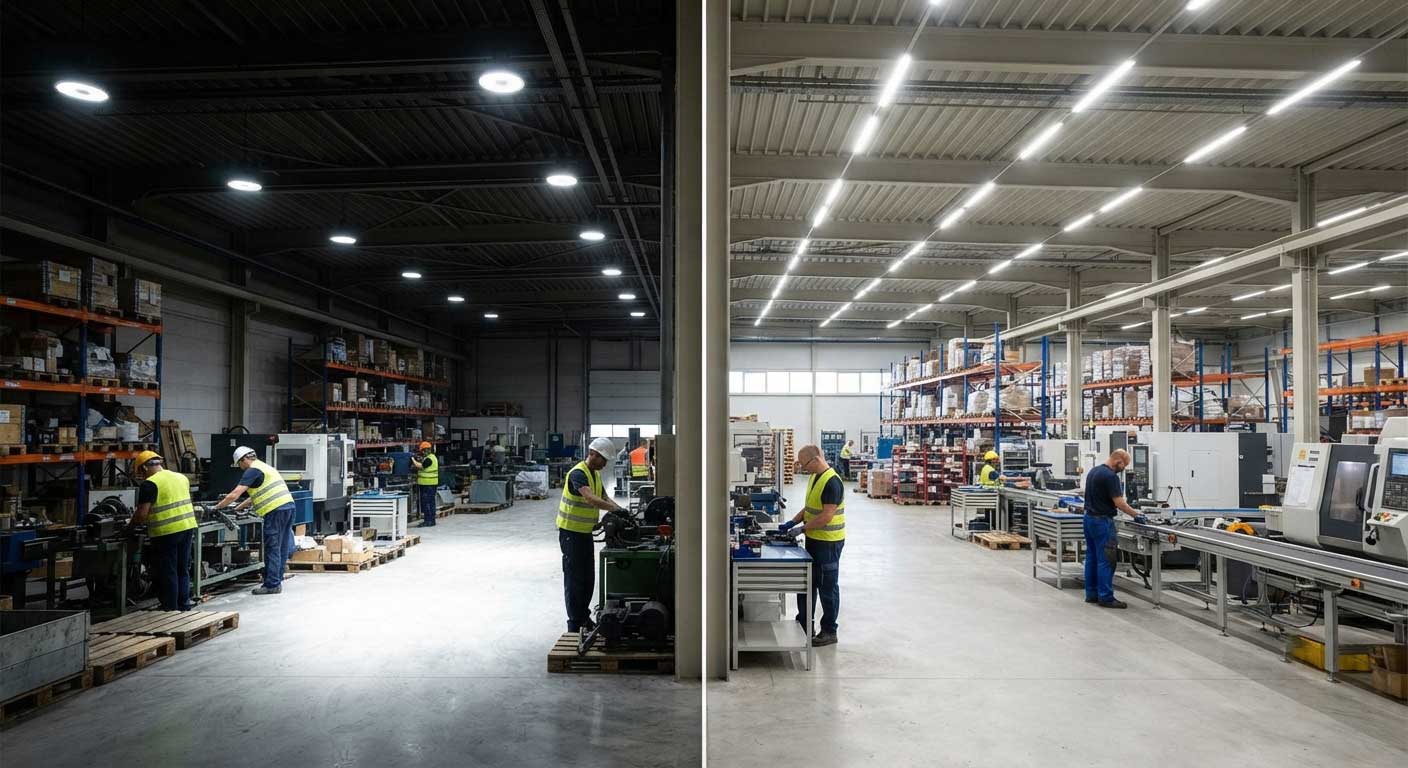

Q: What happens if high bay lights are installed too low?

Three things, every time:

1. Glare complaints from staff
2. Uneven lux readings between aisles
3. Pressure to dim or replace fixtures early

The U.S. Department of Energy has published multiple case studies showing that LED efficiency gains disappear when fixtures are mounted outside their intended height range. You don’t lose watts—you lose usability.

That’s why high bay light mounting height must match optic design, not just ceiling clearance.

Q: How does SEEKINGLED handle minimum height in real projects?

At SEEKINGLED, we never start with wattage. We start with height.
If the ceiling measures under 6 meters, we recommend low-bay or hybrid optics—no debate. If it’s above that, we model spacing based on rack layout, not just square meters.

That approach comes from field corrections, not spreadsheets.

Q: Final rule of thumb?

If you’re asking about the minimum height for high bay lights, the space is probably borderline. Measure carefully. If it’s under 20 feet, don’t force it. Choose the right category and the lighting will last longer—and feel right from day one.
