What Are Hazardous Area Light Fittings?

What Are Hazardous Area Light Fittings?

Hazardous area light fittings are specially engineered lighting fixtures designed for locations where flammable gases, combustible dust, or explosive vapors may be present. Unlike ordinary industrial lights, they are built to prevent ignition sources, comply with ATEX or IECEx standards, and safely operate in hazardous Zones 1, 2, 21, and 22.

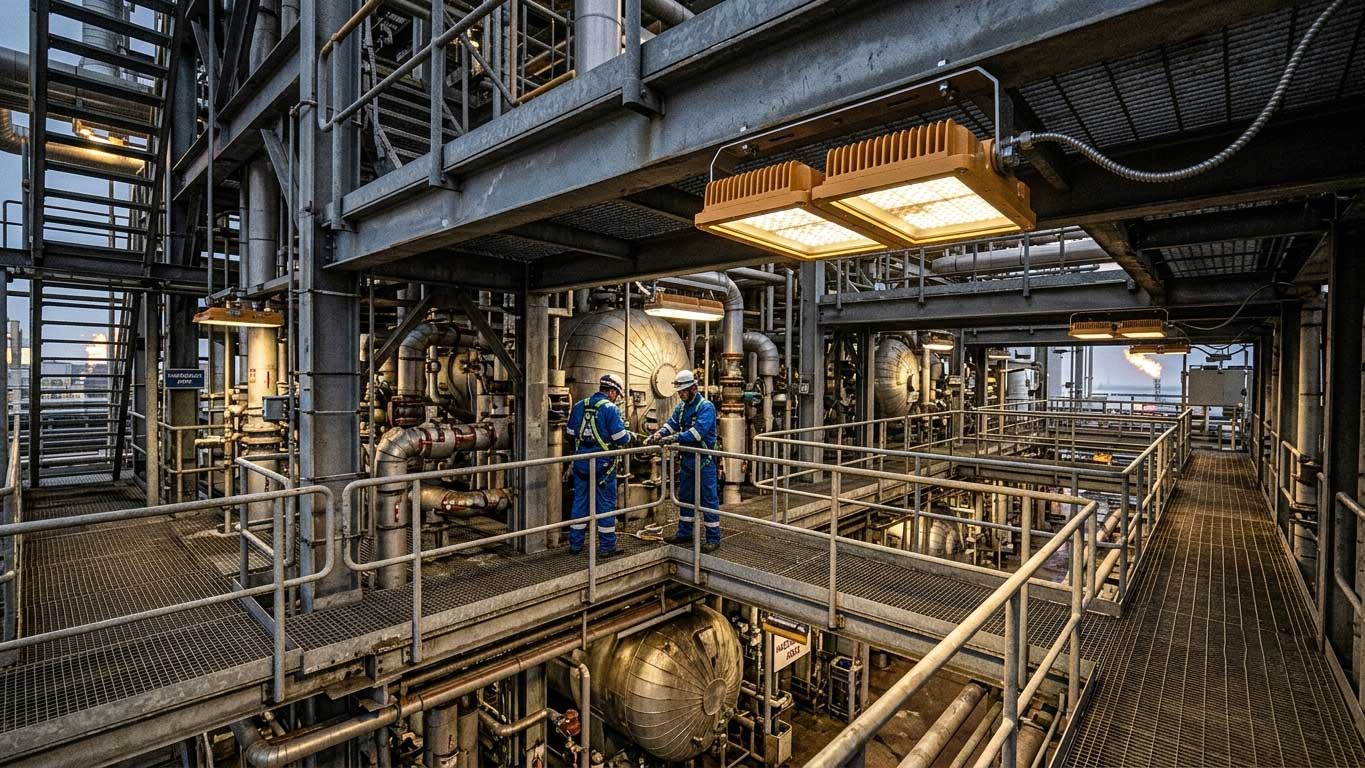

When I first entered a refinery maintenance corridor years ago, the lighting itself barely attracted attention. The pipes were louder than the fixtures. Pumps vibrated through the steel floor. Yet every engineer standing there knew something important: if the lighting failed, or worse, became an ignition source, the consequences could be severe.

That experience changed the way I look at hazardous lighting.

Why Are Hazardous Area Light Fittings Different?

Ordinary luminaires focus on illumination.

Hazardous area light fittings focus on safety first.

Their purpose is not simply producing lumens. Their primary function is preventing electrical components, heat, sparks, or arcs from igniting dangerous atmospheres.

These fittings typically feature:

• Heavy-duty aluminum housings
• Impact-resistant lenses
• Sealed cable entries
• Temperature-controlled drivers
• Certified explosion protection methods

According to the European Commission ATEX Directive, equipment installed in explosive atmospheres must comply with strict safety requirements.

Reference:
https://single-market-economy.ec.europa.eu/sectors/mechanical-engineering/atex_en

Where Are Hazardous Area Light Fittings Used?

The list is surprisingly broad.

Oil and Gas Facilities

• Offshore platforms
• Refineries
• LNG terminals
• Fuel depots

Chemical Plants

• Solvent processing areas
• Paint production
• Storage facilities

Food Processing

• Flour mills
• Sugar plants
• Grain elevators

Wastewater Facilities

Methane accumulation inside enclosed spaces creates potential ignition hazards.

Marine and Offshore Environments

Salt corrosion and explosive atmospheres often exist simultaneously.

Understanding Hazardous Zones

Hazardous locations are divided according to the likelihood of explosive atmospheres.

Zone	Description
Zone 0	Gas present continuously
Zone 1	Gas likely during normal operation
Zone 2	Gas unlikely and short duration
Zone 21	Dust present frequently
Zone 22	Dust present occasionally

IEC standards define these classifications internationally.

Reference:
https://www.iecex.com

What Certifications Matter?

Not all certifications serve the same markets.

Certification	Region
ATEX	Europe
IECEx	International
UL844	North America
CSA	Canada
CNEX	China

One purchasing manager once asked whether IP66 was enough.

The answer was simple.

No.

IP ratings indicate resistance to water and dust. They do not certify explosion protection.

What Makes LED Hazardous Area Fittings Popular?

LED technology has changed the industry dramatically.

Advantages include:

• Lower energy consumption
• Longer operating life
• Reduced maintenance
• Instant startup
• Lower operating temperatures

The U.S. Department of Energy reports that LED systems can significantly reduce energy consumption compared with traditional lighting technologies.

Reference:
https://www.energy.gov/eere/ssl

Modern hazardous LED fixtures often achieve:

• 140–180 lm/W
• 50,000–100,000 hours lifetime

Common Mistakes Buyers Make

After years of industrial projects, the same problems repeatedly appear.

Buying by Wattage

Two 100W fixtures may produce completely different lumen outputs.

Ignoring Temperature Class

Surface temperature limits matter.

Using Standard Industrial Lights

Waterproof does not mean explosion-proof.

Choosing Lowest Price

Cheap fixtures often result in expensive maintenance.

How Long Do Hazardous Area Light Fittings Last?

Service life depends on:

• Driver quality
• Thermal design
• Ambient temperature
• Operating hours

Modern LED hazardous fittings generally operate for:

• 50,000 hours minimum
• Up to 100,000 hours under ideal conditions

At 12 hours daily operation, this may equal more than 20 years.

Author Experience

The SEEKINGLED engineering team has participated in industrial lighting projects involving:

• Oil terminals
• Chemical facilities
• Marine installations
• Manufacturing plants

One lesson remains consistent.

Customers rarely complain about buying lighting that is too reliable.

They often regret purchasing products that only looked economical on paper.

Lighting becomes invisible when it works well.

That is exactly its job.

FAQ About What Are Hazardous Area Light Fittings?

Are hazardous area light fittings explosion-proof?

Many are designed using explosion protection methods such as Ex d or Ex e and are certified for hazardous zones.

Can hazardous fittings be used outdoors?

Yes. Most products offer IP66 or IP67 protection for outdoor industrial environments.

Are LED hazardous fittings better than HID lights?

LED systems generally provide longer life, lower maintenance, and higher efficiency.

Do all hazardous areas require ATEX certification?

No. ATEX applies primarily within Europe, while IECEx and UL certifications serve other regions.

Visit product page: Hazardous Area Light Fittings

Conclusion

What Are Hazardous Area Light Fittings? They are safety-critical lighting systems designed to operate where explosive gases, vapors, or combustible dust may exist. Their value extends beyond illumination. Properly selected hazardous area light fittings protect personnel, improve reliability, reduce maintenance costs, and help facilities comply with international safety regulations.

For industrial facilities, lighting is rarely the largest investment.

But when it fails, everyone notices.
